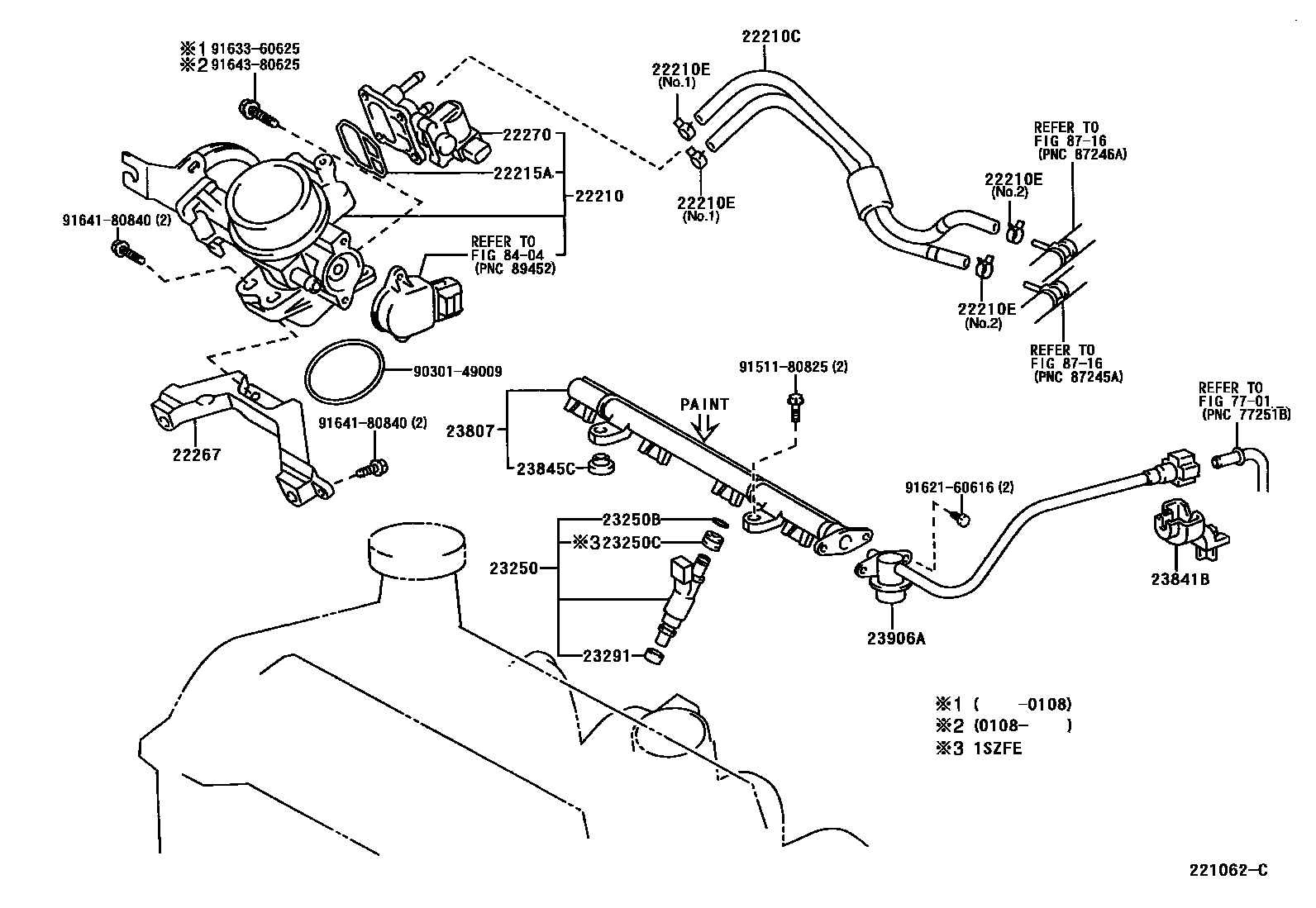

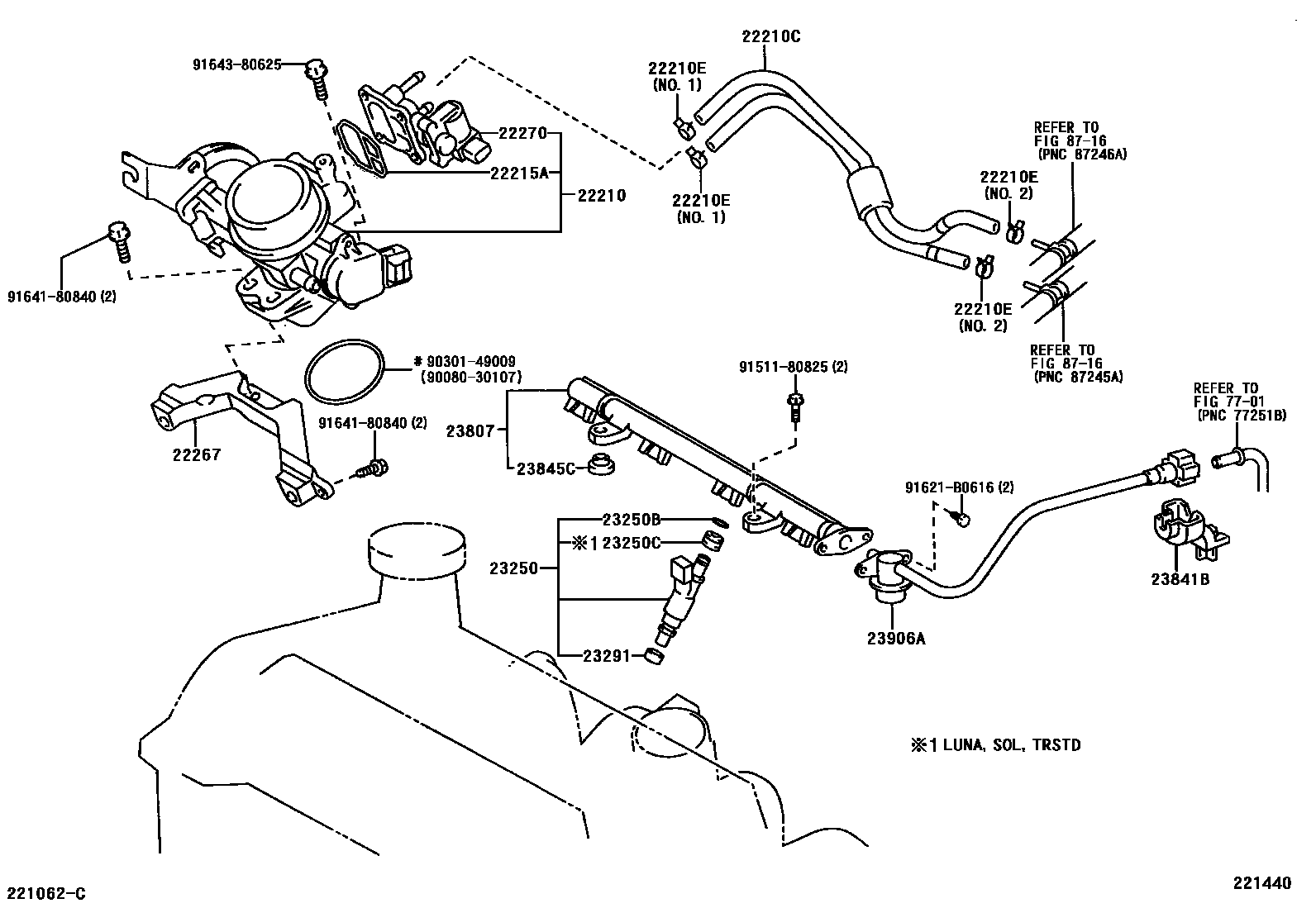

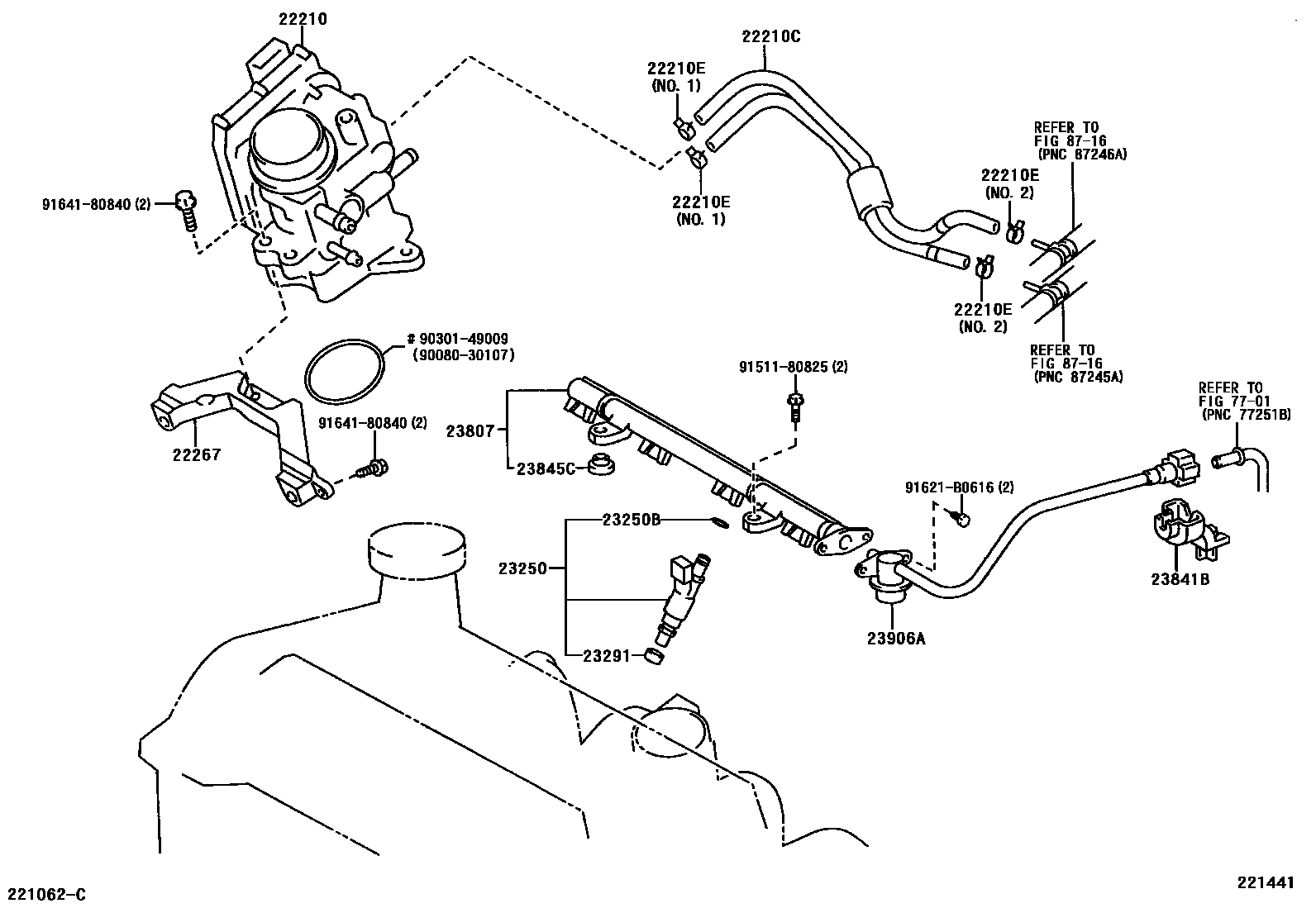

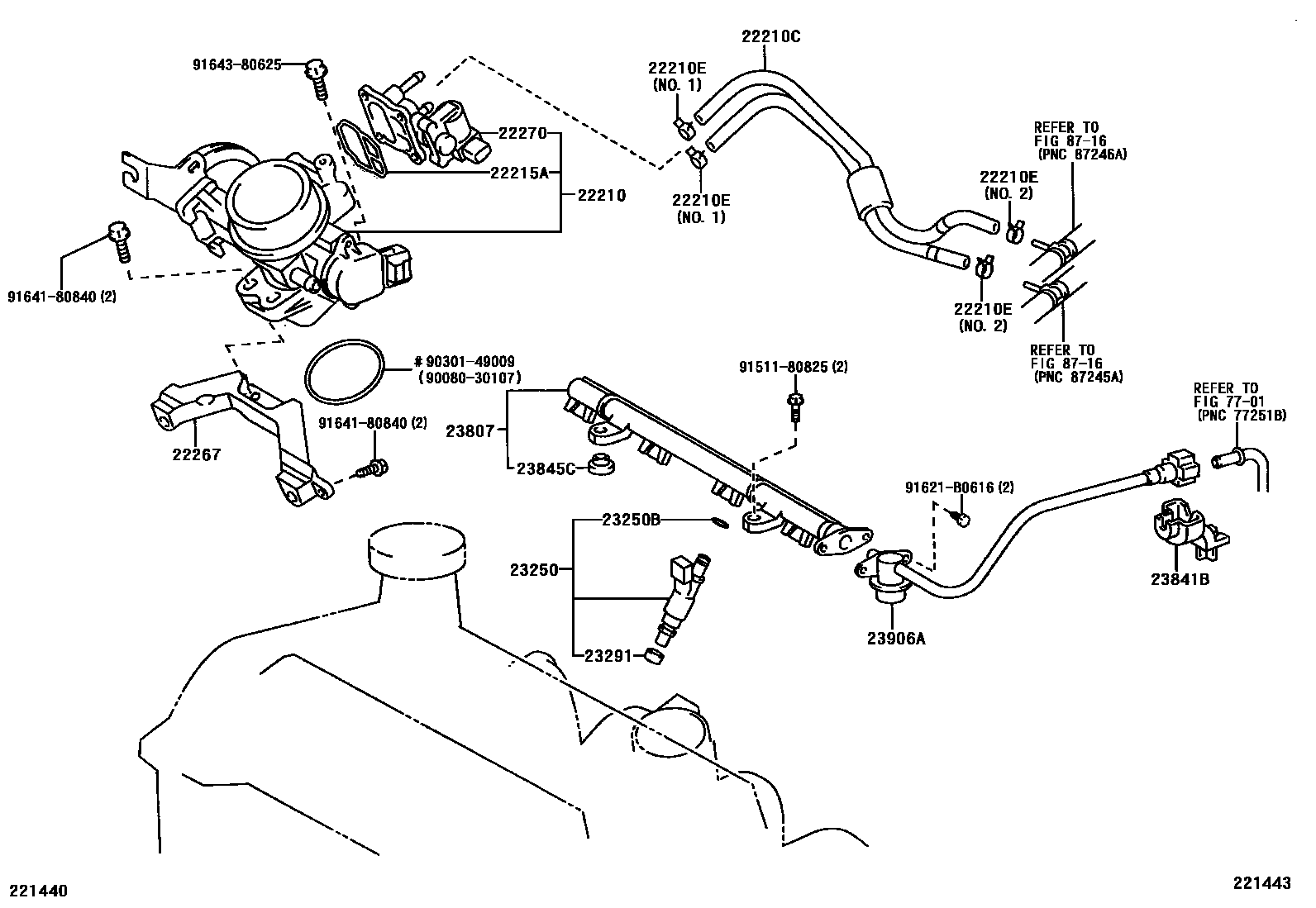

Toyota YARIS 燃油喷射系统 — Figure 2211
Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22030-23010 · 22210-0J010 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16260-0J010 · 16260-0J020 · 16260-23010 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90466-12001 · 96135-41100 · 96135-51100 |
| 22215A | Idle speed control valve gasket | 22215-74400 |
| 22267 | Throttle body bracket | 22267-23010 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-23020 |
| 23250 | Fuel injector assembly | 23209-09010 · 23209-09020 |
| 23250B | O-ring (for fuel injector) | 90080-30100 · 90301-07024 · 90301-07030 |
| 23250C | Gasket (for injector) | 90080-48058 |
| 23291 | Injector vibration isolation pad | 23291-0J010 · 23291-0J020 |
| 23807 | Oil pipe sub-assembly | 23807-23020 · 23807-23021 · 23807-23030 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-28010 |
| 23845C | Fuel pipe vibration isolation pad | 23845-23010 |
| 23906A | Fuel hose sub-assembly | 23906-0J011 · 23906-0J020 |
