Toyota YARIS Air Cleaner — Figure 1703

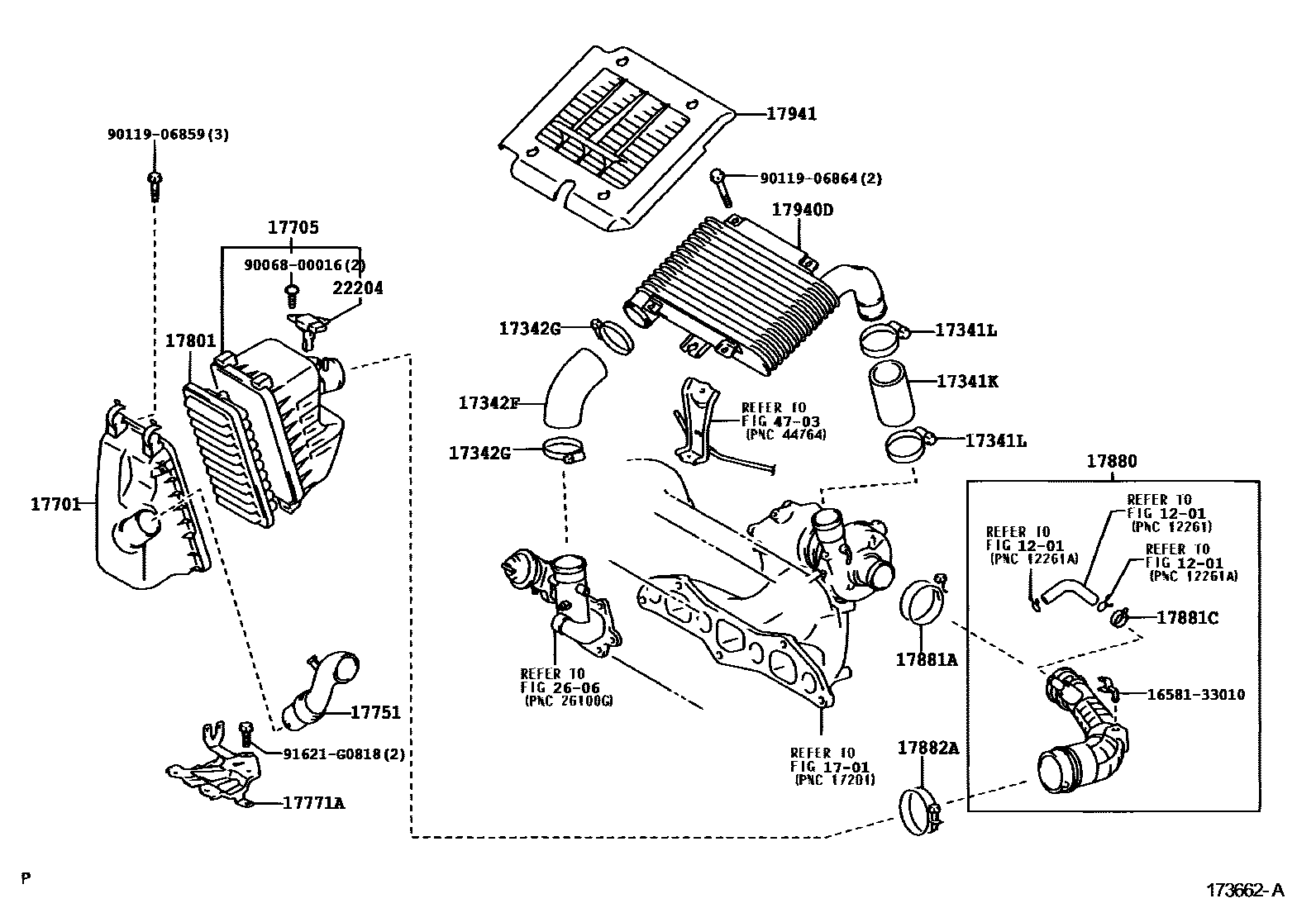

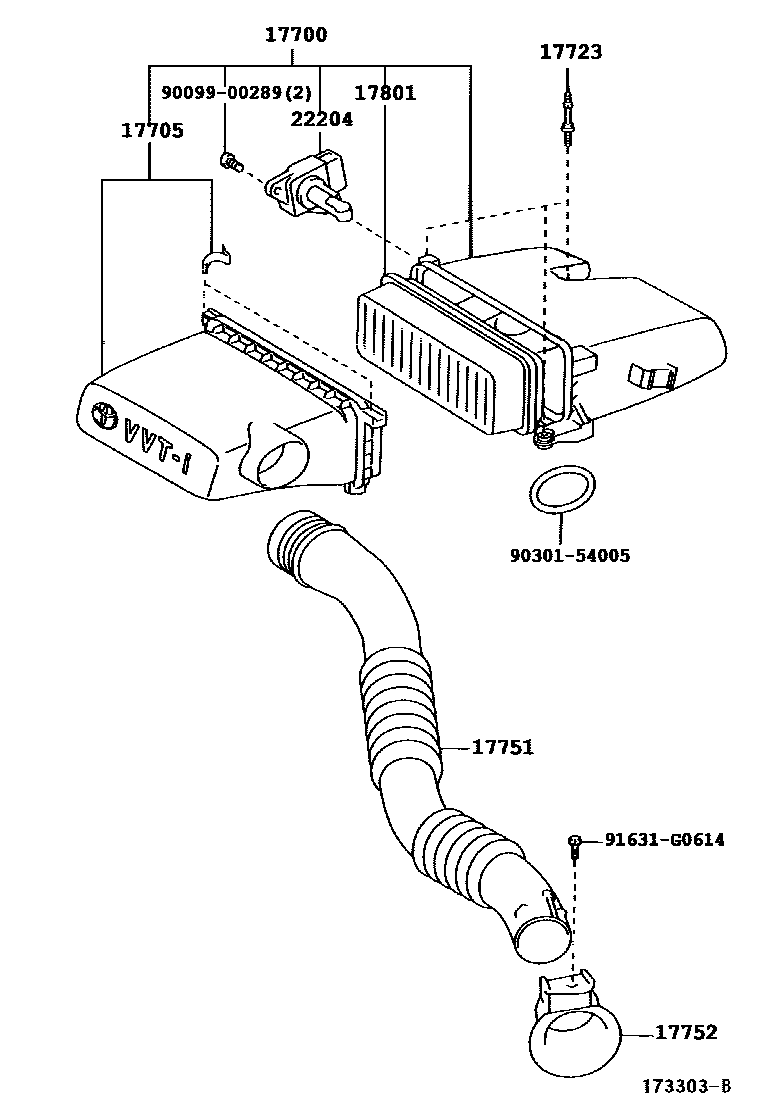

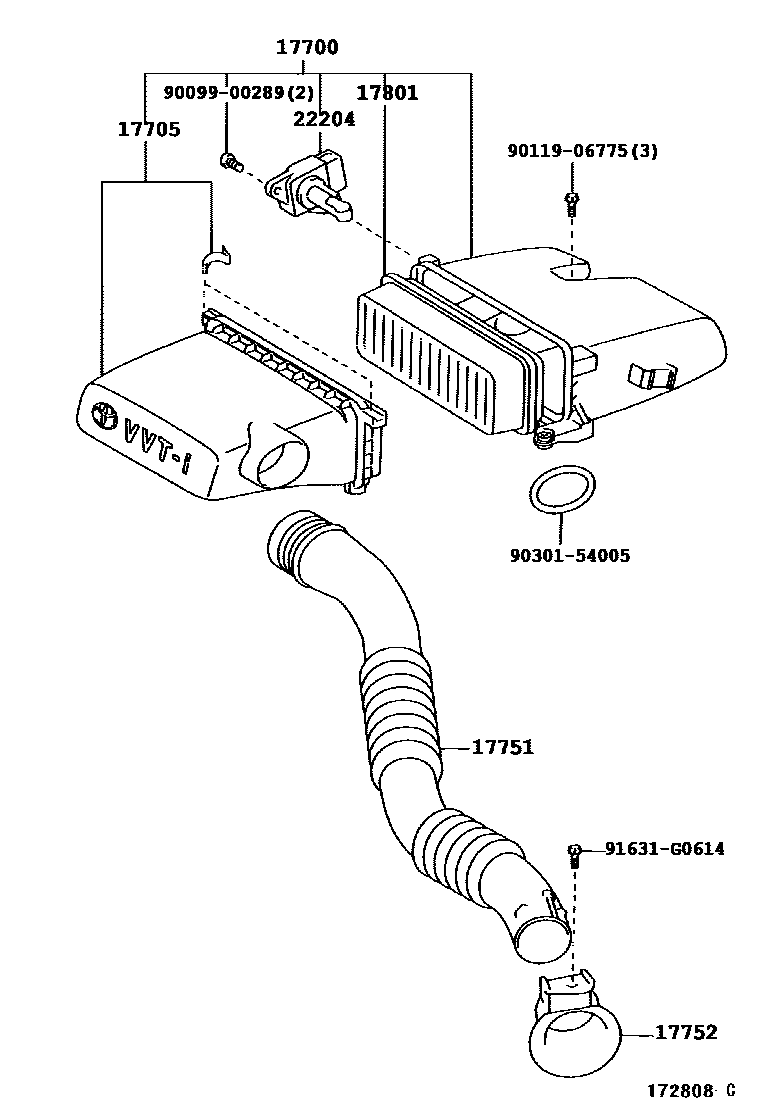

Toyota YARIS EPC diagram 1703, Air Cleaner, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341K | Air hose No. 1 (for intercooler) | 17341-33010 · 17341-33030 |
| 17341L | hose clamp | 90466-41005 |
| 17342F | Air hose No. 2 (for intercooler) | 17342-33010 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-60006 |
| 17700 | air filter assembly | 17700-0J010 · 17700-0J011 · 17700-0J012 |
| 17701 | Air filter housing sub-assembly | 17701-0N010 |
| 17705 | Air filter cover sub-assembly | 17705-0J010 · 17705-0N010 |
| 17723 | air cleaner cover bolt | 17723-23020 |
| 17751 | No. 1 air filter air inlet | 17751-0J010 · 17751-33060 |
| 17752 | No. 2 air filter air inlet | 17752-0J010 |
| 17771A | air filter bracket | 17771-33020 |
| 17801 | Air filter element sub-assembly | 17801-0N010 · 17801-23030 · 17801-33040 |
| 17880 | Air cleaner hose assembly | 17880-0N010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10580 |
| 17881C | Clamp (for No. 1 air cleaner hose) | 96134-52600 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10690 |
| 17940D | Intercooler assembly | 17940-33010 |
| 17941 | No. 1 intercooler baffle | 17941-33010 |
| 22204 | Intake air flow meter assembly | 22204-0J010 · 22204-0N010 |
