Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 4 images and 9 PNC and OE references.

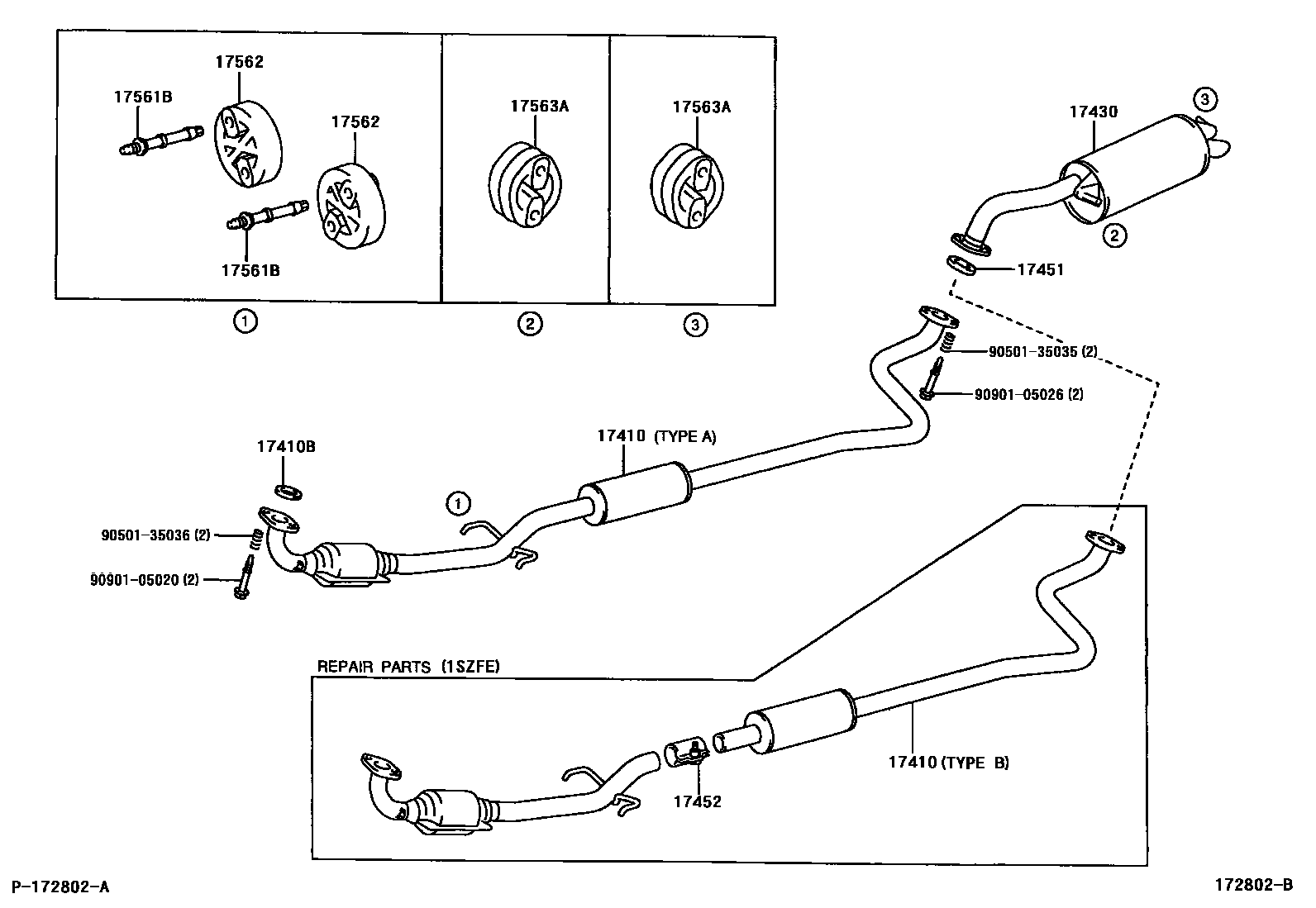

Toyota YARIS Exhaust Pipe EPC diagram — 172802B
Exhaust Pipe — 172802B (200101 – 200302)

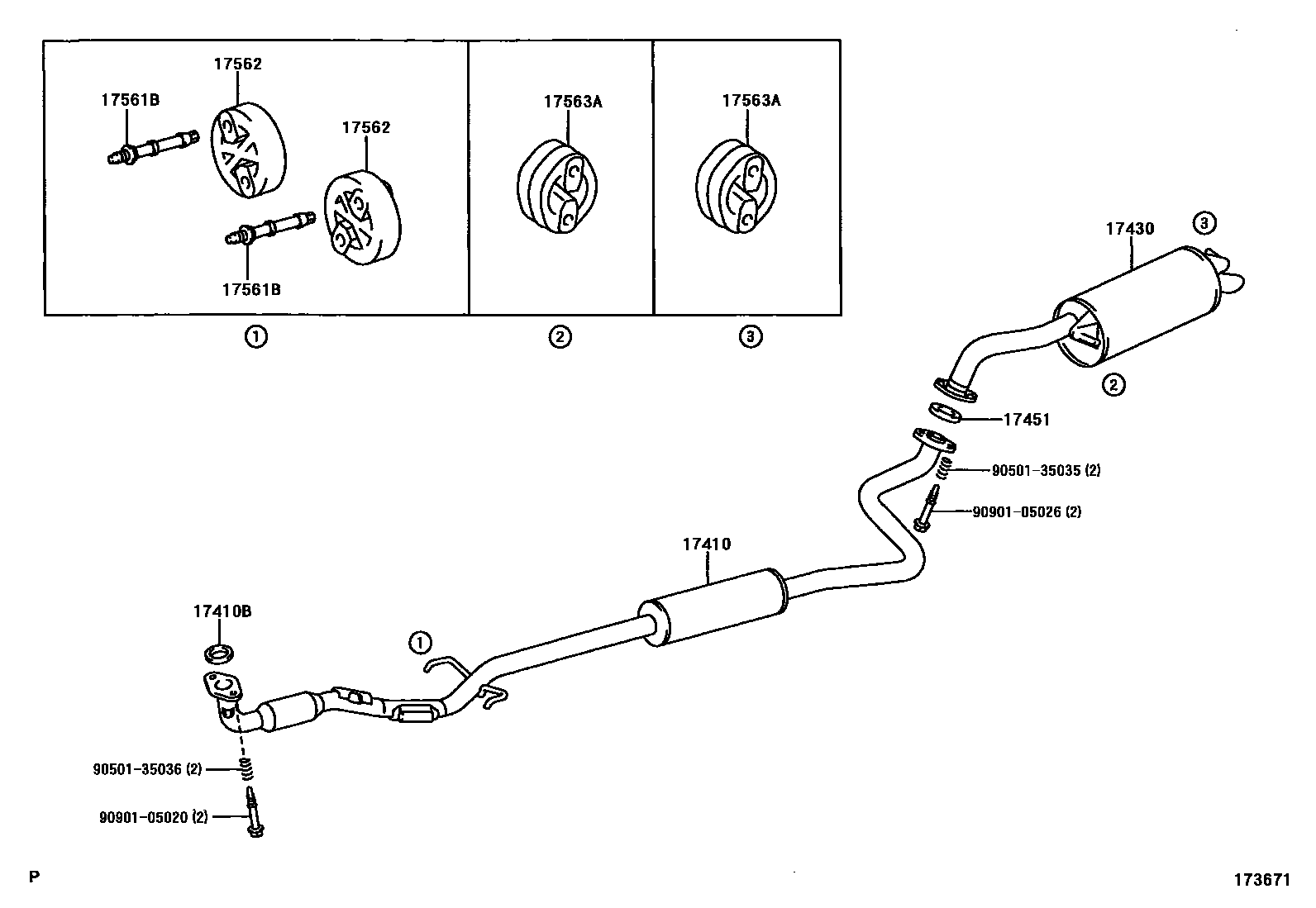

Toyota YARIS Exhaust Pipe EPC diagram — 173671
Exhaust Pipe — 173671 (200205 – 999999)

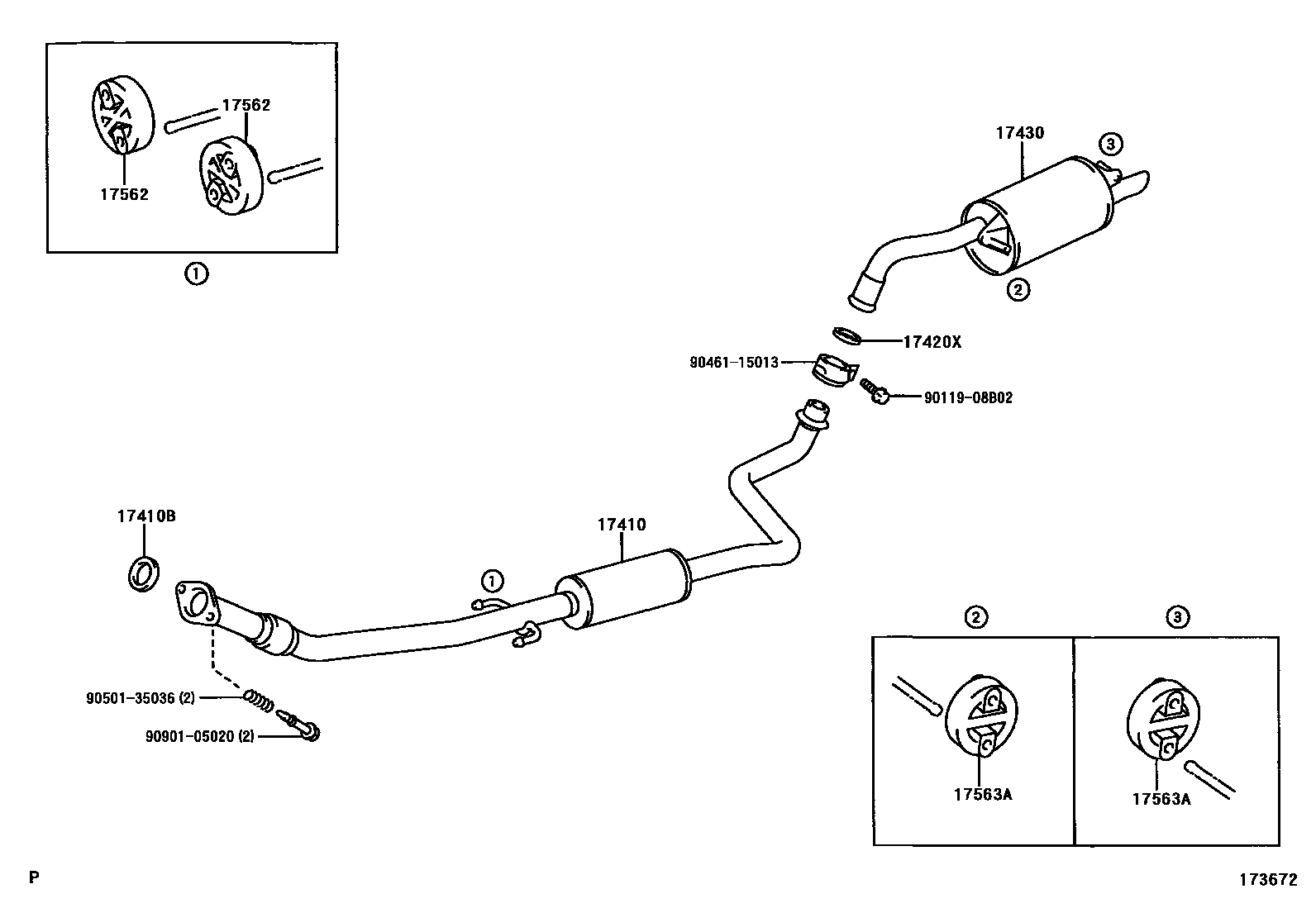

Toyota YARIS Exhaust Pipe EPC diagram — 173672
Exhaust Pipe — 173672 (200302 – 999999)

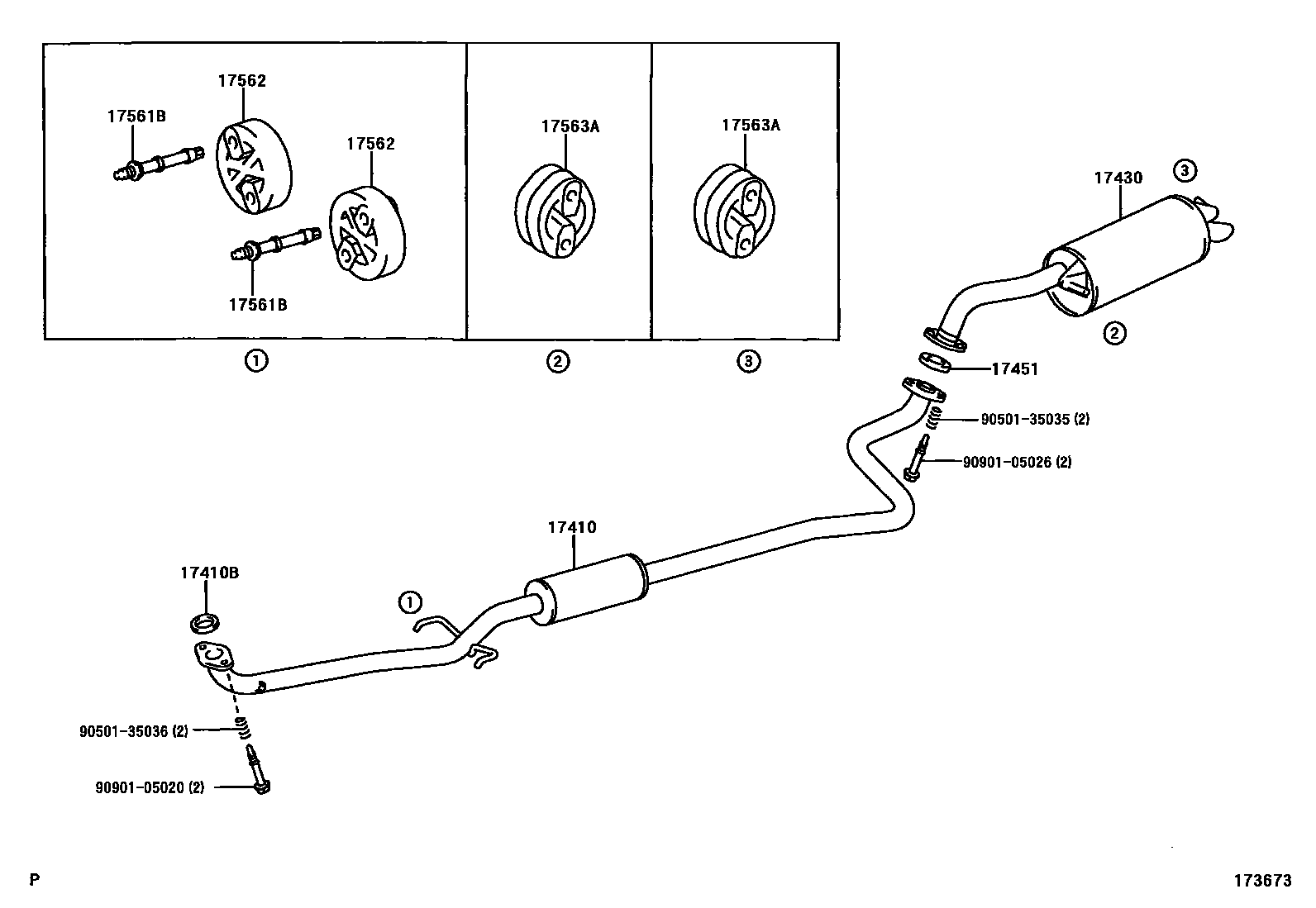

Toyota YARIS Exhaust Pipe EPC diagram — 173673
Exhaust Pipe — 173673 (200302 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0J010 · 17410-0J020 · 17410-0J032 · 17410-0J040 · 17410-0N010
17410BExhaust pipe gasket17451-0D010 · 17451-0E010 · 17451-0N010
17420XCenter exhaust pipe liner90917-06082
17430Exhaust tailpipe assembly17430-0J010 · 17430-0J020 · 17430-0N010
17451Exhaust pipe gasket17451-0J010
17452Exhaust pipe clamp17452-0J010
17561BNo. 1 exhaust pipe lifting lug17584-23020
17562No. 2 exhaust pipe lifting lug17562-0J010
17563ANo. 3 exhaust pipe lifting lug17565-0J020 · 17565-0J030 · 17565-21030 · 17565-46040
