Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 5 PNC and OE references.

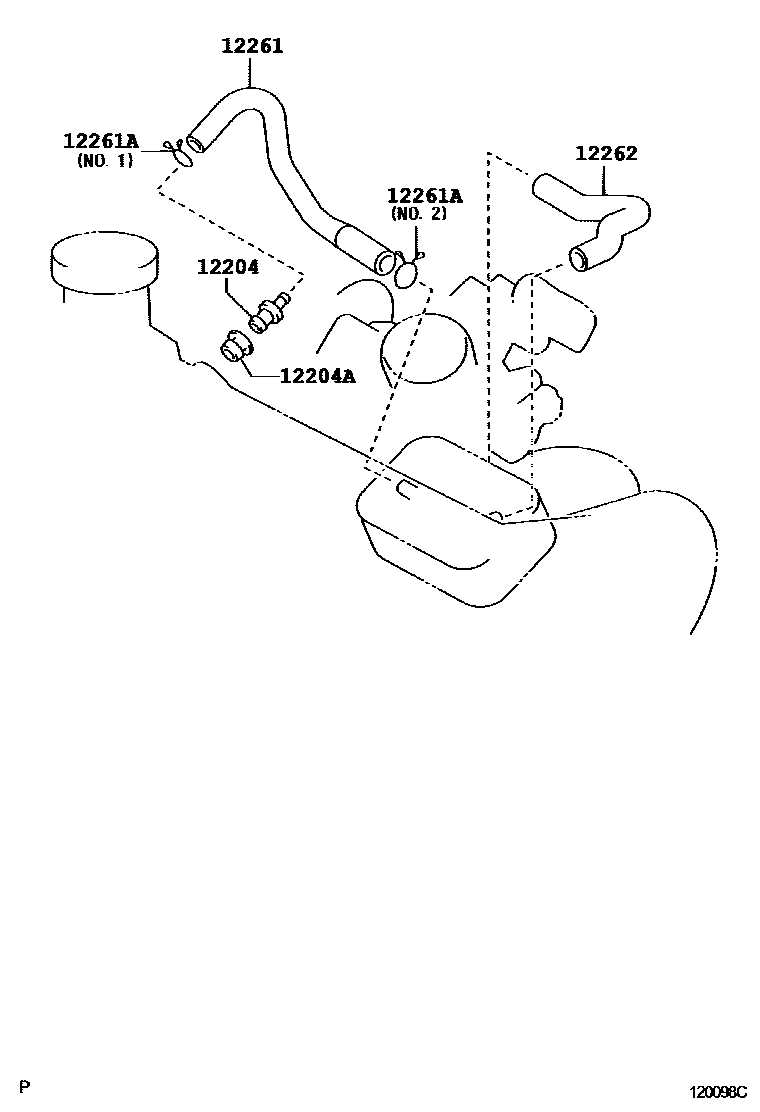

Toyota YARIS Ventilation Hose EPC diagram — 120098C
Ventilation Hose — 120098C (200101 – 999999)

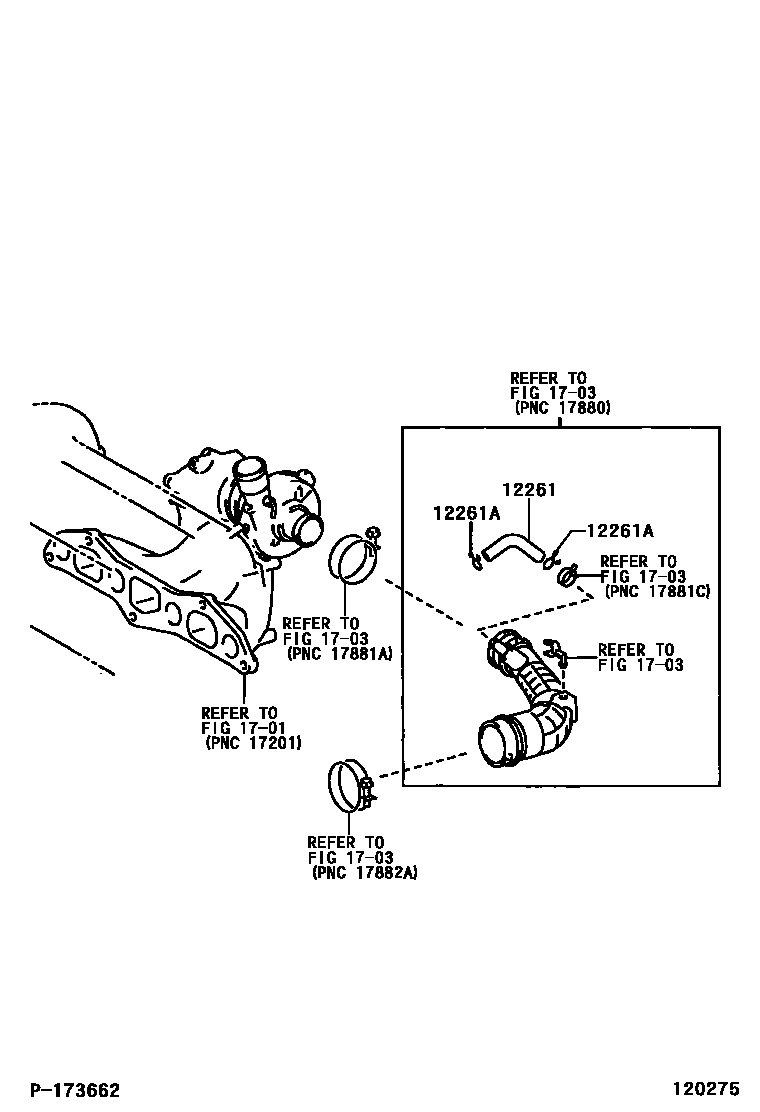

Toyota YARIS Ventilation Hose EPC diagram — 120275
Ventilation Hose — 120275 (200302 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-23011
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-23010 · 12261-23020 · 12261-23030 · 12261-33040
12261AClip or clip (for vent hose)90467-14001 · 90467-18003 · 90467-21004
12262Ventilation hose No. 290910-05224
