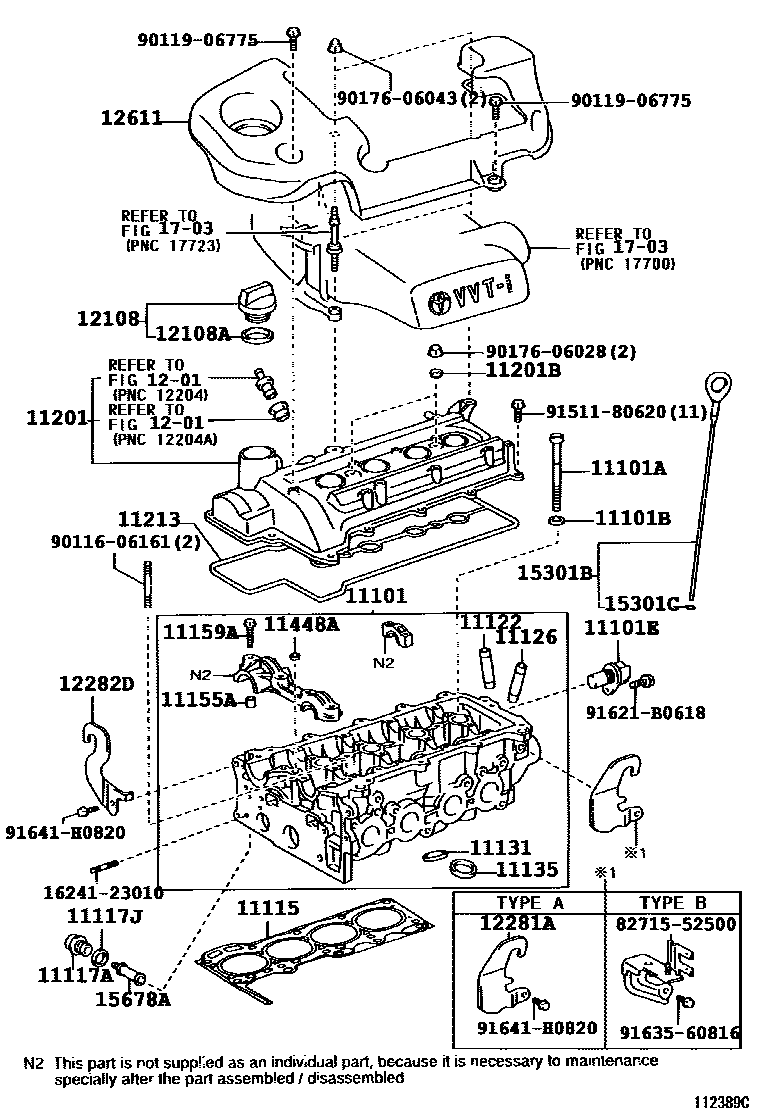

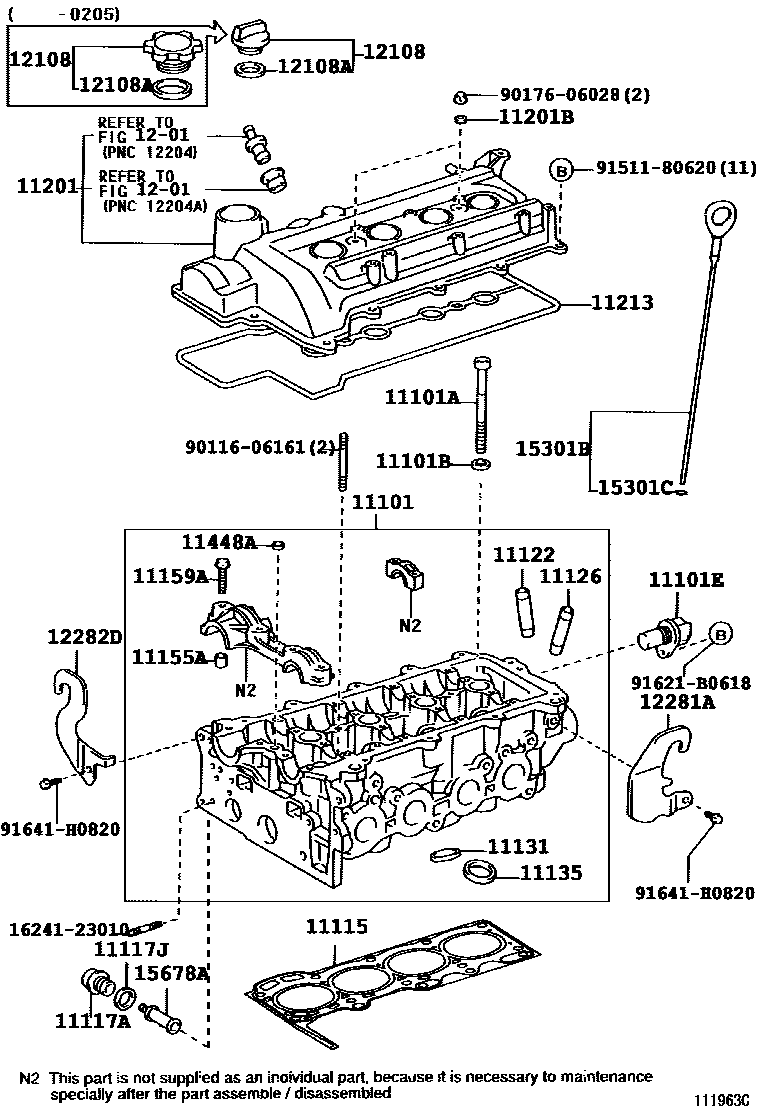

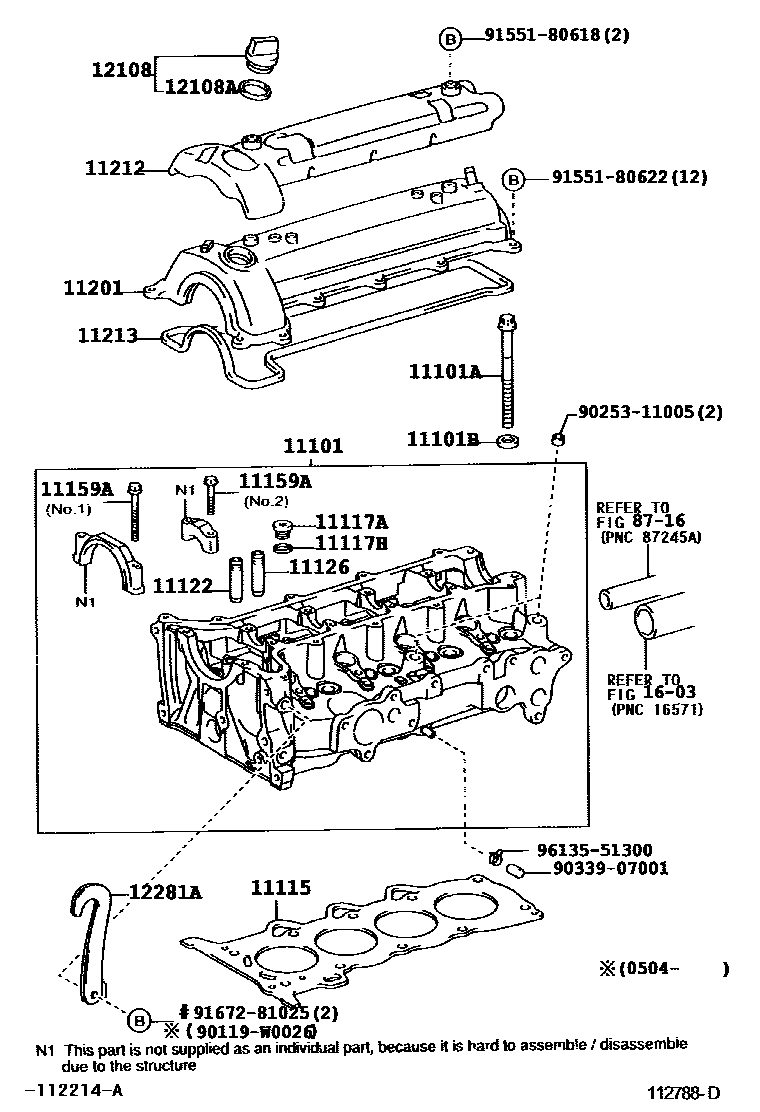

Toyota YARIS Cylinder Head — Figure 1104
Toyota YARIS EPC diagram 1104, Cylinder Head, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0J010 · 11101-0J030 · 11101-33030 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02143 · 90910-02148 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10136 · 90201-13021 |
| 11101E | Cam position sensor | 90080-19020 · 90080-19022 |
| 11115 | GASKET, CYLINDER HEAD | 11115-23030 · 11115-23041 · 11115-23042 |
| 11117A | No. 1 headed tapered thread plug | 90341-14008 · 90341-14013 |
| 11117H | Gasket (for coolant hole) | 90430-14008 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-14009 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-21010 · 11122-30020 · 11122-33030 · 11123-21010 · 11123-30020 · 11123-33030 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-21010 · 11122-30020 · 11122-33030 · 11123-21010 · 11123-30020 · 11123-33030 |
| 11131 | intake valve seat | 11131-0J010 · 11131-23010 · 11132-23010 |
| 11135 | Exhaust valve seat | 11135-0J010 · 11135-23020 · 11135-23050 · 11136-23020 · 11136-23050 |
| 11155A | PIN, RING W/HEAD | 90253-08004 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-06884 · 90119-07008 · 90119-07009 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0J010 · 11201-23070 · 11201-33020 |
| 11201B | Gasket (for cylinder head cover) | 90210-06013 |
| 11212 | No. 2 cylinder head cover | 11212-0N010 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0J010 · 11213-33021 |
| 11448A | Cylinder head oil orifice | 11448-23010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-02020 · 12180-0N010 · 12180-21010 · 12180-55010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43020 · 90430-37140 |
| 12281A | Engine No. 1 hanger | 12281-21010 · 12281-23021 |
| 12282D | ENGINE HANGER, NO.2 | 12282-23010 |
| 12611 | Engine hood No. 1 | 12611-0J010 |
| 15301B | Engine oil level scoring assembly | 15301-0J010 · 15301-0J020 · 15301-0J030 |
| 15301C | O-ring (for engine oil level gauge) | 96741-19005 |
| 15678A | Oil control valve filter | 15678-21010 |
