Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

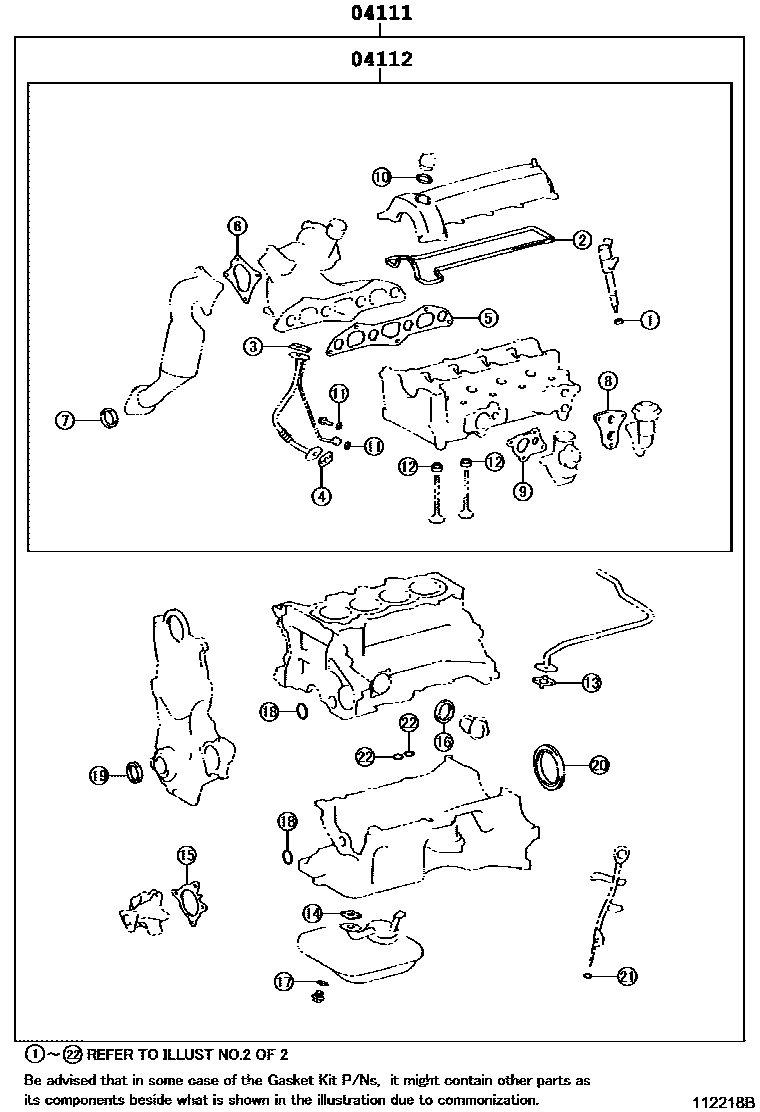

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 112218B
Engine Overhaul Gasket Kit — 112218B (200302 – 999999)

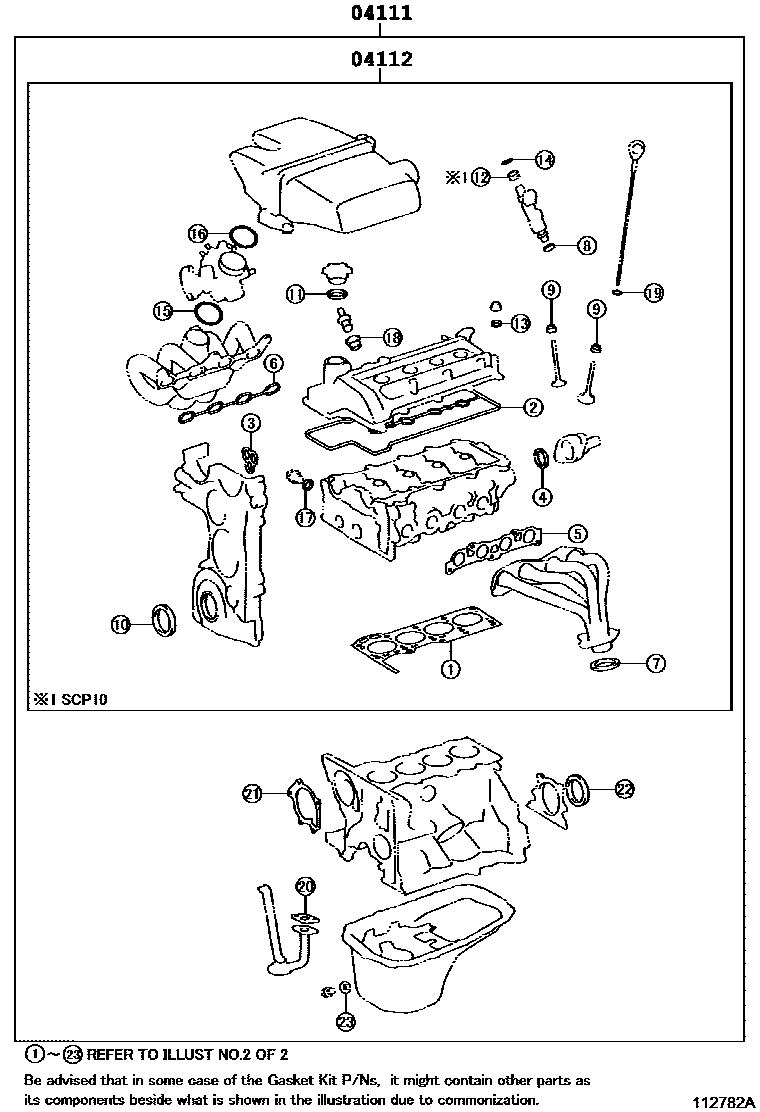

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 112782A
Engine Overhaul Gasket Kit — 112782A (200101 – 999999)

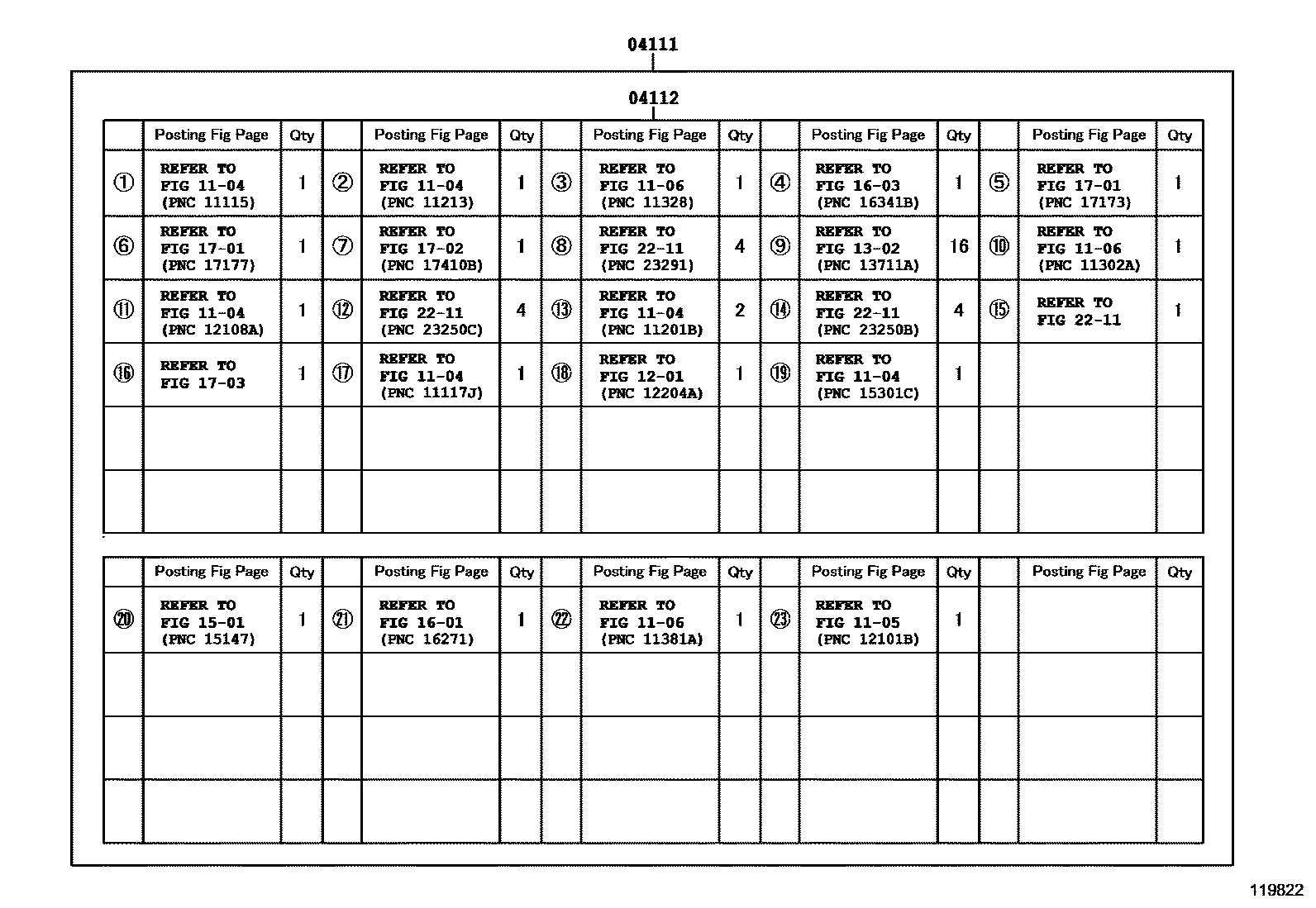

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119822
Engine Overhaul Gasket Kit — 119822 (200101 – 999999)

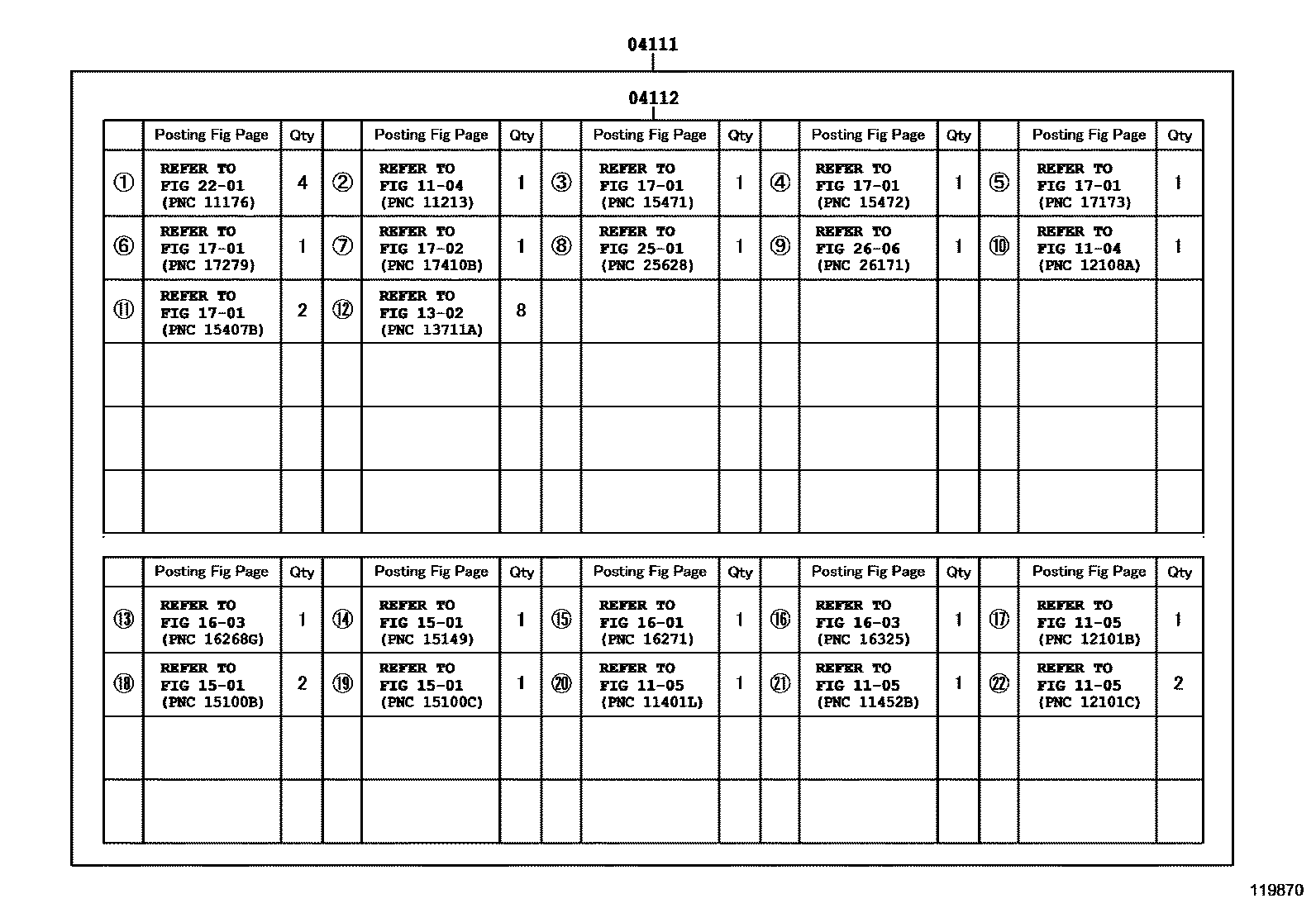

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119870
Engine Overhaul Gasket Kit — 119870 (200302 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-09010 · 04111-0J010 · 04111-0J020 · 04111-0J040 · 04111-0J041 · 04111-0J080 · 04111-0J100 · 04111-0N010
04112Engine valve grinding pad assembly04112-09010 · 04112-0J010 · 04112-0J020 · 04112-0J040 · 04112-0J080 · 04112-0J100 · 04112-0N010
