Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716

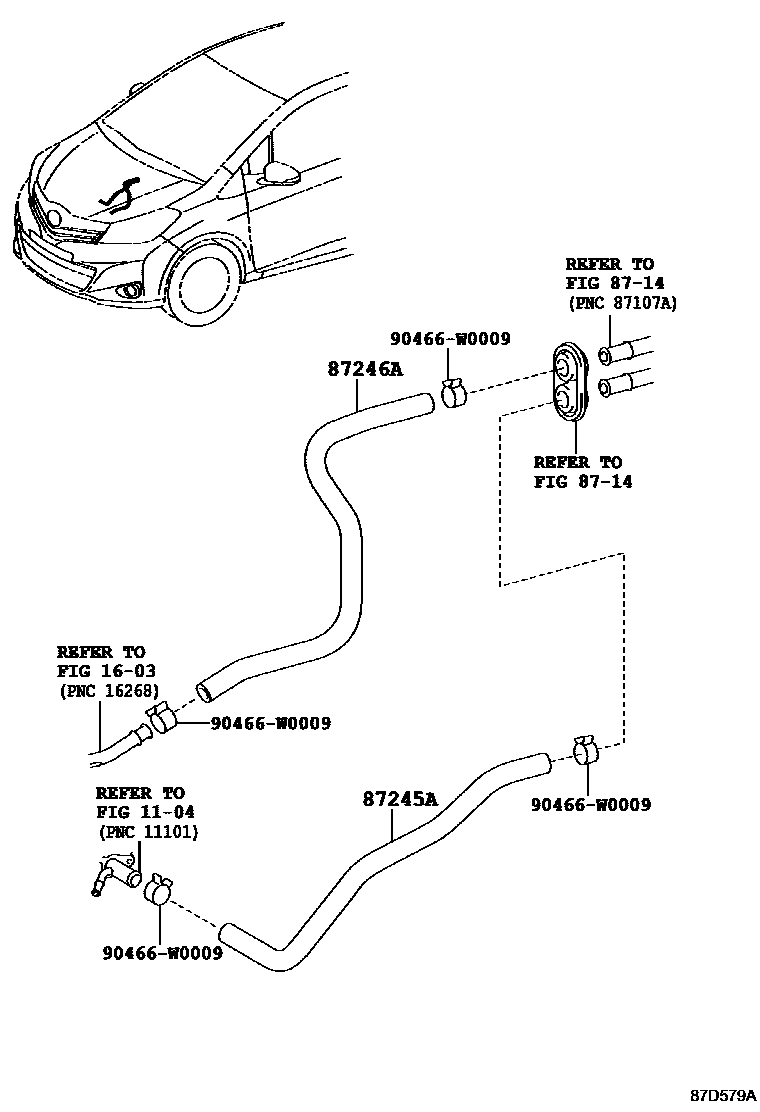

Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245A | Heater water inlet hose A | 87245-52080 |
| 87246A | Heater outlet hose A | 87245-52100 |
