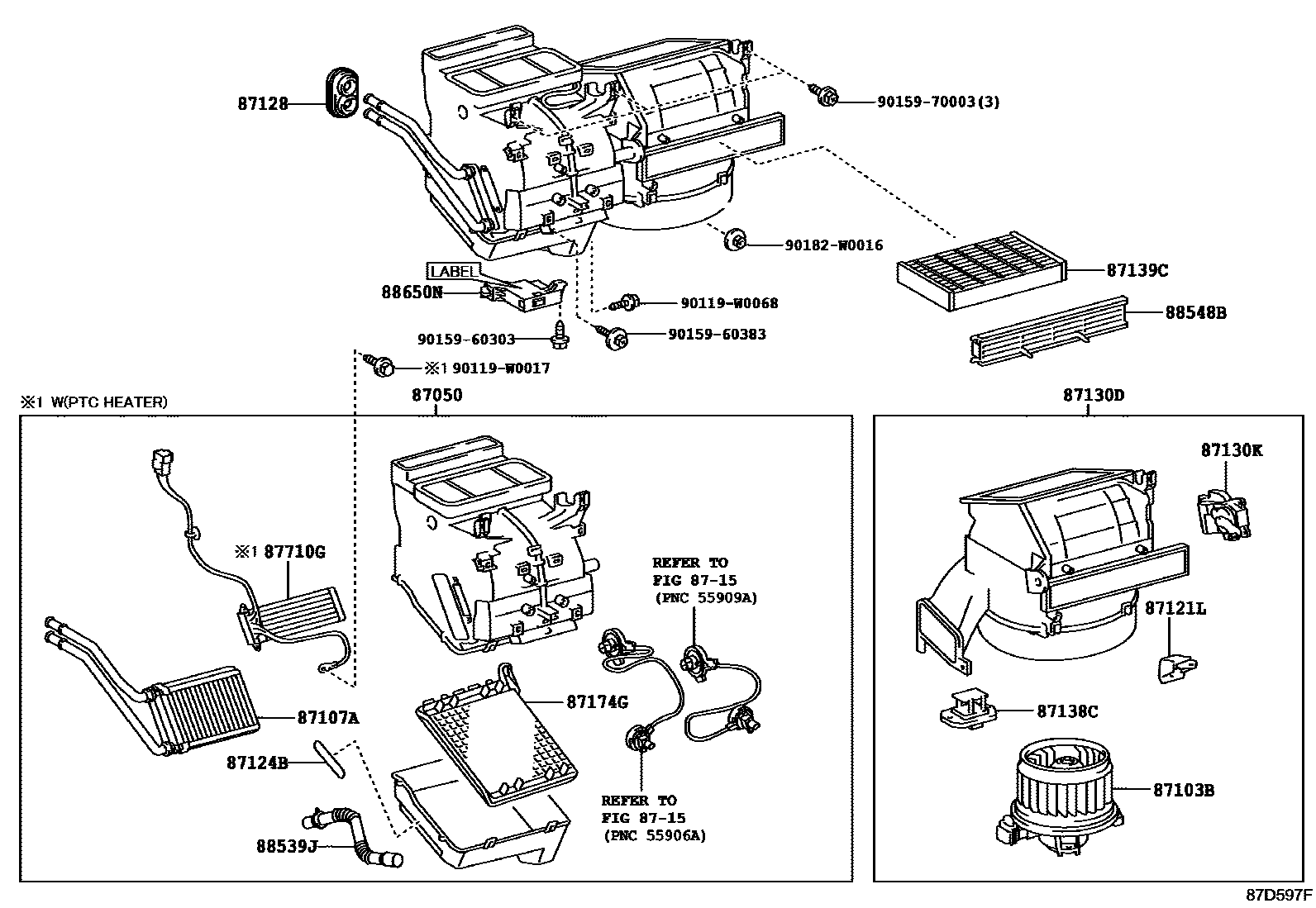

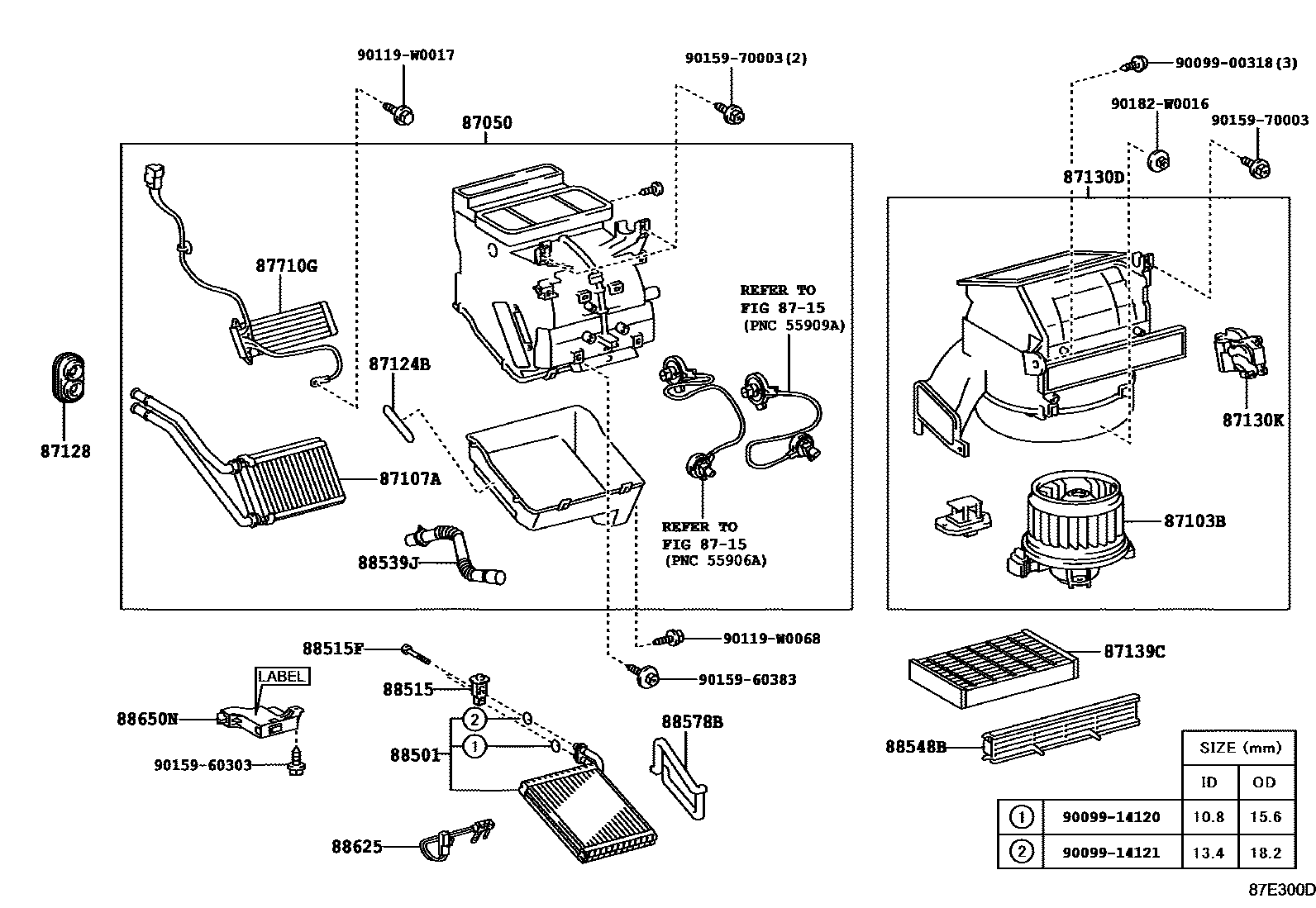

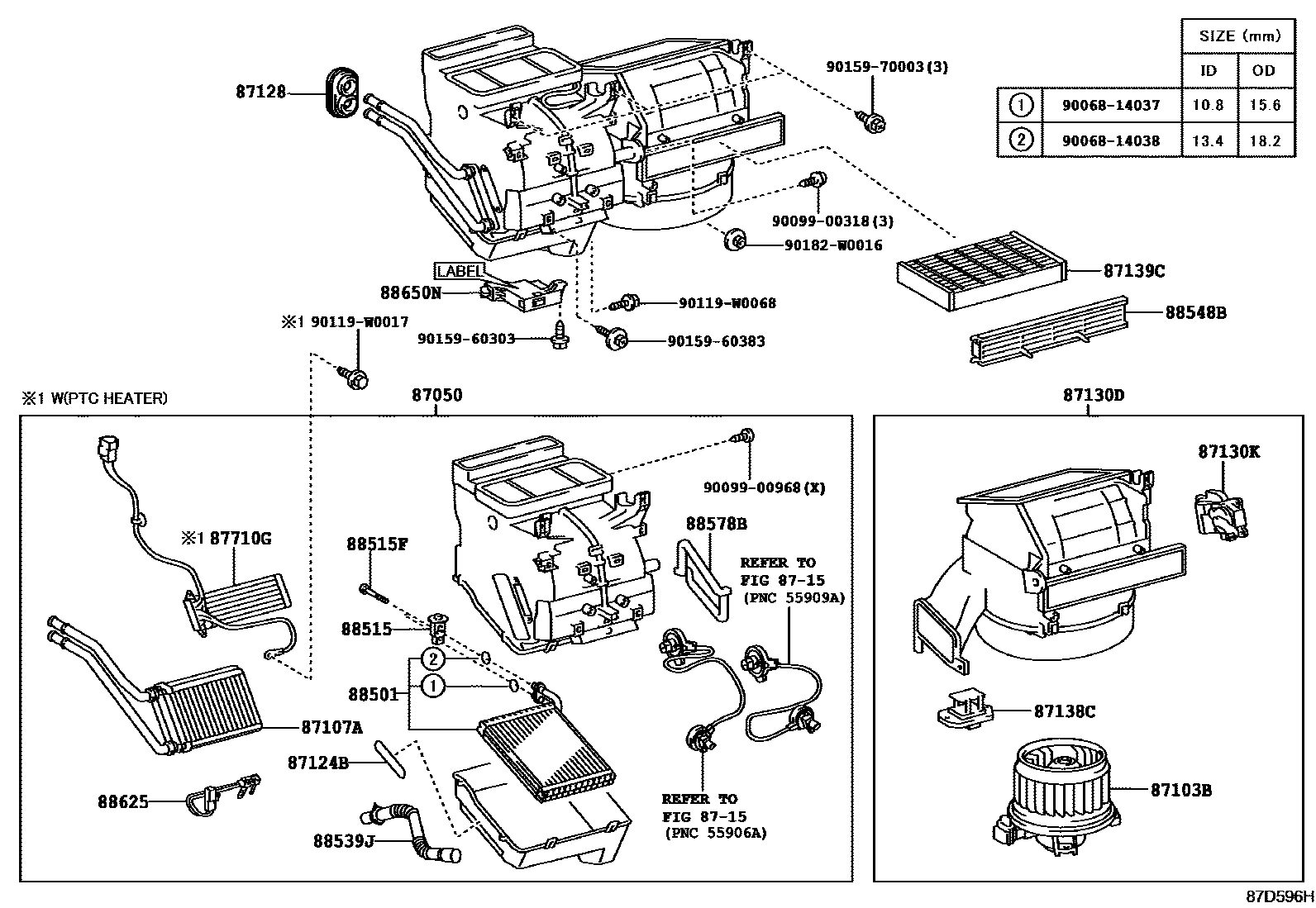

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-0D011 · 87050-0D490 · 87050-0D491 · 87050-0D500 · 87050-0D501 · 87050-0D510 · 87050-0D511 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D380 |
| 87107A | Heater radiator device sub-assembly | 87107-0D051 |
| 87121L | heater bracket | 87121-0D010 |
| 87124B | heater clip | 87124-0D080 · 87124-0D580 |
| 87128 | heater seal | 90480-01696 |
| 87130D | Blower assembly | 87130-0D190 · 87130-0D210 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-0D220 |
| 87138C | Blower resistor | 87138-0K090 |
| 87139C | air purification filter | 87139-0D070 · 87139-50100 |
| 87174G | Air heater deflector | 87174-0D010 |
| 87710G | Rapid heater assembly | 87710-0D060 · 87710-52041 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D210 · 88501-52103 |
| 88515 | Cooler expansion valve | 88515-0D310 · 88515-0D350 · 88515-50190 |
| 88515F | BOULON(POUR DETENDEUR DU REFROIDISSEUR) | 90099-04542 |
| 88539J | Cooler drain hose | 88539-0D180 |
| 88548B | air filter housing | 88548-0D040 |
| 88578B | Cooling unit seal No. 1 | 88578-52100 |
| 88625 | Cooler No. 1 Thermistor | 88625-02110 · 88625-26090 |
| 88650N | Air conditioning amplifier assembly | 88650-0D360 · 88650-0D370 · 88650-0D380 · 88650-0D540 · 88650-0D720 · 88650-0D721 · 88650-0D722 · 88650-0DA00 · 88650-0DA01 · 88650-0DA02 · 88650-0DA10 · 88650-0DA11 · 88650-0DA12 · 88650-52690 · 88650-52700 · 88650-52720 · 88650-52880 |
