Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.

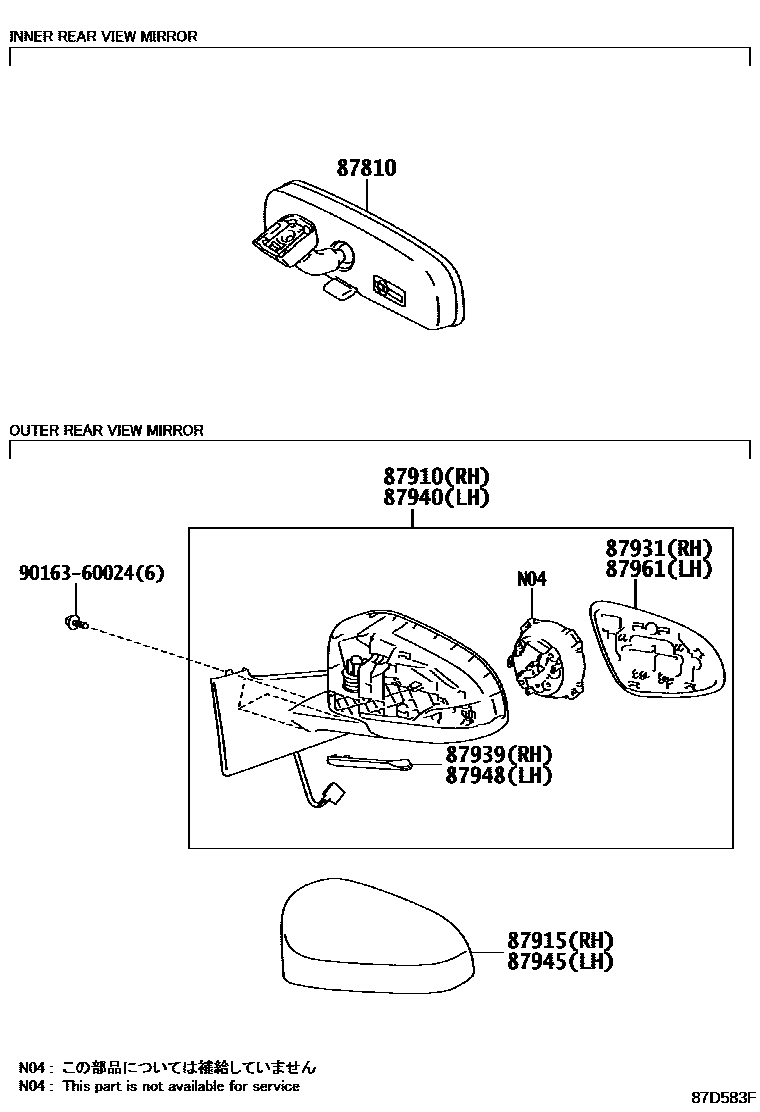

Toyota YARIS 后视镜 EPC diagram — 87D583F
后视镜 — 87D583F (201305 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0WQ40 · 87810-52041
87910Right exterior rearview mirror assembly87910-0D540 · 87910-0D550 · 87910-0D560 · 87910-0DA90 · 87910-0DB00 · 87910-0DB10
87931Right exterior rearview mirror87931-0DA90 · 87931-0DA91 · 87931-0DB00 · 87931-0DB01
87939Right exterior rearview mirror hole cover87939-0D540
87940Left exterior rearview mirror assembly87940-0D540 · 87940-0D550 · 87940-0D560 · 87940-0DA90 · 87940-0DB00 · 87940-0DB10
87948Left exterior rearview mirror hole cover87948-0D540
87961Left exterior rearview mirror87961-0D540 · 87961-0D550 · 87961-0DA90 · 87961-0DB00
