Toyota YARIS 导航和前监视器显示屏 — Figure 8603

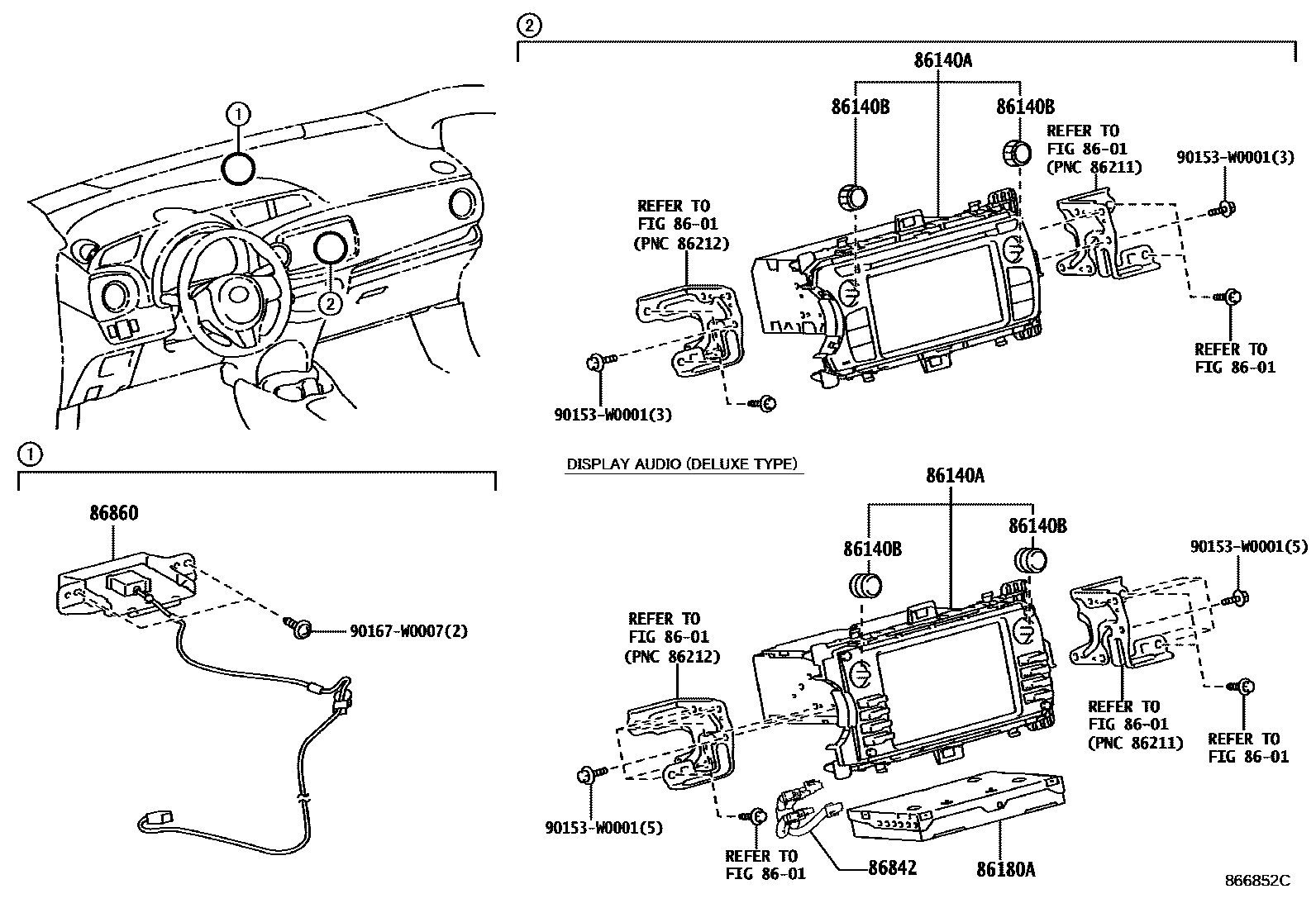

Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-0D420 · 86140-0D430 |
| 86140B | Radio and display receiver switch button | 90011-25291 |
| 86180A | ENS. DE SYNTONISATEUR D'ORGANNE STEREO | 86180-35050 · 86180-35060 |
| 86842 | Navigation harness No. 1 | 86842-35010 |
| 86860 | Navigation antenna assembly | 86860-0D020 |
