Toyota YARIS 后清洗器 — Figure 8504

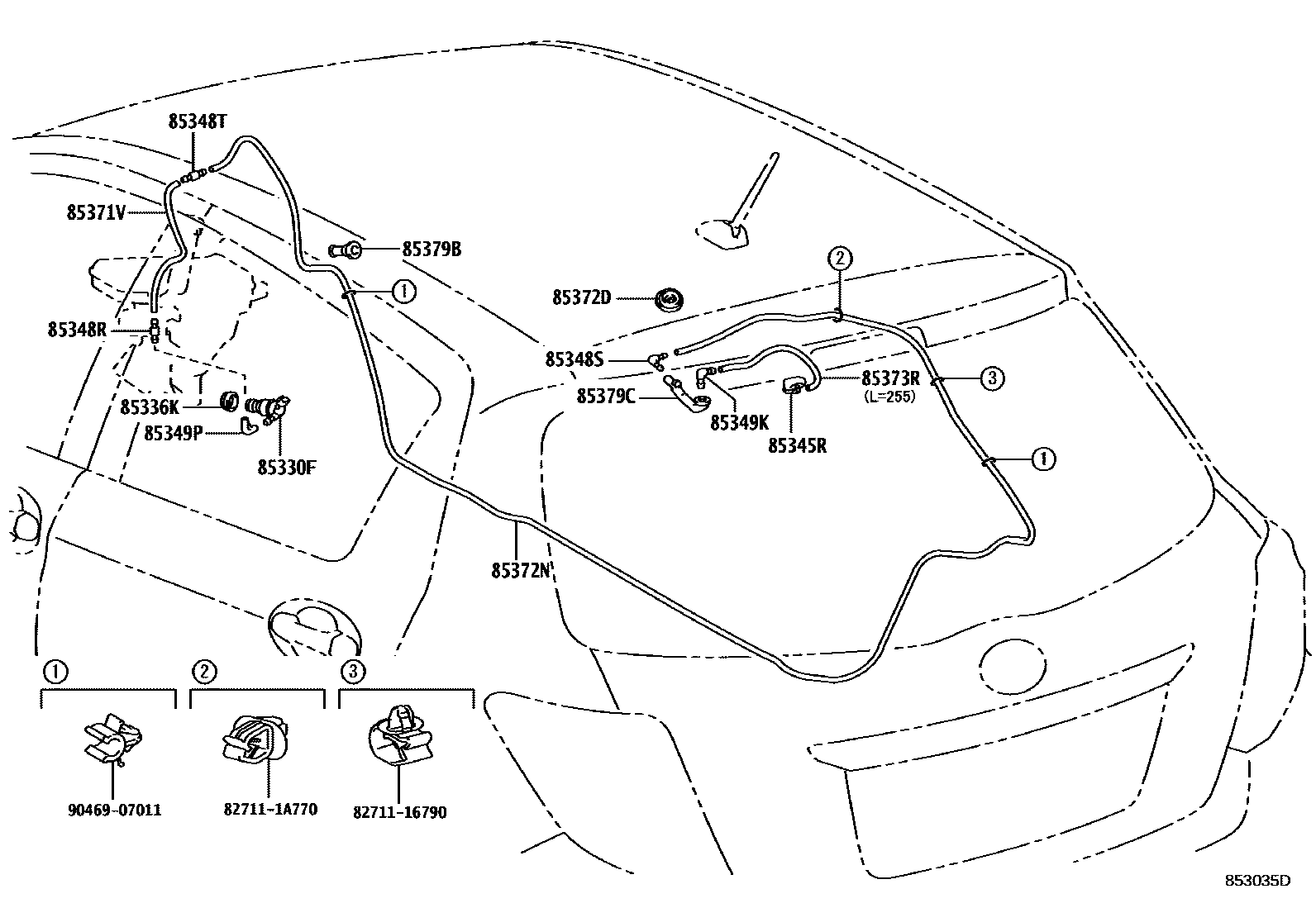

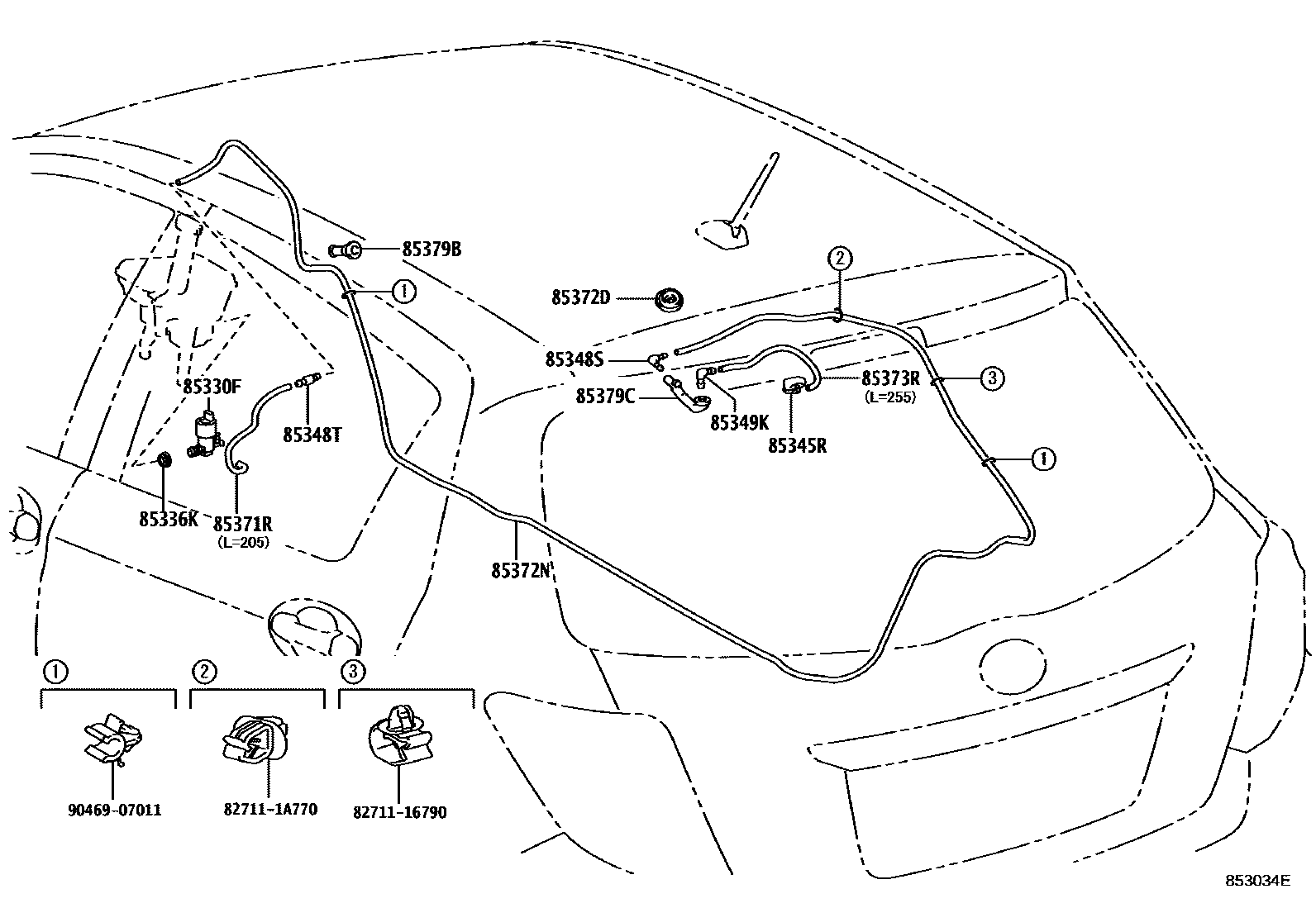

Toyota YARIS EPC diagram 8504, 后清洗器, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85330F | Rear washer motor and pump assembly | 85330-0F020 · 85330-0F021 · 85330-60180 |
| 85336K | Cleaning fluid tank protection device | 85336-0D170 · 85336-60300 |
| 85345R | Rear washer nozzle | 85391-0D050 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85376-0D260 |
| 85348T | No. 2 rear washer hose connector | 85375-0D260 |
| 85349K | No. 2 rear cleaner elbow joint | 85376-0D260 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-14481 |
| 85371R | Rear washer hose (from motor to connector) | 90069-46058 |
| 85372D | Rear washer hose seal | 85373-0D060 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90069-46059 |
| 85373R | Rear washer hose (from connector to nozzle) | 90069-46058 |
| 85379B | Cleaner seal A | 85379-0D260 |
| 85379C | No. 1 rear washer hose seal | 85373-0D050 |
