Toyota YARIS 挡风玻璃清洗器 — Figure 8503

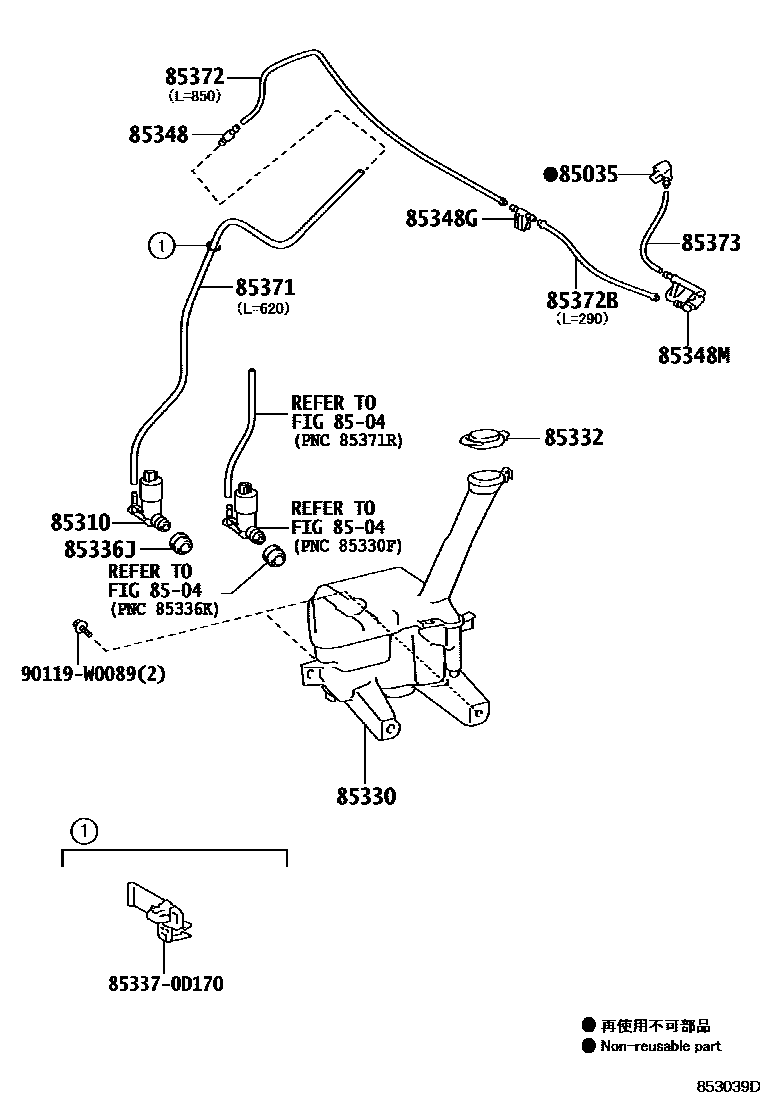

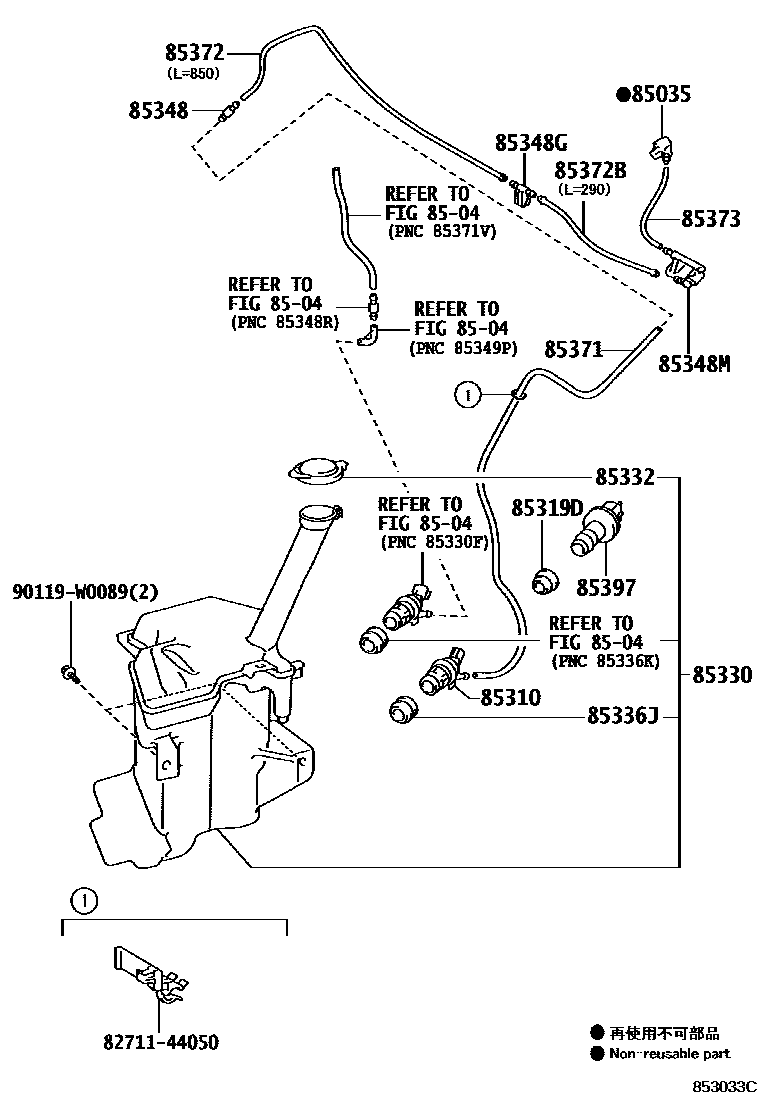

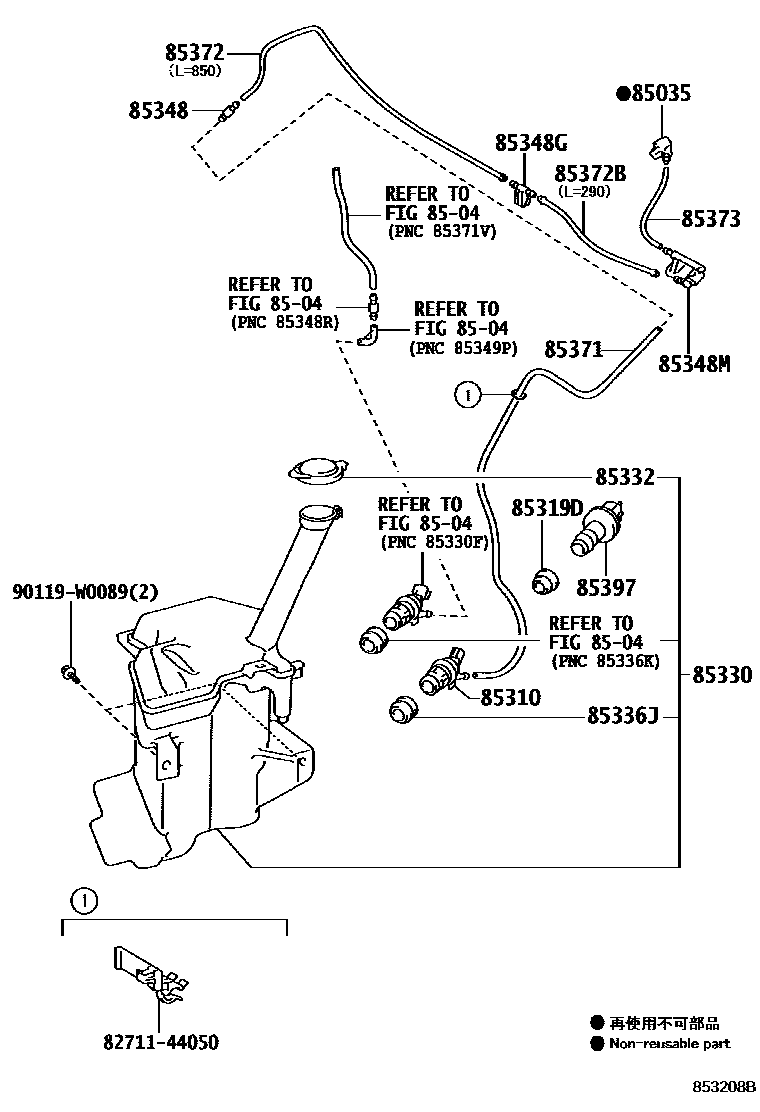

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-52470 · 85381-52471 · 85381-52472 |
| 85310 | Windshield washer motor and pump assembly | 85330-0D120 · 85330-0D121 · 85340-48010 |
| 85319D | front washer seal | 85319-33230 |
| 85330 | Windshield washer fluid tank assembly | 85315-0D170 · 85315-52340 |
| 85332 | Windshield washer fluid tank cap | 85316-0D170 · 85316-16070 |
| 85336J | Cleaning fluid tank protection device | 85336-0D170 · 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85375-0D260 |
| 85348G | Windshield washer hose connector No. 2 | 85377-0D260 |
| 85348M | No. 3 windshield washer hose connector | 85385-52200 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-46057 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-46057 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-46058 |
| 85397 | Liquid level warning switch assembly | 85397-30400 |
