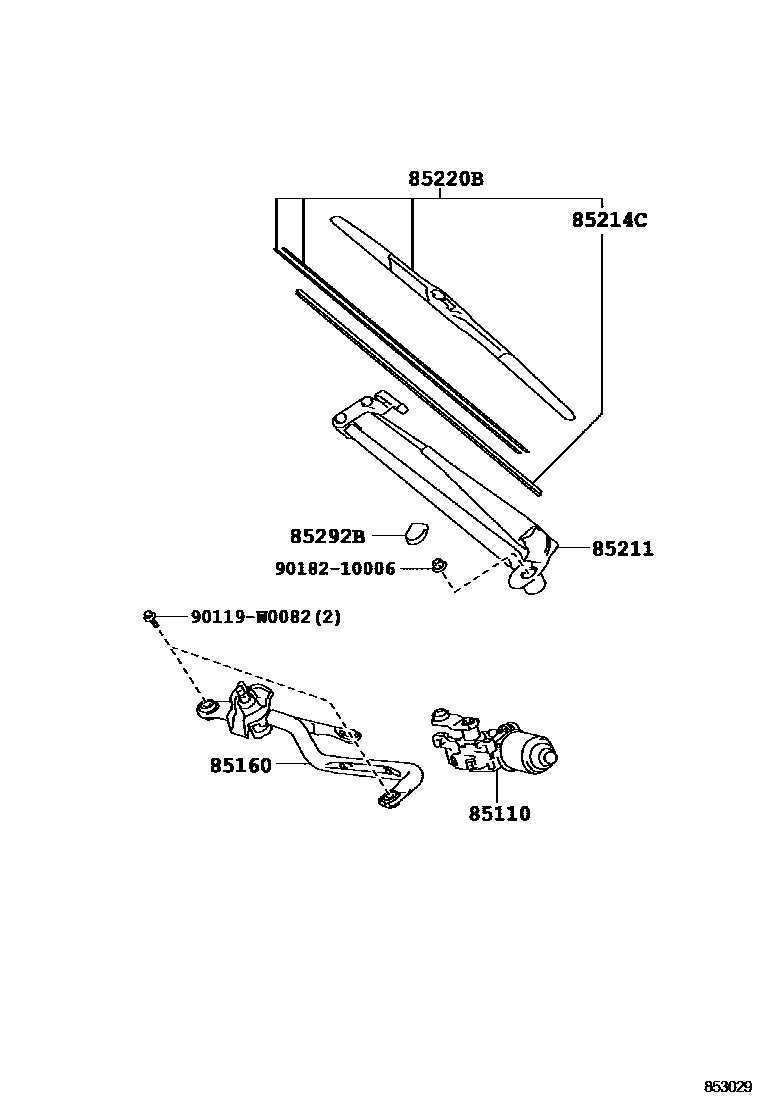

Toyota YARIS 挡风玻璃刮水器 — Figure 8501
Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-0D190 · 85110-0D191 |
| 85160 | Windshield wiper connecting rod assembly | 85150-0D250 · 85150-0D280 |
| 85211 | front wiper arm | 85221-0D260 · 85221-0D280 |
| 85214C | Central wiper blade rubber strip | 85214-0D180 |
| 85220B | front wiper blade | 85222-0D180 |
| 85292B | Front wiper arm cap | 85292-52070 |
