Toyota YARIS 电子燃油喷射系统 — Figure 8404

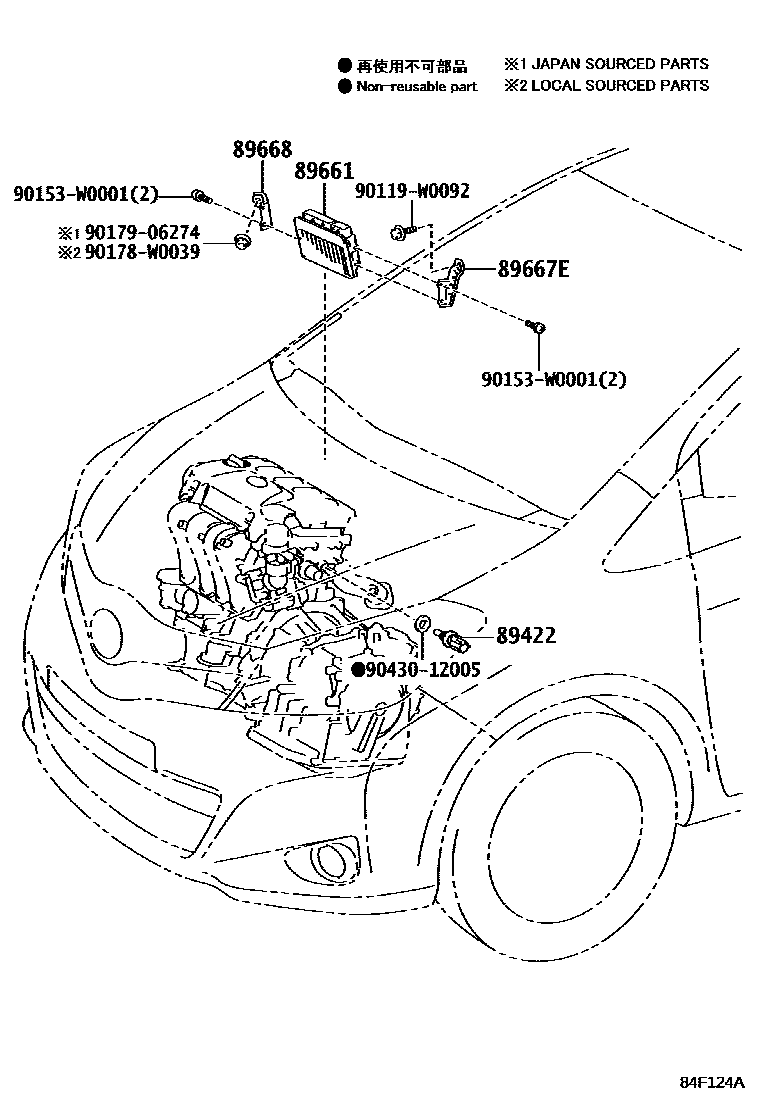

Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89661 | Engine control ECU | 89661-0DN90 · 89661-0DN91 · 89661-0DP00 · 89661-0DP01 · 89661-0DR30 · 89661-0DR50 · 89661-0DR70 · 89661-0DV10 · 89661-0DV11 · 89661-0DV20 · 89661-0DV21 · 89661-0U690 · 89661-0U700 · 89661-52R50 |
| 89667E | No. 1 engine control ECU bracket | 89667-0D110 |
| 89668 | No. 2 engine control ECU bracket | 89668-0D110 |
