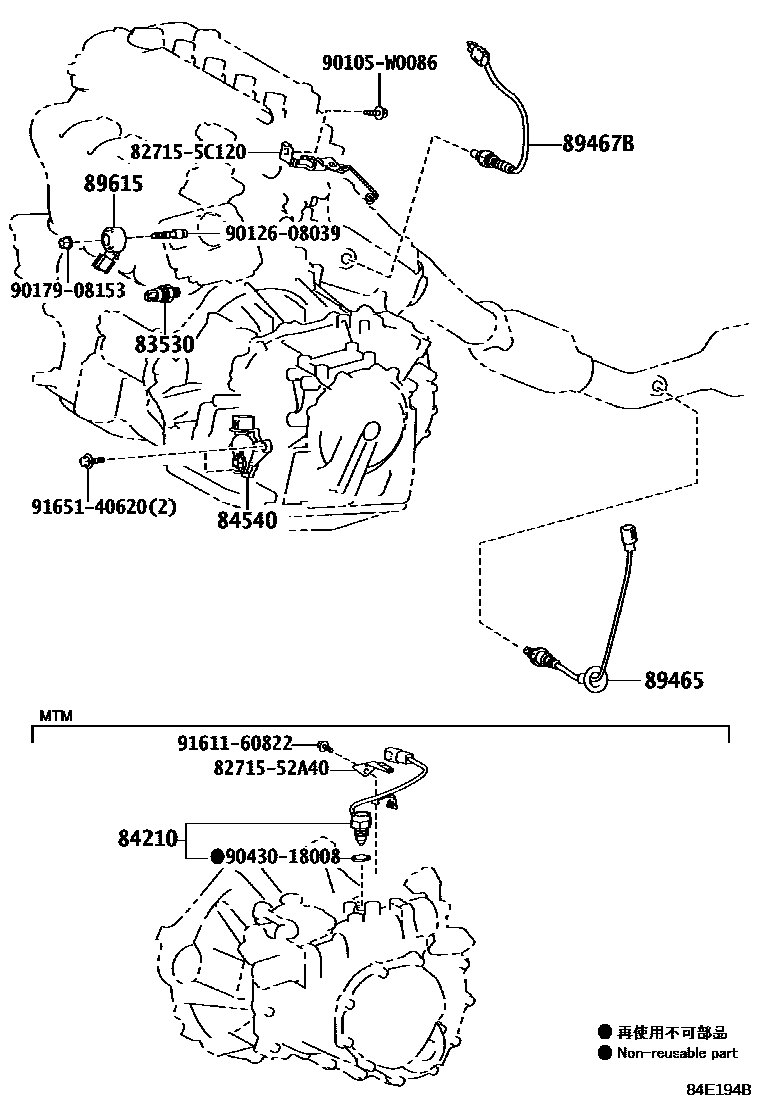

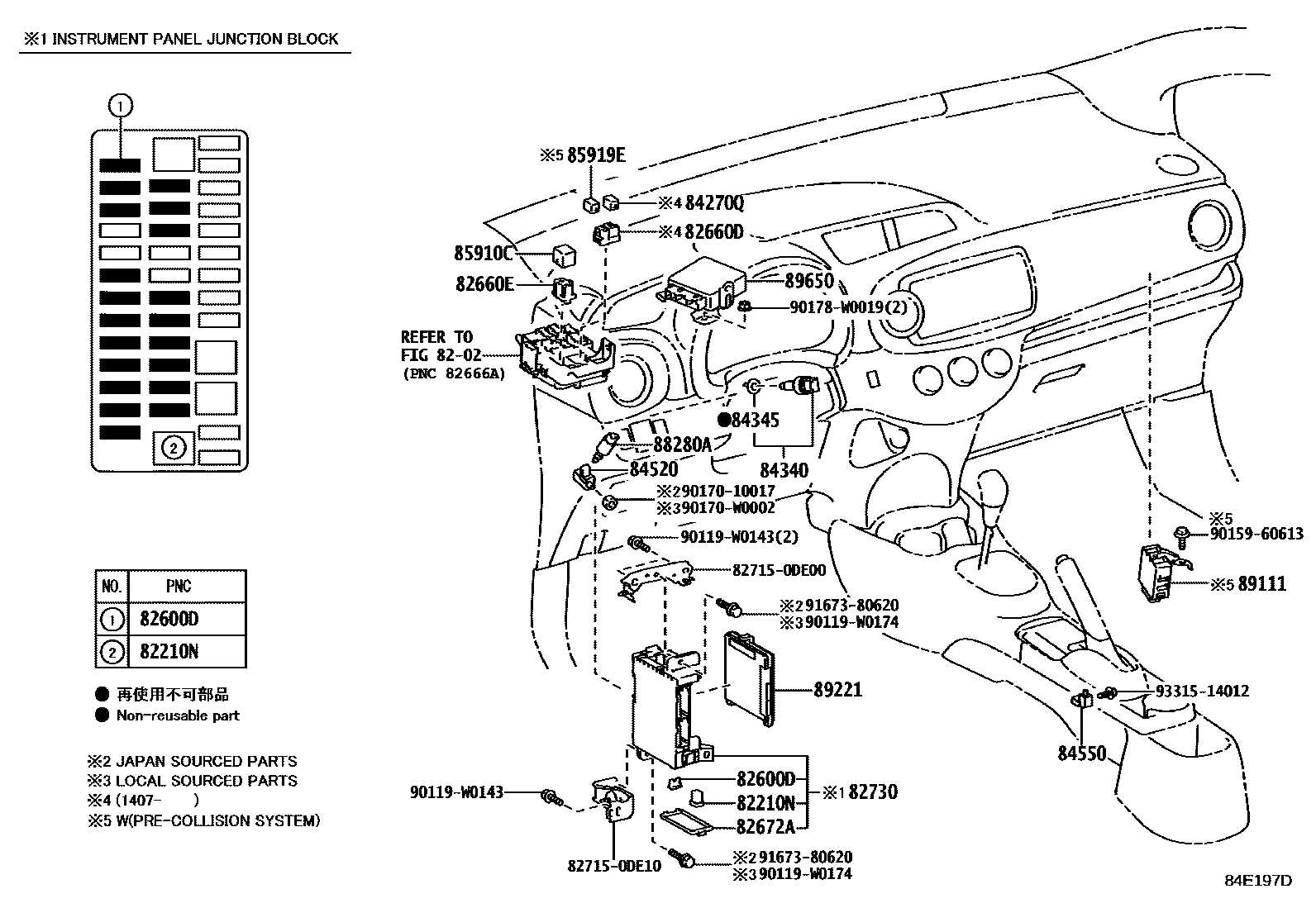

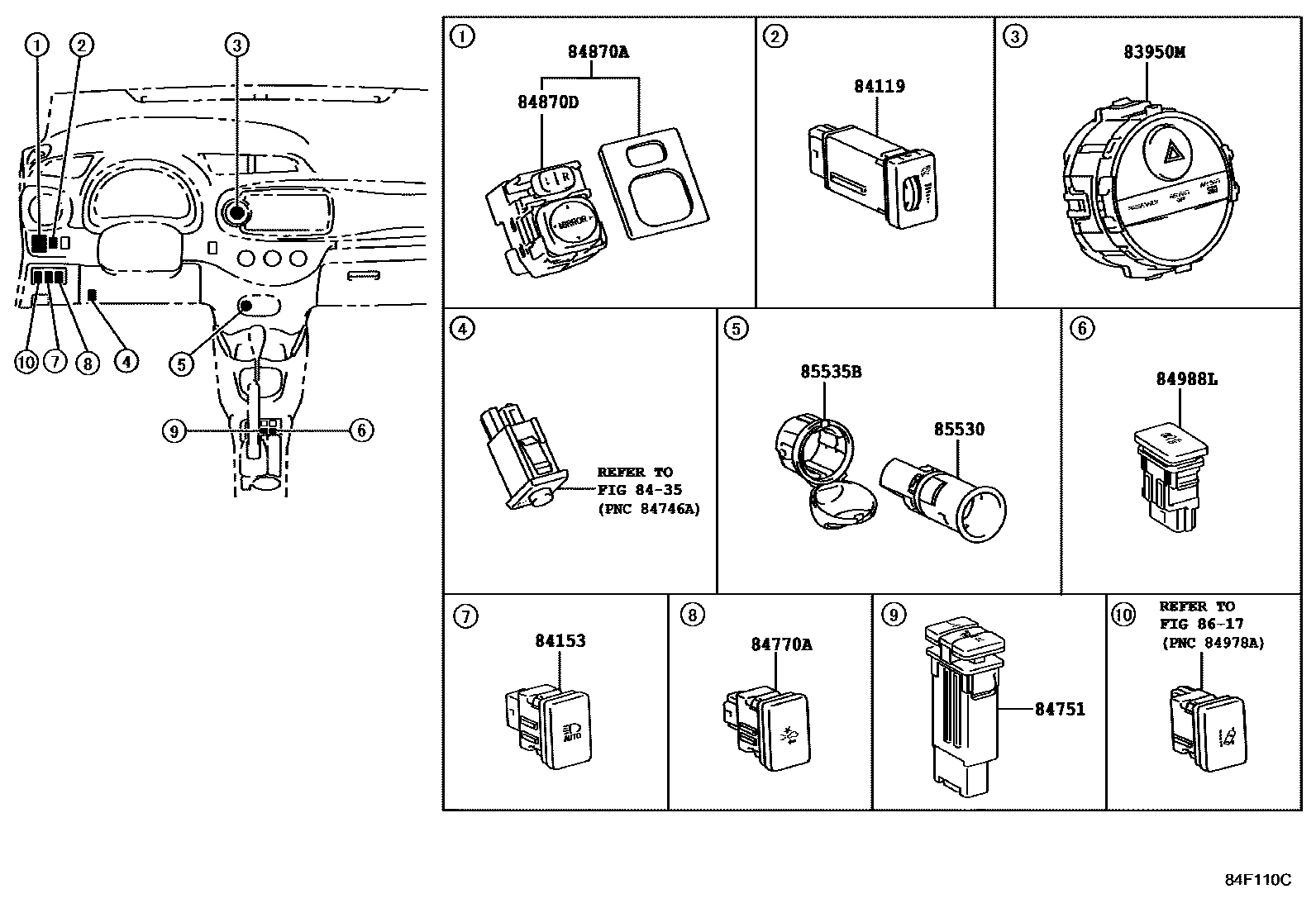

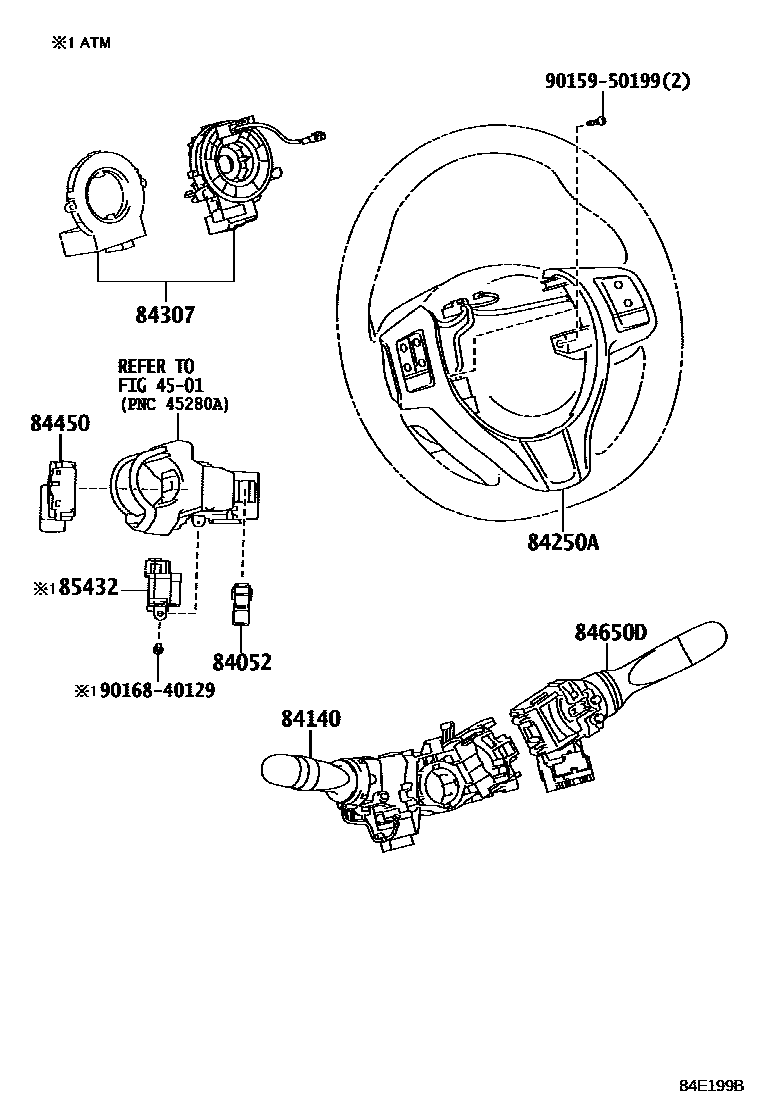

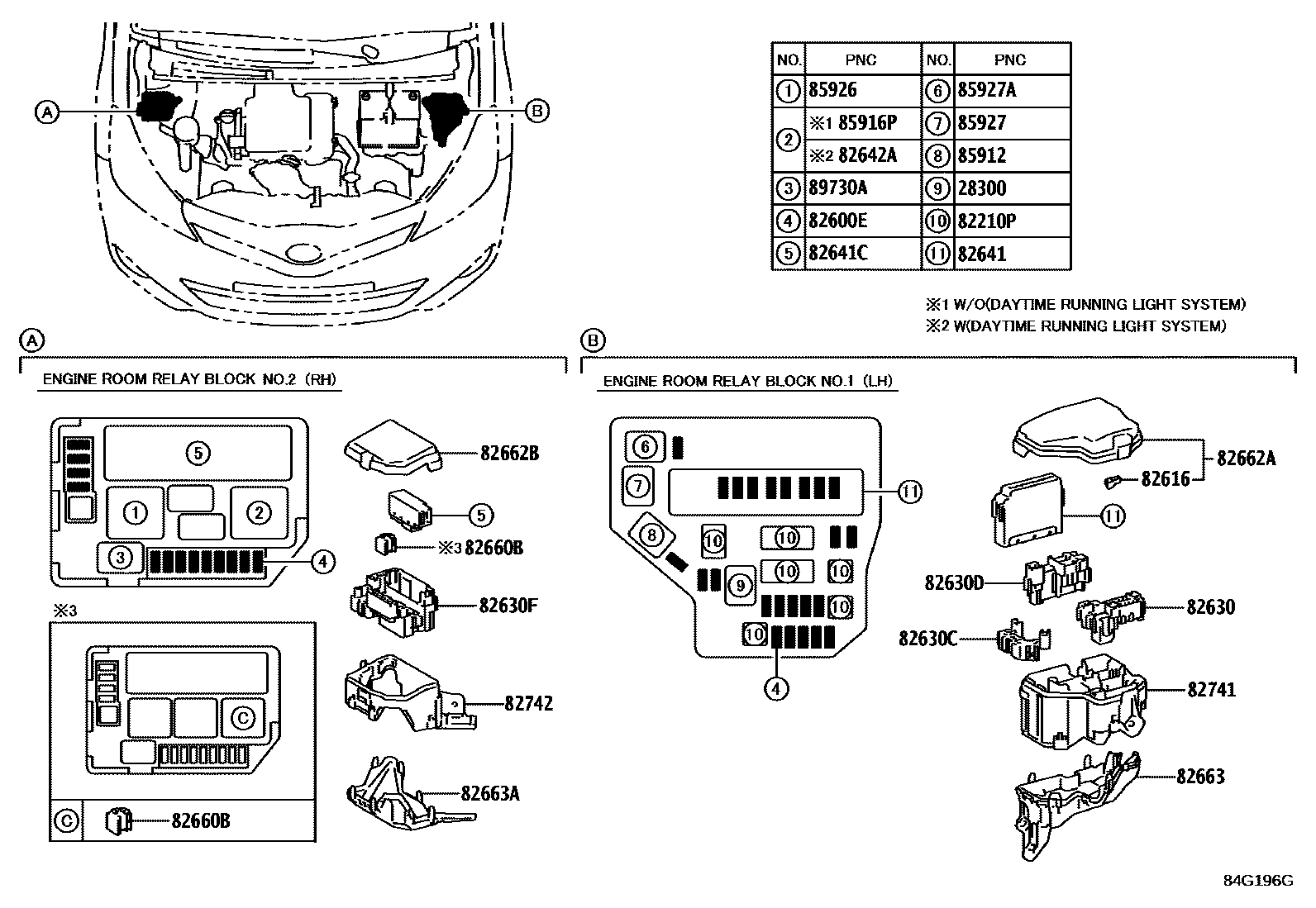

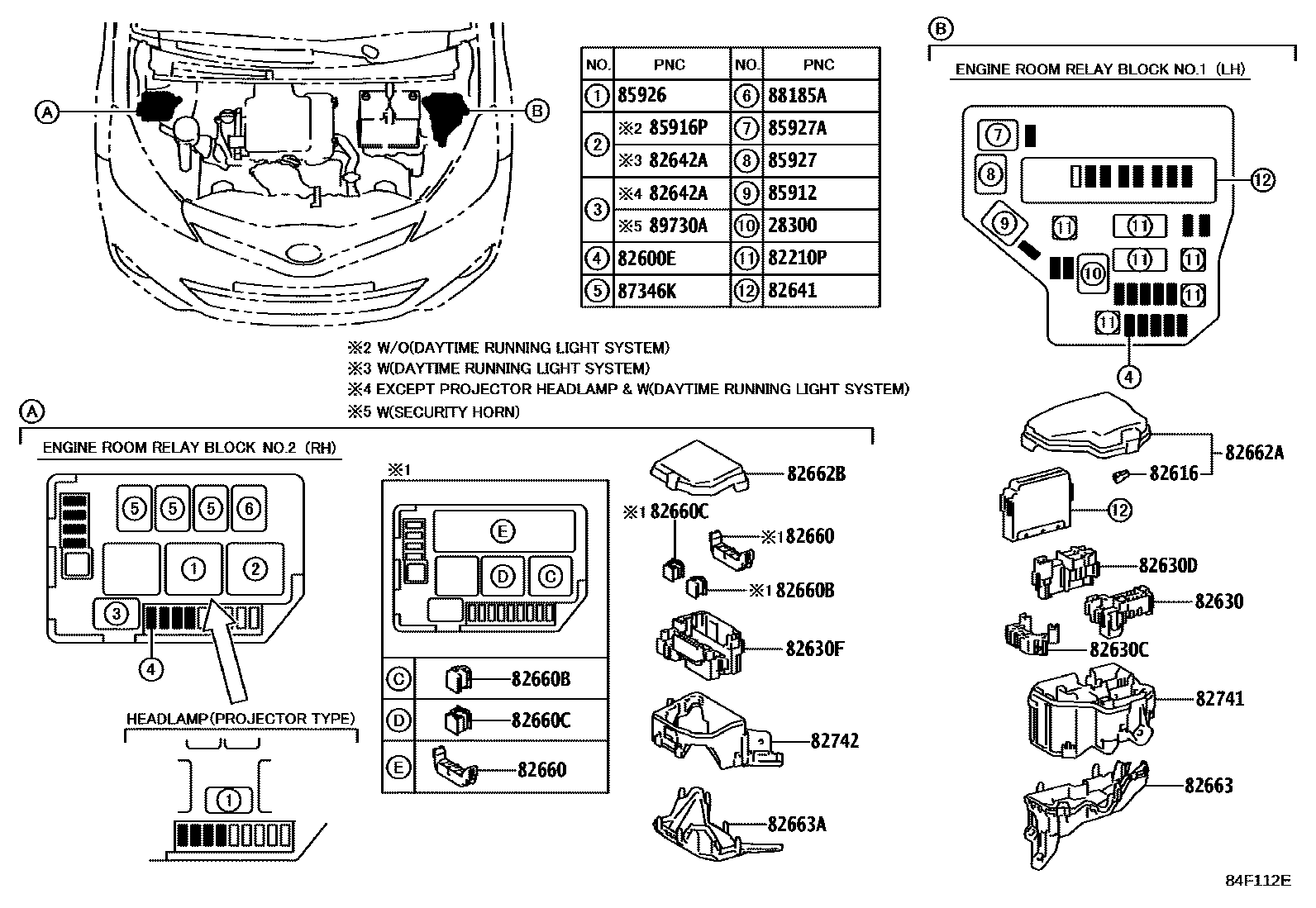

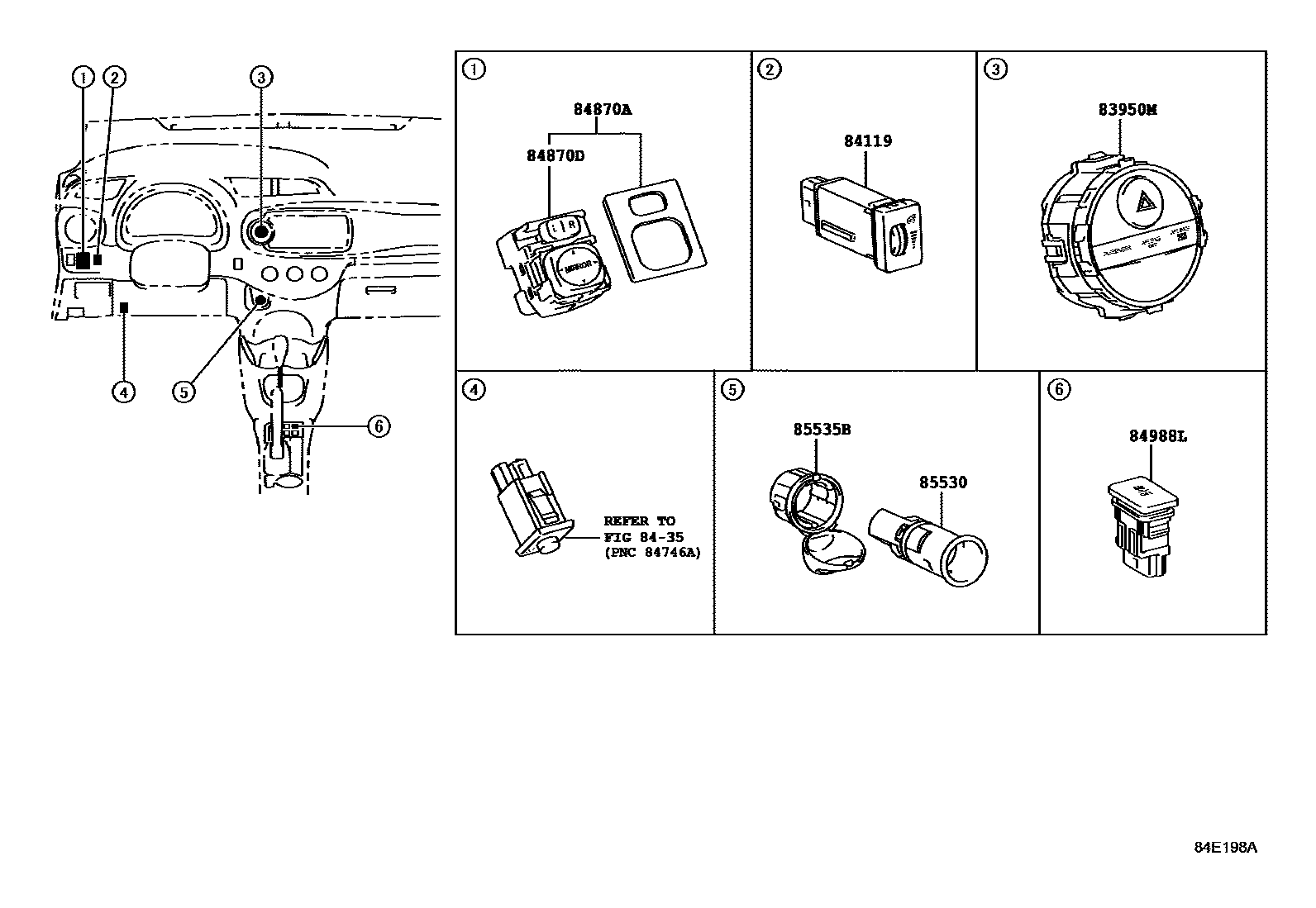

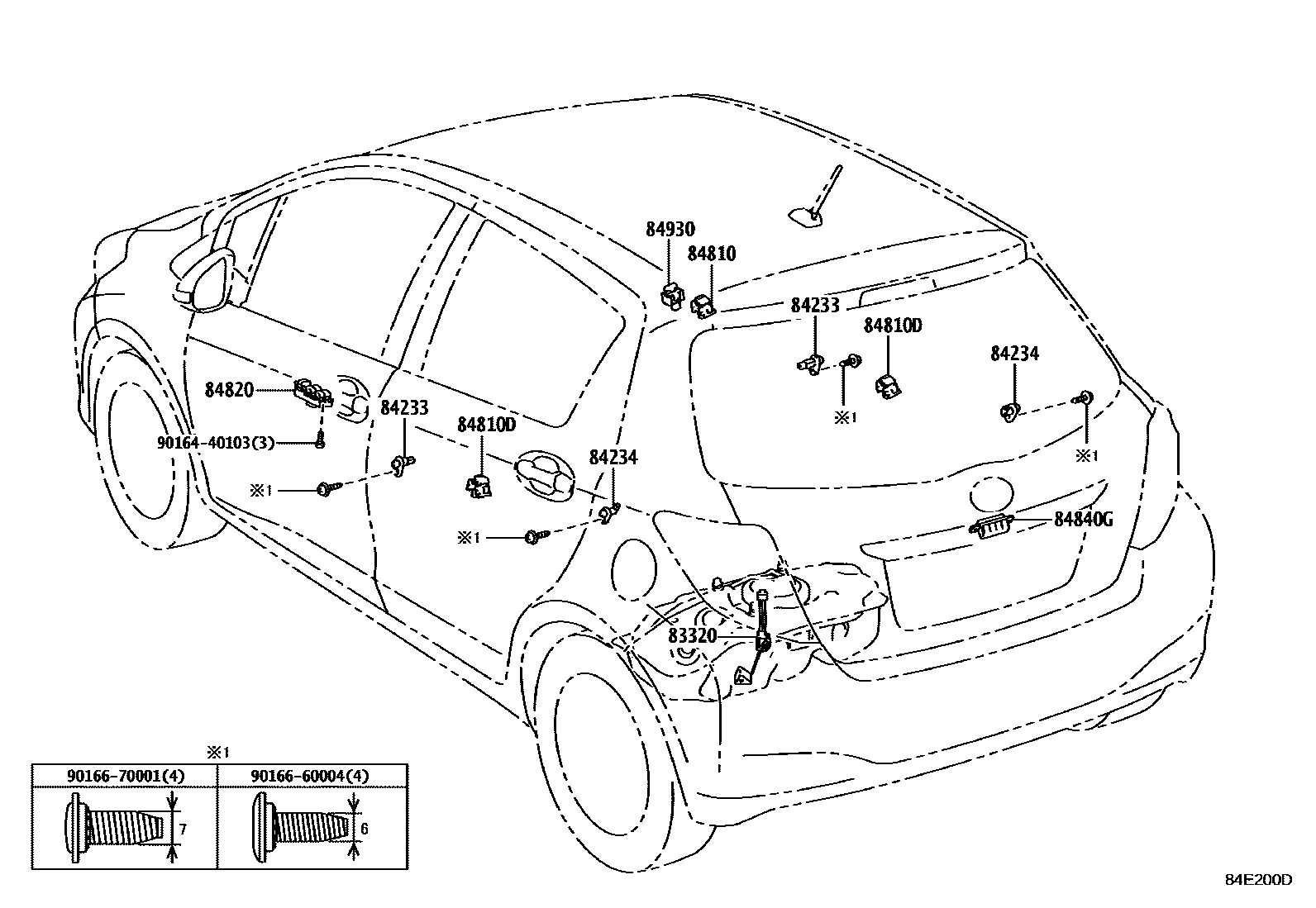

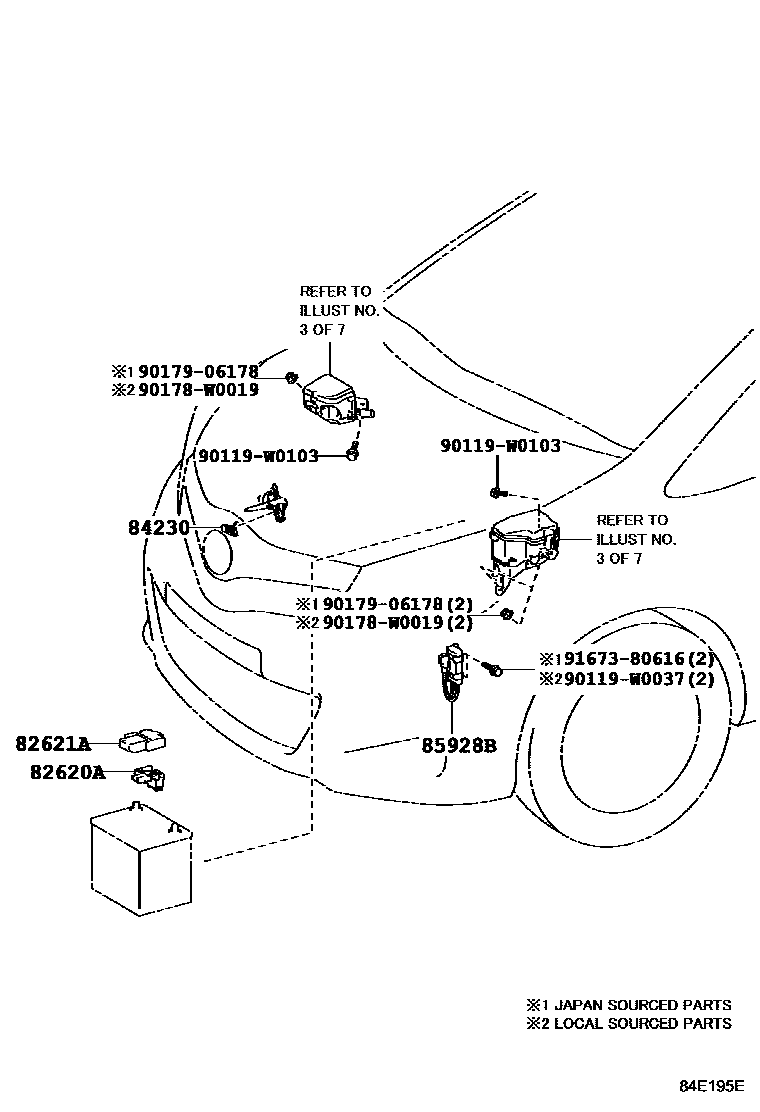

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 9 images and 79 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08296 · 90982-08300 · 90982-08305 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-52070 |
| 82621A | Fuse cover | 82621-0D020 |
| 82630 | Fuse holder assembly | 82631-0D010 |
| 82630C | Fuse holder assembly | 82631-0D020 |
| 82630D | fuse holder | 82631-0D030 |
| 82630F | fuse holder | 82631-0D040 |
| 82641 | Integrated relay No. 1 | 82641-52020 |
| 82641C | Integrated relay No. 2 | 82641-52060 |
| 82642A | driving light relay | 82642-52030 · 90080-87021 |
| 82660 | Engine room relay box assembly | 82660-52120 |
| 82660B | Relay assembly | 82660-0H070 · 82660-52130 |
| 82660C | Relay assembly | 82660-0C110 · 82660-26270 |
| 82660D | Relay assembly | 82660-48020 |
| 82660E | Relay assembly | 82660-52100 |
| 82662A | No. 1 relay box upper cover | 82662-0D280 · 82662-0D300 |
| 82662B | No. 2 relay box upper cover | 82662-0D141 · 82662-0D310 · 82662-0D320 · 82662-0D321 · 82662-0D322 |
| 82663 | Relay box lower cover | 82663-0D060 |
| 82663A | No. 2 relay box lower cover | 82663-0D070 |
| 82672A | Junction box cover | 82672-52030 · 82672-52100 · 82672-52160 |
| 82730 | Instrument panel junction box assembly | 82730-52M60 · 82730-52Q00 · 82730-52Q80 |
| 82741 | Engine room relay box | 82741-0D070 |
| 82742 | Engine room No. 2 relay box | 82741-0D080 |
| 83320 | Fuel gauge sensor assembly | 83320-52260 · 83320-52261 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-05010 · 83530-28020 · 83530-60020 |
| 83950M | Warning light assembly | 83950-0D060 · 83950-0D110 · 83950-52220 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-42020 · 84119-42021 |
| 84140 | Headlight dimmer switch assembly | 84140-47130 · 84140-47140 · 84140-47151 · 84140-47161 · 84140-52220 · 84140-52230 |
| 84153 | Automatic high beam switch | 84153-0D010 · 84153-0D040 |
| 84210 | Reversing light switch assembly | 84210-52010 |
| 84230 | Door control light switch assembly (for engine room) | 84230-52100 |
| 84233 | Door control light switch assembly (for front door) | 84231-0D030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0D040 |
| 84270Q | headlight relay | 90987-02027 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0D070 · 84307-0D080 · 84307-47020 · 84307-60020 |
| 84340 | brake light switch assembly | 84340-09020 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-52020 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-0D180 · 84652-52201 · 84652-52300 |
| 84751 | Seat heater switch | 84751-0D041 |
| 84770A | Collision prediction system cancel switch assembly | 84770-0D010 · 84770-0D030 |
| 84810 | Electric window lift switch assembly | 84810-0D030 |
| 84810D | Rear electric window lift switch assembly | 84810-0D030 |
| 84820 | Electric window lift main switch assembly | 84820-21050 · 84820-52470 |
| 84840G | Back door opener switch assembly | 84840-02050 · 84840-05040 · 84840-28030 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0F010 |
| 84870D | No. 2 exterior rearview mirror switch assembly | 84872-02050 |
| 84930 | Door control switch assembly | 84930-12250 |
| 84988L | VSC off switch | 84988-0D010 · 84988-0D011 · 84988-0D140 |
| 85432 | Key interlock solenoid valve | 85432-52010 |
| 85530 | No. 1 power socket assembly | 85530-0D020 · 85530-0D021 |
| 85535B | No. 1 power outlet cover | 85535-52040 |
| 85910C | Relay assembly (for heater blower motor) | 90080-87031 · 90987-04010 |
| 85912 | defogger relay | 90080-87021 |
| 85916P | headlight relay | 90080-87030 |
| 85919E | brake light relay | 90080-87020 |
| 85926 | Headlight dimmer relay | 90080-87021 · 90080-87031 |
| 85927 | cooling fan relay | 90080-87021 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90080-87020 · 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52030 · 85928-52032 |
| 87346K | PTC heater relay | 90080-87021 |
| 88185A | RELAIS, CHAUFFAGE PRE-COLLISION EN VILLE | 90080-87021 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89111 | Network gateway ECU | 89100-52030 |
| 89221 | Multi-channel network body ECU | 89220-0D180 · 89220-0D190 · 89220-0D200 · 89220-0D210 · 89220-0D220 · 89220-0D260 · 89220-0D330 · 89220-0D340 · 89220-0D350 · 89220-0D400 · 89220-0D410 · 89220-0D420 · 89220-0D430 · 89220-0D440 · 89220-52130 · 89220-52140 · 89220-52330 · 89220-52350 · 89220-52360 · 89220-52590 · 89220-52700 |
| 89465 | oxygen sensor | 89465-52480 · 89465-52770 |
| 89467B | air fuel ratio sensor | 89467-52170 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0D256 · 89650-0D303 · 89650-0D304 · 89650-0D316 · 89650-0D550 · 89650-0D551 · 89650-0D560 · 89650-0D561 · 89650-52771 |
| 89730A | Relay (for safety warnings) | 90080-87021 · 90987-02027 |
