Toyota YARIS 后组合灯 — Figure 8111

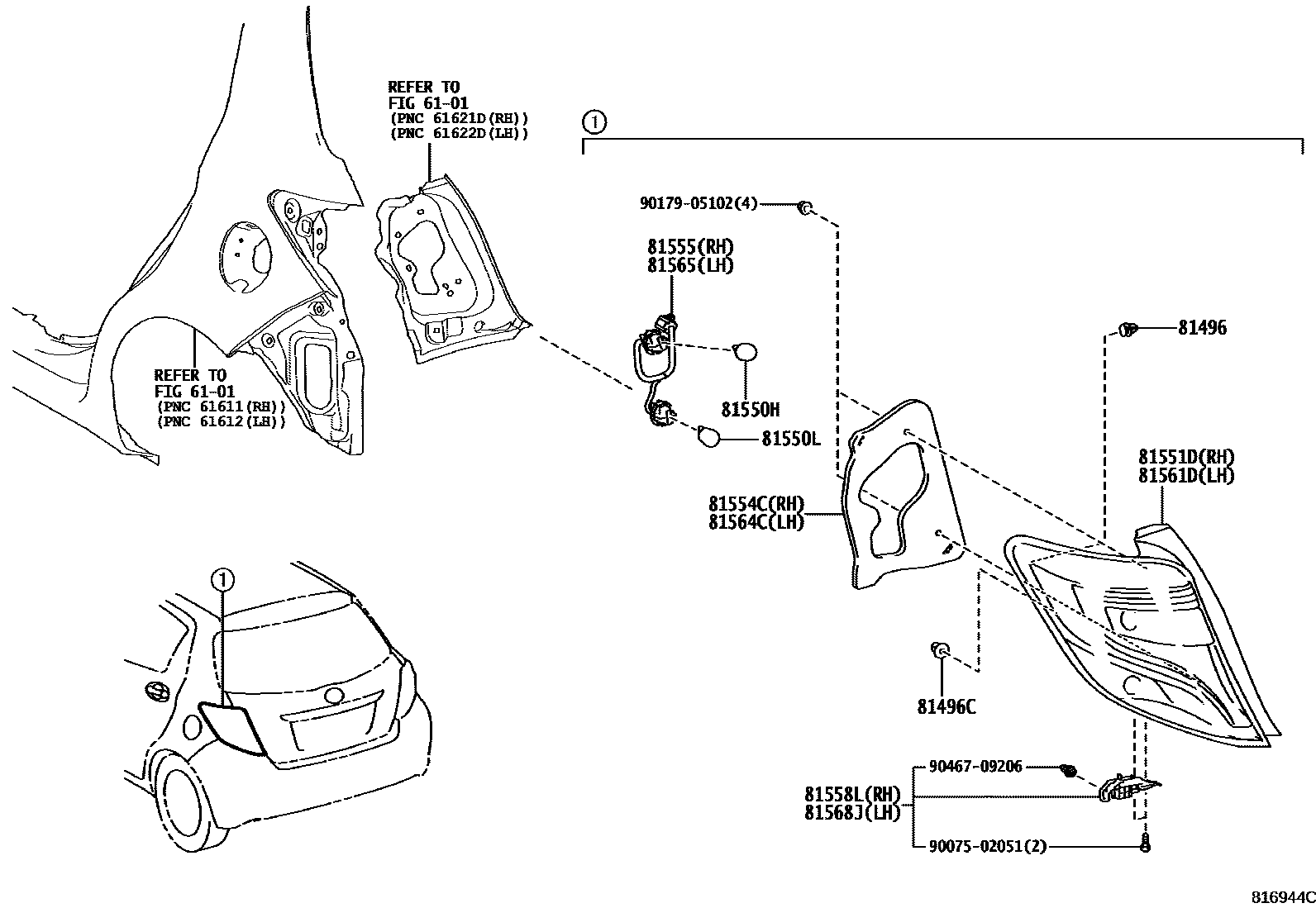

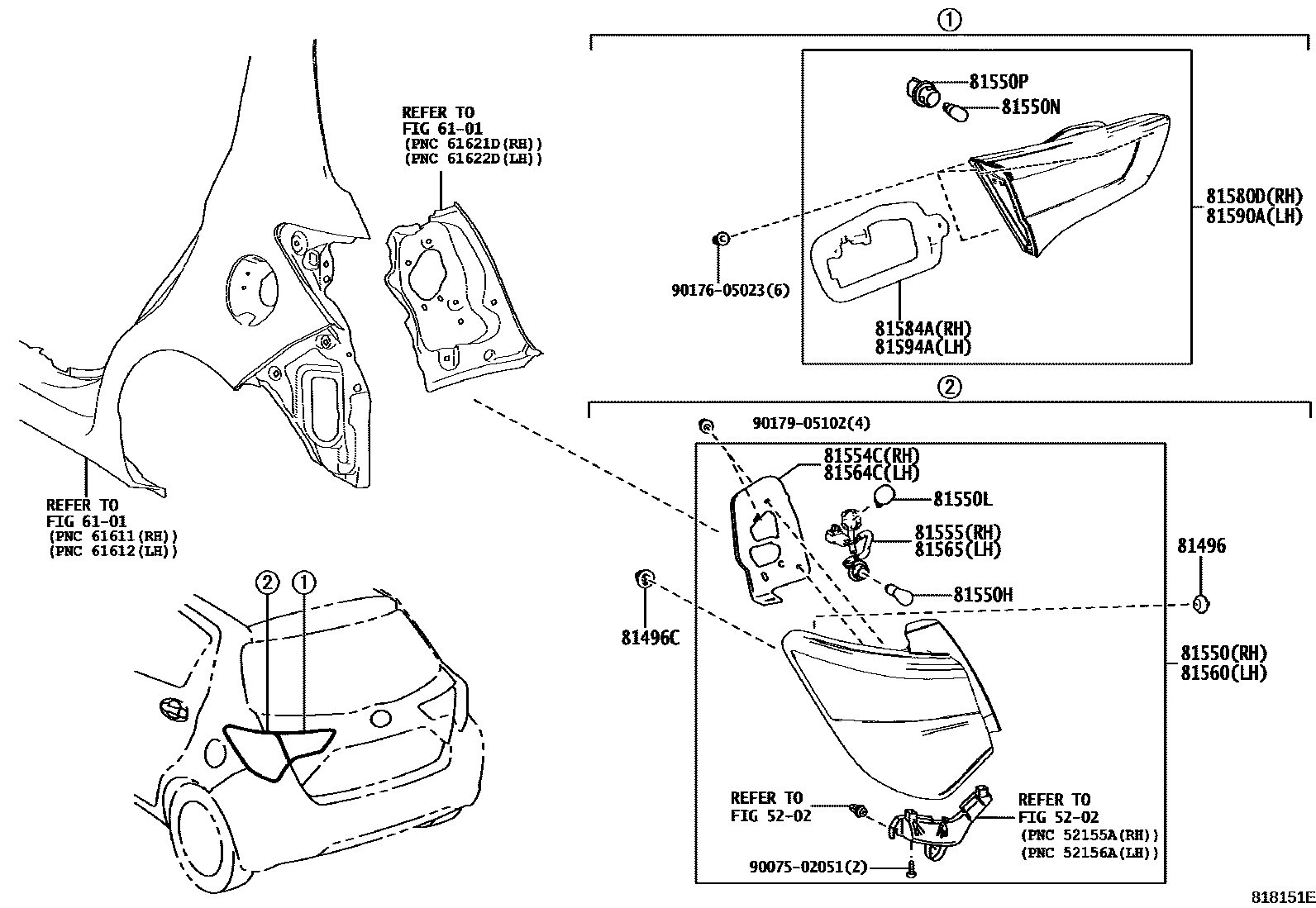

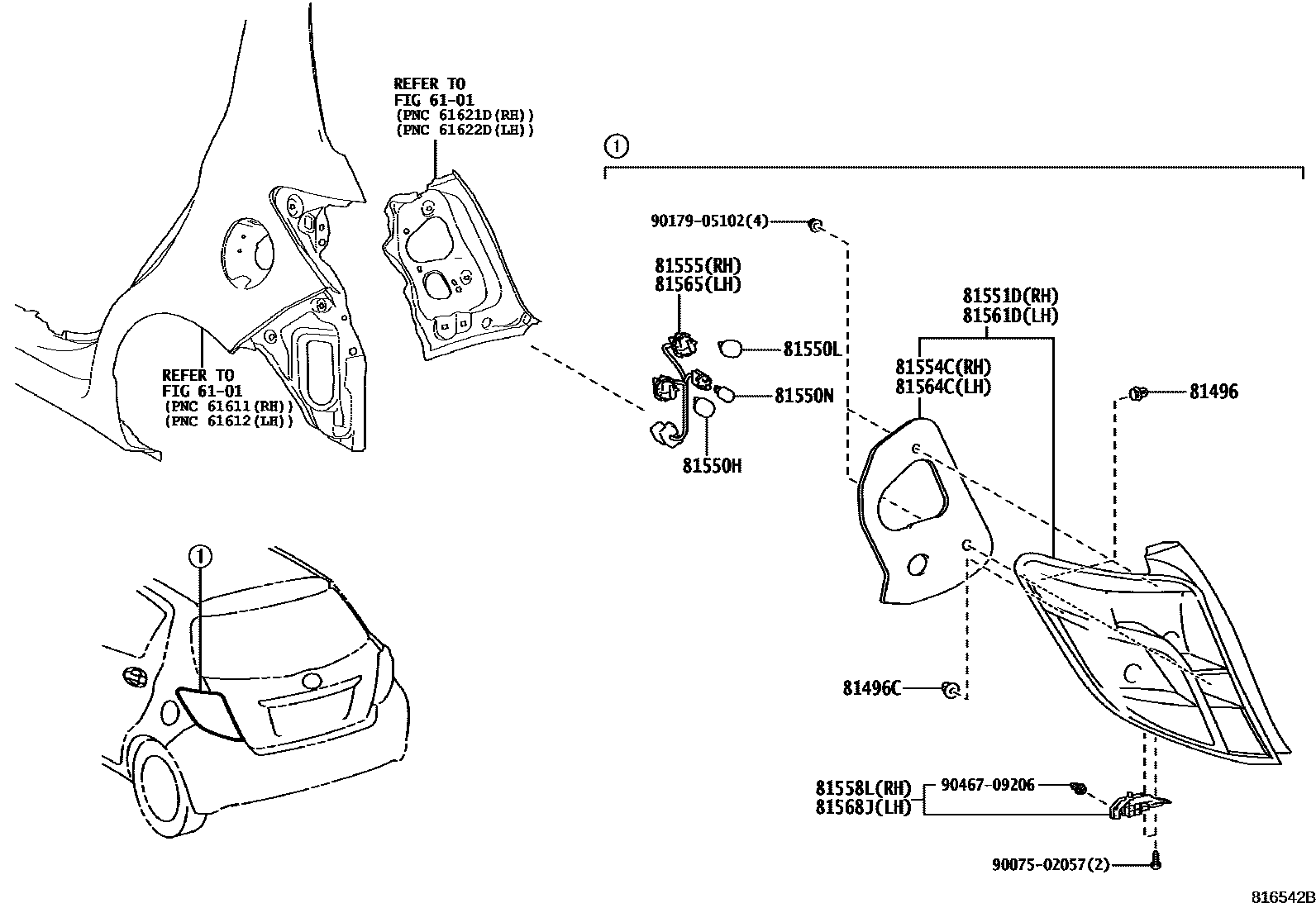

Toyota YARIS EPC diagram 8111, 后组合灯, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81550 | Right rear combination light assembly | 81550-0DB80 |
| 81550H | Tail and brake light bulbs | 90981-13044 · 90981-13094 |
| 81550L | Rear turn signal light bulb | 90981-13093 · 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-60001 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0D620 · 81551-52820 |
| 81554C | Right rear combination lamp lamp body seal | 81552-0DB60 · 81554-0D600 · 81554-52820 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D600 · 81555-0DB60 · 81555-52820 |
| 81558L | Right rear combination lamp protective cover | 81558-0D600 · 81558-52810 |
| 81560 | Left rear combination light assembly | 81560-0DB80 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0D620 · 81561-52760 |
| 81564C | Left rear combination lamp body seal | 81554-0D600 · 81562-0DB60 · 81564-52760 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D600 · 81555-0DB60 · 81565-52760 |
| 81568J | Left rear combination lamp protective cover | 81568-0D600 · 81568-52750 |
| 81580D | Right rear light assembly | 81580-0D640 |
| 81584A | Right rear light gasket | 81582-0D600 |
| 81590A | Left rear light assembly | 81590-0D640 |
| 81594A | Left rear light gasket | 81592-0D600 |
