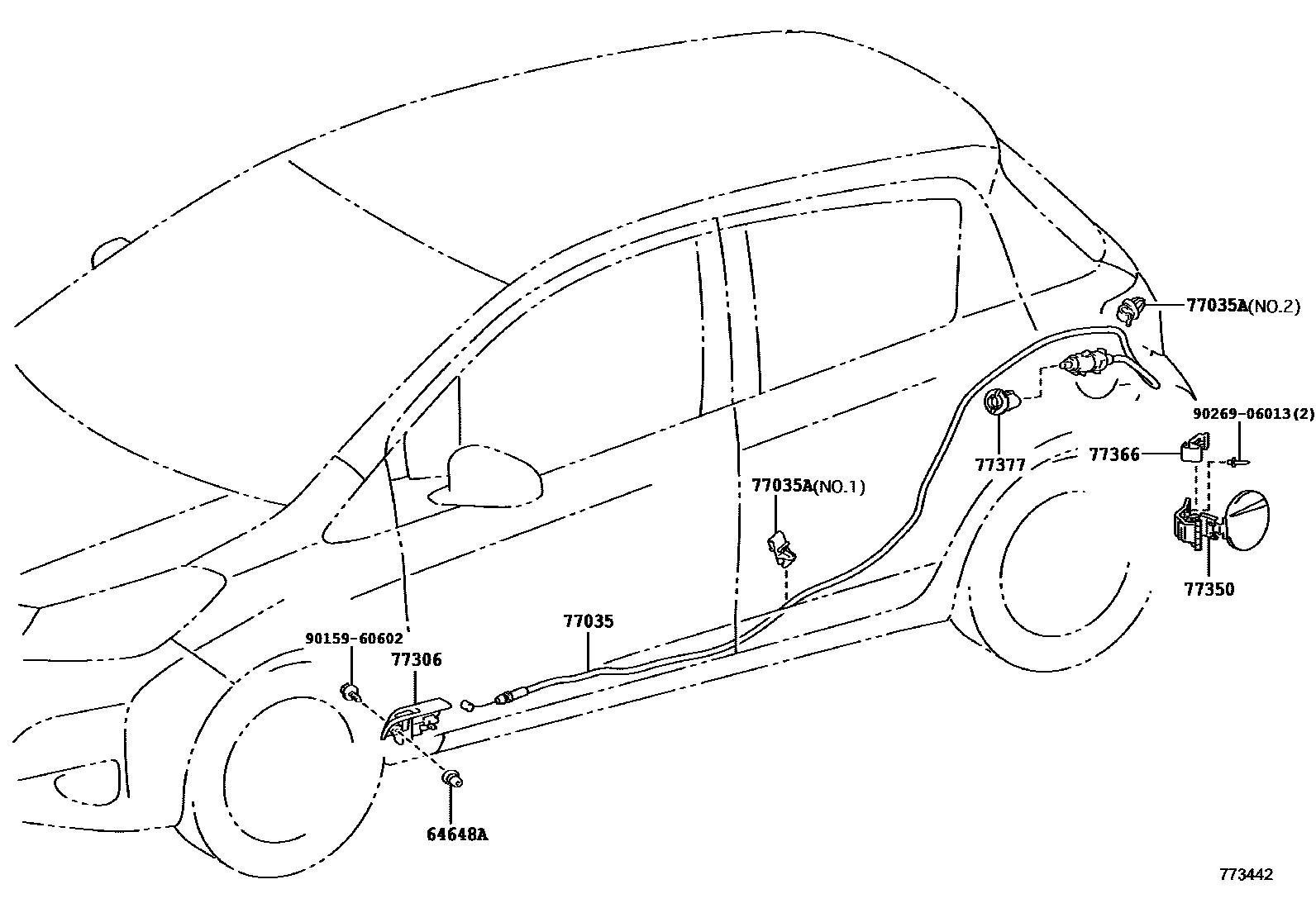

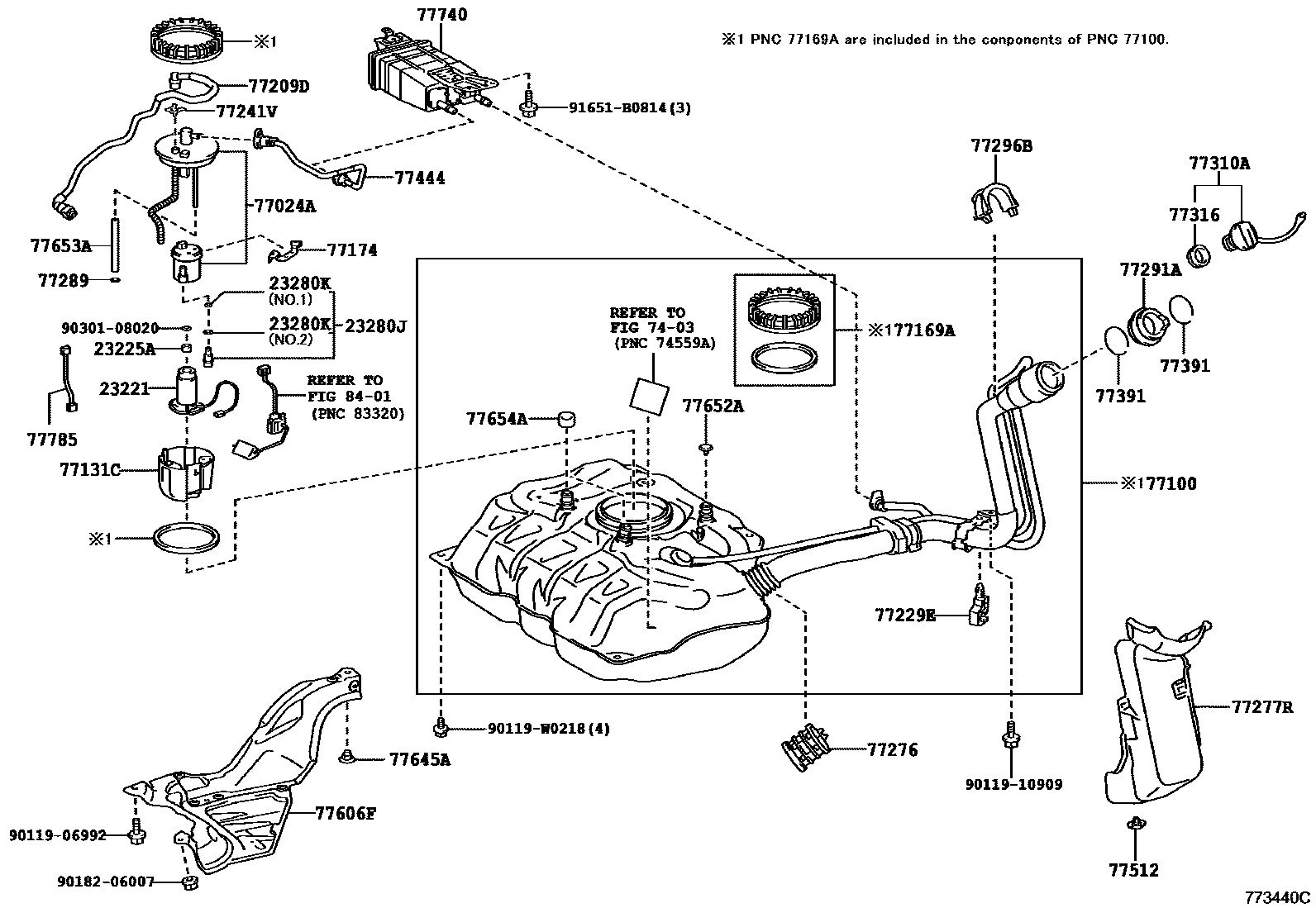

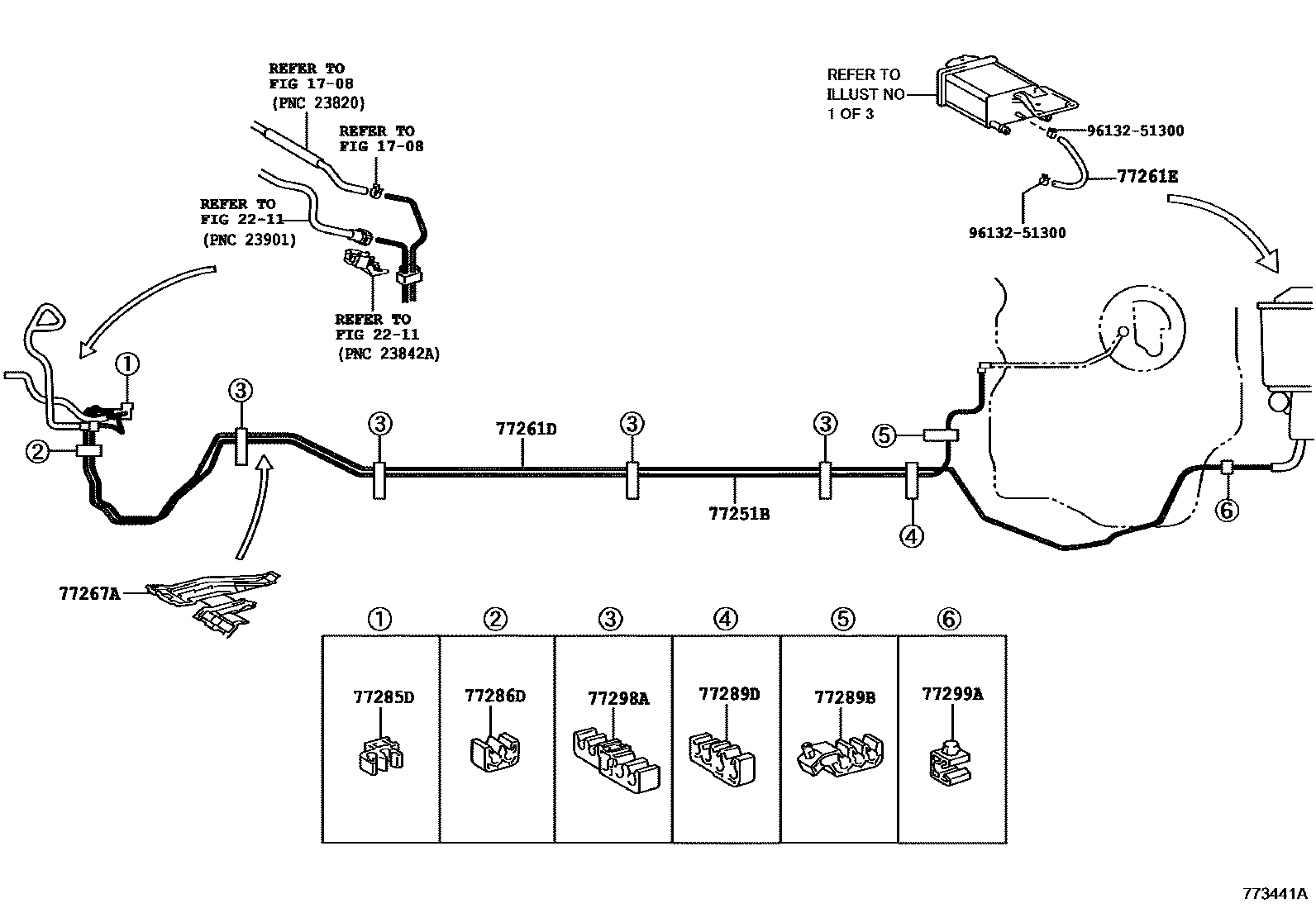

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 3 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-21211 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-32020 |
| 77024A | Fuel absorber sub-assembly | 77024-52180 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0D250 · 77035-0D251 · 77035-0D252 · 77035-0D630 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-04004 · 90469-06005 |
| 77100 | fuel tank assembly | 77001-52460 |
| 77131C | No. 1 auxiliary fuel tank | 77131-52071 · 77131-52110 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-52070 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-52180 |
| 77229E | Snorkel clamp | 77229-52080 |
| 77241V | Pipe joint clip | 77241-33011 |
| 77251B | main fuel pipe | 77251-0D420 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0D360 |
| 77267A | No. 2 fuel pipe protection device | 77267-52050 |
| 77276 | Fuel hose protector | 77276-52010 |
| 77277R | Fuel tank filler pipe protection device | 77277-52050 |
| 77285D | No. 1 fuel pipe clamp | 77285-52060 |
| 77286D | No. 2 fuel pipe clamp | 77286-52100 |
| 77289 | Fuel tank pipe holder | 77289-52110 |
| 77289B | No. 3 fuel pipe clamp | 77289-52060 |
| 77289D | No. 5 fuel pipe clamp | 77299-52070 |
| 77291A | Fuel tank filler pipe cover | 77291-0D230 · 77291-52170 |
| 77296B | No. 1 fuel line protector bracket | 77297-52040 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77299A | No. 5 fuel pipe clamp | 77299-52090 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0D120 · 77306-52060 |
| 77310A | Fuel tank cap assembly | 77300-53020 · 77300-74010 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-0D080 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 |
| 77377 | Fuel filler cap lock retainer | 77377-0D060 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77444 | fuel tank vent hose | 77404-52060 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77606F | Fuel tank cover vent housing sub-assembly | 77606-52100 |
| 77645A | Fuel tank protective shell fixings | 77645-52040 |
| 77652A | No. 2 fuel tank liner | 77652-52070 |
| 77653A | No. 3 fuel tank liner | 77652-52040 |
| 77654A | No. 4 fuel tank liner | 77654-52020 |
| 77740 | Carbon canister assembly | 77740-52110 |
| 77785 | fuel pump wiring harness | 77785-52110 |
