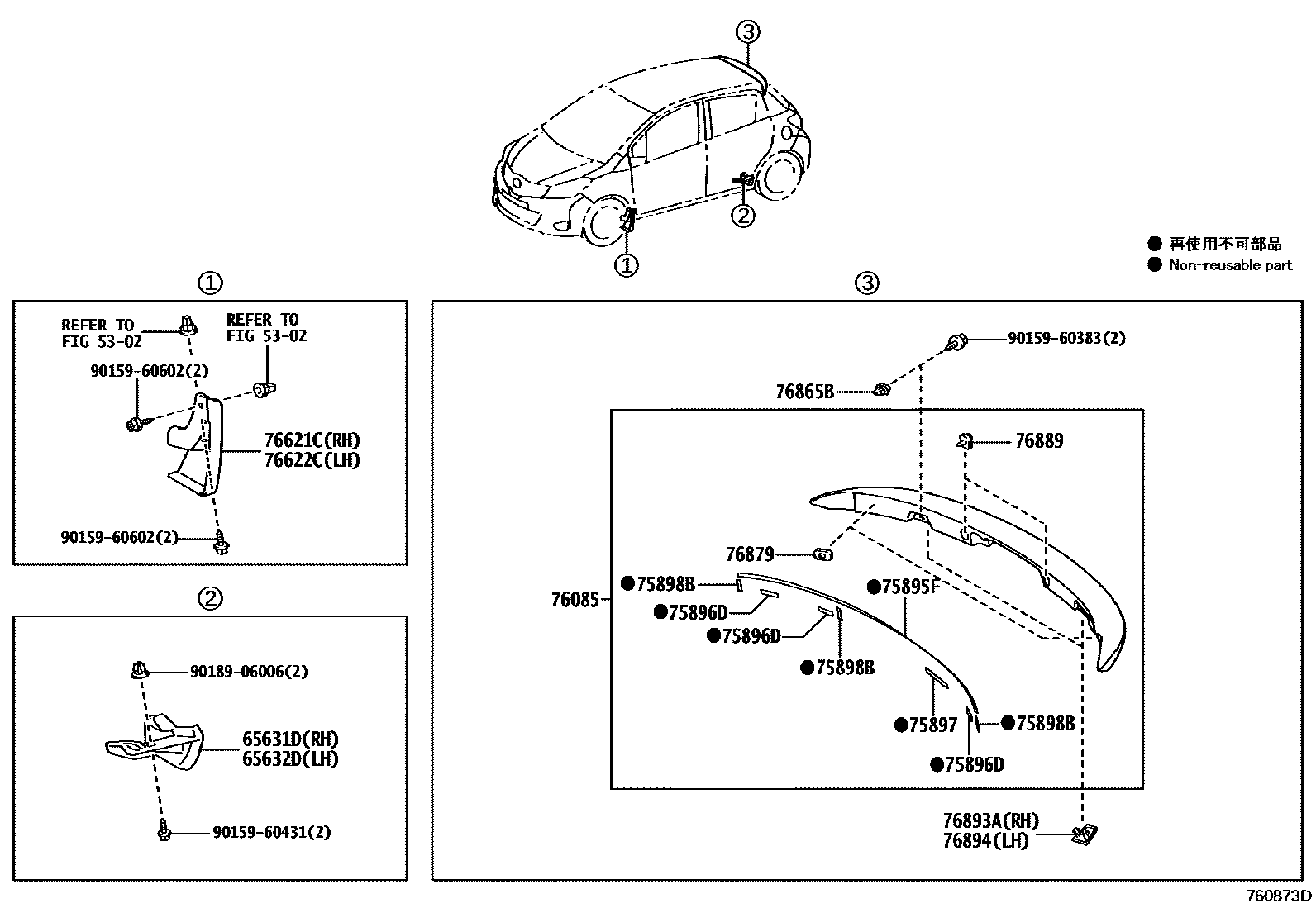

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-0D050 · 65631-0D051 |
| 65632D | Left rear wheel house front panel | 65632-0D050 · 65632-0D051 |
| 75895F | No. 1 protective strip tape | 75895-0D240 |
| 75896D | No. 2 protective strip tape | 75896-0D060 |
| 75897 | No. 3 protective tape | 75897-0D030 |
| 75898B | No. 4 protective tape | 75898-0D030 |
| 76085 | Rear spoiler sub-assembly | 76085-0D902 · 76085-0D903 |
| 76621C | Right front fender fender | 76621-52120 |
| 76622C | Left front fender fender | 76622-52120 |
| 76865B | Rear spoiler fixings | 76865-0D030 |
| 76879 | No. 1 rear spoiler clip | 76879-0D080 |
| 76889 | No. 2 rear spoiler clip | 76889-0D040 |
| 76893A | Right rear spoiler cover | 76893-0D903 |
| 76894 | Left rear spoiler cover | 76894-0D903 |
