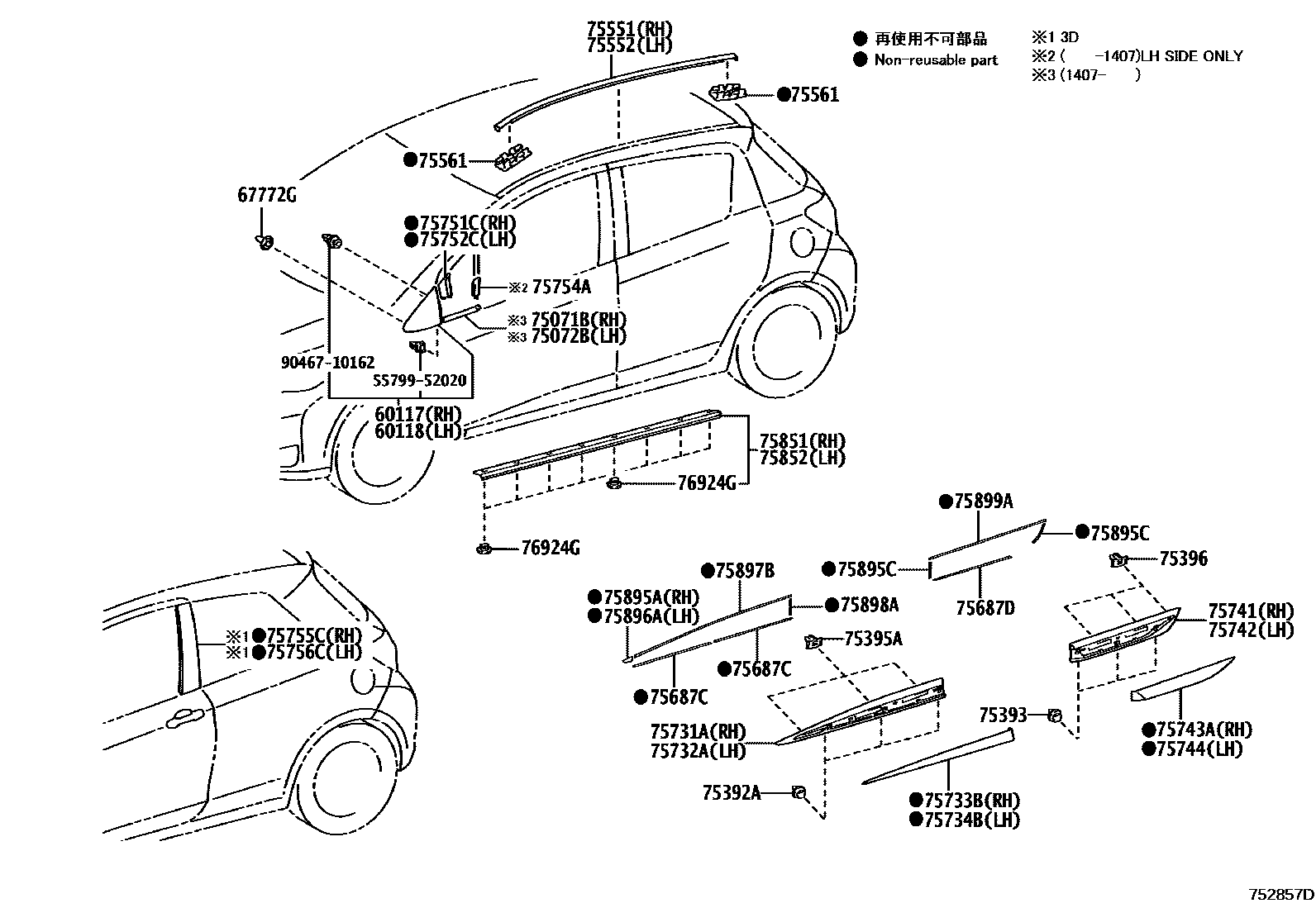

Toyota YARIS 侧防护条 — Figure 7503
Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-0D111 · 60117-0D180 · 60117-0D190 · 60117-0D200 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-0D111 · 60118-0D180 · 60118-0D190 · 60118-0D200 |
| 67772G | front pillar cover | 67772-95J03 |
| 75071B | Right front door outer upper protective strip sub-assembly | 75737-0D010 · 75737-0D020 · 75737-0D030 |
| 75072B | Left front door outer upper protective strip sub-assembly | 75738-0D010 · 75738-0D020 · 75738-0D030 |
| 75392A | No. 1 outer protective strip fixings | 62955-50010 |
| 75393 | No. 2 outer protective strip fixings | 62955-50010 |
| 75395A | No. 1 outer protective strip clip | 75791-42010 |
| 75396 | No. 2 outer protective strip clip | 75791-42010 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0D130 · 75551-0D131 · 75551-0D132 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0D080 · 75552-0D081 · 75552-0D082 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75687C | PROTECTEUR, MOULURE EXTERIEURE, AVANT | 75687-0D010 |
| 75687D | PROTECTEUR, MOULURE EXTERIEURE, ARRIERE | 75687-0D010 |
| 75731A | Right front door outer protective strip | 75731-0D200 |
| 75732A | Left front door outer protective strip | 75732-0D200 |
| 75733B | Right front door outer rear upper protective strip | 75733-0D010 · 75733-0D011 · 75733-0D020 · 75733-0D021 |
| 75734B | Left front door outer rear upper protective strip | 75734-0D010 · 75734-0D011 · 75734-0D020 · 75734-0D021 |
| 75741 | Right rear door outer protective strip | 75741-0D200 |
| 75742 | Left rear door outer protective strip | 75742-0D210 |
| 75743A | Right rear door outer rear upper protective strip | 75743-0D010 · 75743-0D011 · 75743-0D020 · 75743-0D021 |
| 75744 | Left rear door outer rear upper protective strip | 75744-0D010 · 75744-0D011 · 75744-0D020 · 75744-0D021 |
| 75751C | Right front door window frame front protective strip | 75751-0D040 |
| 75752C | Left front door window frame front protective strip | 75752-0D040 |
| 75754A | Protective strip on left front door window frame | 75754-52010 |
| 75755C | Right front door window frame rear protective strip | 75755-0D020 |
| 75756C | Left front door window frame rear protective strip | 75756-0D020 |
| 75851 | Right side door sill panel protective strip | 75851-0D020 |
| 75852 | Left side door sill panel protective strip | 75852-0D020 |
| 75895A | No. 1 protective strip tape | 75895-0D180 |
| 75895C | No. 3 protective tape | 75898-0D020 |
| 75896A | No. 2 protective strip tape | 75896-0D050 |
| 75897B | No. 3 protective tape | 75897-0D020 |
| 75898A | No. 4 protective tape | 75898-0D020 |
| 75899A | No. 5 protective tape | 75899-0D010 |
| 76924G | Door sill panel protective strip fixings | 76924-12040 |
