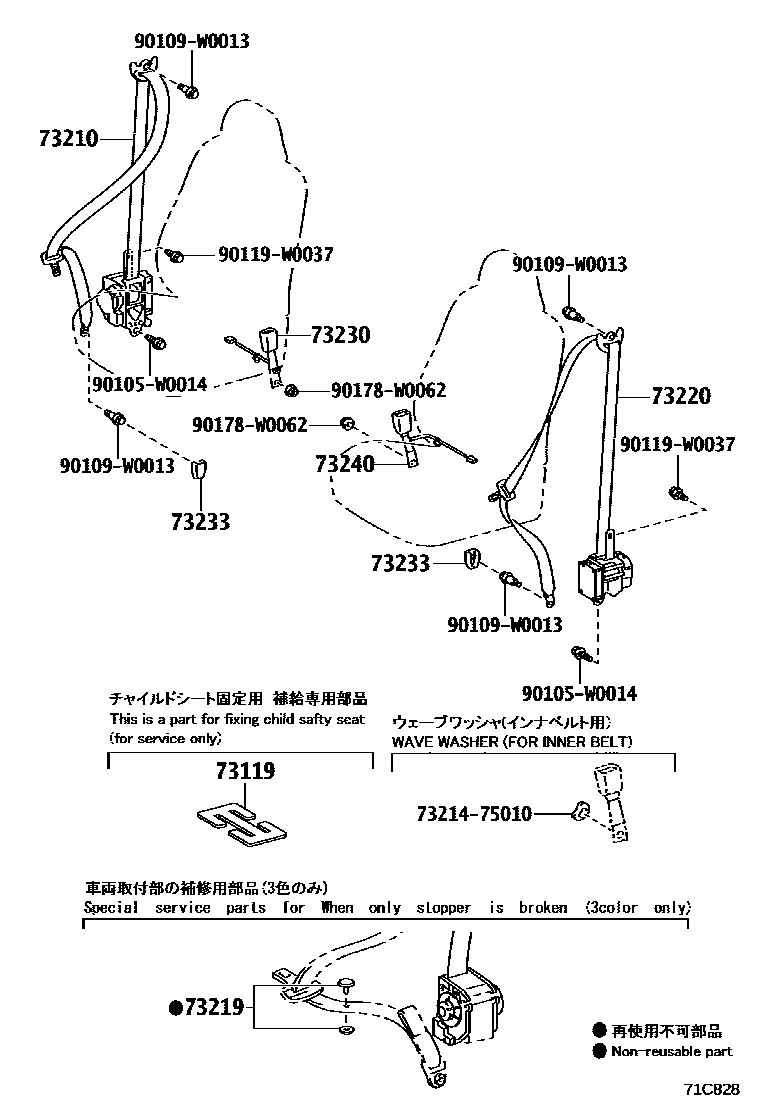

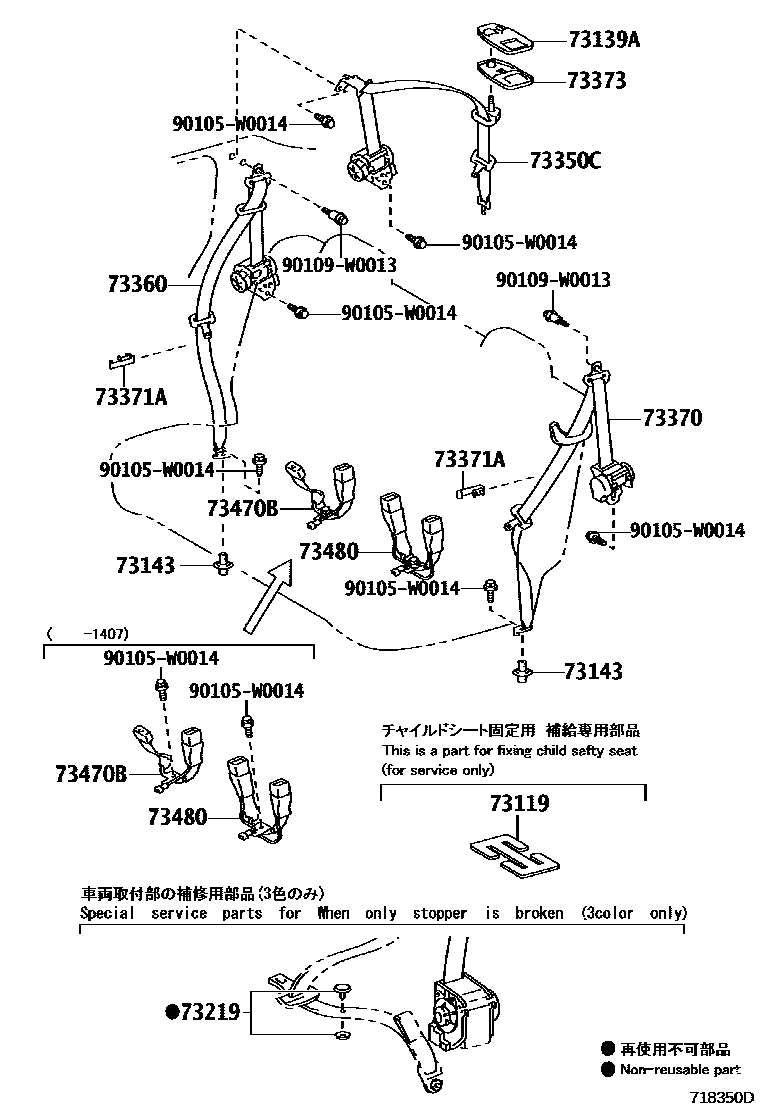

Toyota YARIS 安全带和儿童保护座椅 — Figure 7104
Toyota YARIS EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73119 | seat belt clip | 73119-22010 |
| 73143 | seat belt hole seal | 73143-52010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
