Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

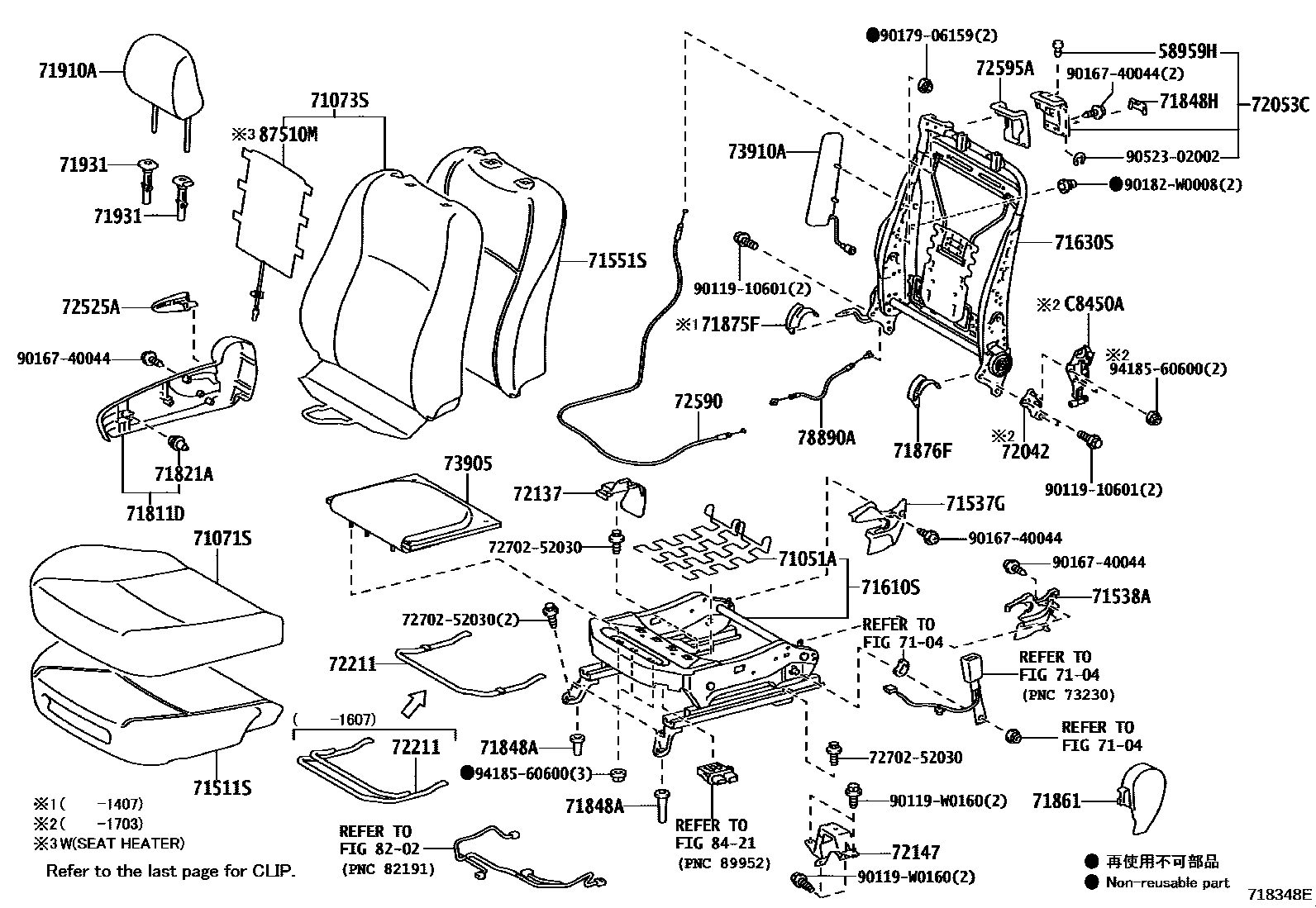

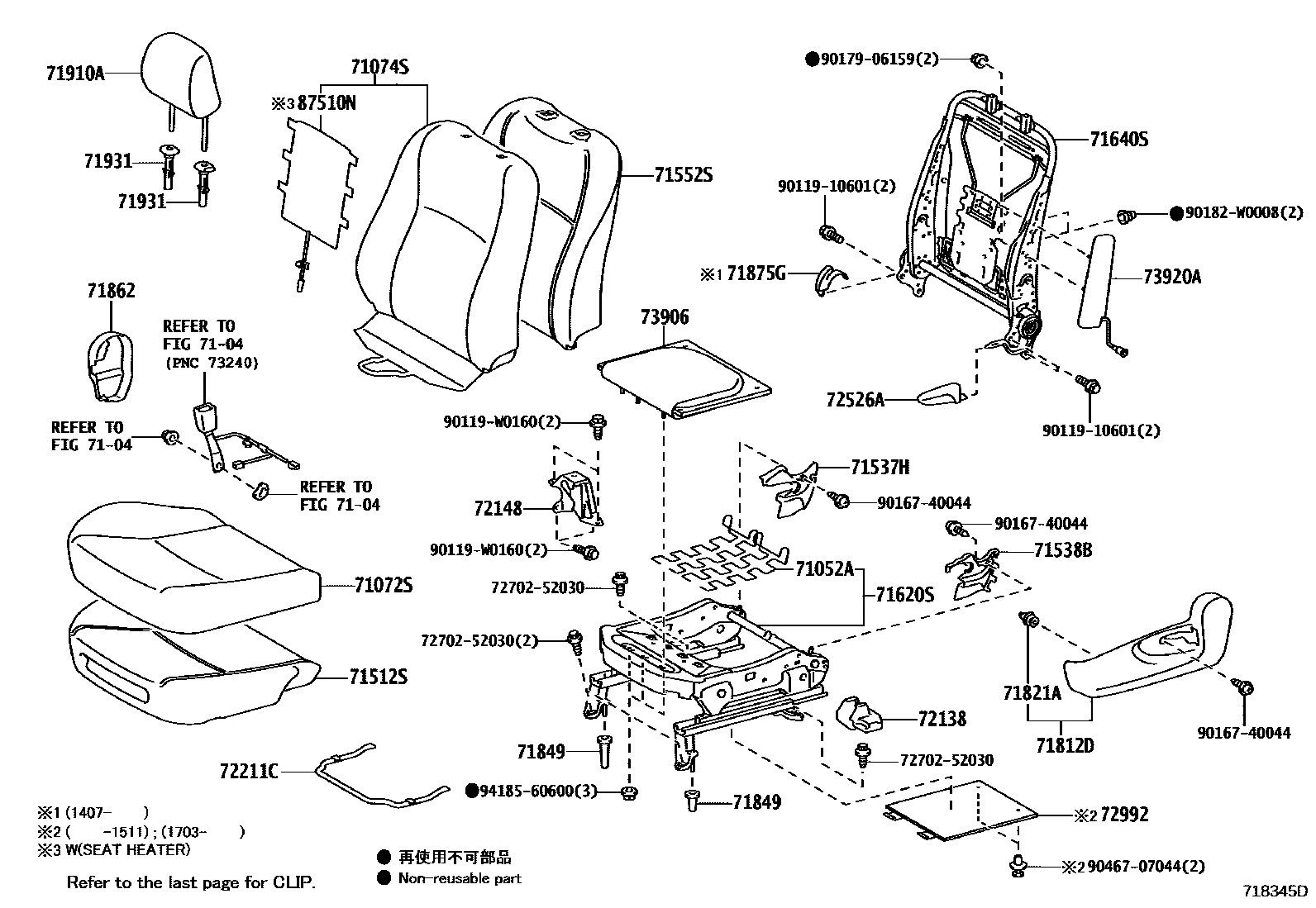

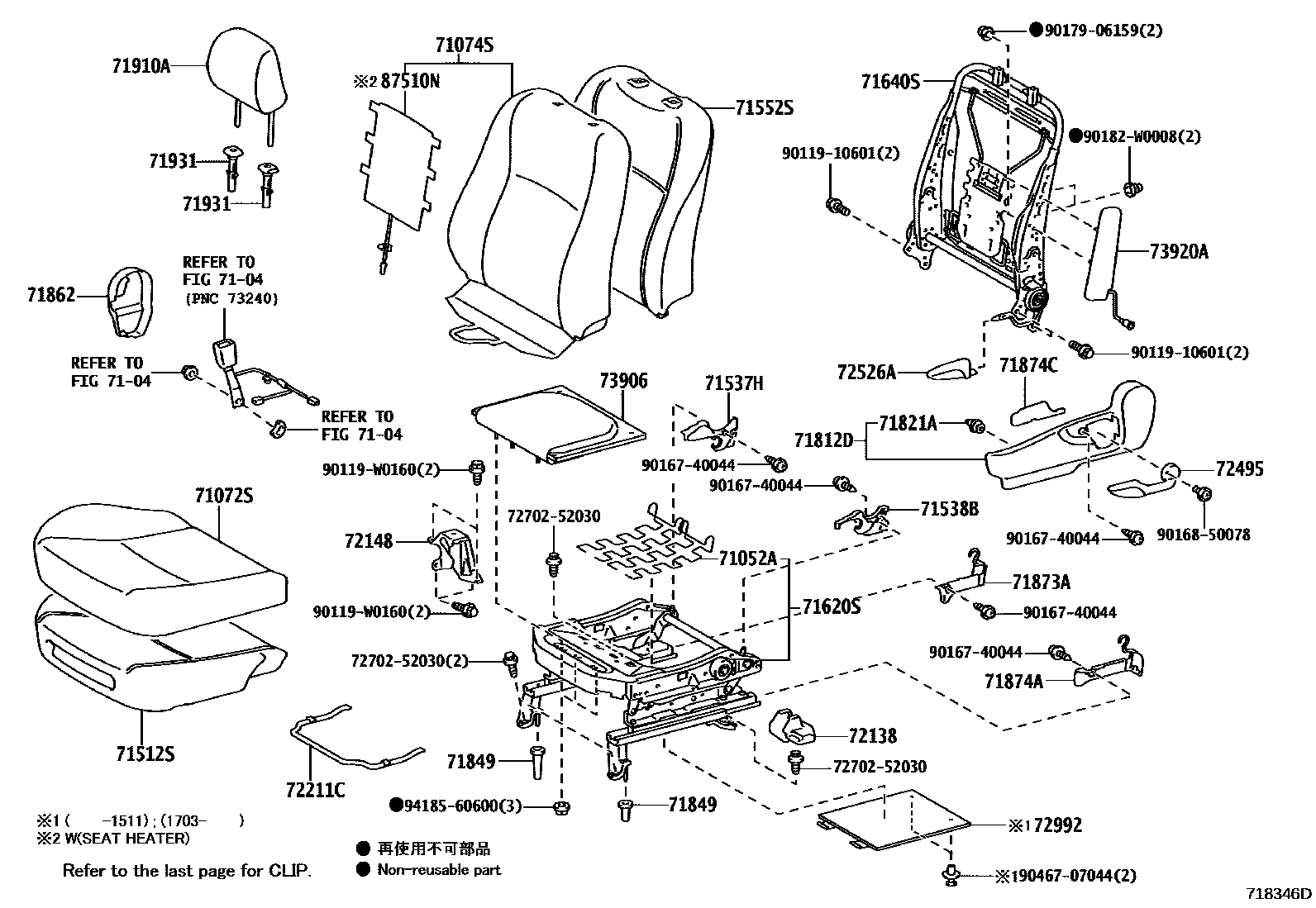

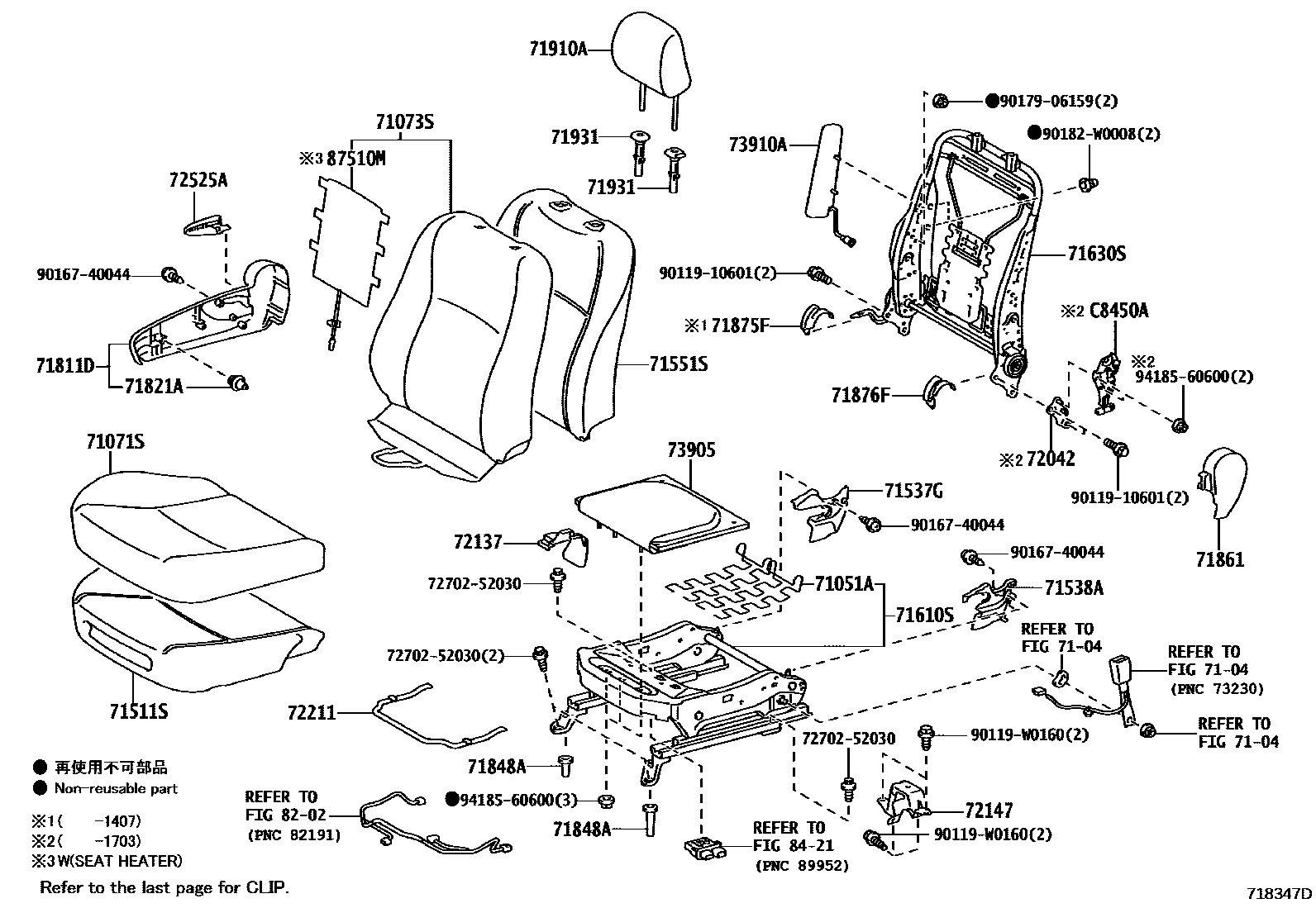

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58959H | Seat back tilt remote control lever cushion | 58959-60060 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-0D060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-0D060 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-0D470 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0D440 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0D500 · 71551-0D510 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0D410 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0D280 · 71610-0D300 · 71610-0D350 · 71610-0D351 · 71610-0D360 · 71610-0D361 · 71610-0D390 · 71610-0D400 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0D340 · 71620-0D341 · 71620-0D350 · 71620-0D351 · 71620-0D380 · 71620-0D390 |
| 71821A | Clips (for front seat side guards) | 71769-47020 |
| 71861 | Front right seat cushion inner guard | 71861-52300 |
| 71873A | Front seat cushion lower guard | 71873-52270 |
| 71874A | Front left seat cushion lower guard | 71874-52290 |
| 72042 | Height adjuster inner bracket sub-assembly | 72431-52010 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D060 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D070 |
| 72211 | Seat slide adjustment handle | 72211-52160 · 72211-52170 |
| 72211C | Seat slide adjustment handle | 72211-52160 |
| 72590 | Seat back control cable assembly | 72590-52050 |
| 72595A | Right seat back tilt remote control base | 72595-0D010 |
| 72992 | Front left seat cushion cover | 72991-0D160 |
| 73905 | Front right seat airbag sub-assembly | 73905-52020 |
| 73906 | Front left seat air bag sub-assembly | 73905-52020 |
| 73910A | Front right seat airbag assembly | 73910-52191 |
| 73920A | Front left seat airbag assembly | 73920-52191 |
| 78890A | Auxiliary seat lock control cable assembly | 78890-0D010 · 78890-21010 |
| 87510M | Front right seat back heater assembly | 87530-0D010 |
| 87510N | Front left seat back heater assembly | 87530-0D010 |
| C8450A | No. 1 limit switch assembly | 84750-52020 |
