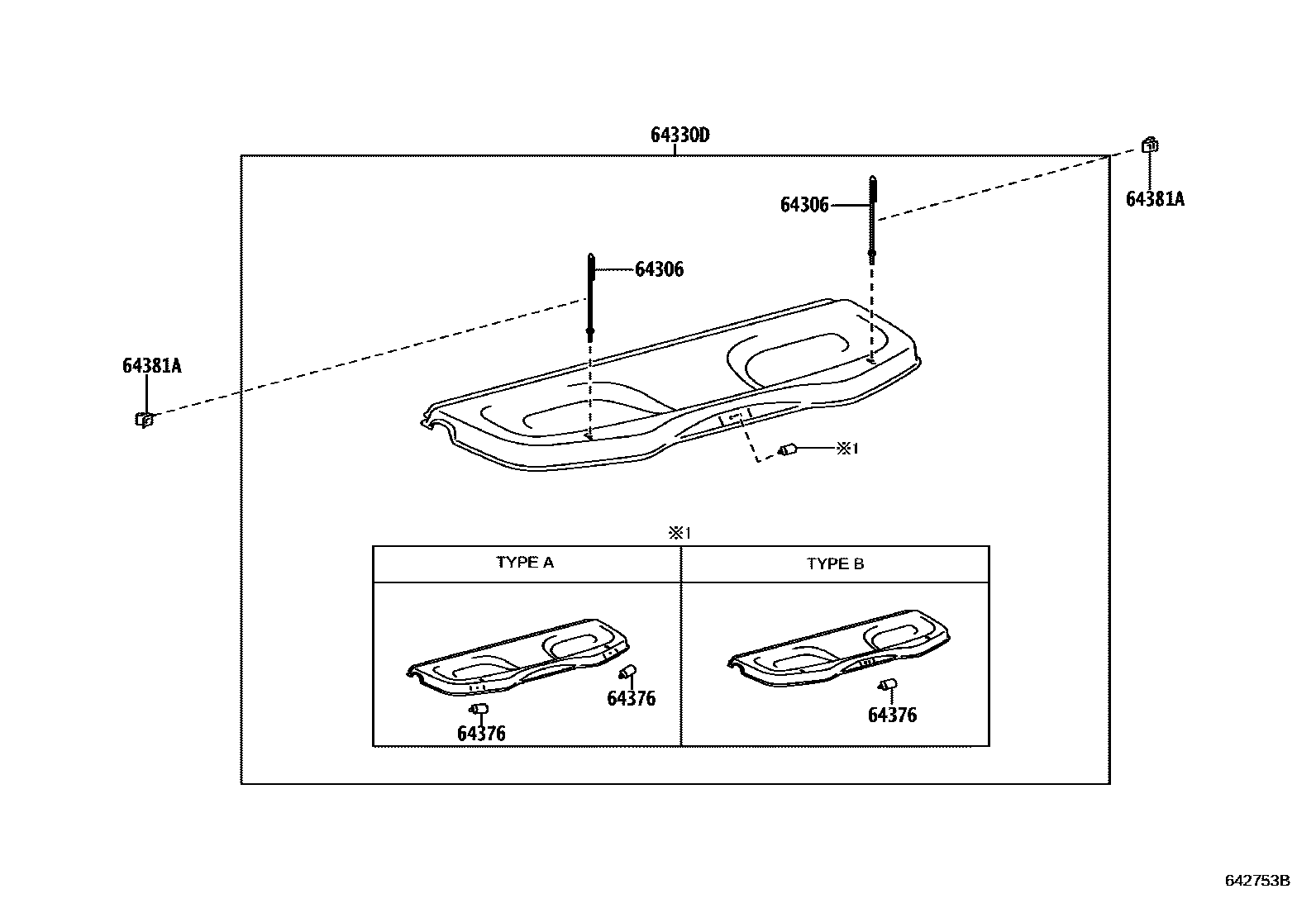

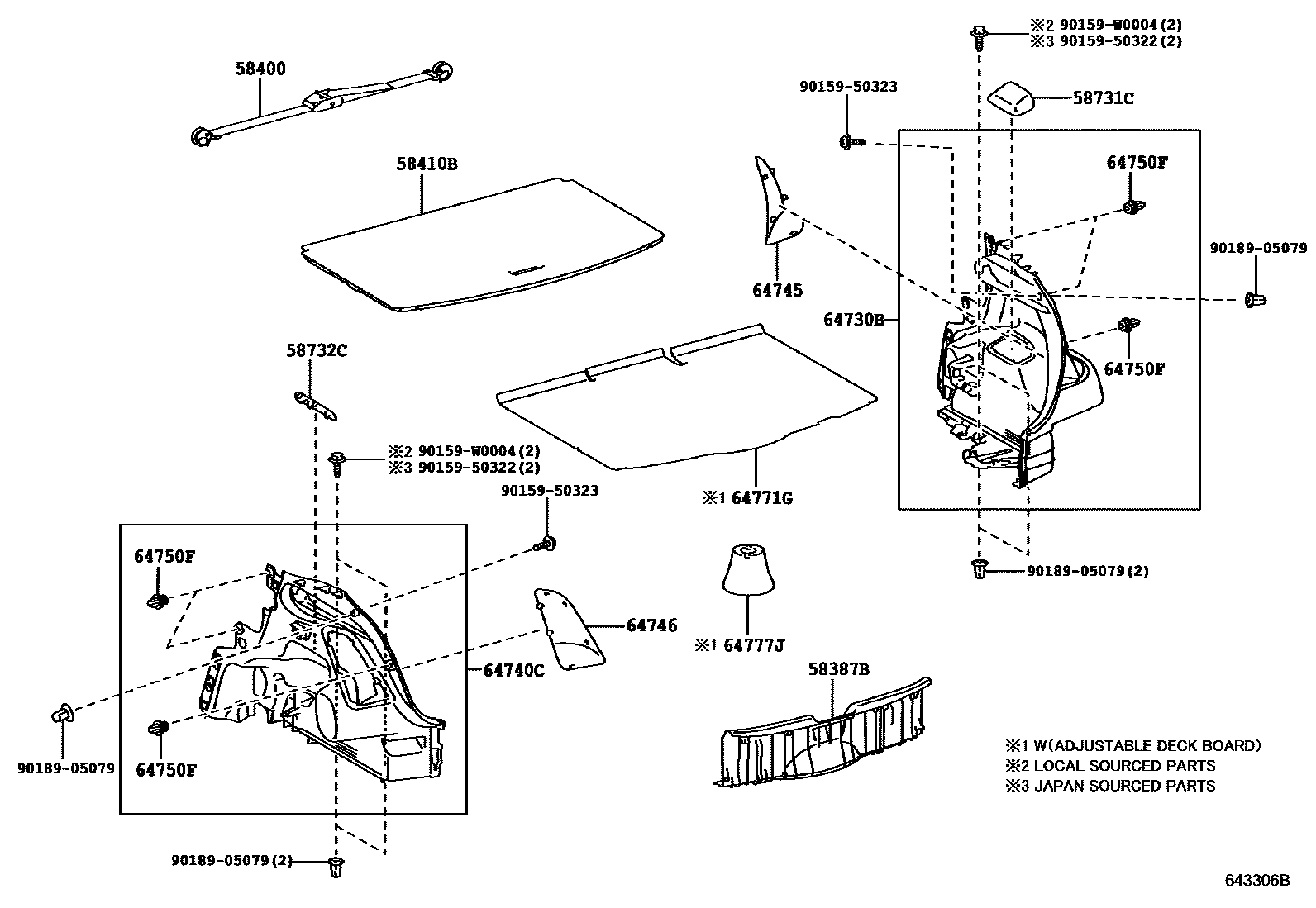

Toyota YARIS 底板和底板装饰罩 — Figure 6404
Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58400 | No. 1 suitcase fixing strap assembly | 58400-52010 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-0D090 · 64306-52050 |
| 64376 | No. 2 glove box decorative panel spacer | 64376-0D010 · 64376-12020 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64750F | Clip (for bottom panel side decorative panel) | 63395-12150 |
| 64777J | Spare tire cushion | 64777-0D060 |
