Toyota YARIS 车顶内衬和消声垫 — Figure 6402

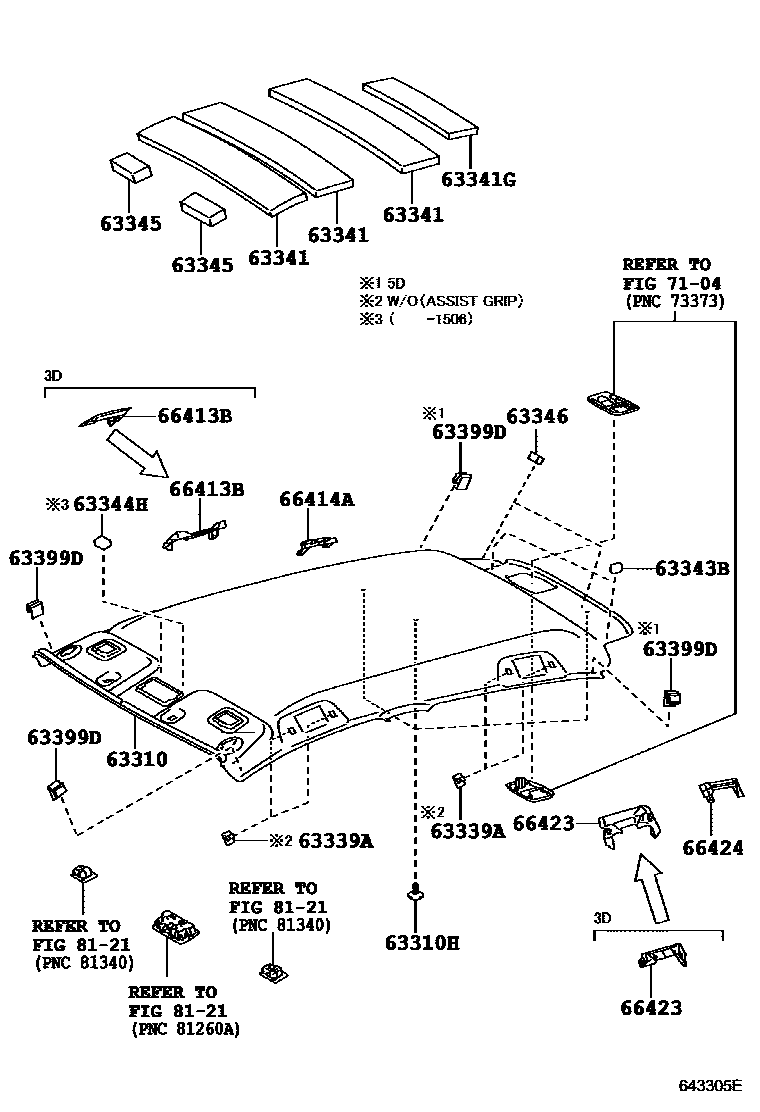

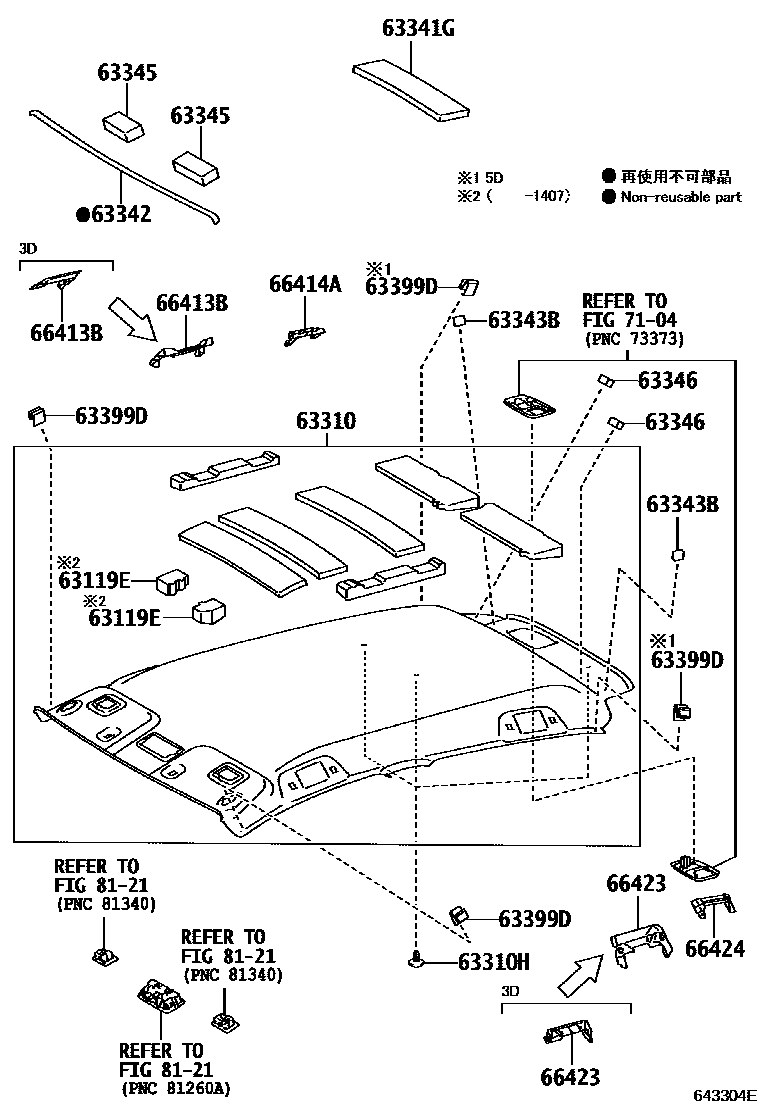

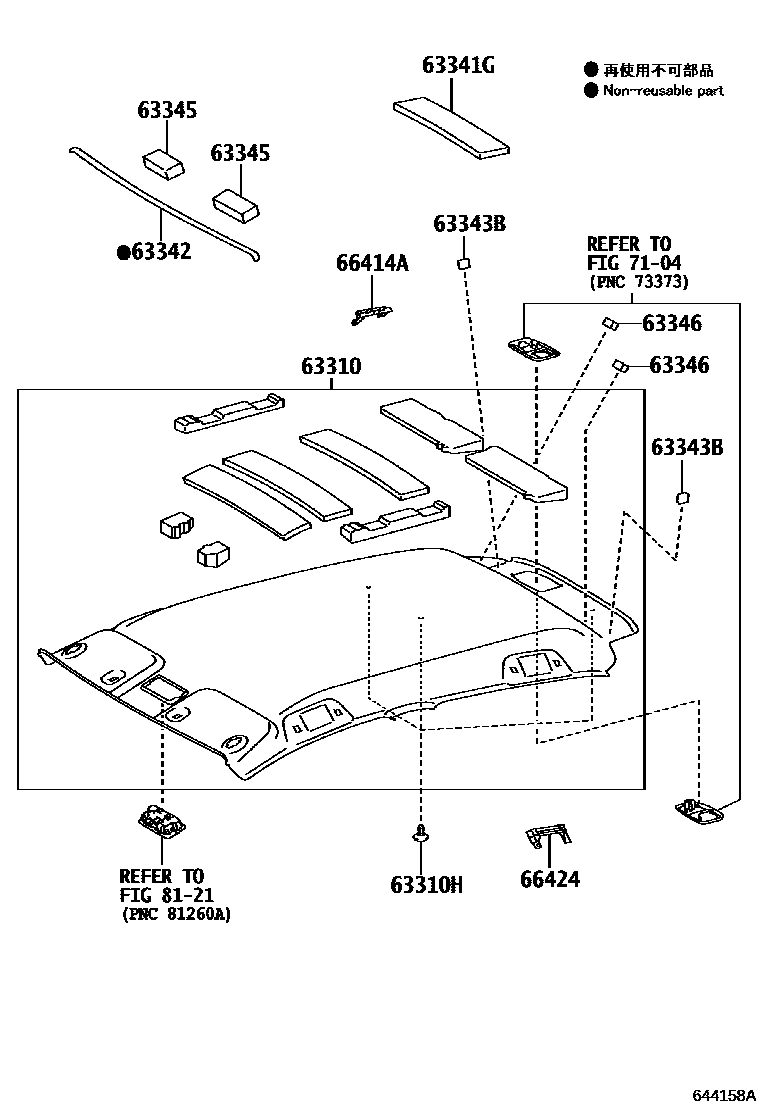

Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63119E | No. 1 roof panel lining | 63119-52070 · 63129-52030 |
| 63341 | No. 1 roof silencer mat | 63341-0D140 |
| 63341G | roof muffler mat | 63343-0D090 |
| 63342 | No. 2 roof muffler pad | 63342-0D110 · 63342-52200 |
| 63343B | Rear roof silencer pad | 63344-0D020 · 63346-0D020 |
| 63344H | No. 4 roof silencer mat | 63344-0D050 |
| 63345 | No. 5 roof silencer mat | 63345-0D040 |
| 63346 | No. 6 roof silencer mat | 63346-0D020 |
| 63399D | headliner clip | 63399-52020 |
| 66413B | Right front longitudinal member spacer | 66414-0D190 · 66414-0D200 |
| 66414A | Right rear longitudinal member spacer | 66414-52350 · 66415-0D010 · 66415-0D060 |
| 66423 | Left front longitudinal member spacer | 66424-0D190 · 66424-0D200 |
| 66424 | Left rear longitudinal member spacer | 66424-52340 · 66425-0D010 · 66425-0D060 |
