Toyota YARIS 地板垫和地毯 — Figure 5804

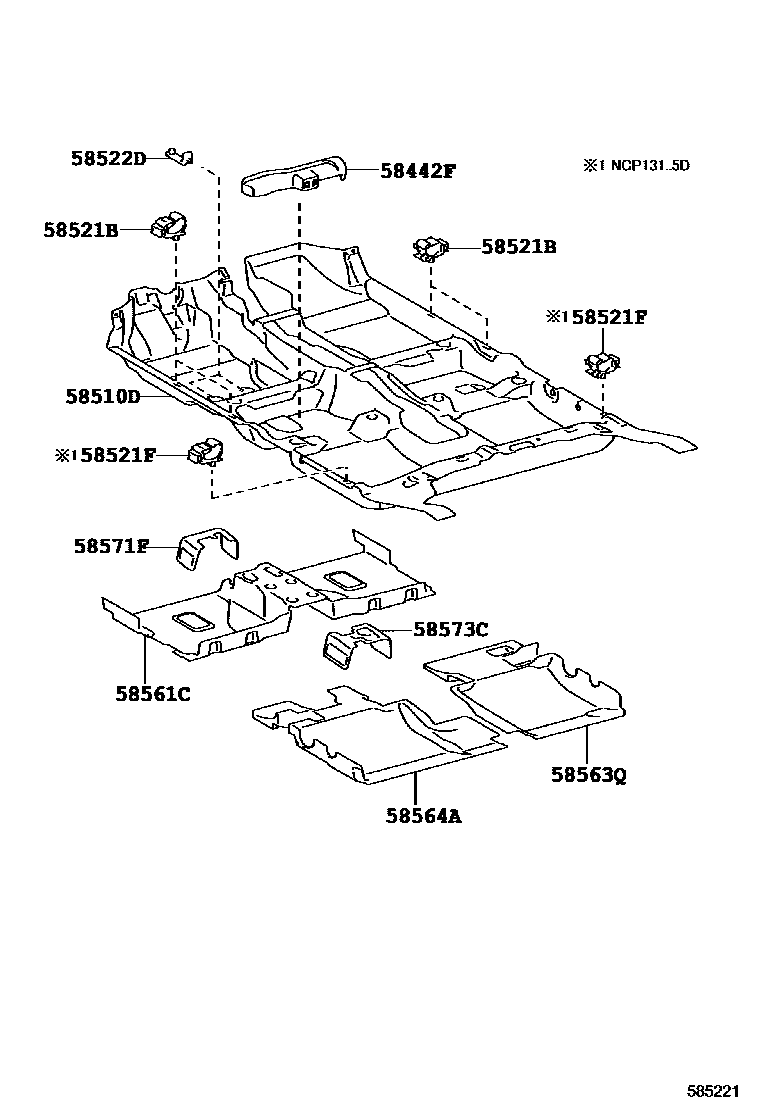

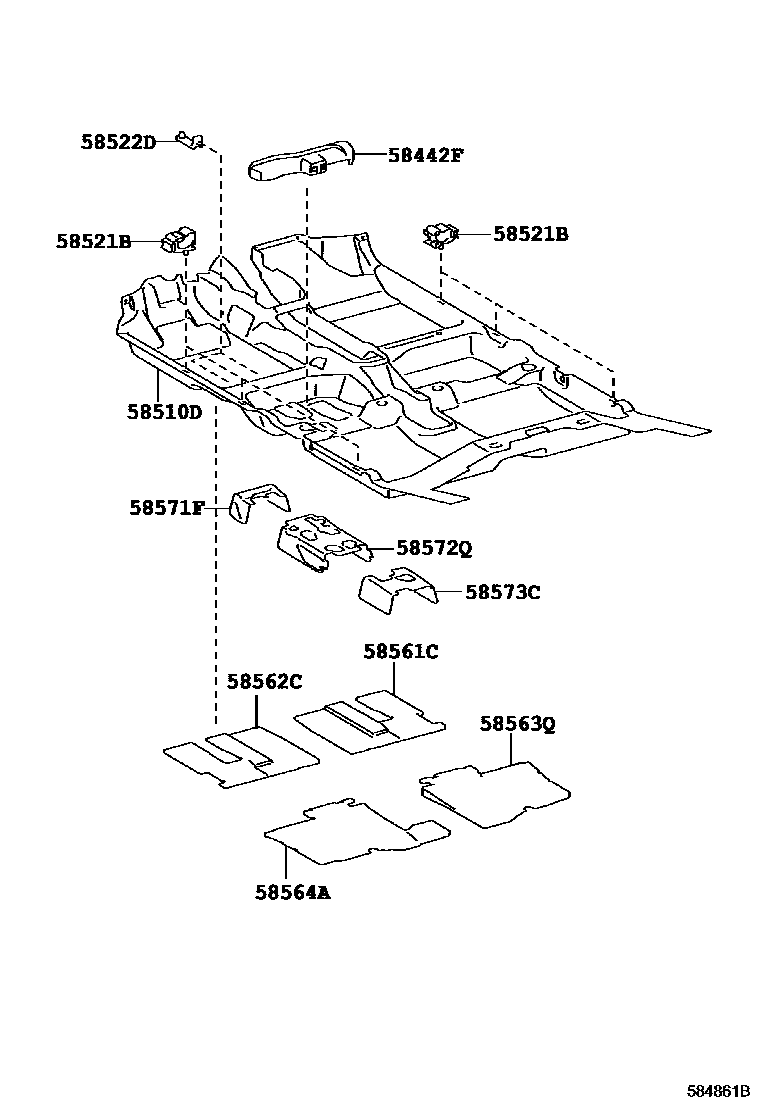

Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58442F | jack cover | 58442-0D090 |
| 58521B | carpet hook | 58521-0D060 · 58521-52050 |
| 58521F | carpet hook | 58521-0D060 |
| 58522D | Carpet hook number 2 | 58522-52030 |
| 58561C | Front floor silencer No. 1 | 58561-0D170 · 58561-0D180 · 58561-52191 |
| 58562C | Front floor silencer No. 2 | 58562-52151 |
| 58563Q | Front floor silencer No. 3 | 58563-0D170 · 58563-52201 |
| 58564A | Front floor silencer No. 4 | 58564-0D140 · 58564-52221 |
| 58571F | Front floor pad | 58571-0D030 · 58571-0D090 |
| 58572Q | Front floor pad No. 2 | 58572-52040 |
| 58573C | Front floor center pad | 58573-0D010 · 58573-0D020 |
