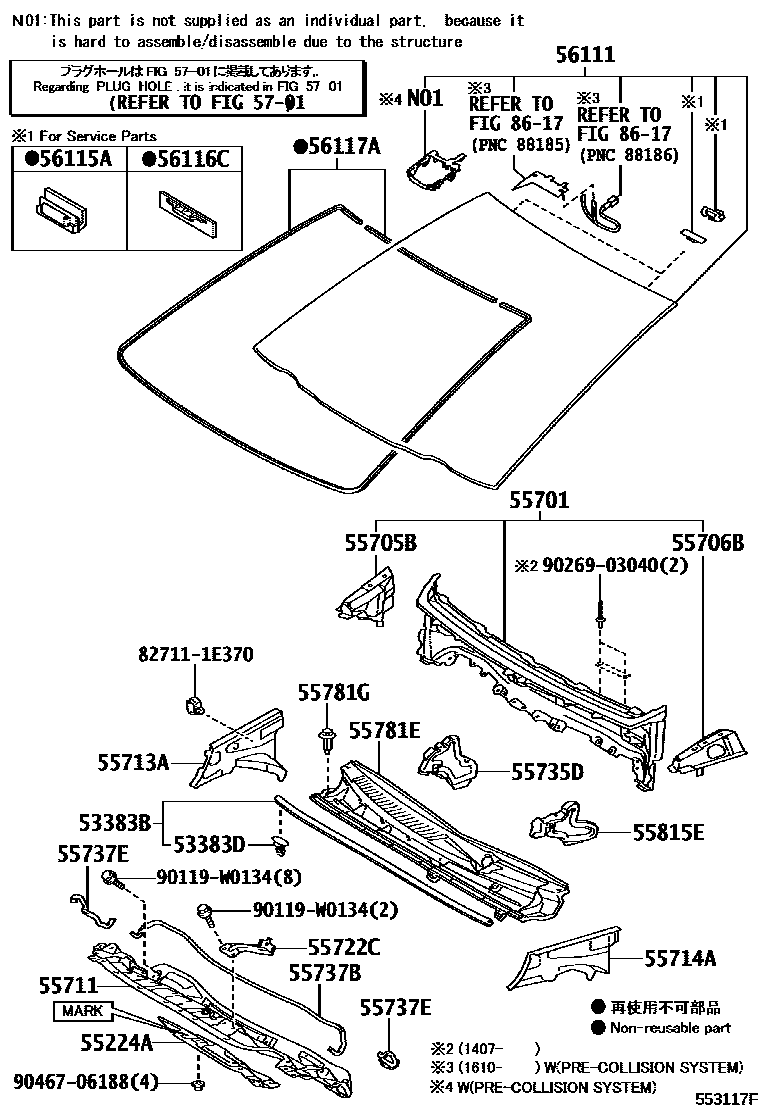

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-0D120 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-0D010 · 55224-0D011 · 55224-52021 |
| 55701 | Front apron sub-assembly | 55700-0D280 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-0D090 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-0D100 |
| 55711 | Front outer panel | 55701-0D150 |
| 55713A | Right front wall upper side panel | 55713-0D090 |
| 55714A | Left front wall upper side panel | 55714-0D090 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-0D100 |
| 55735D | Front air door right seal | 55735-0D030 · 55735-0D040 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-0D010 |
| 55737E | No. 2 heater duct splash guard seal | 55737-0D030 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0D080 · 55708-0D180 · 55708-0D370 · 55708-0D380 |
| 55815E | No. 1 front vent seal | 55815-0D010 · 55815-0D020 |
| 56111 | windshield | 56101-0D500 · 56101-0D580 · 56101-0D810 · 56101-0D830 · 56101-0D840 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
