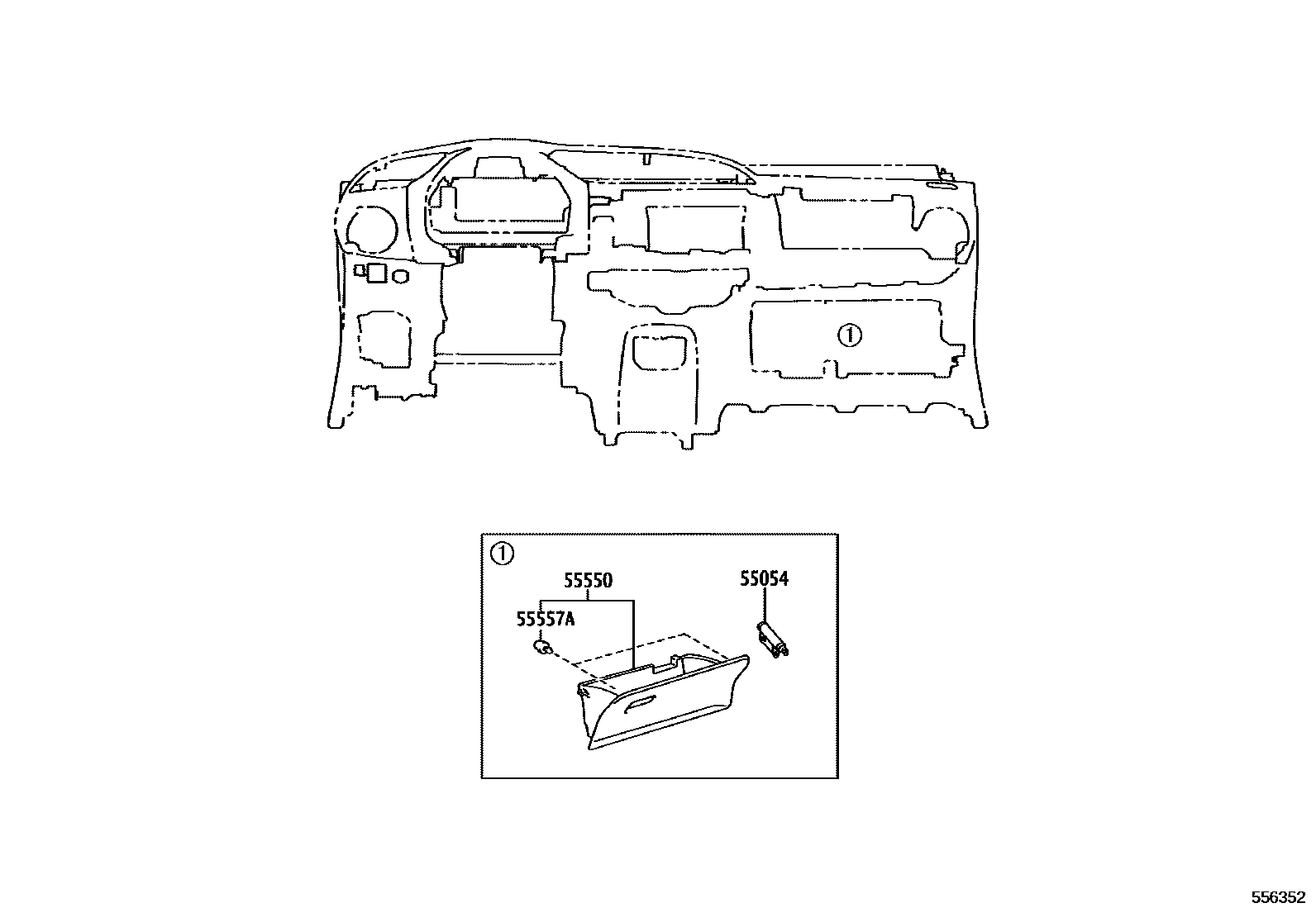

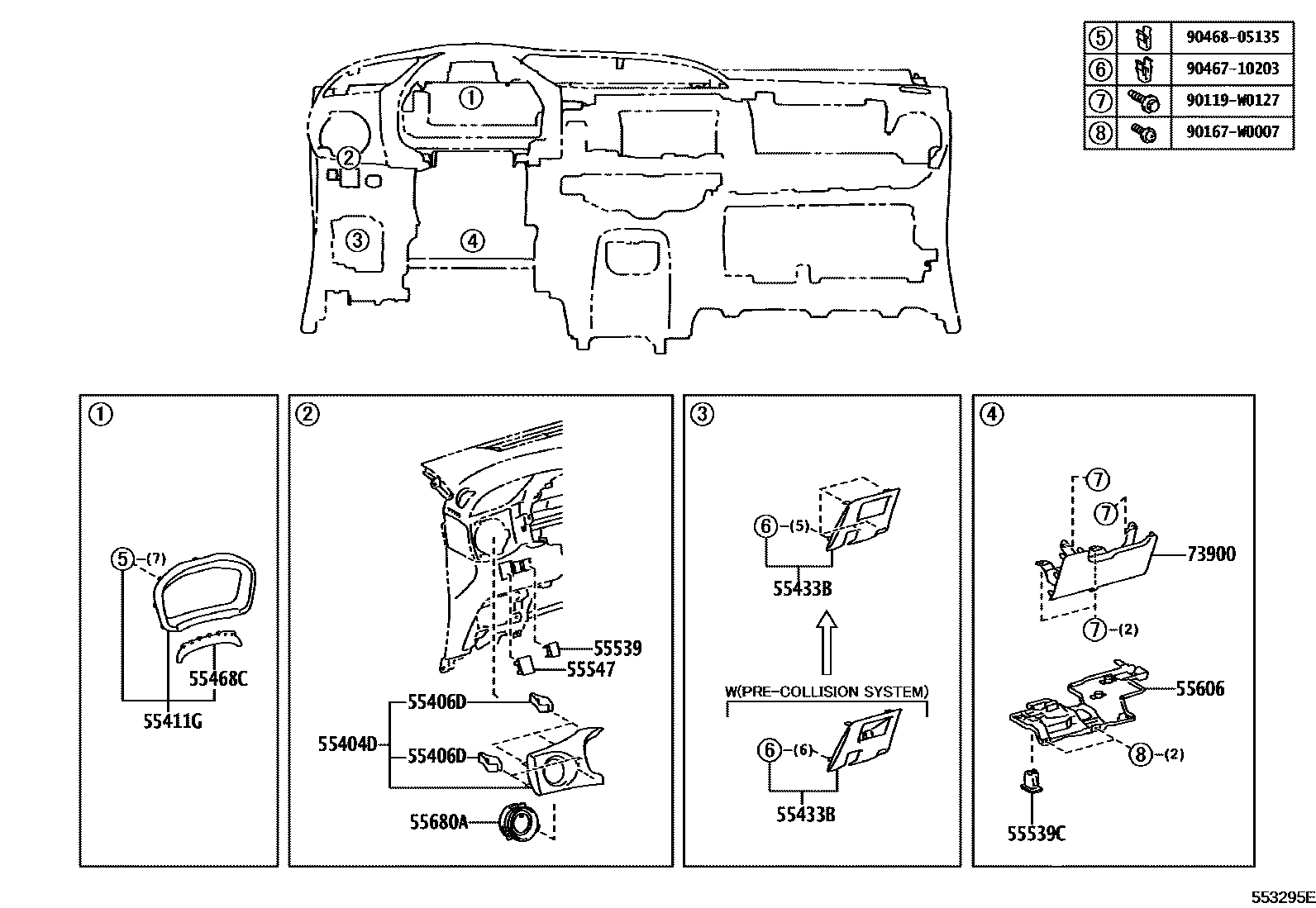

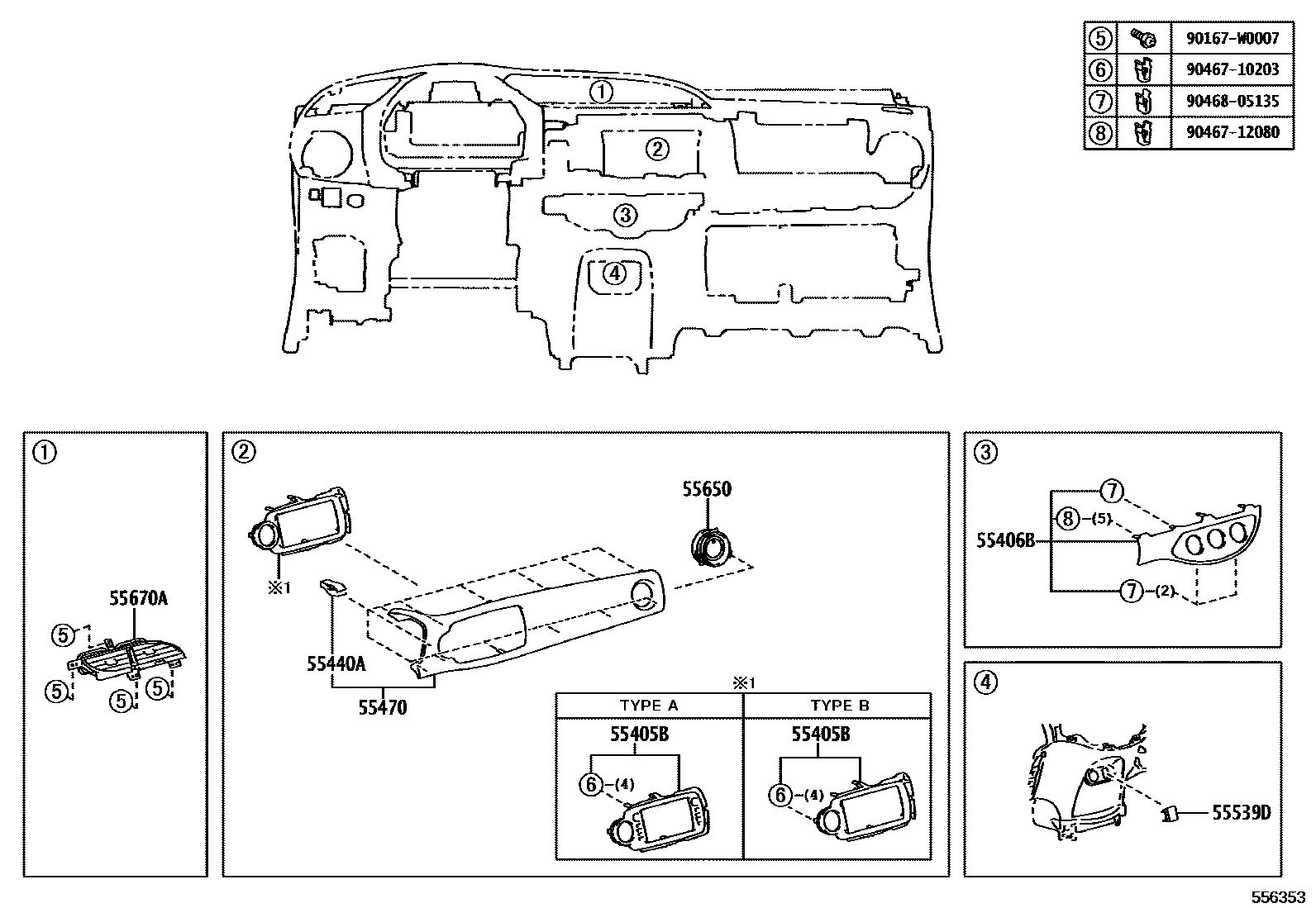

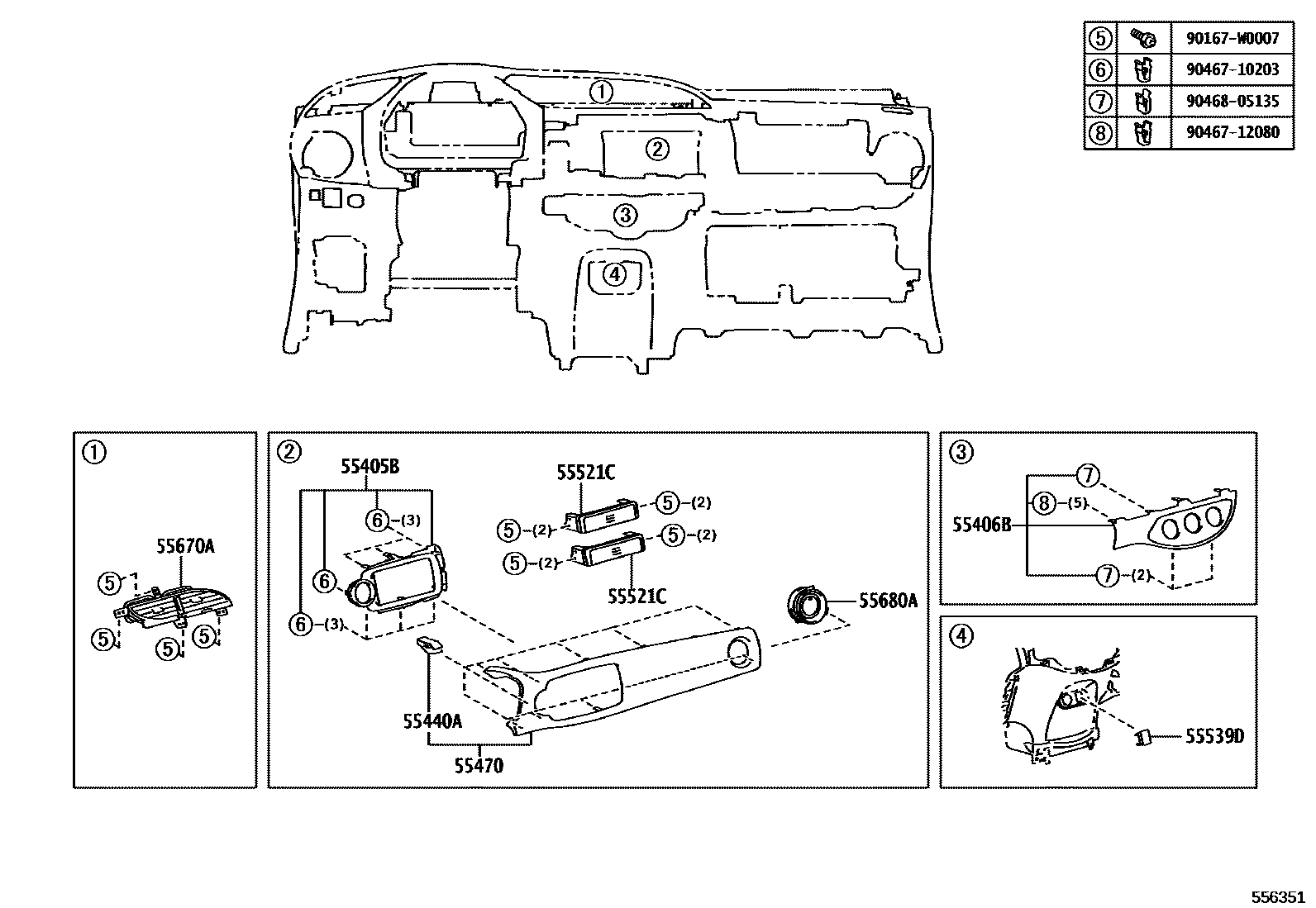

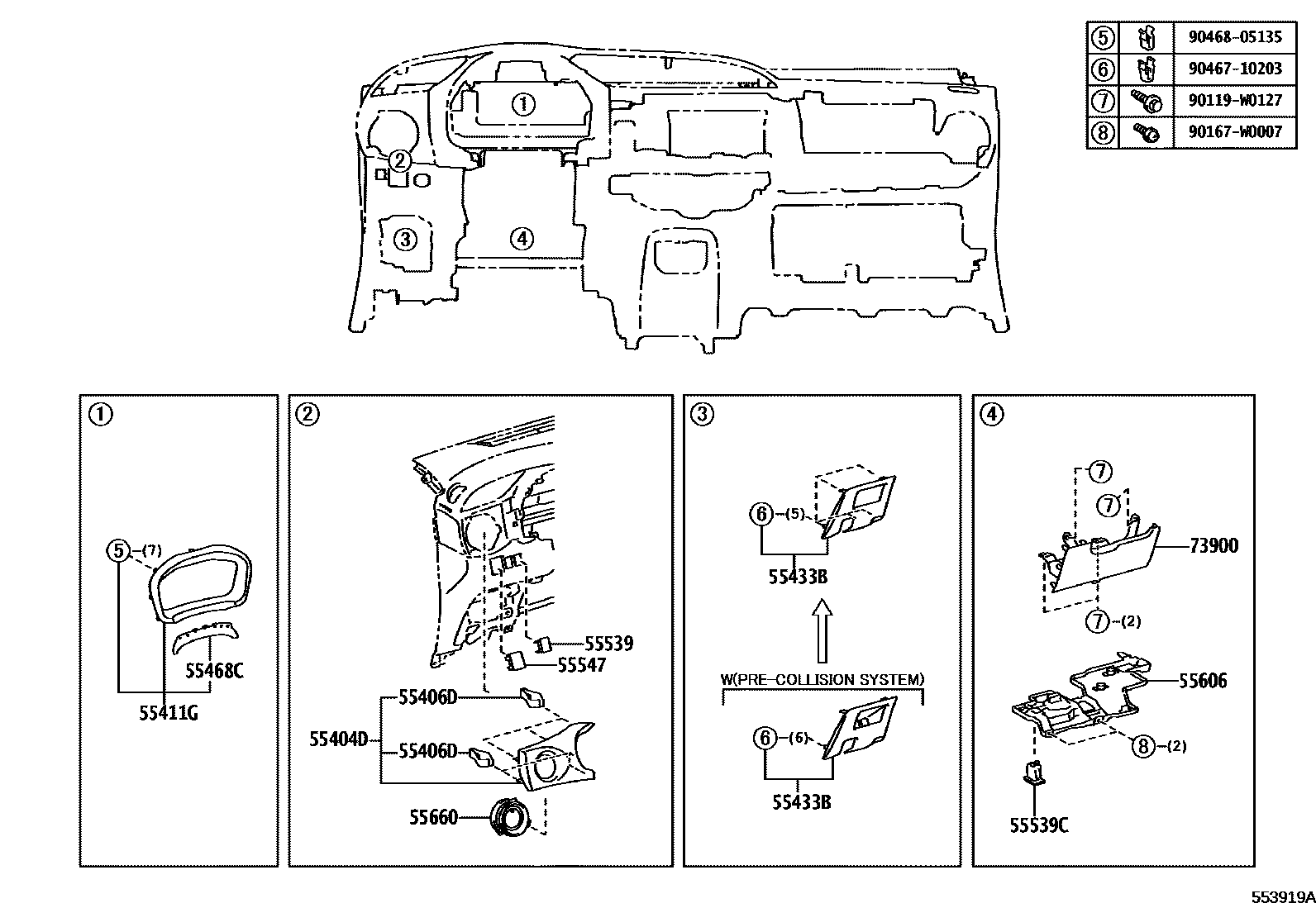

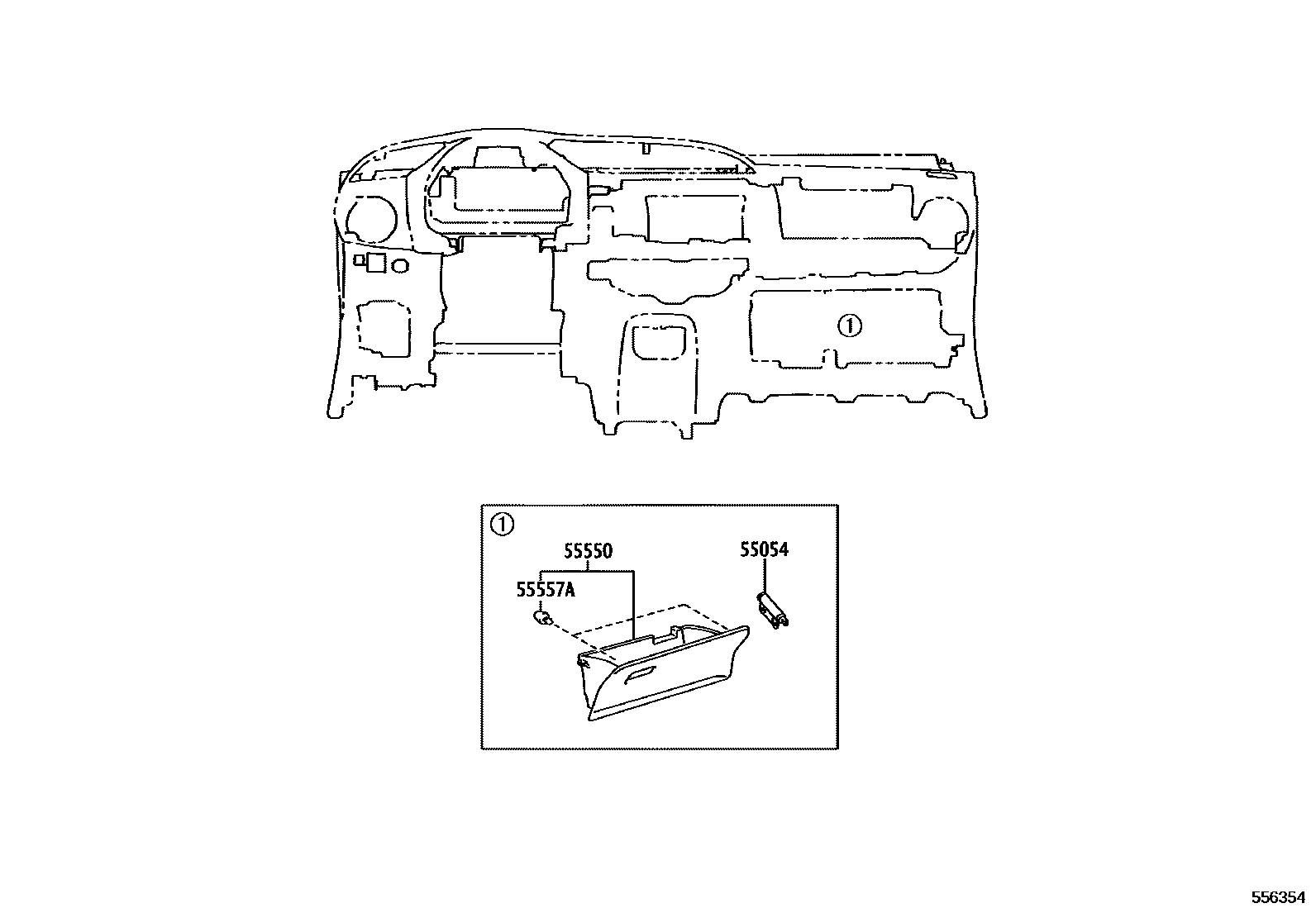

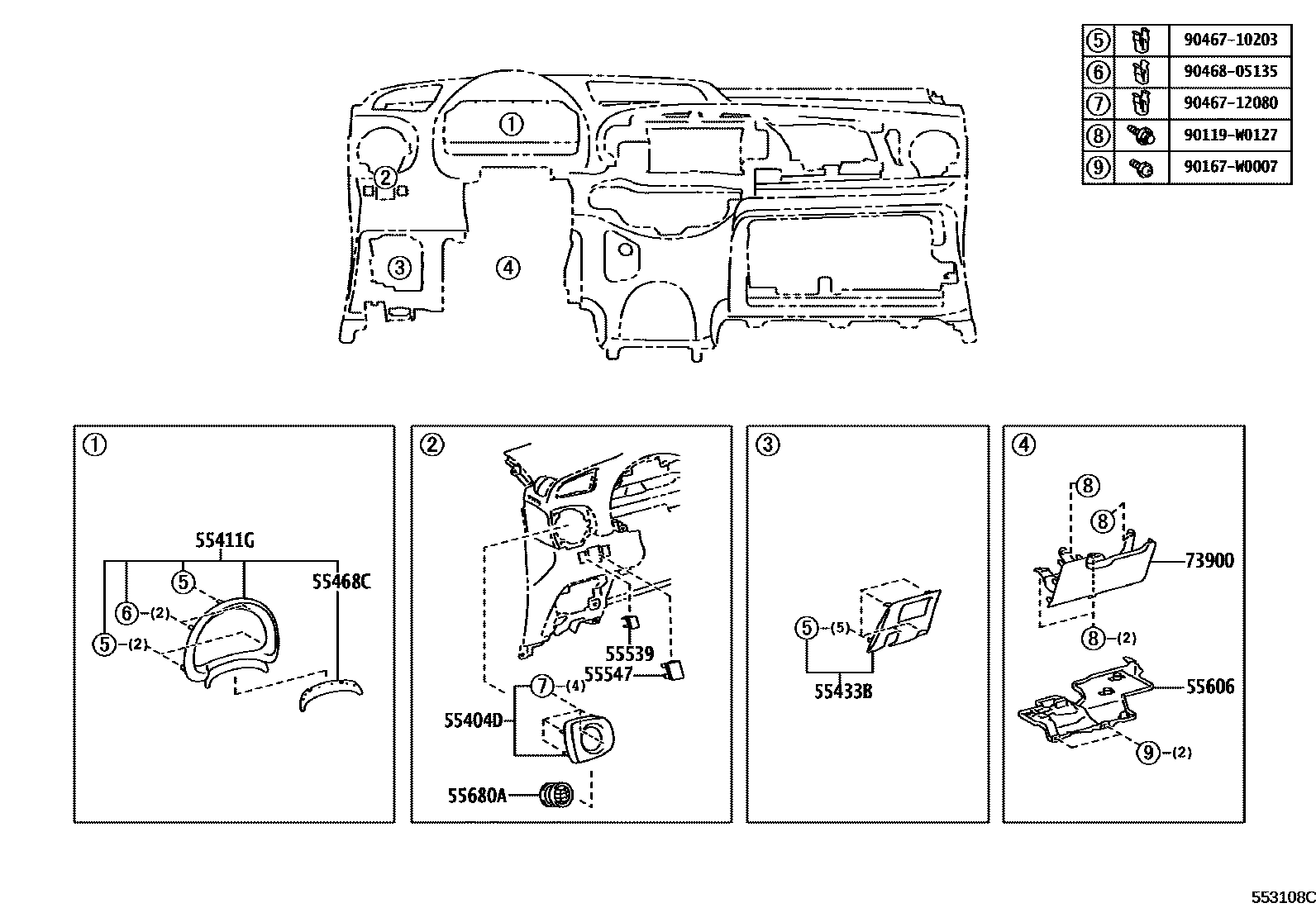

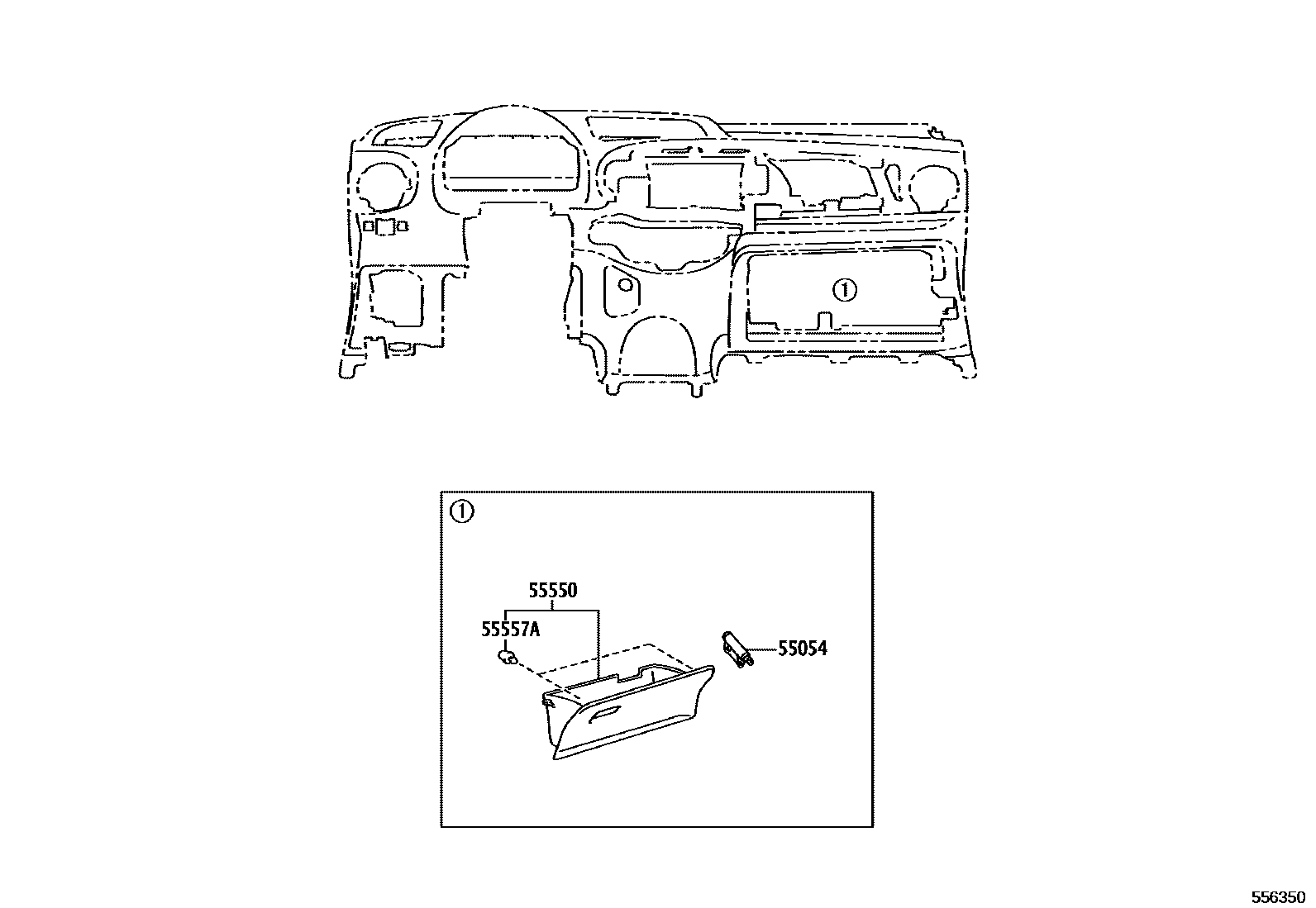

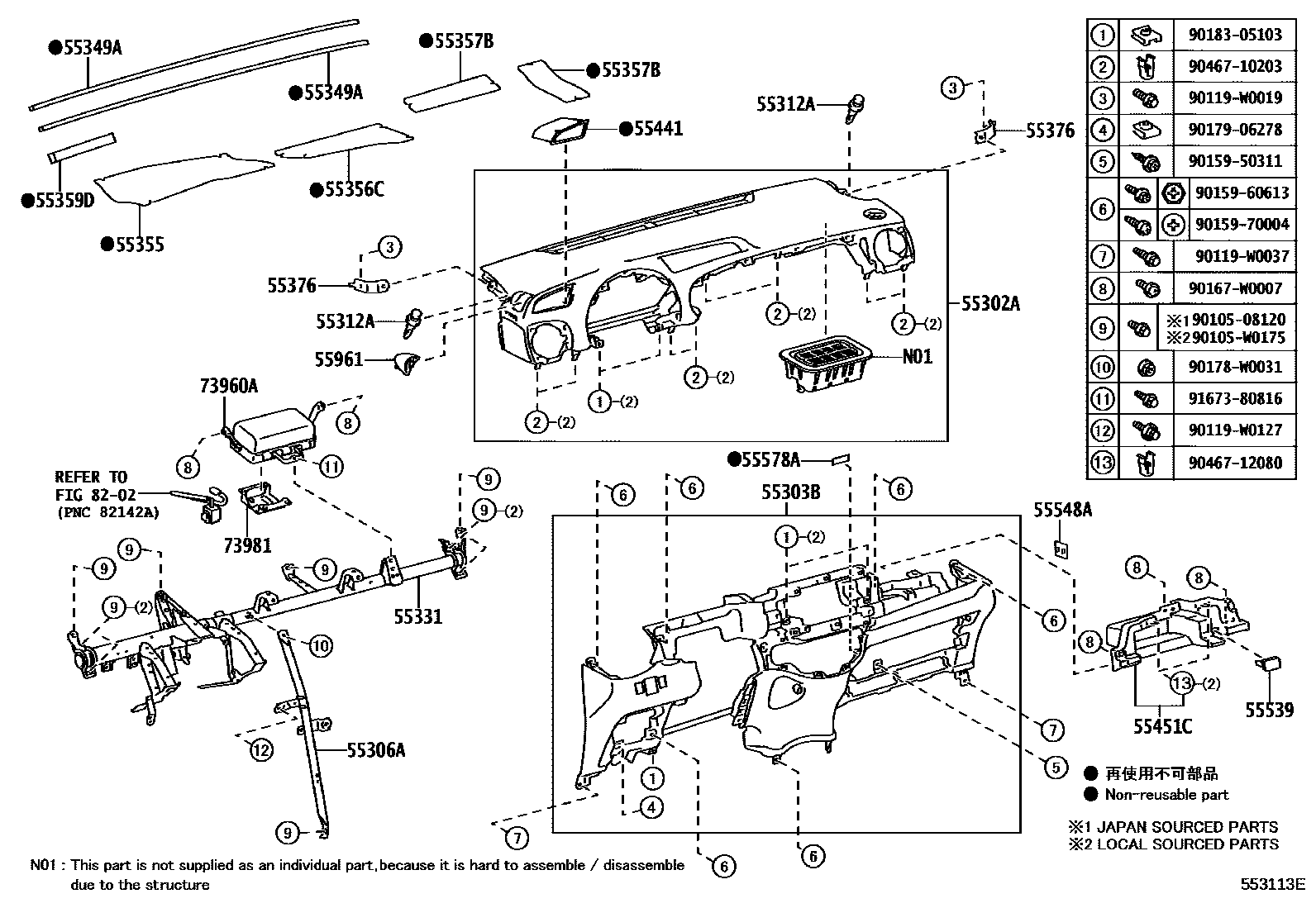

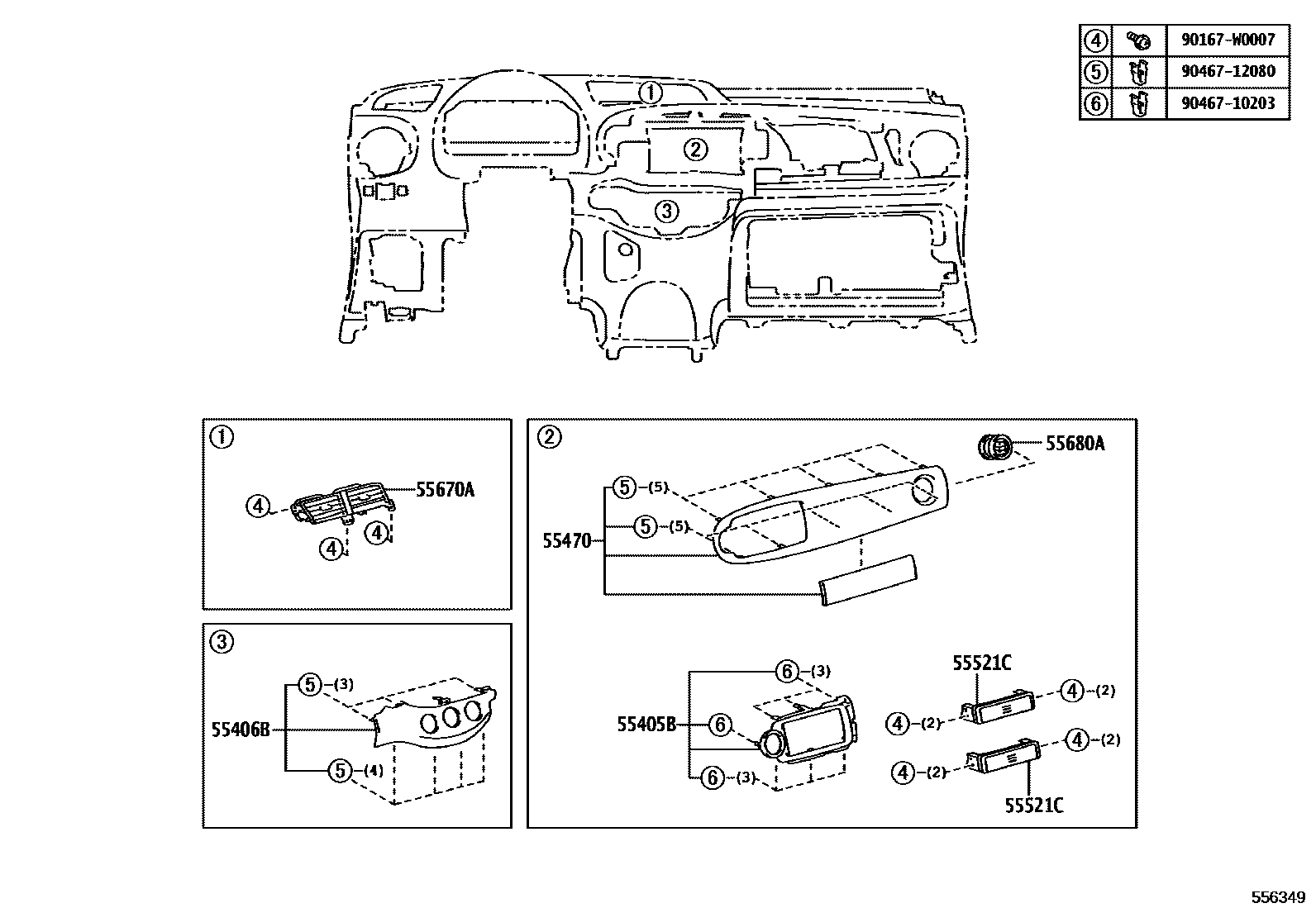

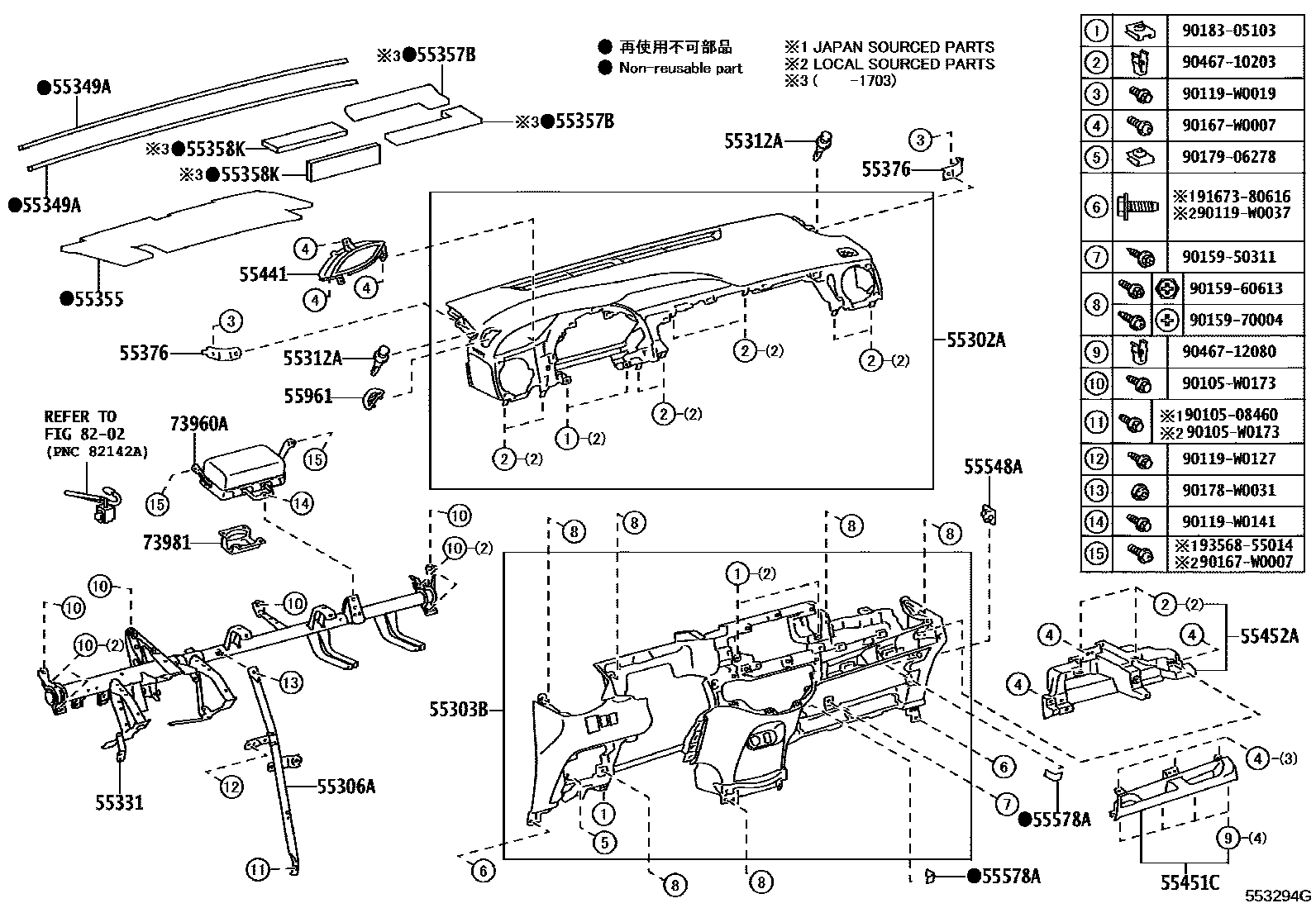

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 11 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D170 · 55306-0D290 · 55306-0D360 |
| 55312A | Dashboard clip | 52161-02030 · 52161-16010 |
| 55331 | Dashboard reinforcement | 55330-52720 · 55330-52770 |
| 55349A | Dashboard cushion | 55355-0D031 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D120 · 55355-0D311 · 55355-0D470 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0D120 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-0D150 · 55357-0D240 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-0D170 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-0D150 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-0D030 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-0D420 · 55405-0D620 |
| 55406D | Clip (for instrument cluster decorative panel) | 67773-07020 |
| 55440A | Clip (for center instrument panel trim) | 67773-07020 |
| 55452A | Dashboard storage box No. 2 | 55451-0D160 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-0D060 · 55468-0D170 |
| 55521C | stereo system hole cover | 55521-05030 |
| 55539C | Spare switch hole cover | 55539-48020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55578A | Glove box cover silencer | 55578-0D040 · 55578-52040 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D050 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-52161 |
| 73981 | Passenger air bag connector cover | 73981-52010 |
