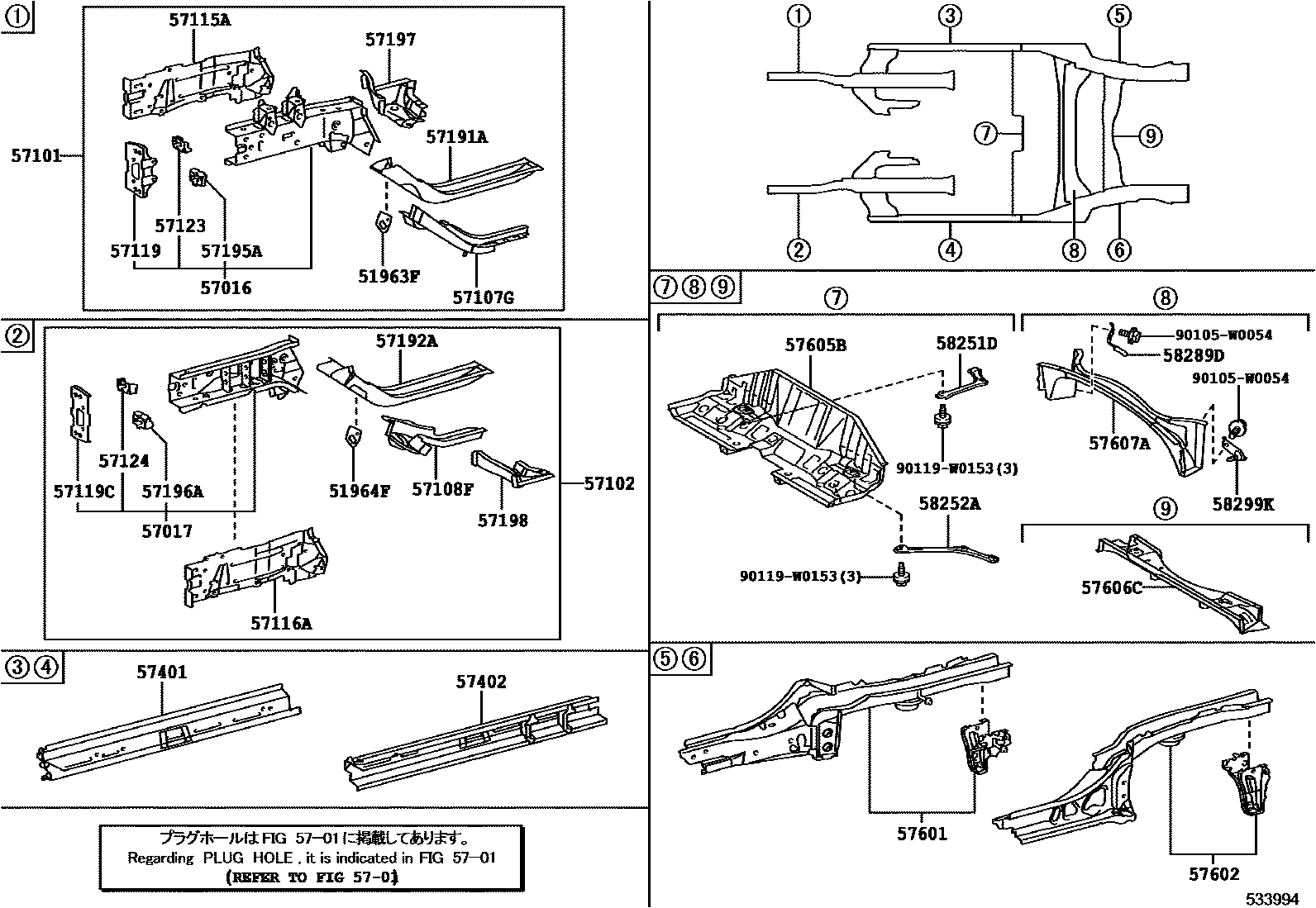

Toyota YARIS Floor stringers — Figure 5305
Toyota YARIS EPC diagram 5305, Floor stringers, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51963F | transport hook | 51963-52050 |
| 51964F | left transport hook | 51963-52050 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-52080 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-52090 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-52090 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-52200 |
| 57107G | Right front suspension cross member rear mounting bracket sub-assembly | 57107-0D050 |
| 57108F | Left front suspension cross member rear mounting bracket sub-assembly | 57108-0D050 |
| 57115A | Right front longitudinal beam outer panel | 57025-52010 |
| 57116A | Left front longitudinal beam outer panel | 57026-52010 |
| 57119 | Front longitudinal beam front panel | 57119-0D010 |
| 57119C | Front longitudinal beam front panel | 57129-0D010 |
| 57123 | Right front longitudinal beam bracket | 57123-0D010 |
| 57124 | Left front longitudinal beam bracket | 57124-0D010 |
| 57191A | Right rear longitudinal member inside front floor | 57191-52020 |
| 57192A | Left rear longitudinal member inside front floor | 57192-52020 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-0D010 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-0D010 |
| 57197 | Right front torsion box section piece | 57197-0D030 |
| 57198 | Left front anti-torsion box section piece | 57198-0D030 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-0D170 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-0D170 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-0D380 · 57601-0D382 · 57601-0D383 · 57601-0D460 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-0D330 · 57602-0D332 · 57602-0D333 · 57602-0D400 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-0D090 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-52191 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-0D020 · 57607-0D021 · 57607-0D022 |
| 58251D | front floor bracket | 58251-0D140 |
| 58252A | rear floor bracket | 58252-0D120 |
| 58289D | Rear floor brake hose bracket | 58289-52100 |
| 58299K | Rear floor brake hose left bracket | 58299-52110 |
