Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

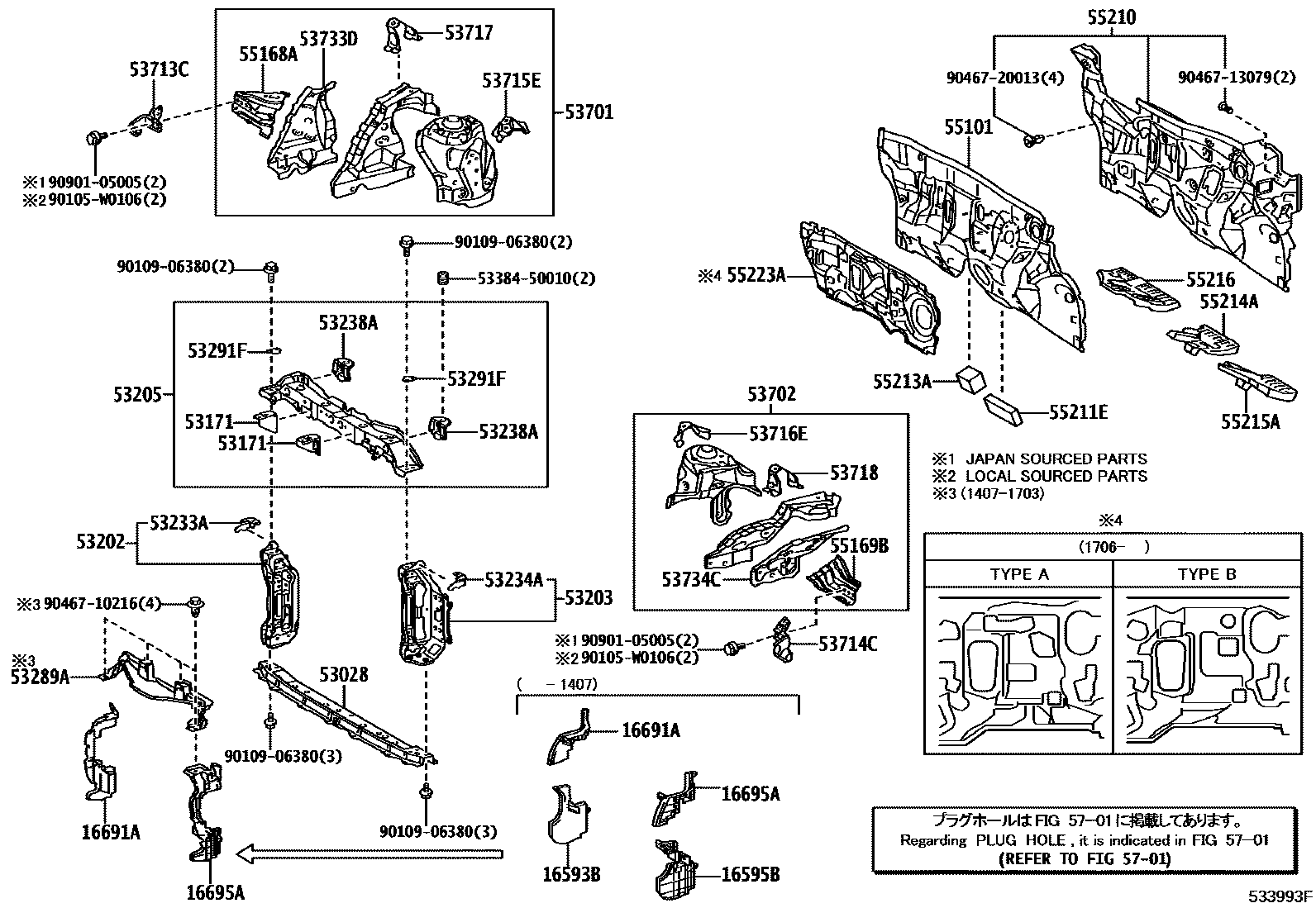

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16593B | GUIDE, AIR DU RADIATEUR, NO.1 MD | 53287-52140 |
| 16595B | GUIDE, AIR DU RADIATEUR, NO.1 MG | 53288-52140 |
| 16691A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MD | 16691-0M010 · 53285-0D270 · 53285-0D290 · 53285-52360 |
| 16695A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MG | 16695-0M010 · 53286-0D270 · 53286-0D290 · 53286-52300 |
| 53028 | Radiator lower bracket sub-assembly | 53028-0D031 |
| 53171 | Radiator bracket fixings | 53171-0D040 · 53171-0D050 · 53171-0D060 · 53171-0D070 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0D906 |
| 53203 | Radiator left bracket sub-assembly | 53203-0D906 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0D904 · 53205-0D905 |
| 53233A | No. 1 right headlight bracket | 53233-0D050 |
| 53234A | No. 1 left headlight bracket | 53234-0D050 |
| 53238A | Engine cover bumper mounting bracket | 53238-0D050 |
| 53289A | Radiator bracket opening cover | 53289-0D110 |
| 53291F | Radiator support plate | 53291-0D010 |
| 53701 | Right front fender fender sub-assembly | 53701-0D130 |
| 53702 | Left front fender fender sub-assembly | 53702-0D120 |
| 53713C | Right front fender fender front extension | 53713-0D040 |
| 53714C | Left front fender fender front extension | 53714-0D040 |
| 53715E | Right front fender fender rear extension | 53715-52030 |
| 53716E | Left front fender fender rear extension | 53716-52030 |
| 53717 | Right fender fender side panel | 53717-0D040 |
| 53718 | Left fender fender side panel | 53718-0D040 |
| 53733D | Right front fender to cowl side front lower beam | 53733-0D010 |
| 53734C | Left front fender to cowl side front lower beam | 53734-0D010 |
| 55101 | Front apron sub-assembly | 55101-0D290 · 55101-0D390 · 55101-0D391 |
| 55168A | Right front fender mounting bracket | 55168-0D040 |
| 55169B | Left front fender mounting bracket | 55169-0D040 |
| 55210 | Front wall insulation pad assembly | 55210-0D330 · 55210-0D610 · 55210-0D620 |
| 55211E | Front panel silencer | 55211-0D150 |
| 55213A | Front wall muffler pad | 55213-0D110 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-0D130 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-0D120 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-0D060 |
| 55223A | Front wall outer heat insulation pad | 55223-0D171 · 55223-0D172 · 55223-0D191 · 55223-0D192 · 55223-0D480 · 55223-52130 |
