Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

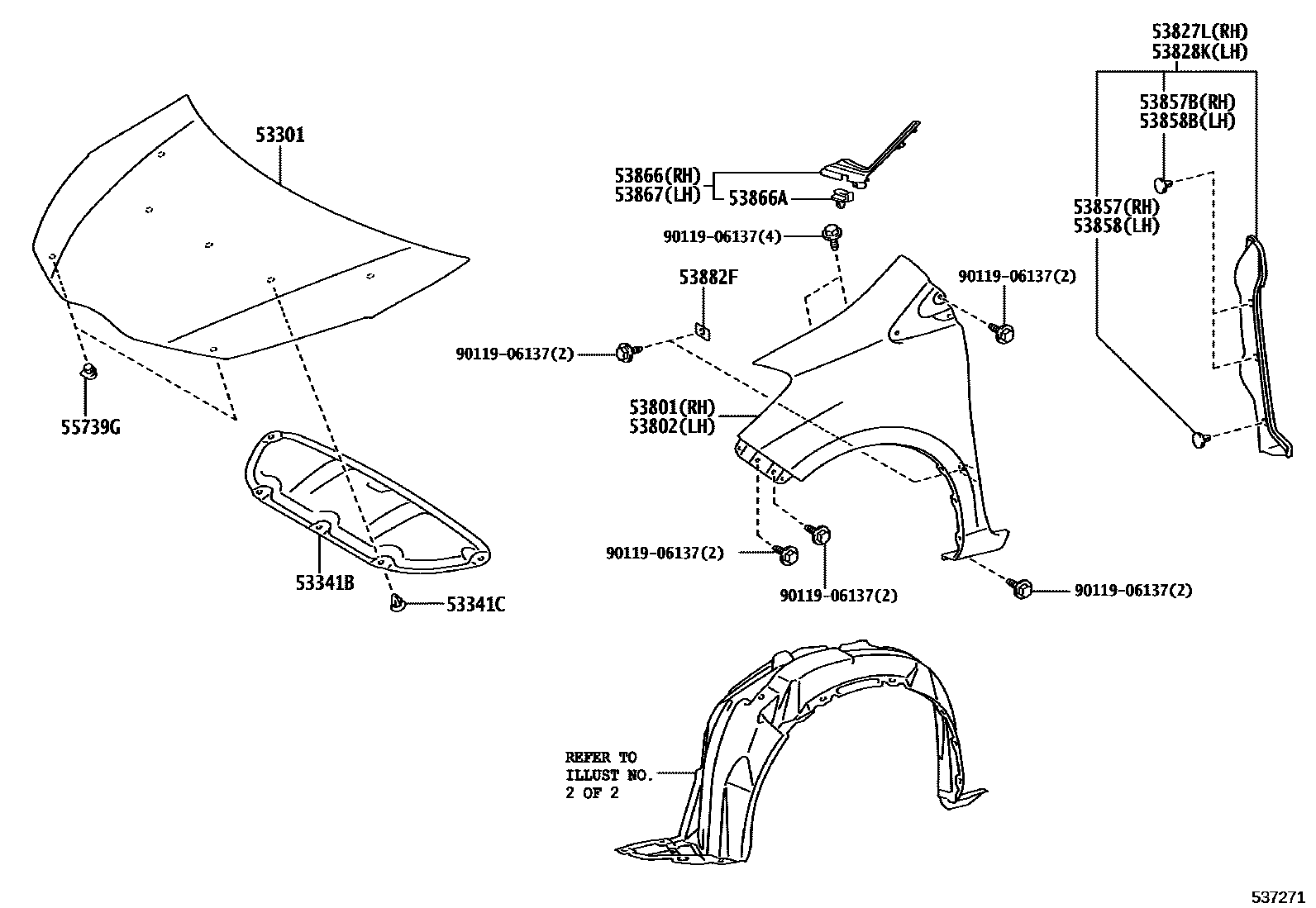

| 53301 | Engine cover sub-assembly | 53301-0D130 · 53301-0D210 |
| 53341B | engine cover gasket | 53341-0D140 · 53341-52180 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53801 | Right front fender sub-assembly | 53801-52120 · 53801-52200 · 53811-52390 |
| 53802 | Left front fender sub-assembly | 53802-52120 · 53802-52200 · 53812-52360 |
| 53827L | Right front fender side panel protector | 53827-0D100 |
| 53828K | Left front fender side panel protector | 53828-0D100 |
| 53851D | Right front fender outer panel pad | 53851-0D070 |
| 53852B | Left front fender exterior panel pad | 53852-0D030 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-47020 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-47020 |
| 53866 | Right front fender to cowl side seal | 53866-0D091 · 53866-0D170 · 53866-0D210 |
| 53866A | Clip (for front fender to cowl side seal) | 55799-52020 |
| 53867 | Left front fender to cowl side seal | 53867-0D091 · 53867-0D170 · 53867-0D210 |

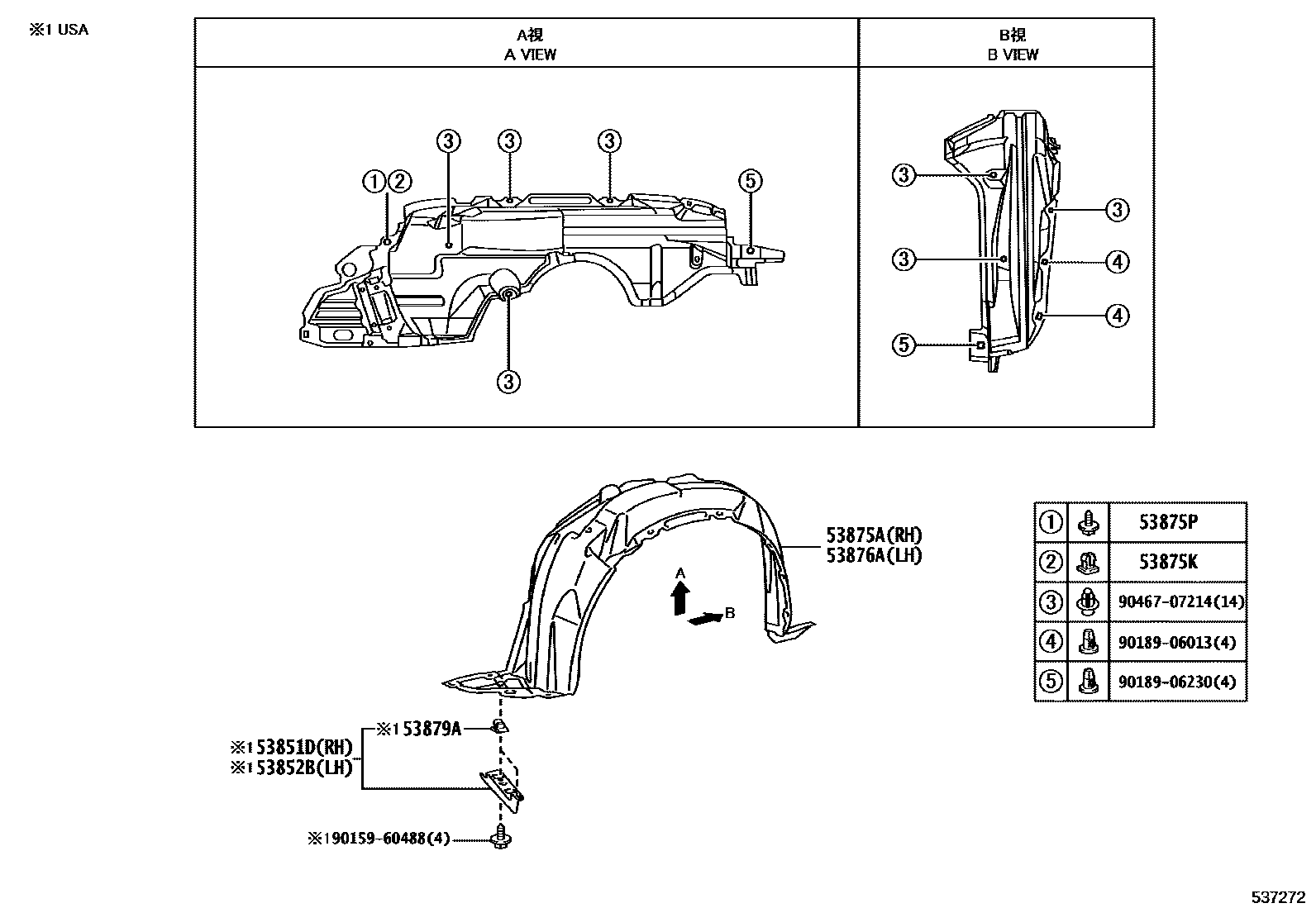

| 53875A | Right front fender lining | 53875-0D160 · 53875-0D170 · 53875-0D430 · 53875-0D680 |
| 53875K | RONDELLE, VIS | 90189-06237 |
| 53875P | VIS, NO.1 | 90159-60383 |
| 53876A | Left front fender lining | 53876-0D160 · 53876-0D170 · 53876-0D430 · 53876-0D680 |
| 53879A | Front fender lining fixing parts | 53879-17020 |
| 53882F | front fender seal | 53882-16030 |
| 55739G | Engine cover stop | 55738-52060 |
