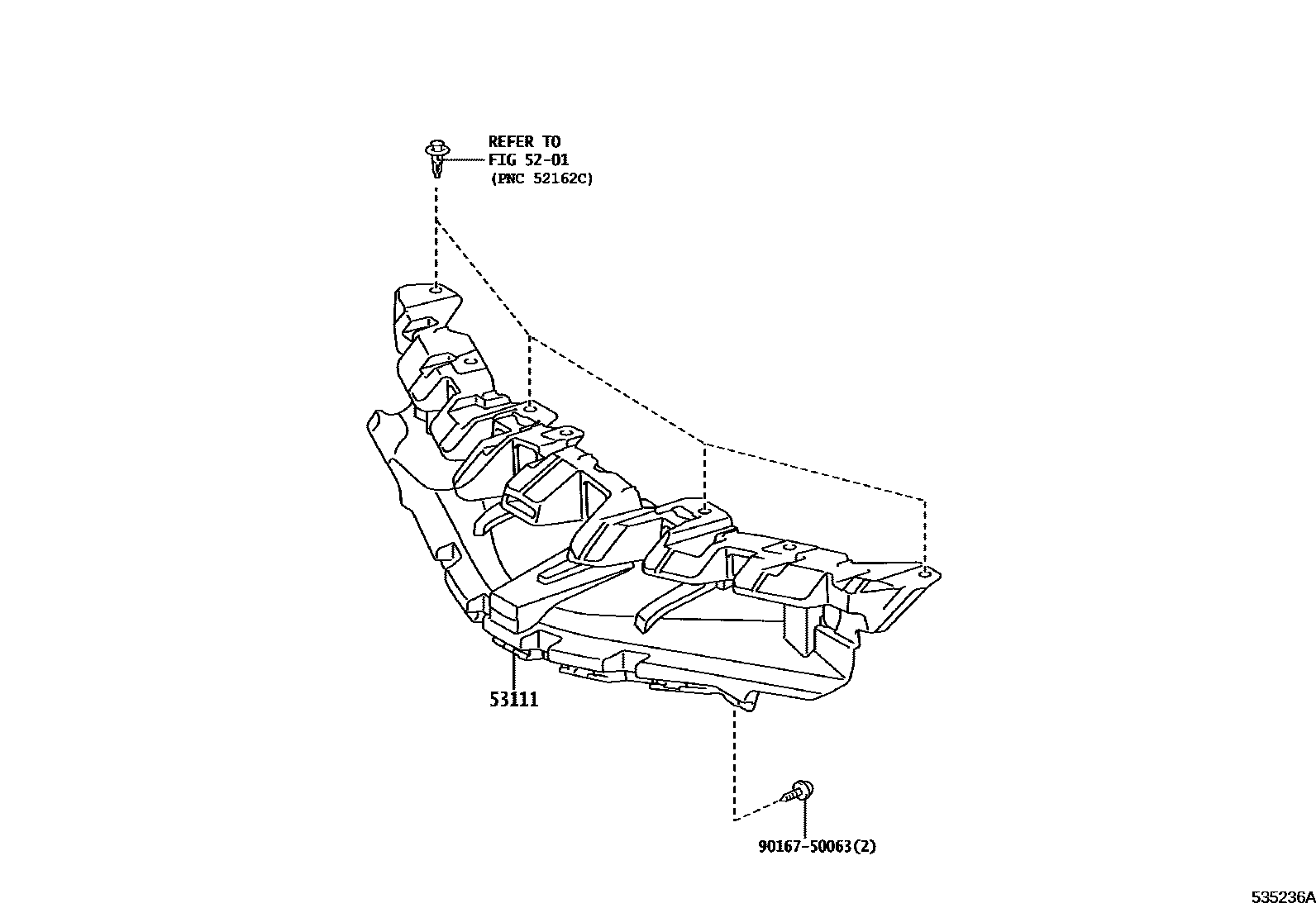

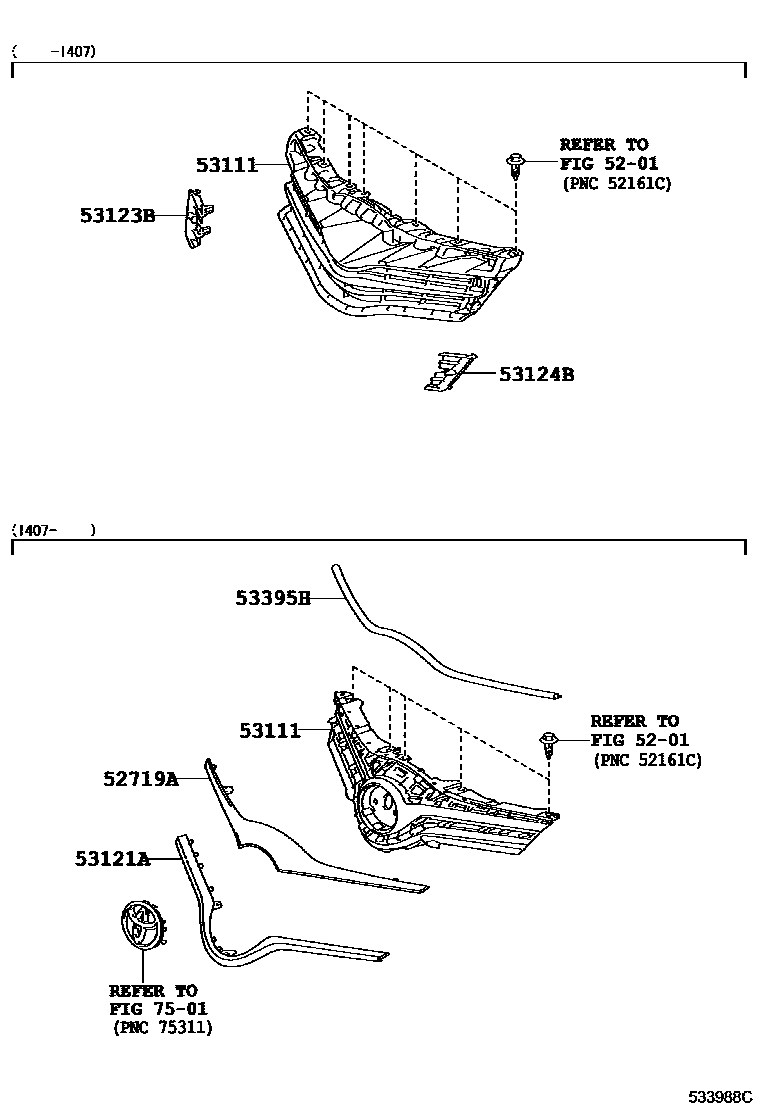

Toyota YARIS radiator grille — Figure 5301
Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52719A | COUVERCLE, MOULURE DE PARE-CHOCS AVANT | 52719-0D900 |
| 53111 | radiator grille | 53111-0D350 · 53111-0D810 · 53111-0DB10 |
| 53121A | Radiator grille protection strip | 53121-0D250 |
| 53123B | Protective strip on the right side of the radiator grille | 53123-0D020 |
| 53124B | Radiator grille left protective strip | 53124-0D020 |
| 53395H | Engine cover to radiator grille seal | 53395-0D030 |
