Toyota YARIS 前保险杠及附件 — Figure 5201

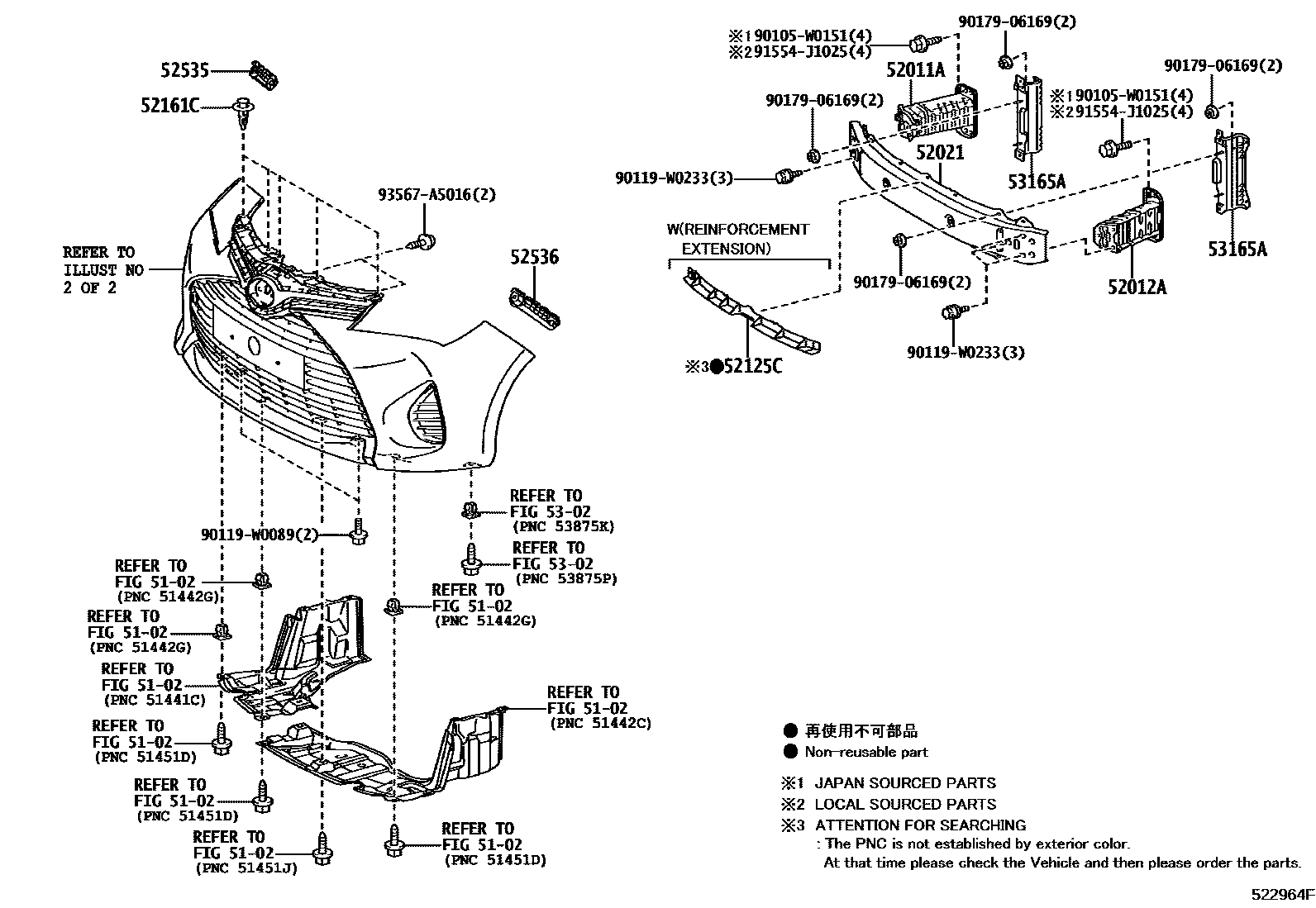

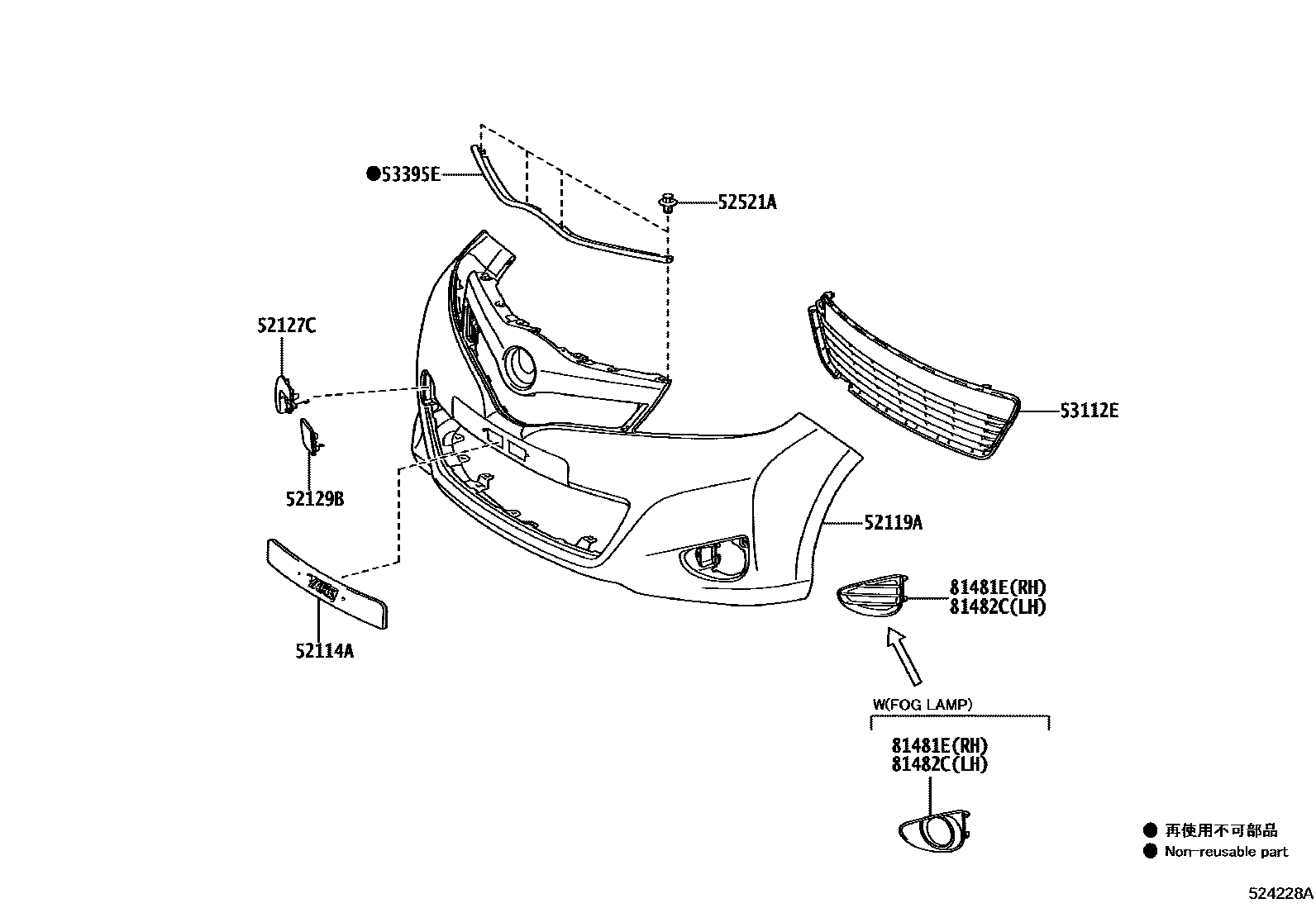

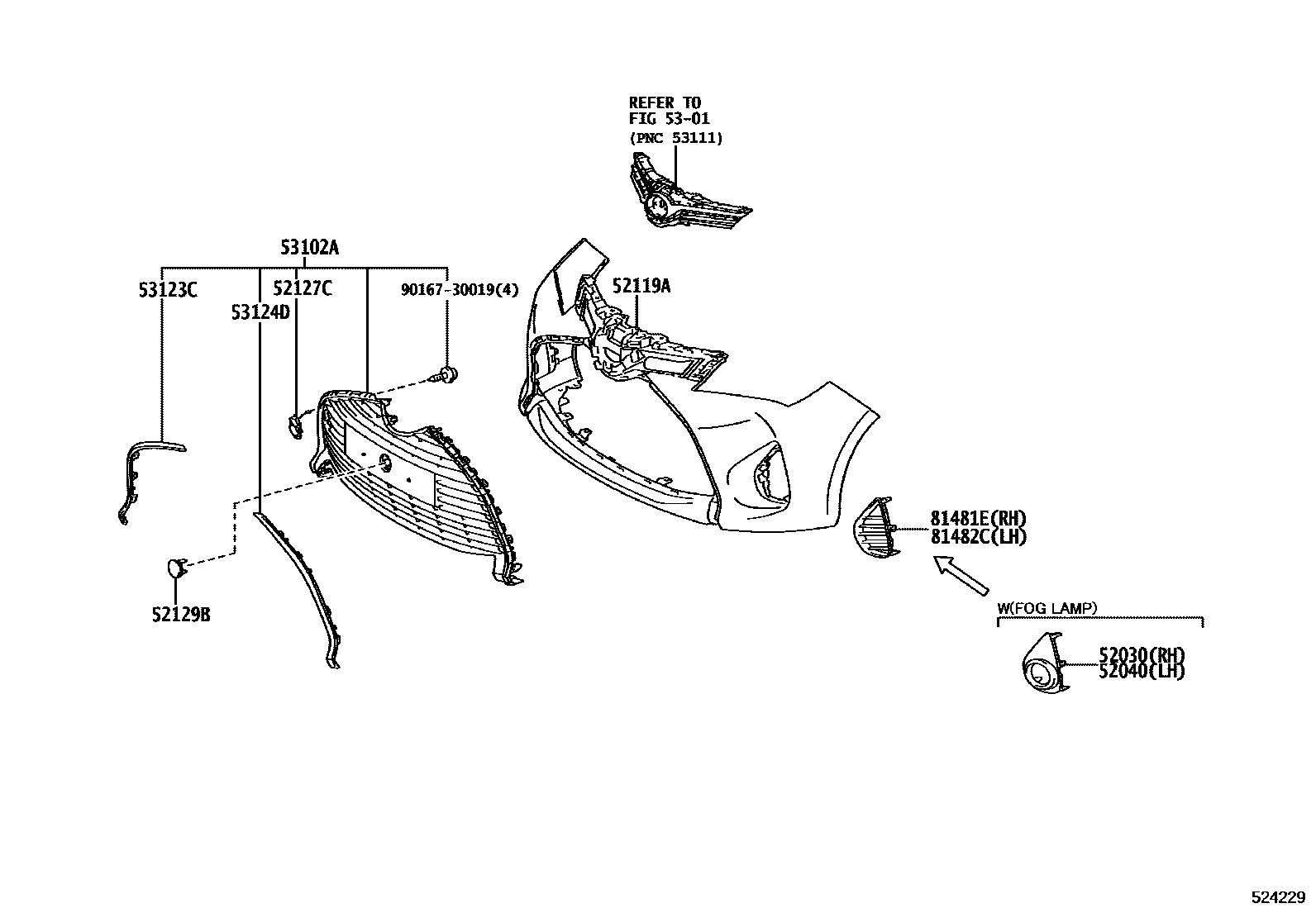

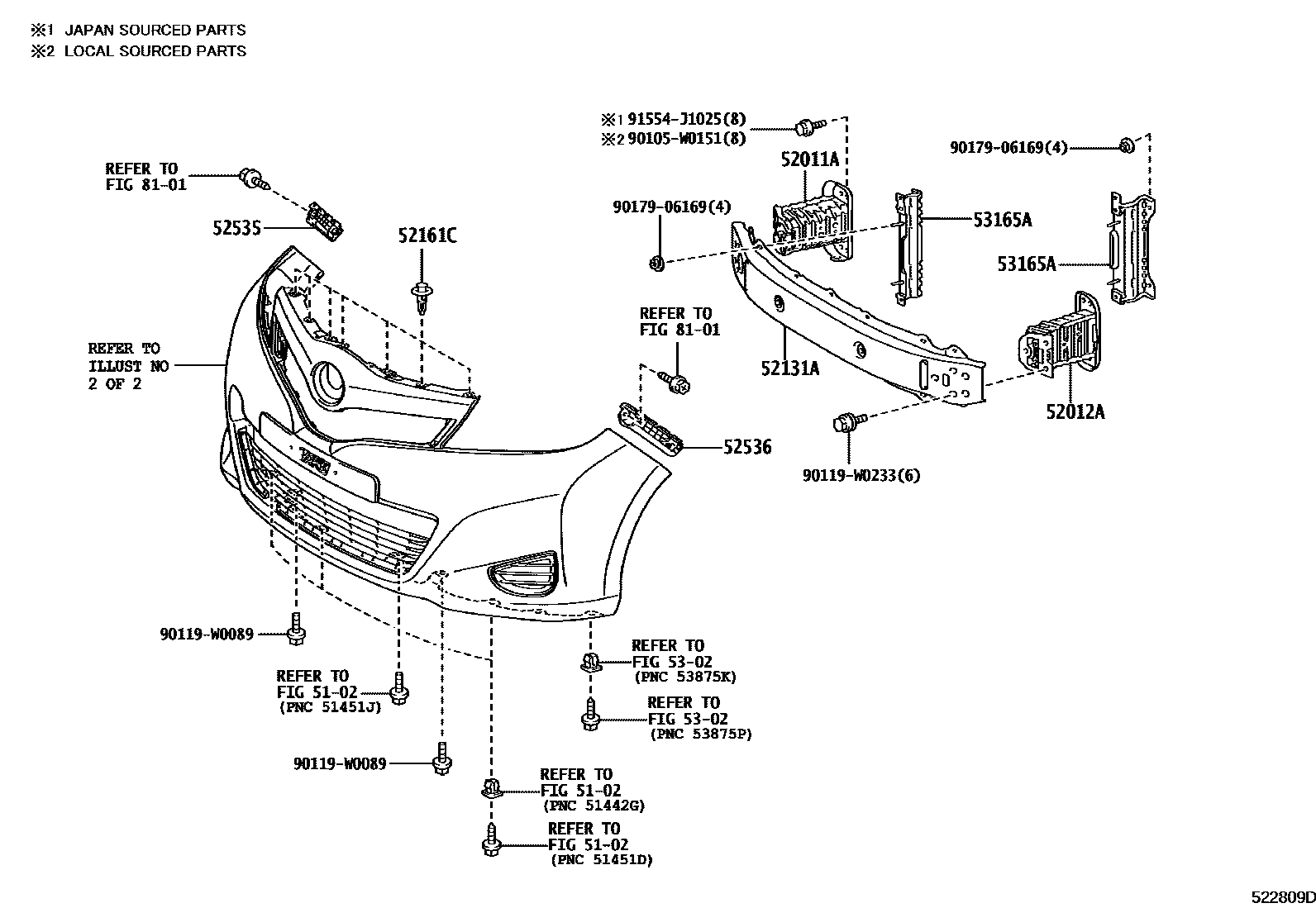

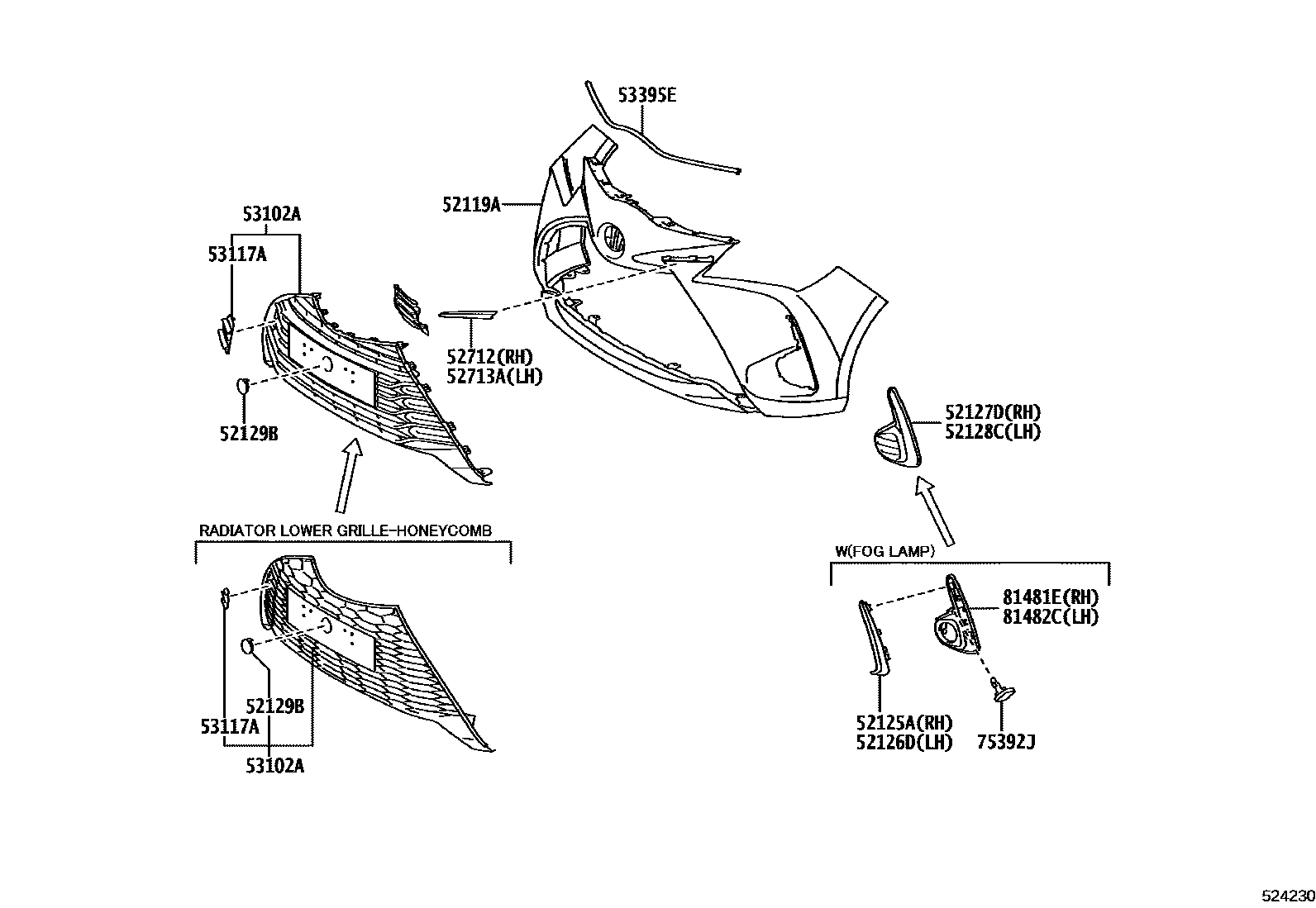

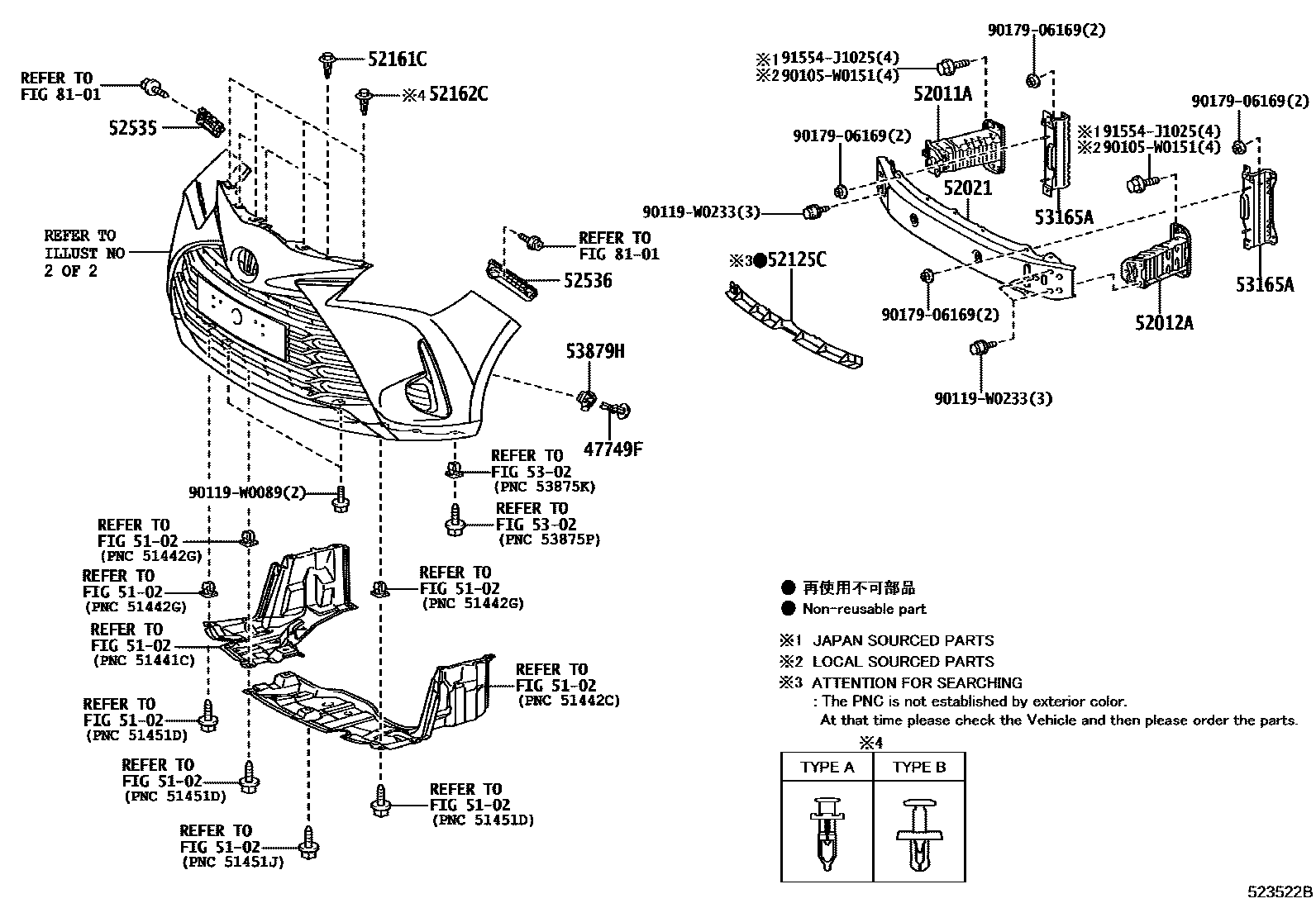

Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 6 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-50090 |
| 52011A | Front bumper right arm sub-assembly | 52011-52021 |
| 52012A | Front bumper left arm sub-assembly | 52012-52020 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D070 · 52021-0D160 |
| 52030 | Front bumper right hole cover assembly | 52030-0D050 |
| 52040 | Front bumper left hole cover assembly | 52040-0D050 |
| 52114A | Front bumper extension mounting bracket | 52114-0D901 |
| 52119A | front bumper cover | 52119-0U904 · 52119-0U927 · 52119-0U931 |
| 52125A | Right fog light mounting bracket | 52125-0D090 |
| 52125C | Front bumper reinforcement extension | 52125-0D060 |
| 52126D | Left fog light mounting bracket | 52126-0D080 |
| 52127C | Front bumper hole cover | 52127-0D520 · 52127-0D530 · 52127-0D917 |
| 52127D | Front bumper right hole cover | 81481-0D330 |
| 52128C | Front bumper left hole cover | 81482-0D310 |
| 52129B | Front bumper lower cover | 52129-0D050 · 52129-0D060 · 52129-0D070 |
| 52131A | Front bumper reinforcement | 52131-0D050 · 52131-52280 |
| 52161C | front bumper insert | 52161-02030 |
| 52162C | front bumper insert | 52161-02030 · 90467-09242 |
| 52535 | Front bumper right side fixing bracket | 52535-0D090 |
| 52536 | Front bumper left fixed bracket | 52536-0D090 |
| 52712 | Front bumper right side protective strip | 53123-0D370 |
| 52713A | Front bumper left protective strip | 53124-0D490 |
| 53102A | SOUS-ENSEMBLE GRILLE, RADIATEUR, INFERIEURE | 53102-0D040 · 53102-0D050 · 53102-0D060 · 53102-0D150 · 53102-0D160 |
| 53112E | No. 1 radiator lower grille | 53112-0D210 |
| 53117A | Radiator grille right side access hole cover | 52127-0D420 · 52127-0DB20 |
| 53123C | Radiator grille lower right protective strip | 53123-0D060 · 53123-0D070 · 53123-0D080 |
| 53124D | Radiator grille lower left protective strip | 53124-0D190 · 53124-0D200 · 53124-0D210 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-0D070 · 53165-0D050 |
| 53395E | Engine cover to front end plate seal | 53395-0D010 · 53395-0D030 |
| 53879H | Front fender lining fixing parts | 53879-50020 |
| 75392J | External protective strip fixings | 75392-35200 |
| 81481E | Right fog light cover | 81481-0D130 · 81481-0D140 · 81481-0D250 · 81481-0D340 · 81481-0D360 |
| 81482C | Left fog light cover | 81482-0D140 · 81482-0D150 · 81482-0D260 · 81482-0D320 · 81482-0D340 |
