Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 4 images and 29 PNC and OE references.
PNC and OE references

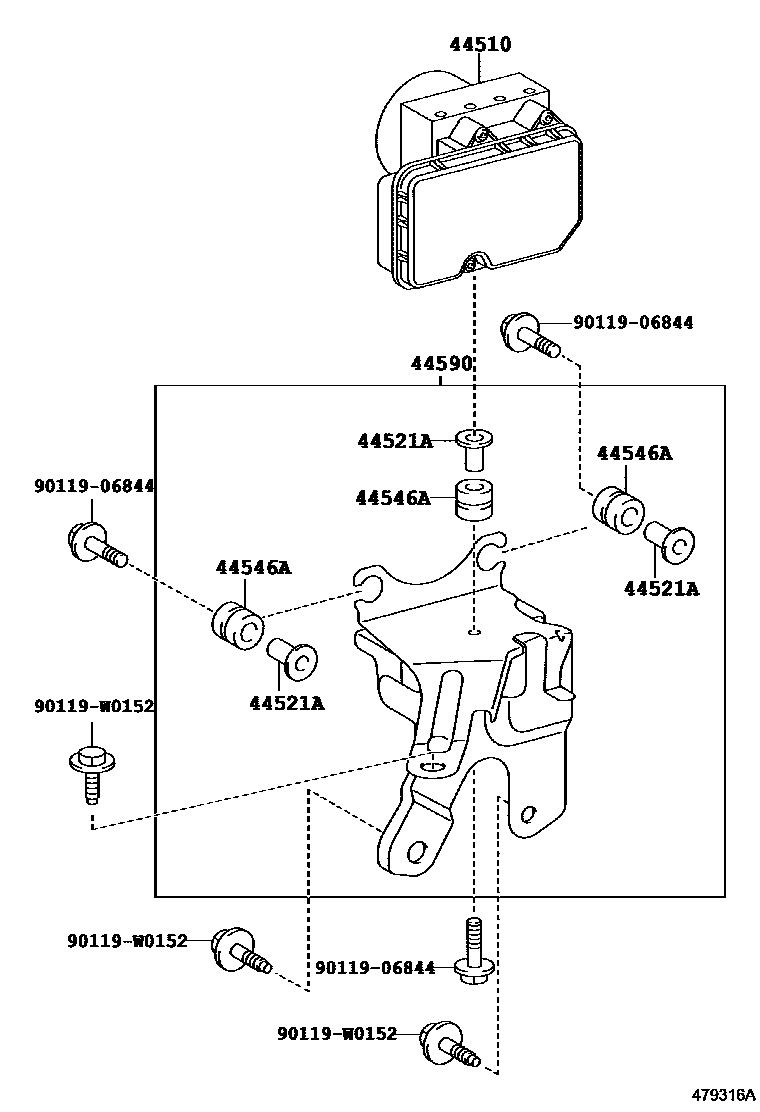

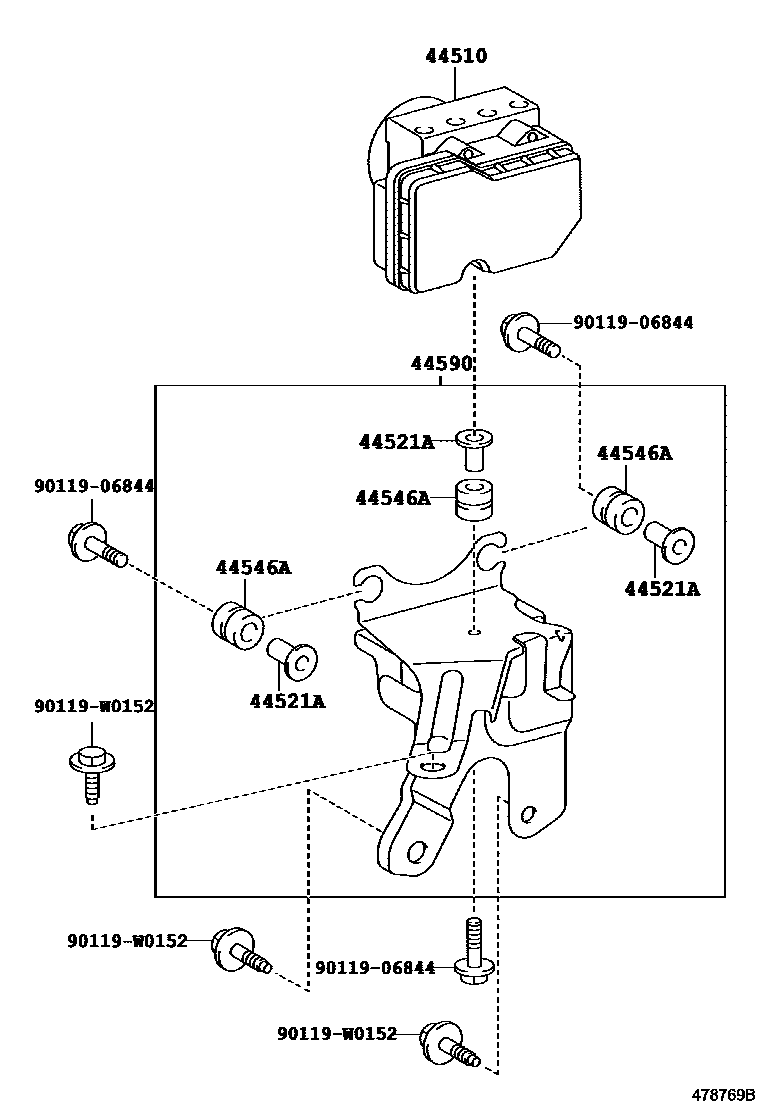

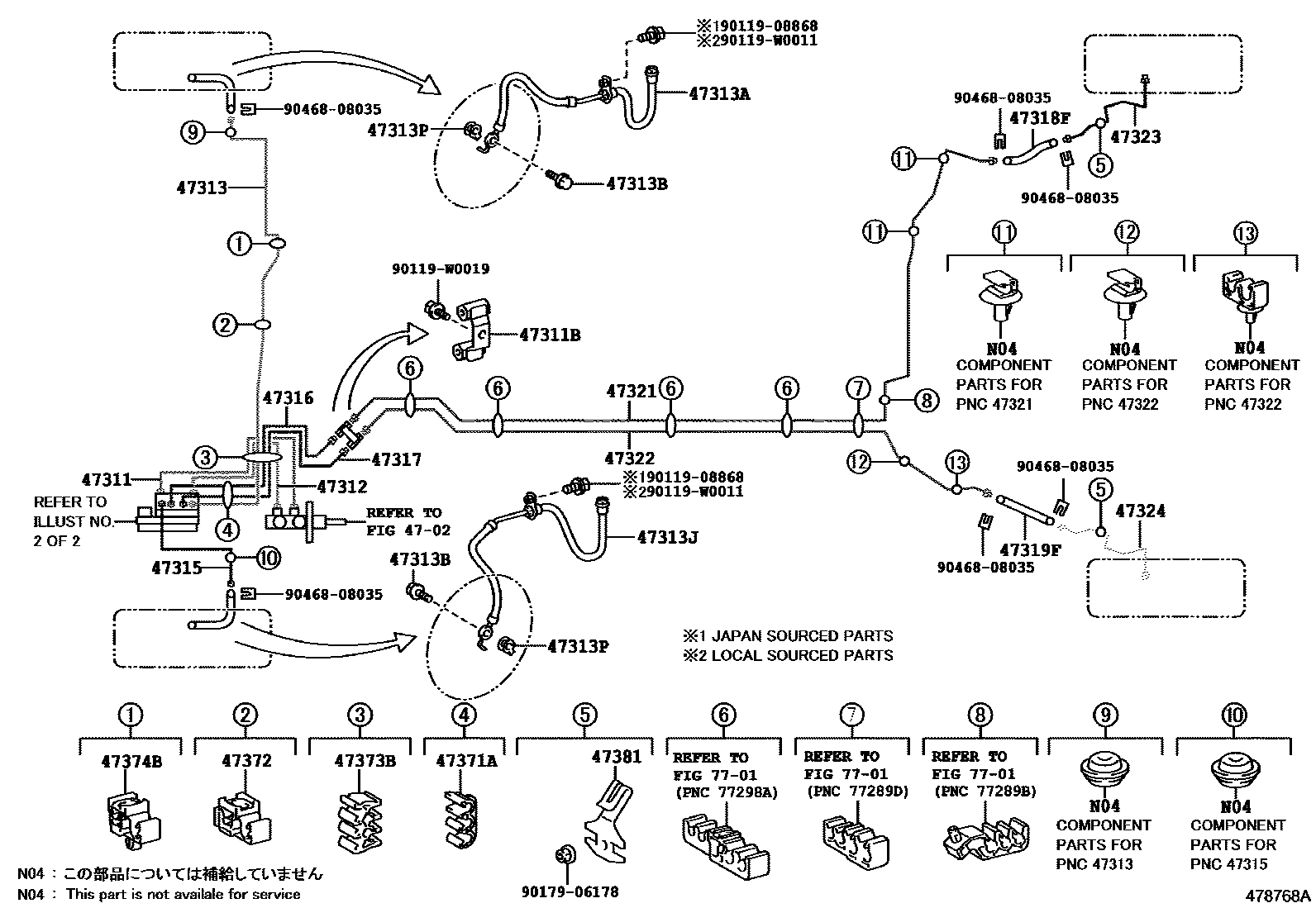

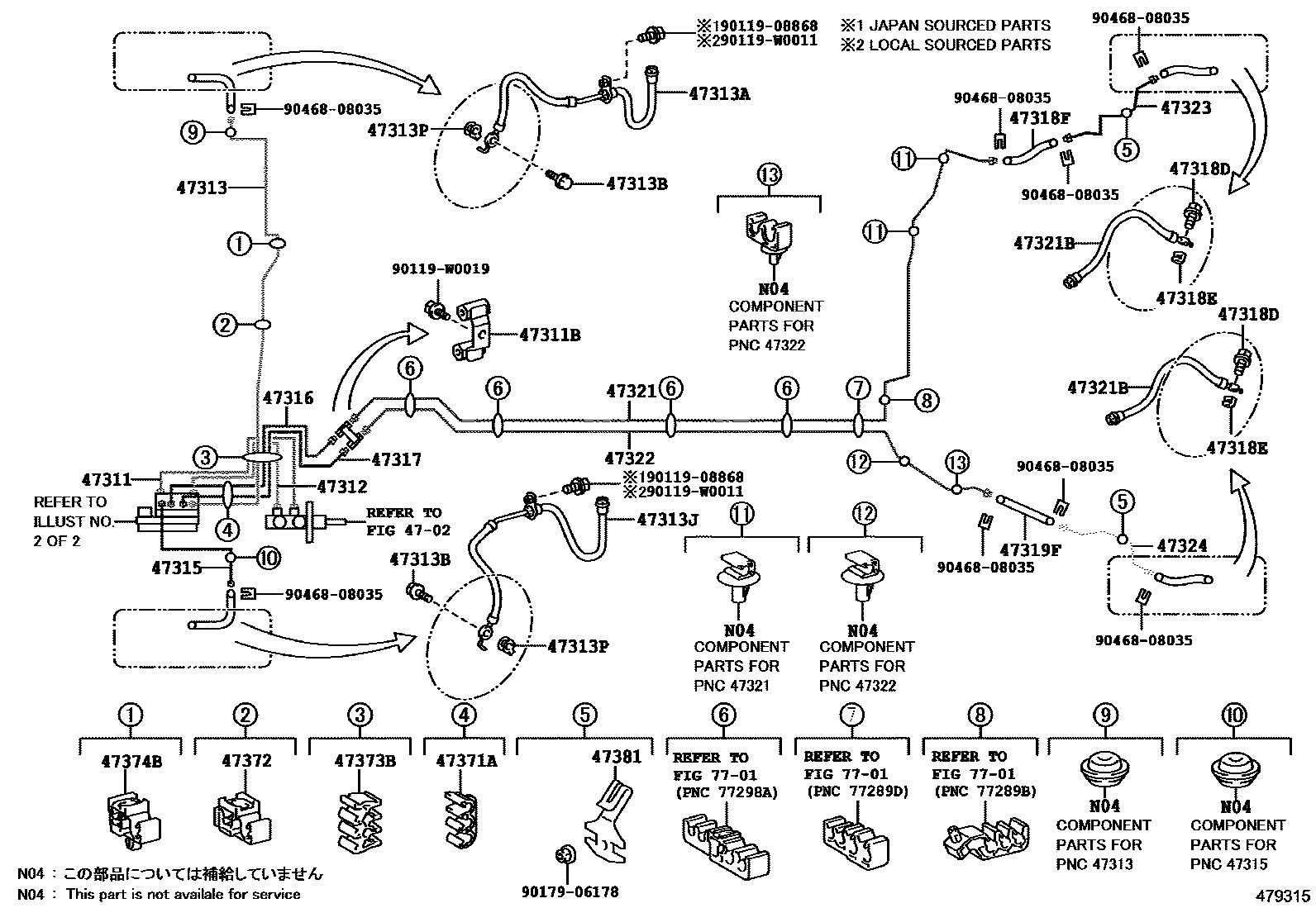

| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-52D00 · 44050-52K91 · 44050-52L01 · 44050-52L11 · 44050-52L21 · 44050-52M90 · 44050-52M91 · 44050-52N00 · 44050-52N10 · 44050-52N20 · 44050-52N21 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-12050 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-52210 |
| 47311 | No. 1 front brake pipe | 47311-0D680 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-0D610 |
| 47313 | No. 3 front brake pipe | 47313-0D340 · 47313-0D600 |
| 47313A | No. 1 front flexible hose | 90947-W2034 · 90947-W2050 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2035 · 90947-W2051 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-0D580 · 47315-0D590 |
| 47316 | No. 6 front brake pipe | 47316-0D500 · 47316-0D510 |
| 47317 | No. 7 front brake pipe | 47317-0D490 · 47317-0D500 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-W2036 |
| 47319F | Left rear flexible hose | 90947-W2037 |
| 47321 | No. 1 rear brake pipe | 47321-0D420 · 47321-0D440 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-W2038 |
| 47322 | No. 2 rear brake pipe | 47322-0D420 · 47322-0D440 |
| 47323 | No. 3 rear brake pipe | 47323-0D201 · 47323-0D330 · 47323-0D340 |
| 47324 | No. 4 rear brake pipe | 47324-0D201 · 47324-0D330 · 47324-0D340 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 · 90949-01D92 |
| 47372 | No. 2 brake pipe clamp | 90949-01D86 · 90949-01D98 |
| 47373B | No. 3 brake pipe clamp | 90464-00925 · 90949-01D90 |
| 47374B | No. 4 brake pipe clamp | 90949-01D82 · 90949-01D89 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52020 |
