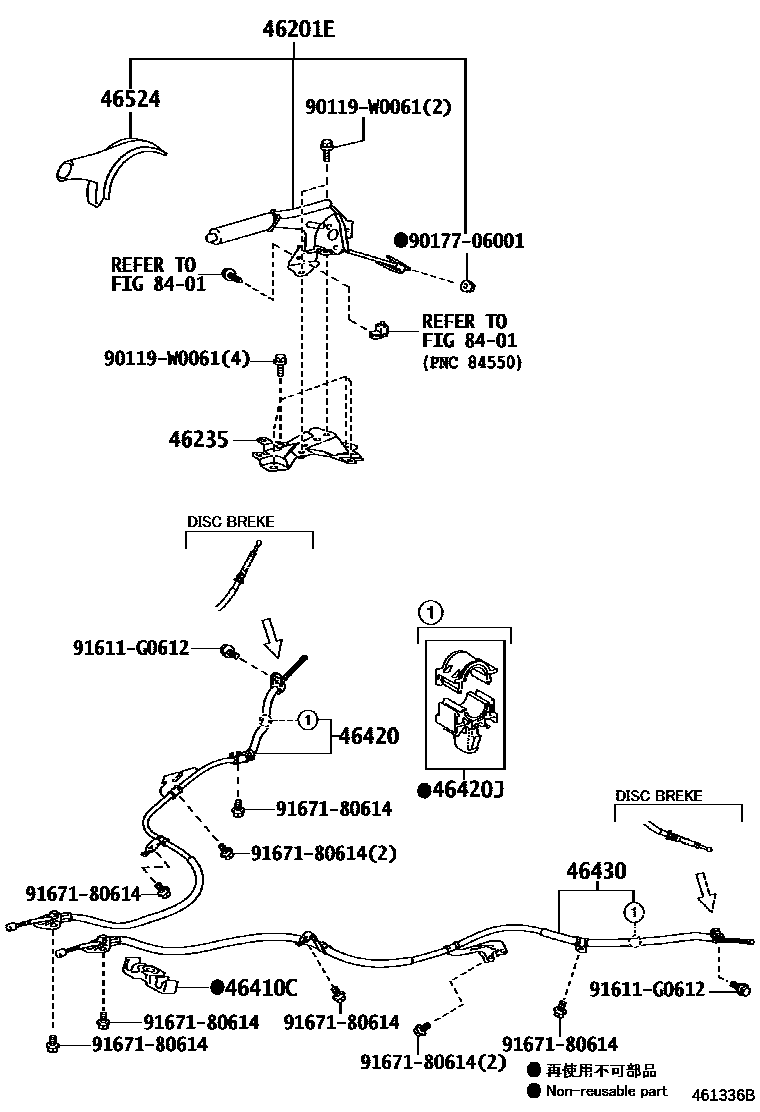

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46235 | Parking brake lever bracket | 46235-52040 |
| 46410C | Clip (for front parking brake cable) | 46411-0D010 |
| 46420 | Parking brake No. 2 cable assembly | 46420-52370 · 46420-52380 |
| 46420J | Clamp No. 3 (for parking brake cable) | 46402-52030 |
| 46430 | Parking brake No. 3 cable assembly | 46430-52360 · 46430-52370 |
| 46524 | Parking brake dust cover | 46524-52052 |
