Toyota YARIS 前转向齿轮和连杆 — Figure 4505

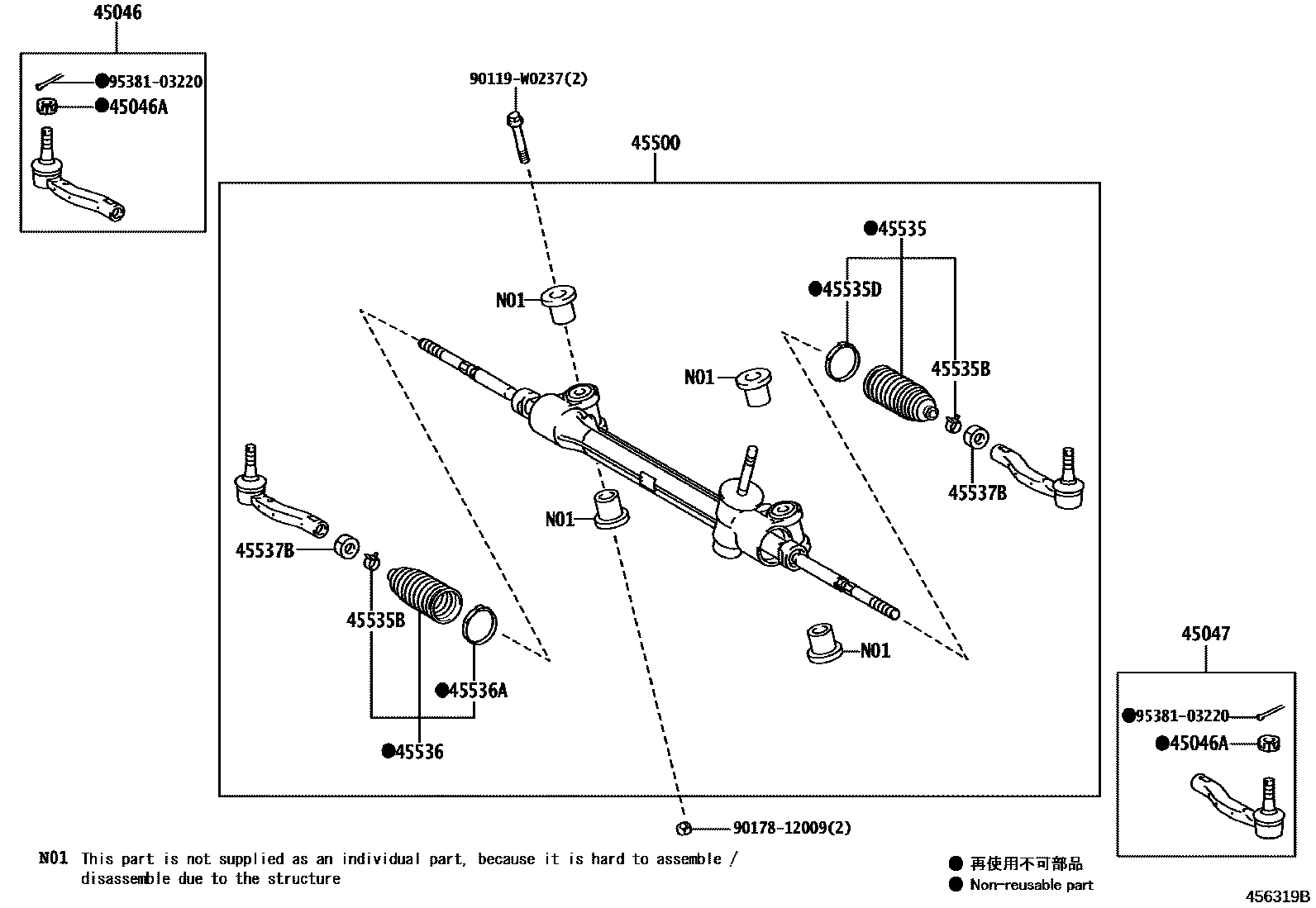

Toyota YARIS EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-09480 · 45046-09700 · 45046-09860 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-09700 · 45046-09860 · 45047-09220 |
| 45500 | steering tie rod assembly | 45500-0D271 · 45500-0D280 · 45500-0D290 · 45500-0D291 |
| 45535 | No. 1 steering rack dust cover | 45535-09240 · 45535-59035 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0D050 · 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-0D040 · 45538-52010 |
| 45536 | No. 2 steering rack dust cover | 45535-09240 · 45535-59035 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0D040 · 45538-52010 |
| 45537B | Rack end lock nut | 90178-15003 · 90179-14019 |
