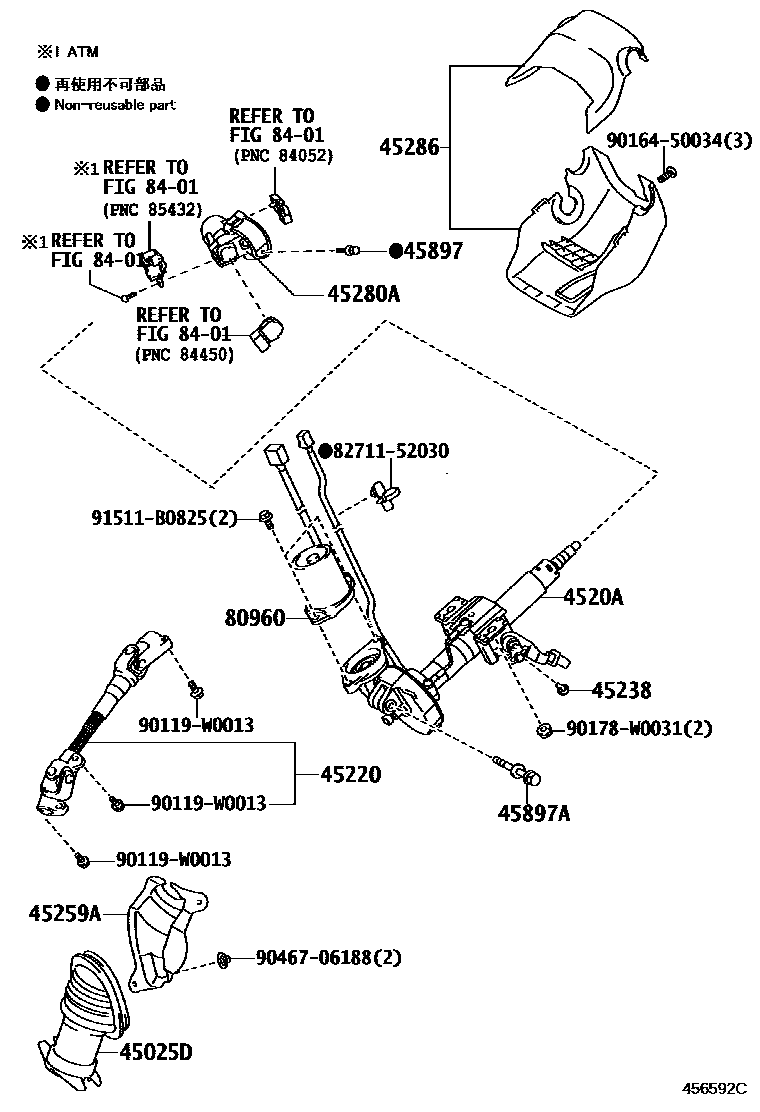

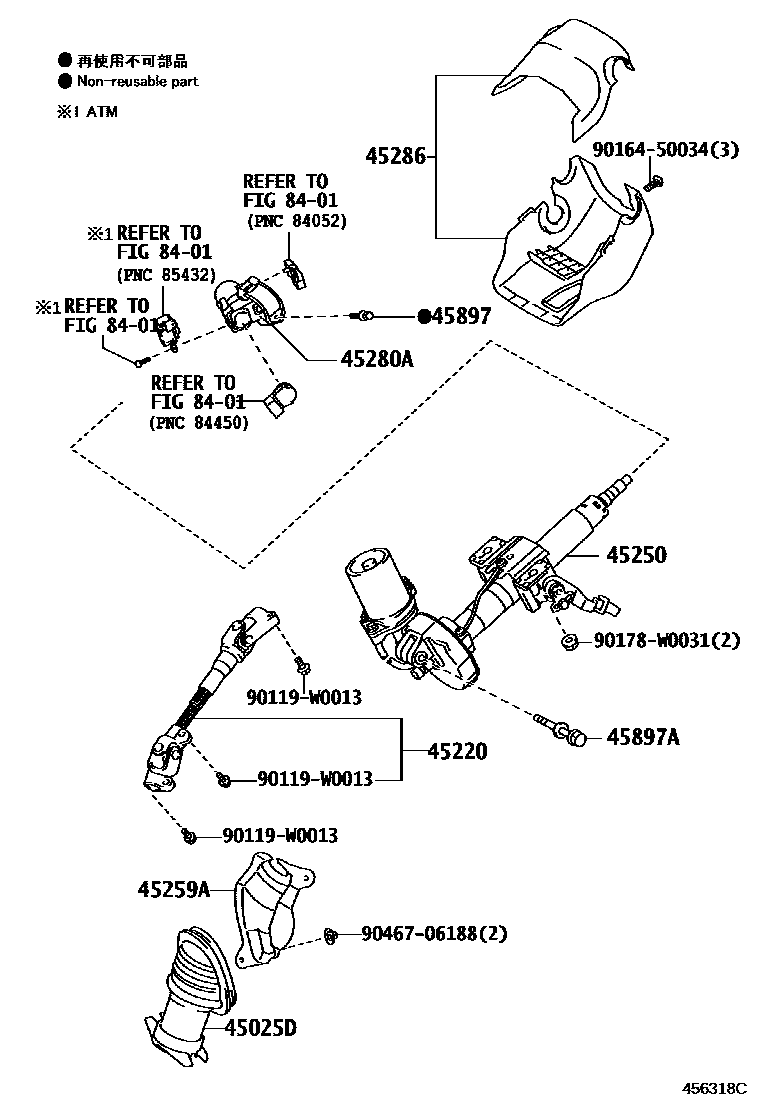

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0D062 |
| 4520A | Electric steering column sub-assembly | 4520A-0D220 · 4520A-0D221 |
| 45220 | Steering intermediate shaft assembly | 45220-0D010 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45250 | Steering column assembly | 45250-52764 |
| 45259A | Steering column hole cover silencer plate | 45255-0D100 |
| 45280A | Steering column upper bracket assembly | 45280-52100 · 45280-52110 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 · 90119-10980 |
| 80960 | Power steering motor assembly | 80960-0D200 |
