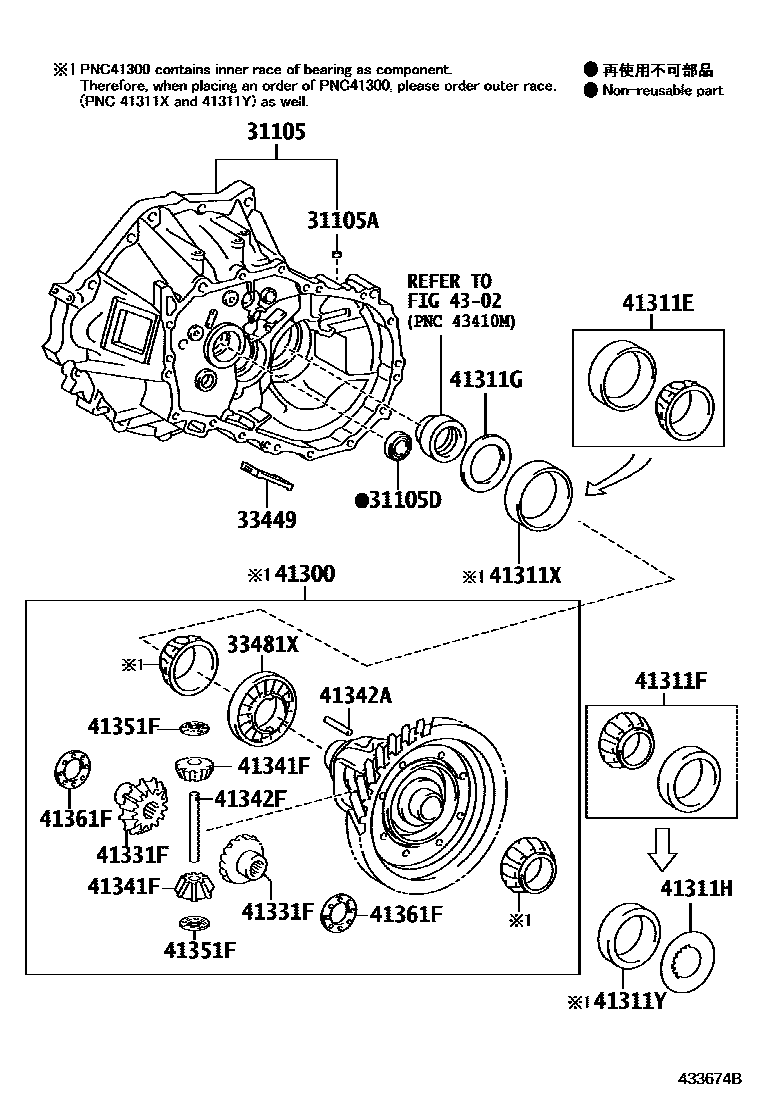

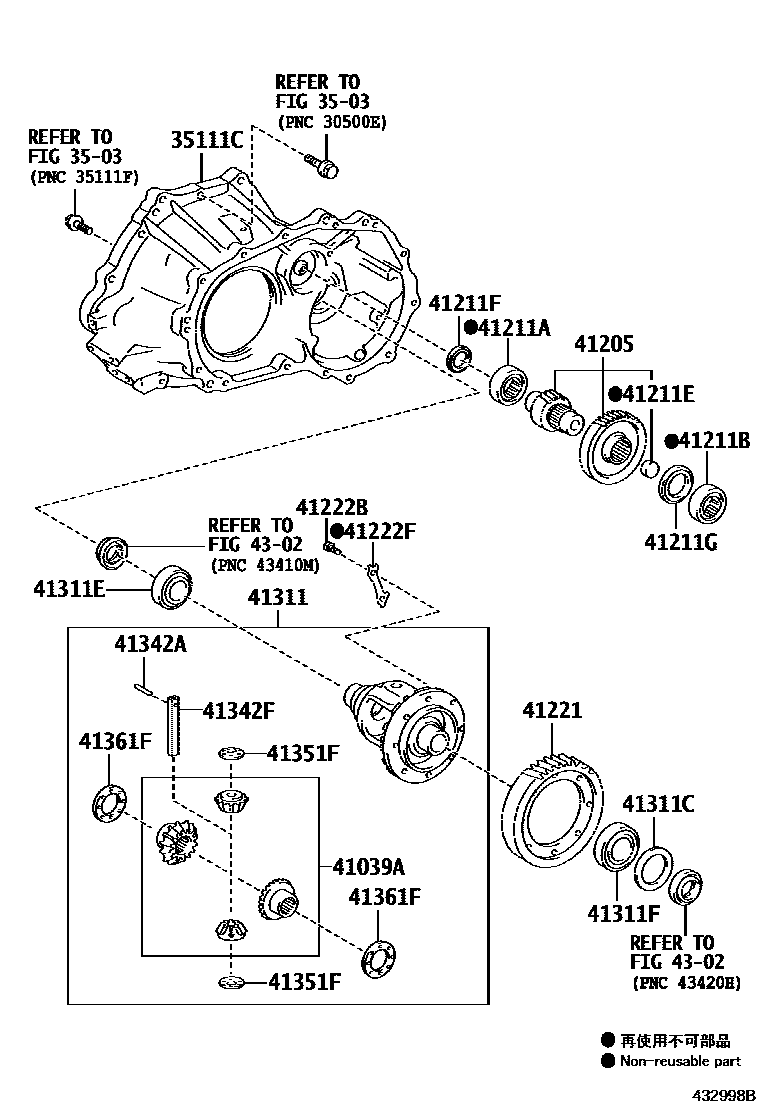

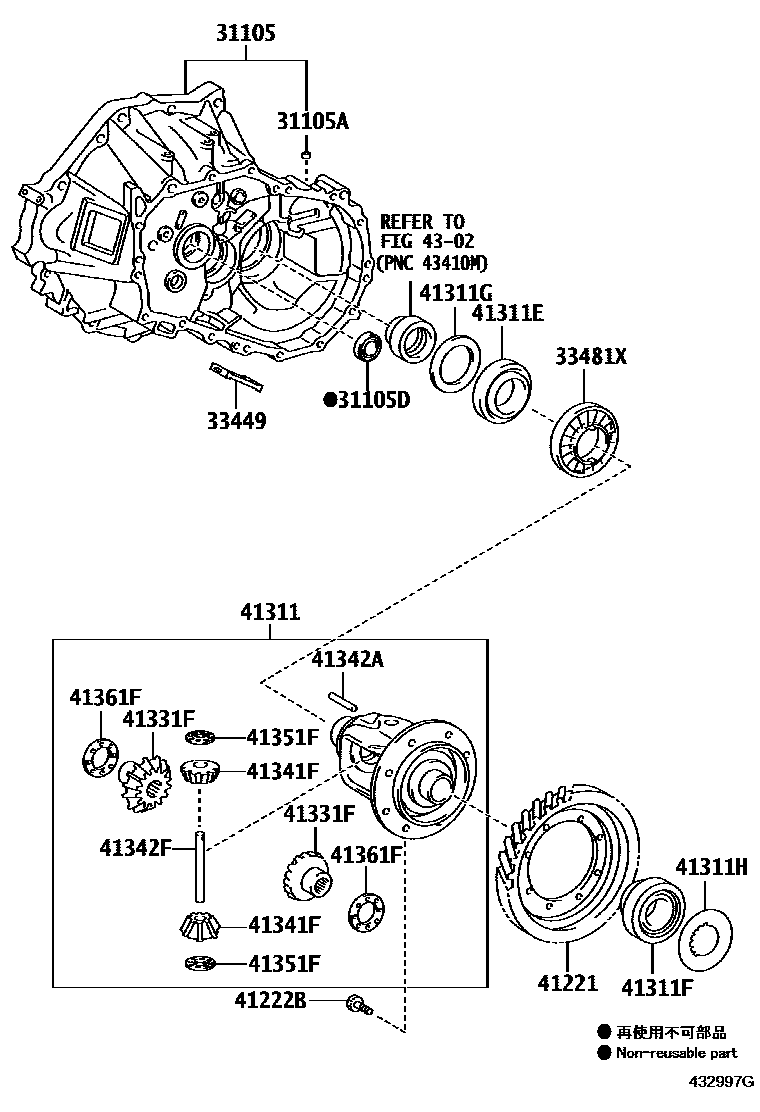

Toyota YARIS 前桥壳和差速器 — Figure 4301
Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-52060 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25028 |
| 33449 | derailleur magnet | 33449-12020 |
| 33481X | speedometer drive gear | 33481-12040 |
| 35111C | Transmission axle housing | 35105-52071 |
| 41039A | Differential gear assembly | 41039-12010 |
| 41205 | Differential drive pinion sub-assembly | 41205-52021 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-52091 · 41221-52280 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41300 | Front differential case assembly with ring gear | 41300-52140 |
| 41311 | front differential case | 41301-12041 · 41301-52070 |
| 41311C | Rear gasket (for front differential case) | 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-38004 · 90366-40016 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-44001 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-38005 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90368-38011 |
| 41331F | Front differential side gear | 41331-12011 |
| 41341F | Front differential planetary gear | 41341-12030 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12140 · 41342-20090 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
