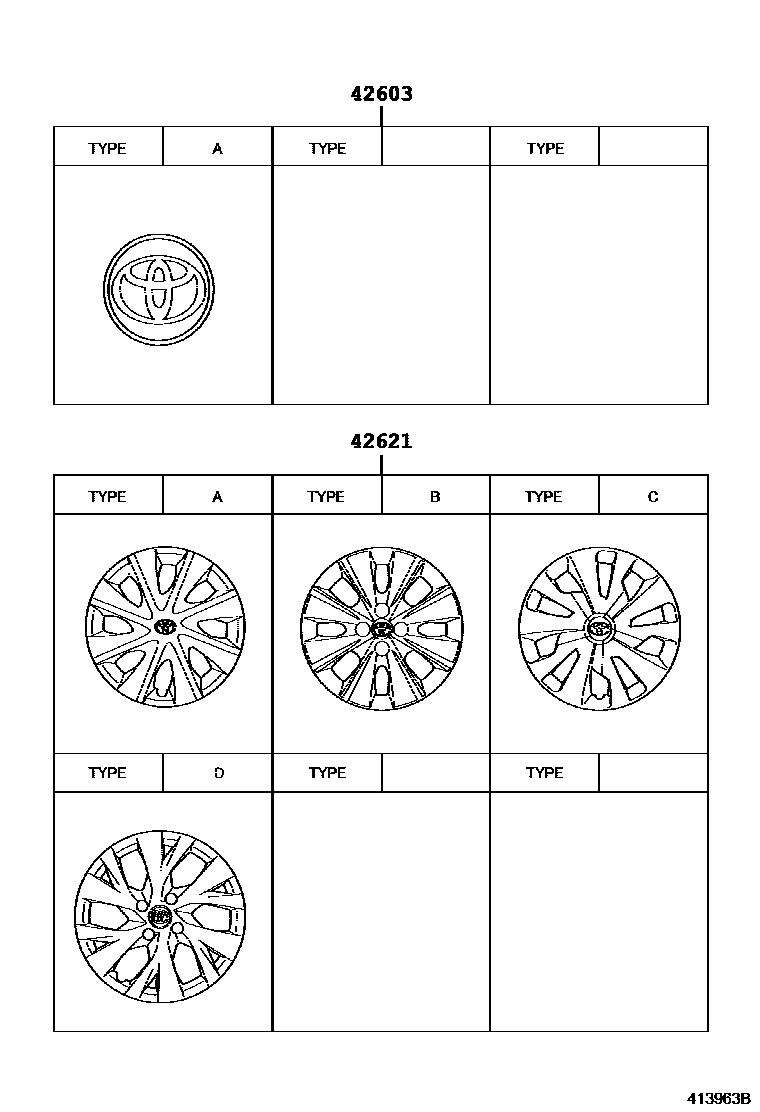

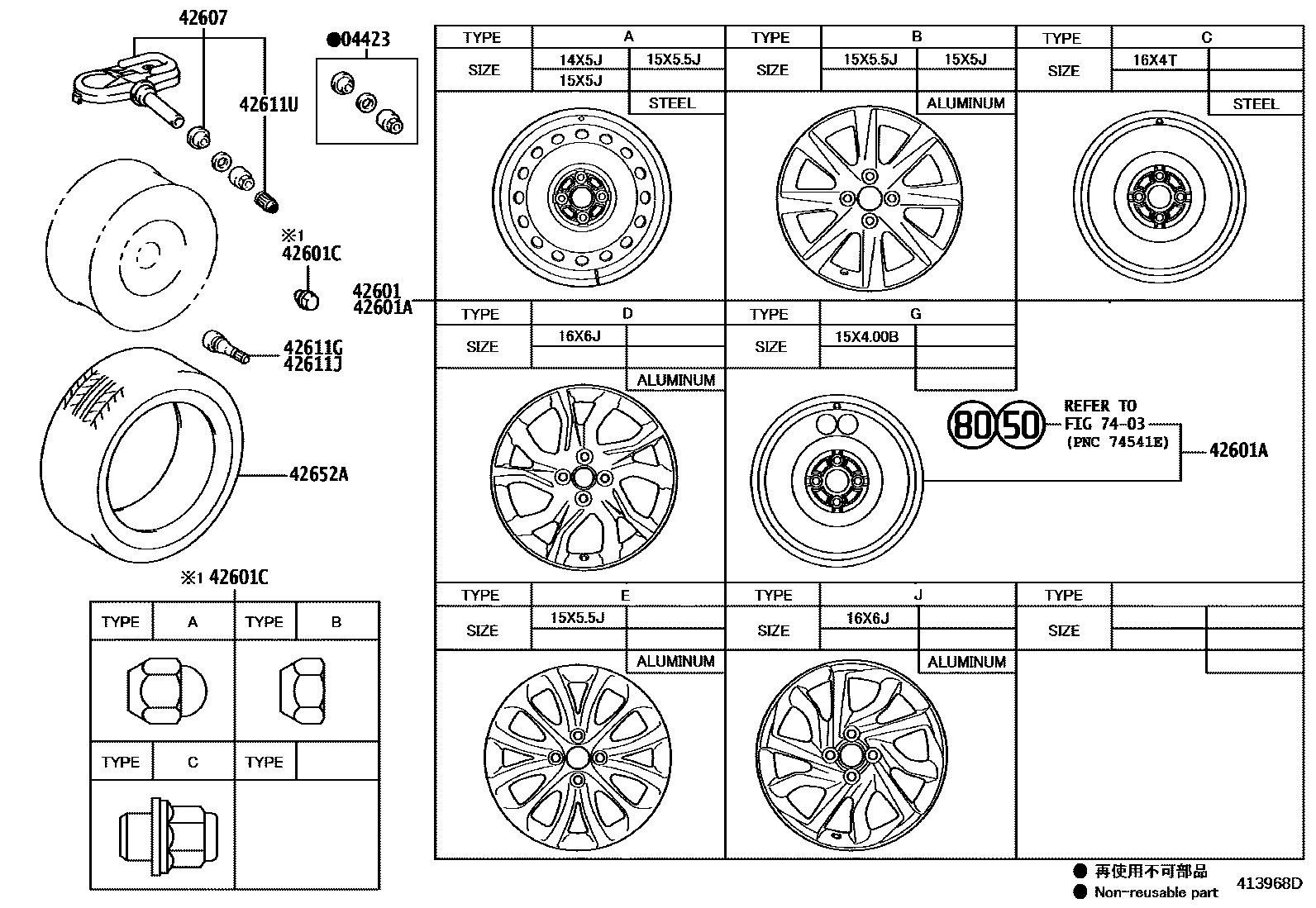

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-02010 |
| 42601 | spoke wheel | 42611-0D580 · 42611-0D590 · 42611-0D600 · 42611-0D610 · 42611-0D620 · 42611-0DC70 · 42611-0DC80 · 42611-0DG60 · 42611-0DG80 |
| 42601A | Spoke wheel (for spare tire) | 42611-0D231 · 42611-0DC40 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D170 · 42603-52170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-0D010 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-W5001 |
| 42621 | wheel cover | 42602-0D200 · 42602-0D210 · 42602-0D300 · 42602-0D410 |
| 42652A | Tire (for Spare Wheel) | 4265A-0D020 · 4265A-0D030 |
