Toyota YARIS 燃油喷射系统 — Figure 2211

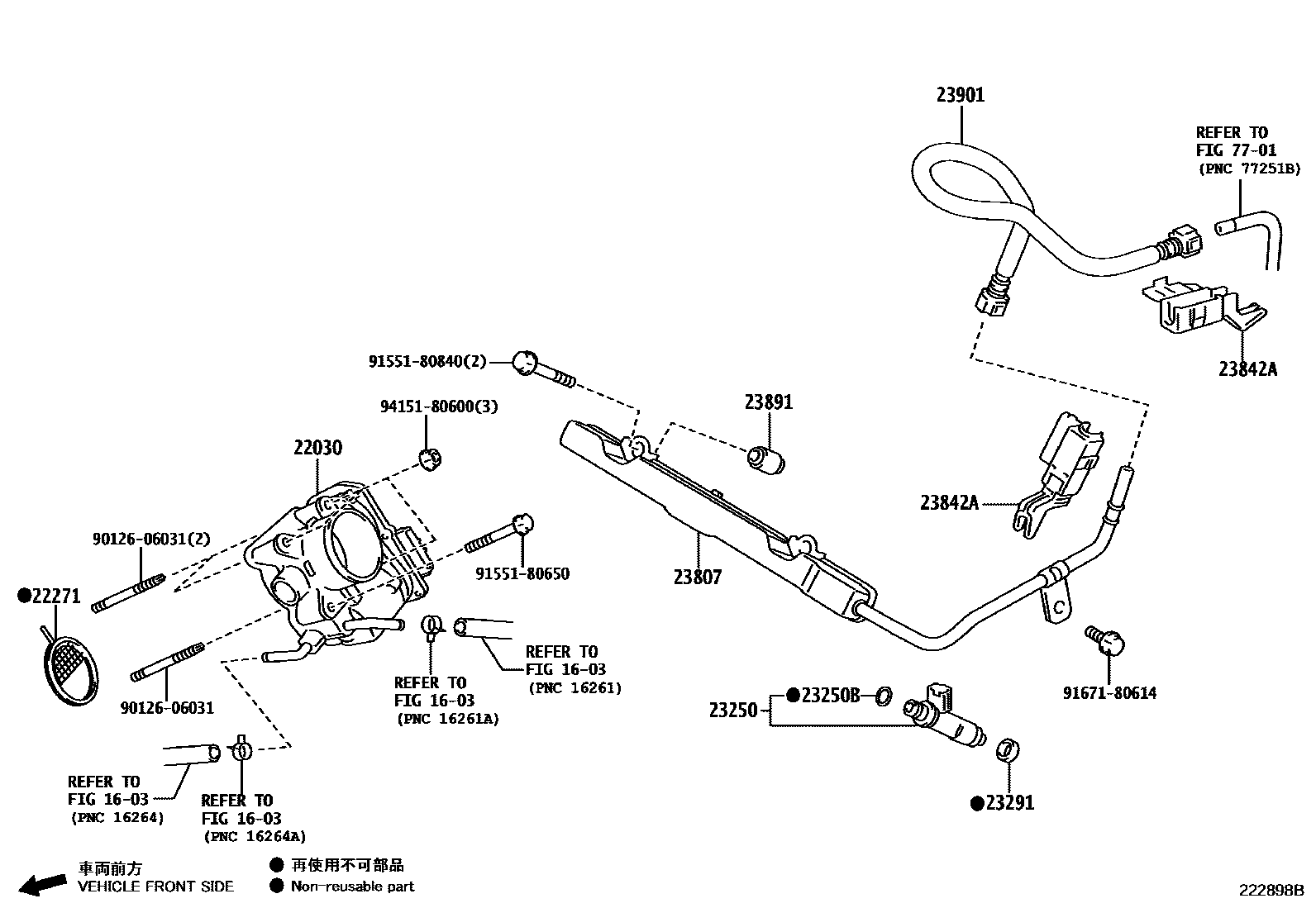

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-21030 |
| 22271 | Throttle body gasket | 22271-21060 |
| 23250 | Fuel injector assembly | 23209-21040 |
| 23250B | O-ring (for fuel injector) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-23010 |
| 23807 | Oil pipe sub-assembly | 23807-21090 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-37090 |
| 23891 | oil pipe septum | 23891-21010 |
| 23901 | Fuel pipe sub-assembly | 23901-21120 |
