Toyota YARIS Alternator — Figure 1903

Toyota YARIS EPC diagram 1903, Alternator, with 2 images and 15 PNC and OE references.

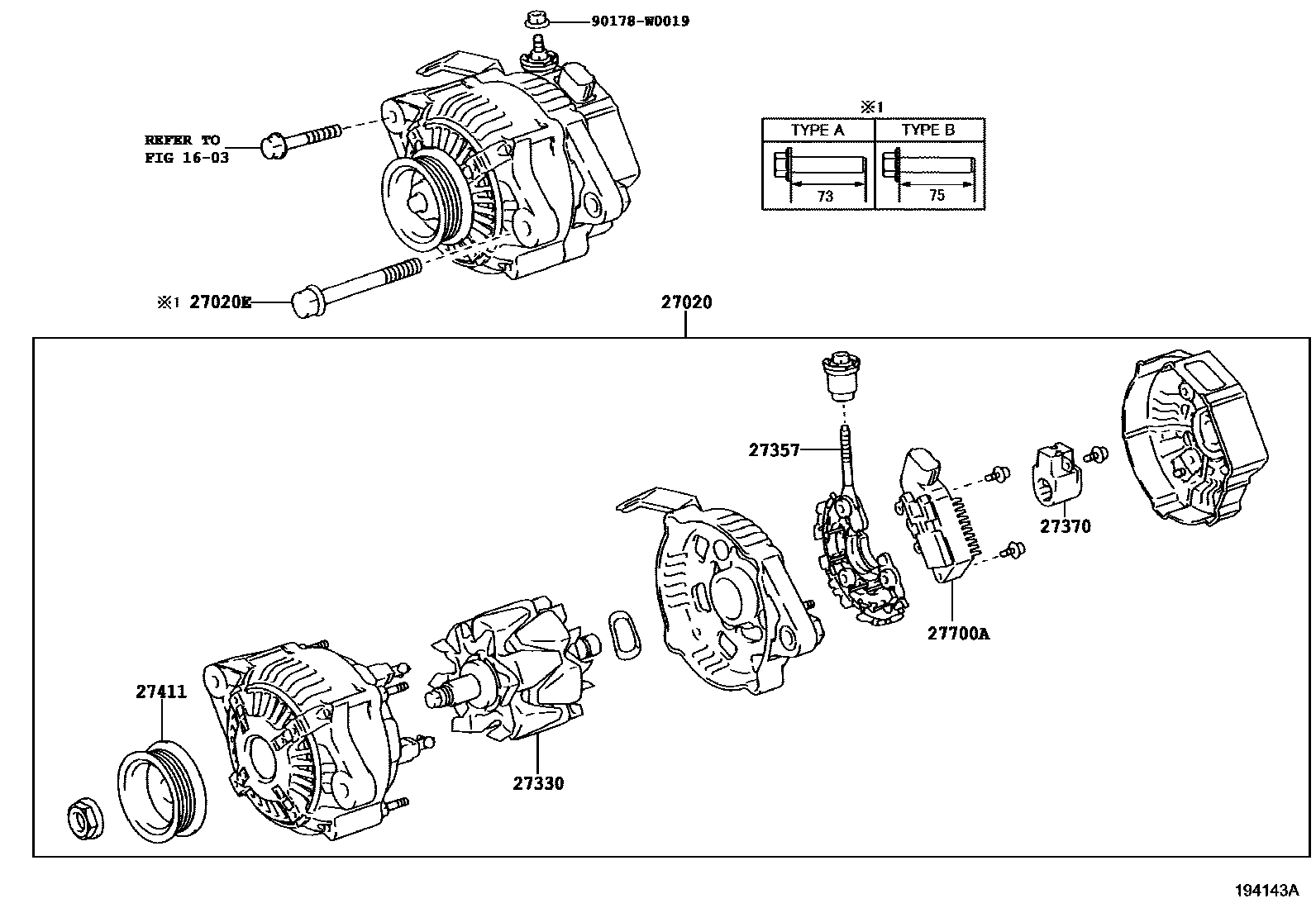

Toyota YARIS Alternator EPC diagram — 194143A
Alternator — 194143A (201305 – 201407)

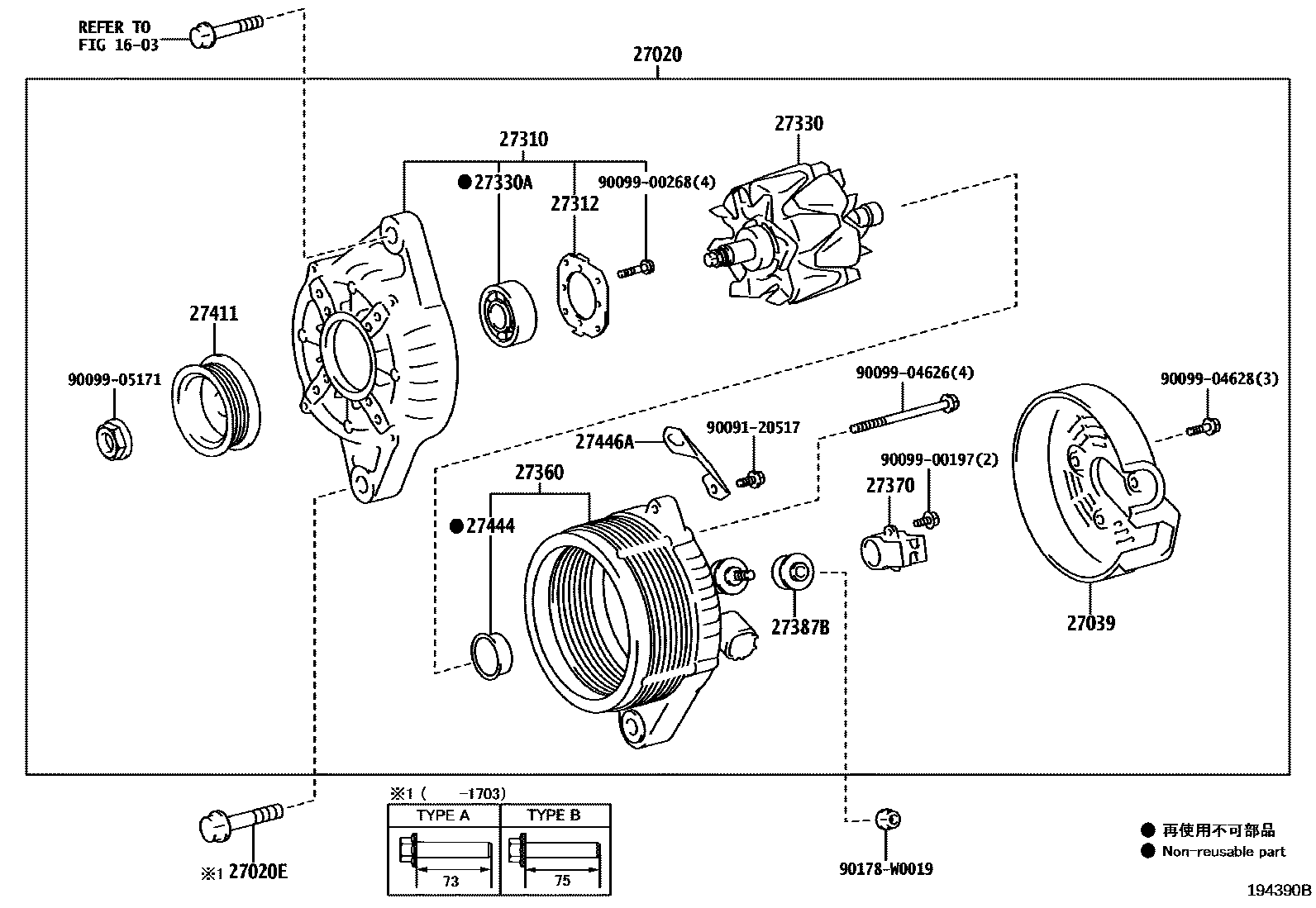

Toyota YARIS Alternator EPC diagram — 194390B
Alternator — 194390B (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-21151 · 27060-21220
27020EBolts (for generator)90105-10075 · 90105-W0113 · 91552-81075
27039Alternator Rear End Cover27039-47310
27310Alternator Drive End Frame Assembly27310-21210
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-30130 · 27330-47310
27330ABearings (for generator rotor)90099-10227
27357Generator rectifier frame27357-22200
27360Alternator Stator Coil Assembly27360-21230
27370Alternator Brush Holder Assembly27370-23120 · 27370-31220
27387BGenerator terminal insulation pad27387-47310
27411Alternator Pulley27411-21210 · 27411-70140
27444Generator bearing cap seals27444-21190
27446Acard holder27446-21020
27700AGenerator voltage regulator assembly27700-21050
