Toyota YARIS 点火线圈和火花塞 — Figure 1901

Toyota YARIS EPC diagram 1901, 点火线圈和火花塞, with 1 images and 3 PNC and OE references.

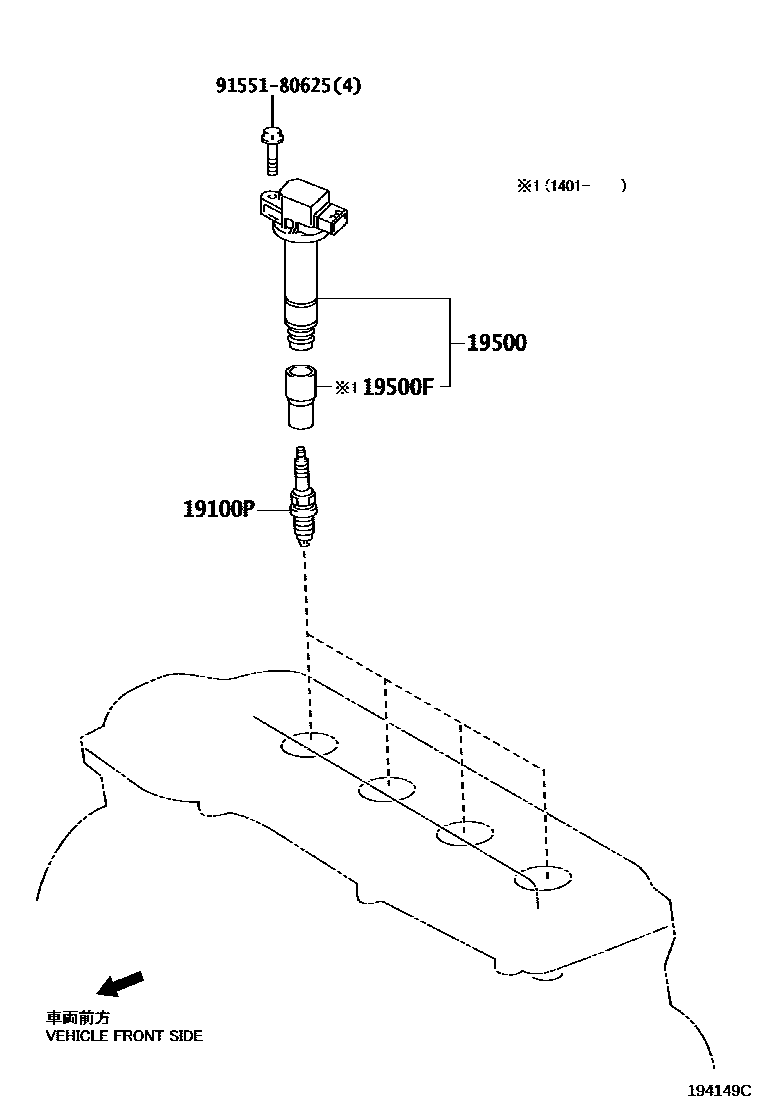

Toyota YARIS 点火线圈和火花塞 EPC diagram — 194149C
点火线圈和火花塞 — 194149C (201305 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01240
19500Ignition coil assembly90919-02265
19500FBOUCHON, BOUCHON90919-11009
