Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 1 images and 5 PNC and OE references.

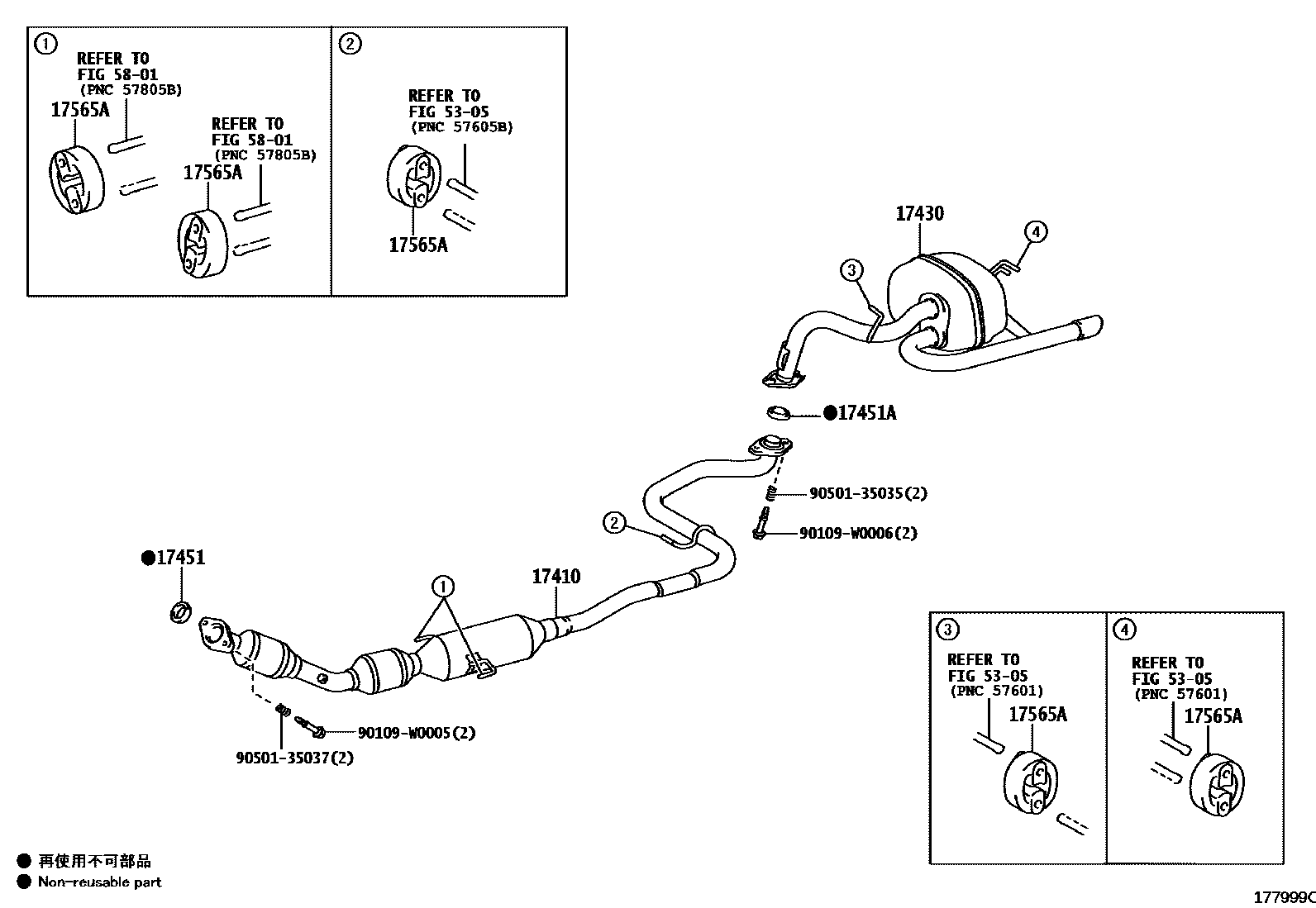

Toyota YARIS Exhaust Pipe EPC diagram — 177999C
Exhaust Pipe — 177999C (201305 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0M280
17430Exhaust tailpipe assembly17430-0M250
17451Exhaust pipe gasket17451-0J030
17451ANo. 2 exhaust pipe gasket17451-0J022
17565ANo. 4 exhaust pipe lifting lug17565-0Q030
