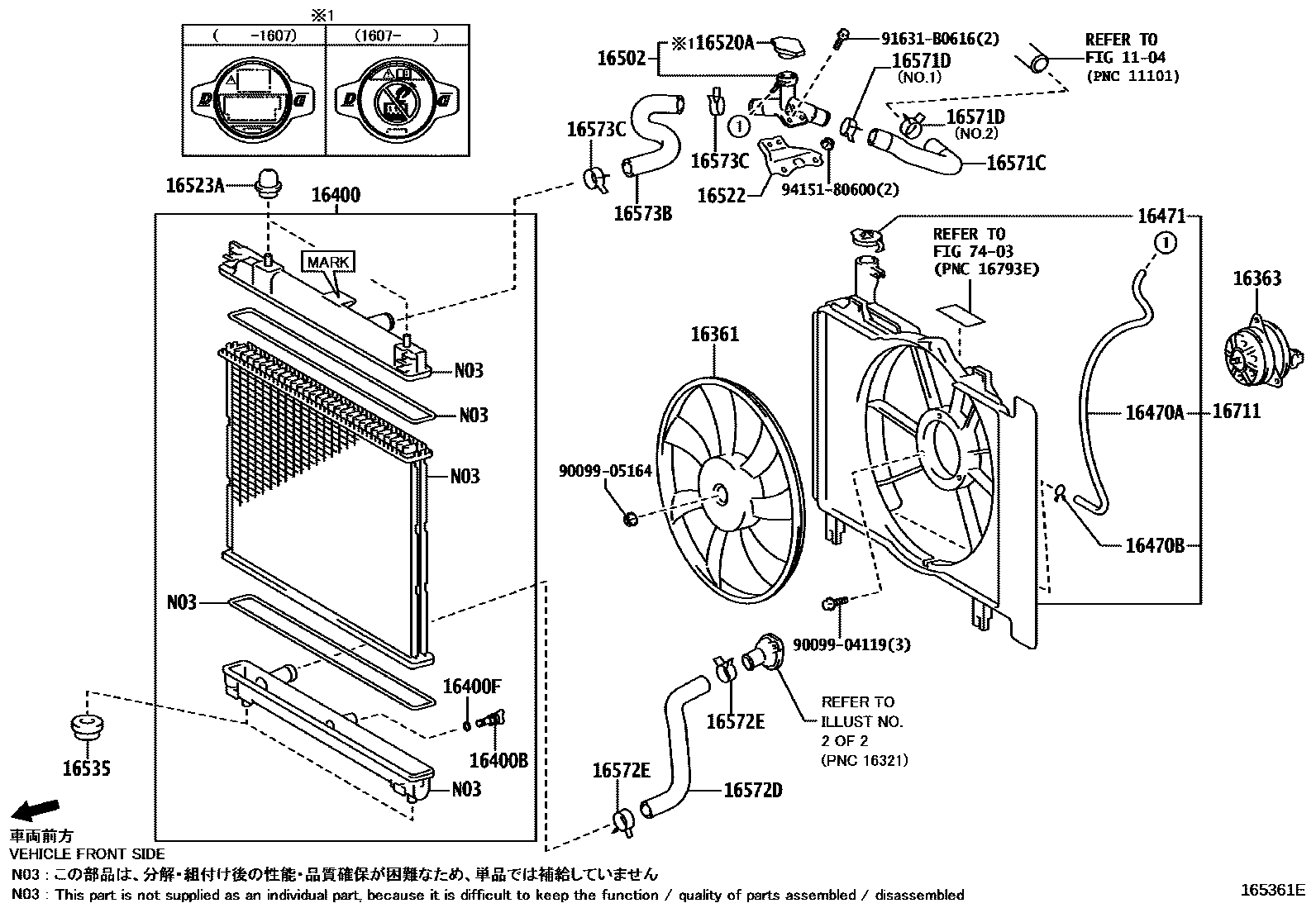

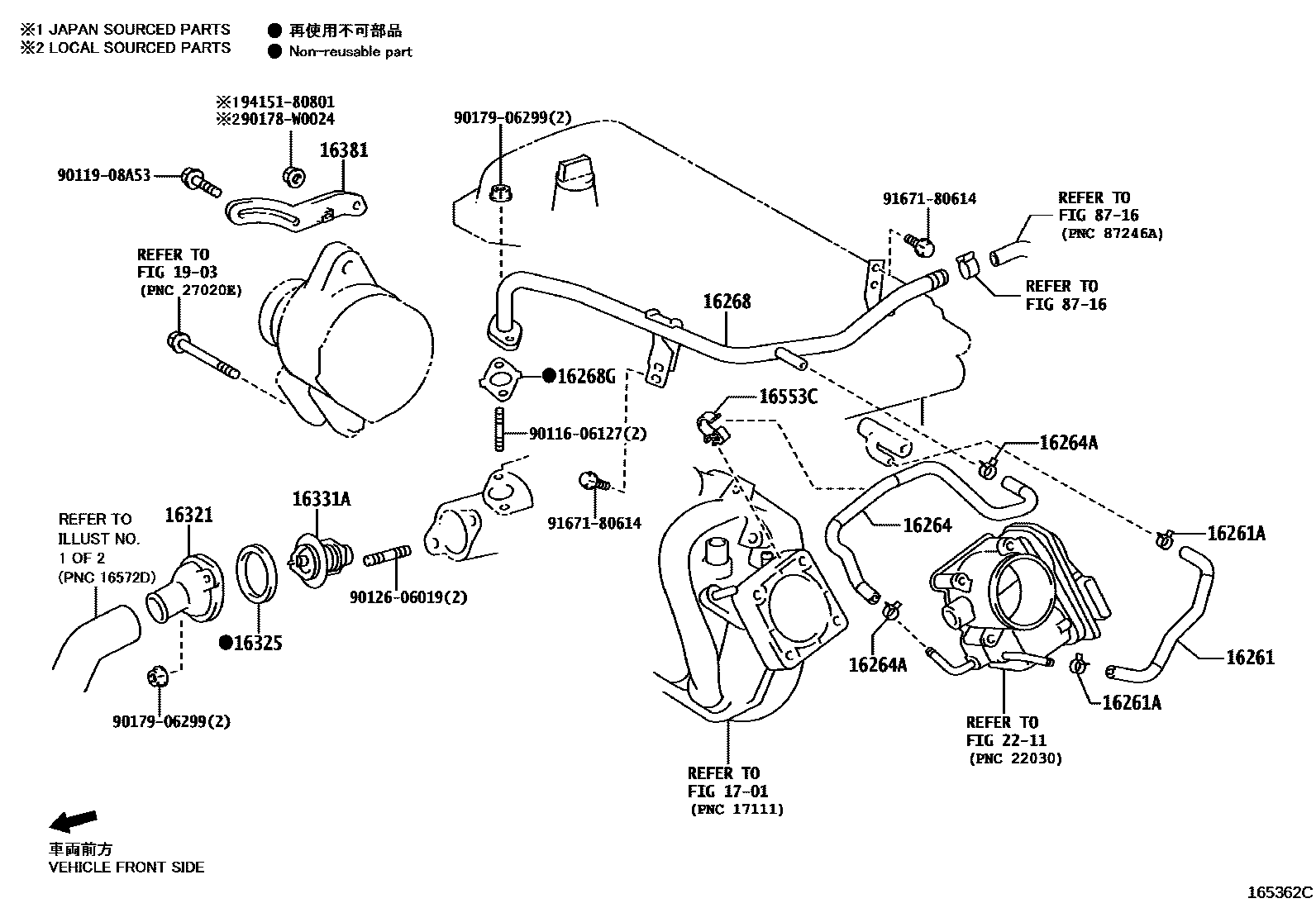

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-21090 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96136-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-21070 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96136-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-21022 |
| 16268G | Gasket (for water bypass pipe) | 16258-21021 |
| 16321 | water inlet | 16321-21020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 |
| 16331A | thermostat | 90916-03093 |
| 16361 | Fan | 16361-0M140 · 16361-21090 |
| 16363 | cooling fan motor | 16363-0G050 · 16363-0G051 · 16363-28160 |
| 16381 | Fan belt adjustment lever | 16381-21030 |
| 16400 | Radiator assembly | 16400-0M320 · 16400-0M330 · 16400-21270 · 16400-21300 |
| 16400B | Radiator drain switch screw plug | 16417-0Q040 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-21200 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-23030 |
| 16502 | Water injection port sub-assembly | 16502-21080 |
| 16520A | Water injection port cover sub-assembly | 16401-31520 · 16401-36020 |
| 16522 | Water injection port bracket | 16522-21010 |
| 16523A | Radiator bracket cushion | 16523-0Q020 |
| 16535 | Radiator lower support | 90480-W0005 |
| 16553C | hose clamp | 16581-21010 |
| 16571C | Radiator hose No. 1 | 16571-21120 |
| 16571D | No. 1 radiator hose clip | 90466-W0011 · 90467-33006 · 96136-43901 |
| 16572D | Radiator hose No. 2 | 16572-21090 |
| 16572E | No. 2 radiator hose clip | 90466-W0011 |
| 16573B | Radiator hose No. 3 | 16573-21060 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-W0011 |
| 16711 | fan cover | 16711-0M150 · 16711-21110 |
