Toyota YARIS Engine Oil Pump — Figure 1501

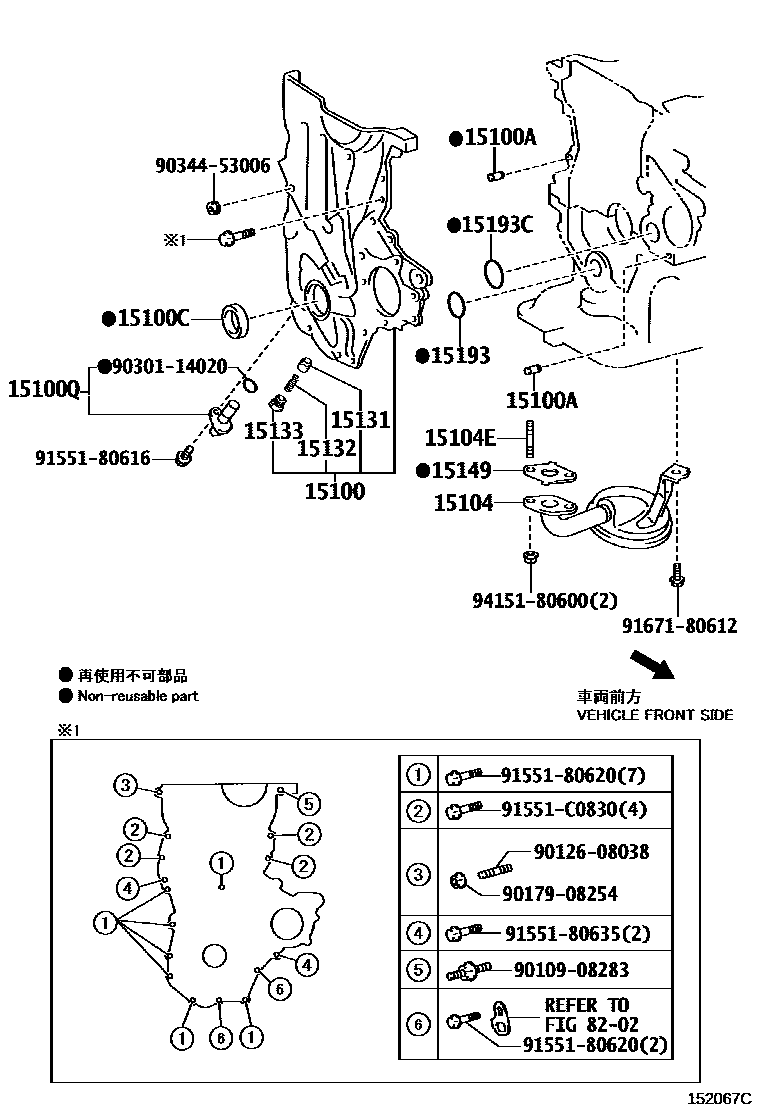

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 1 images and 12 PNC and OE references.

Toyota YARIS Engine Oil Pump EPC diagram — 152067C
Engine Oil Pump — 152067C (201305 – 999999)

PNC and OE references

PNCPart nameOE numbers
15100Oil pump assembly15100-21043
15100ARing pin (for oil pump assembly)90253-08003
15100CSeals (for oil pump)90311-25032 · 90311-25033
15100Qcrankshaft position sensor90919-05087
15104Oil filter sub-assembly15104-21022
15104EStud bolts (for oil filter)90126-06021
15131Oil pump pressure reducing valve15131-21020
15132Oil pump pressure reducing valve spring15132-21020
15133PLUG, OIL PUMP RELIEF VALVE15133-21030
15149Oil filter flange gasket16258-21030
15193oil pump gasket12151-21010
15193CNo. 2 oil pump gasket11497-21010
