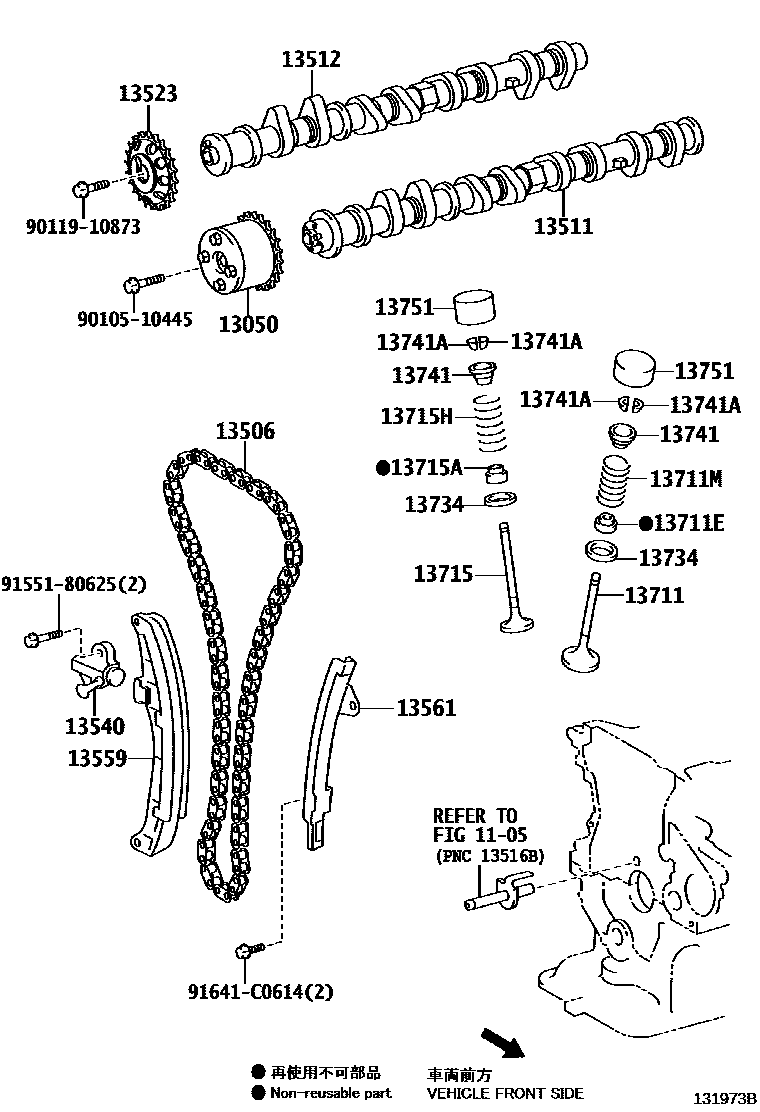

Toyota YARIS Camshaft & Valve — Figure 1302
Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-21041 |
| 13506 | Chain sub-assembly | 13506-21050 |
| 13511 | camshaft | 13501-21030 |
| 13512 | Camshaft No. 2 | 13502-21031 |
| 13523 | Camshaft timing gear or sprocket | 13523-22020 |
| 13540 | No. 1 chain tensioner assembly | 13540-21020 |
| 13559 | chain tensioner guide plate | 13559-21010 · 13559-21030 · 13559-21031 |
| 13561 | No. 1 chain shock absorber | 13561-21010 · 13561-21040 |
| 13711 | intake valve | 13711-21010 |
| 13711E | Intake valve stem oil seal | 90913-02093 |
| 13711M | RESSORT, COMPRESSION(POUR SOUPAPE ADMISSION) | 90501-27040 |
| 13715 | exhaust valve | 13715-21010 |
| 13715A | Exhaust valve stem oil seal | 90913-02092 · 90913-02128 |
| 13715H | RESSORT, COMPRESSION(POUR SOUPAPE ECHAPPEMENT) | 90501-27040 |
| 13734 | Valve spring seat | 13734-74010 |
| 13741 | Valve spring seat ring | 13741-22021 |
| 13741A | Valve spring seat lock plate | 90913-03031 |
| 13751 | valve lifter | 13751-21020 · 13751-21030 · 13751-21040 · 13751-21050 · 13751-21060 · 13751-21070 · 13751-21080 · 13751-21090 · 13751-21100 · 13751-21110 · 13751-21120 · 13751-21130 · 13751-21140 · 13751-21150 · 13751-21160 · 13751-21170 · 13751-21180 · 13751-21190 · 13751-21200 · 13751-21210 · 13751-21220 · 13751-21230 · 13751-21240 · 13751-21250 · 13751-21260 · 13751-21270 · 13751-21280 · 13751-21290 · 13751-21300 · 13751-21310 · 13751-21320 · 13751-21330 · 13751-21340 · 13751-21350 · 13751-21360 |
