Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715

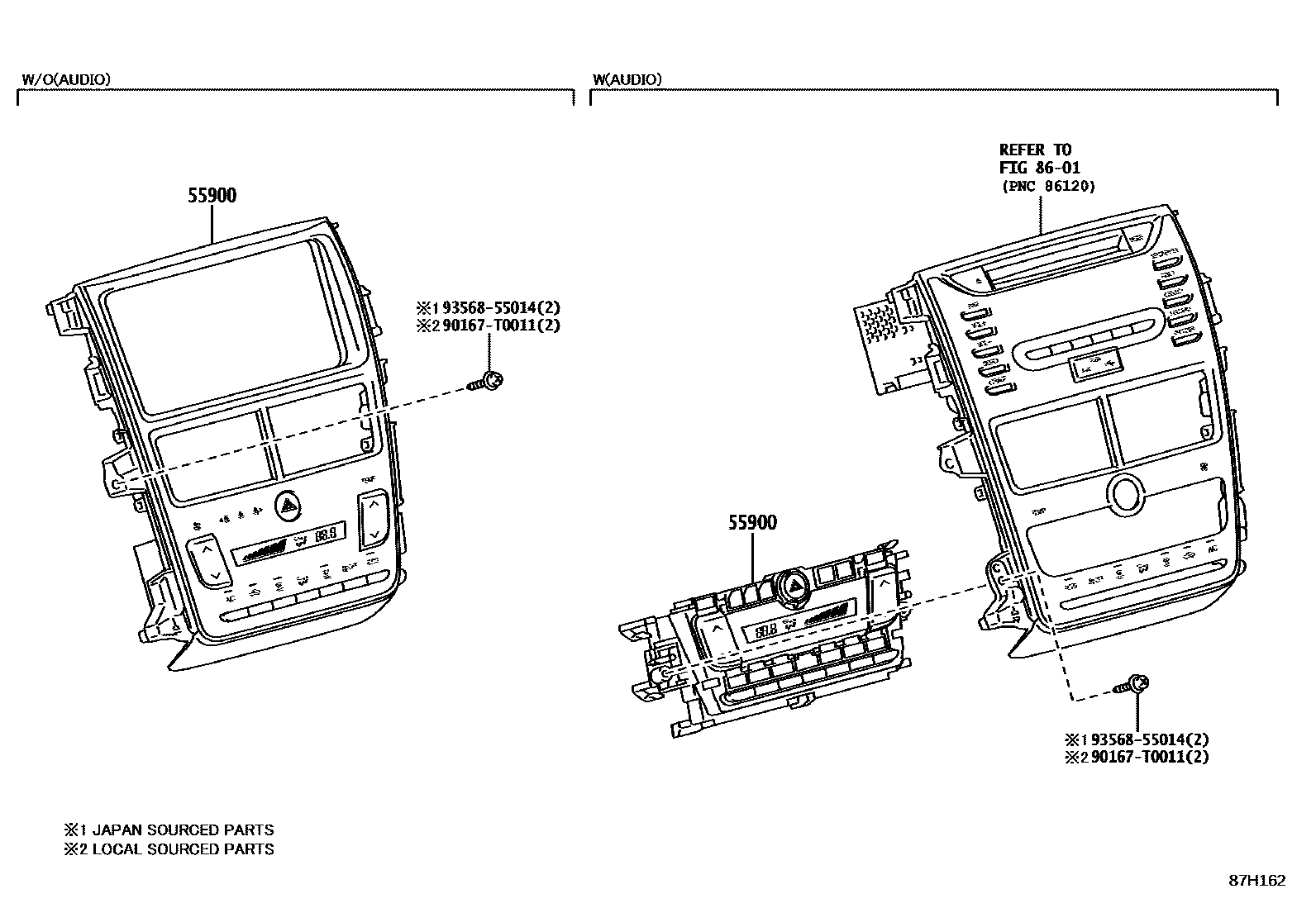

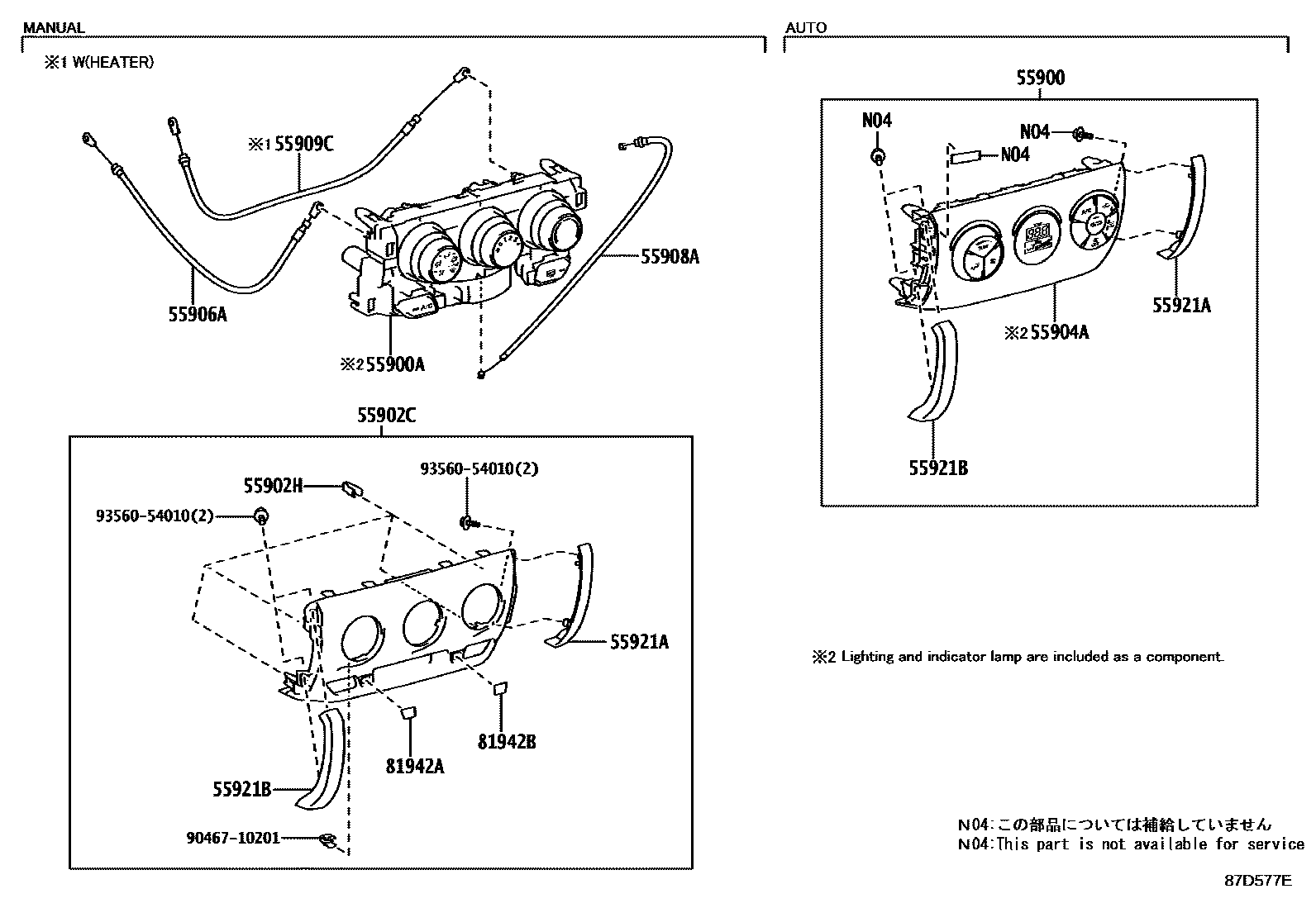

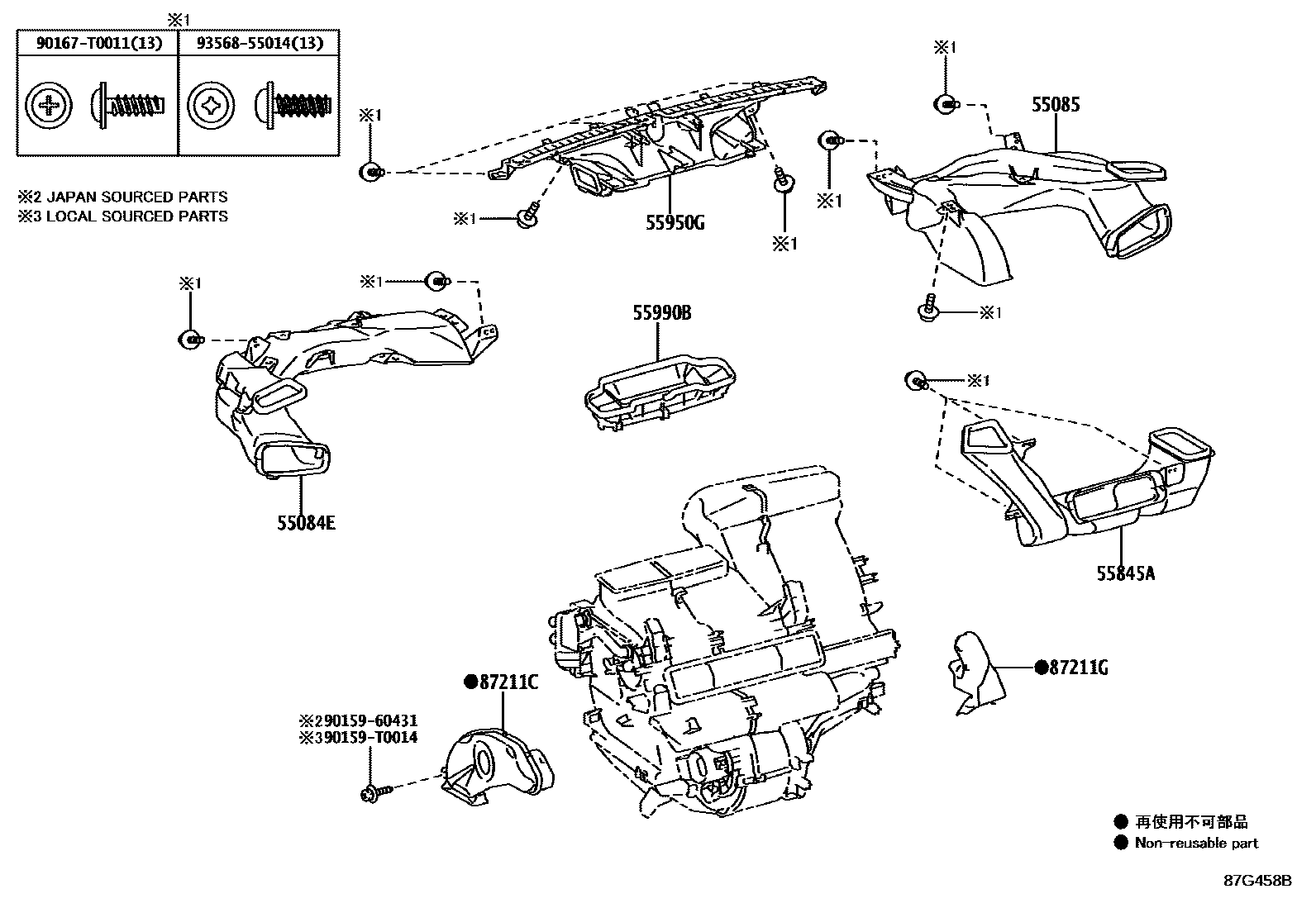

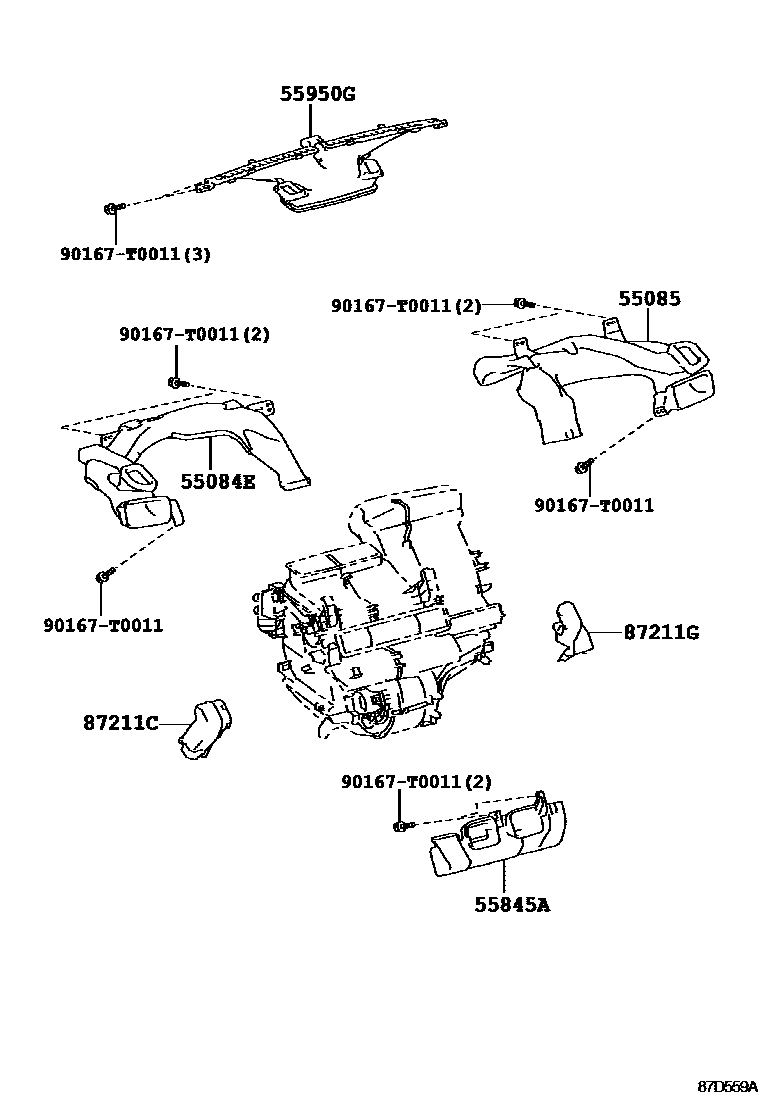

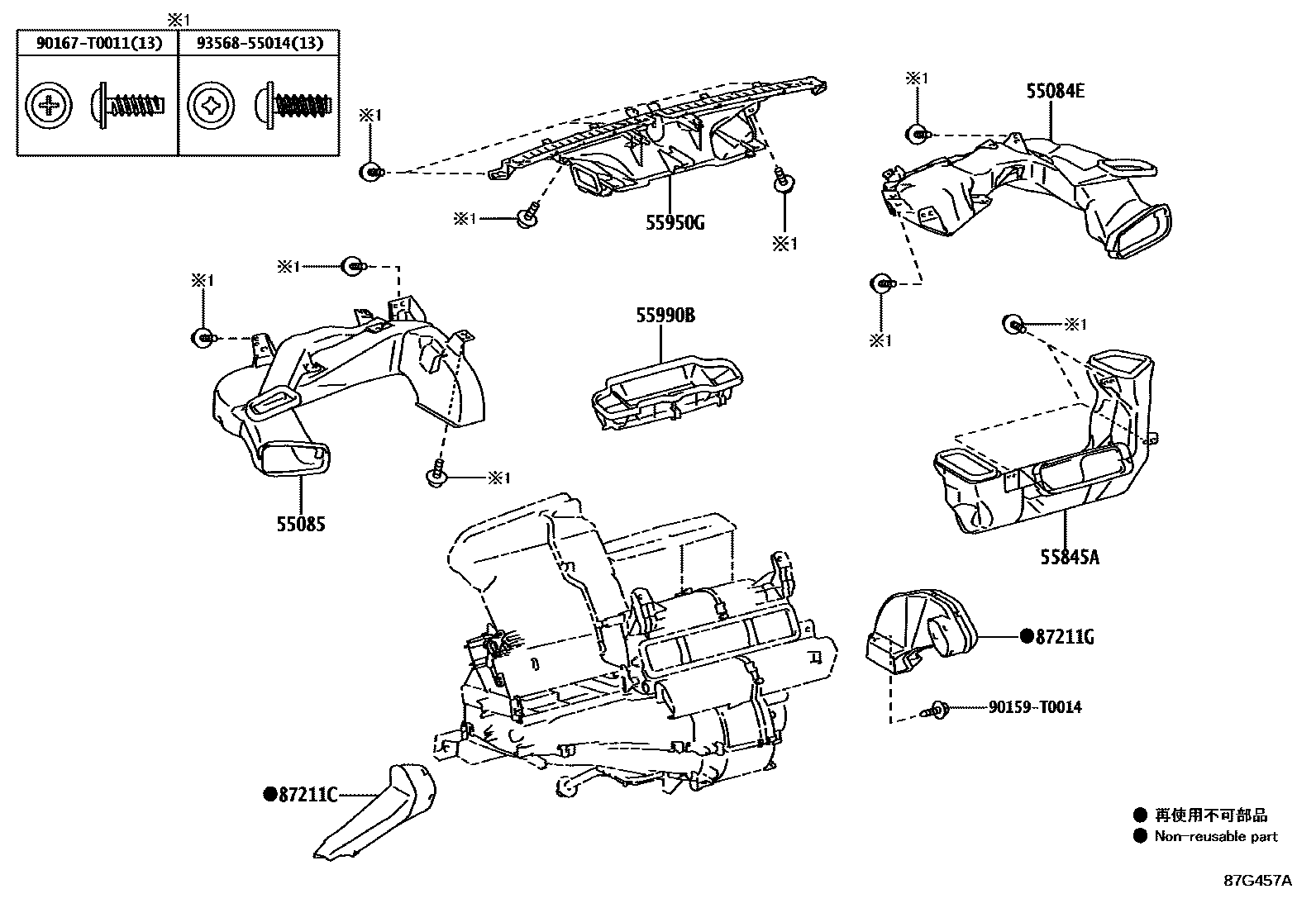

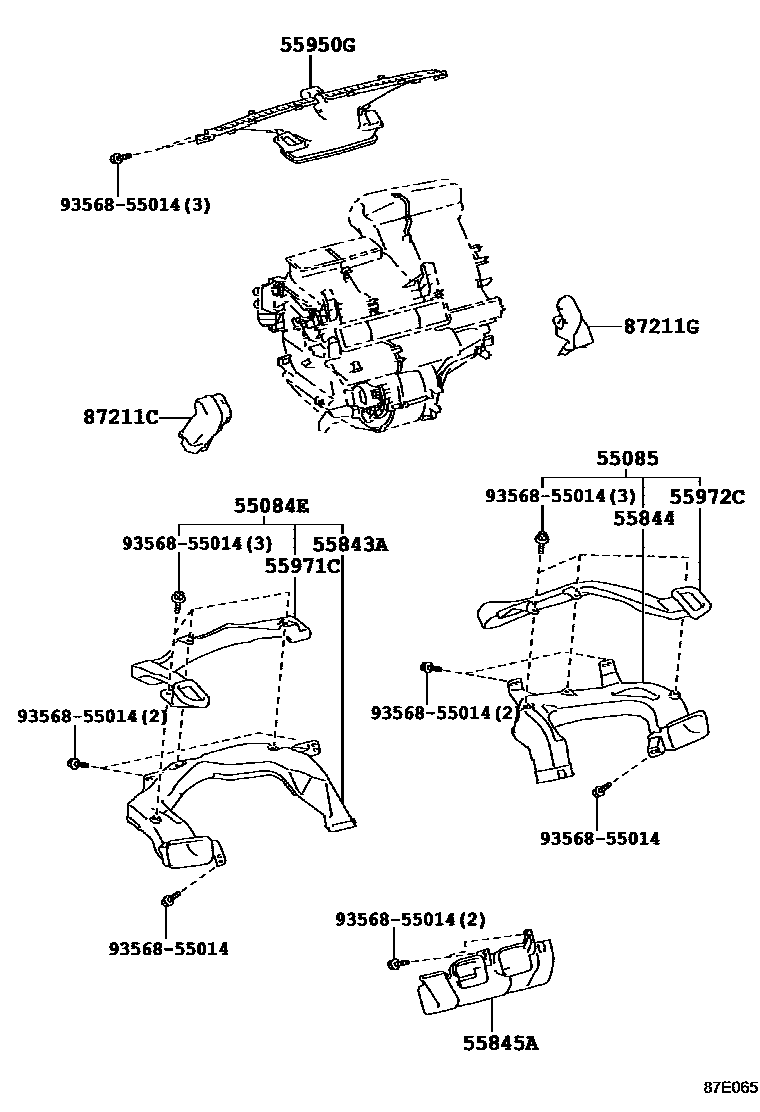

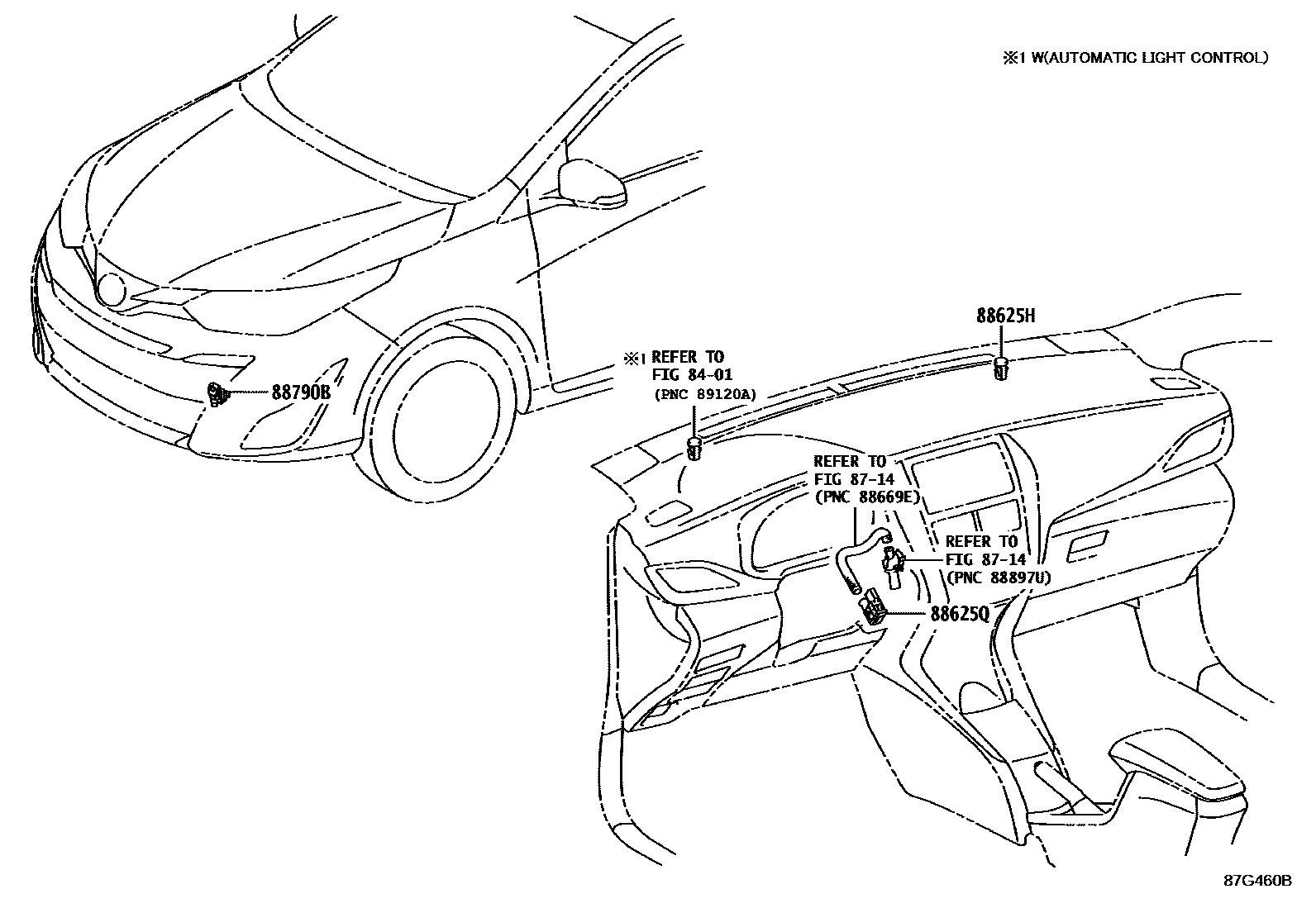

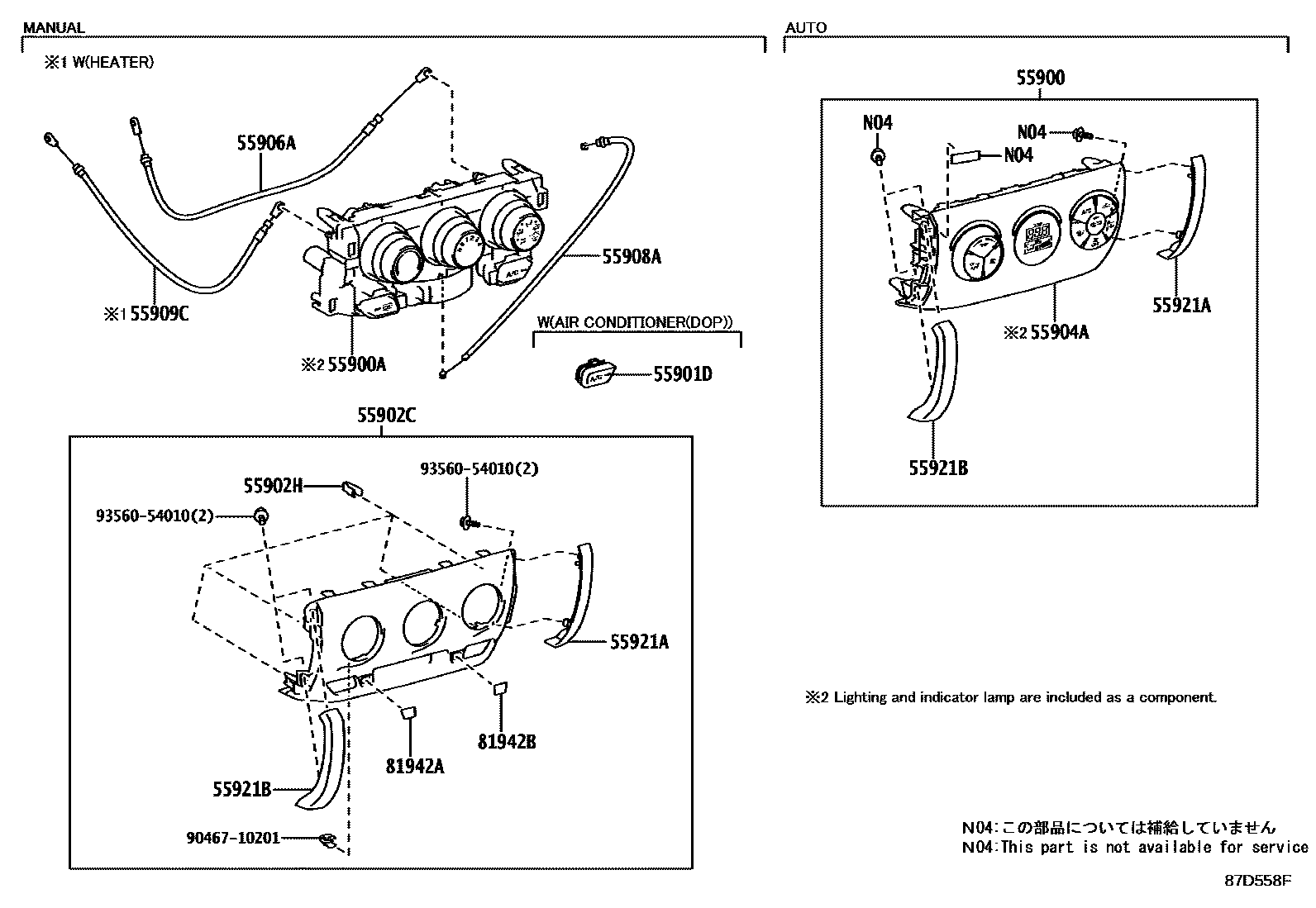

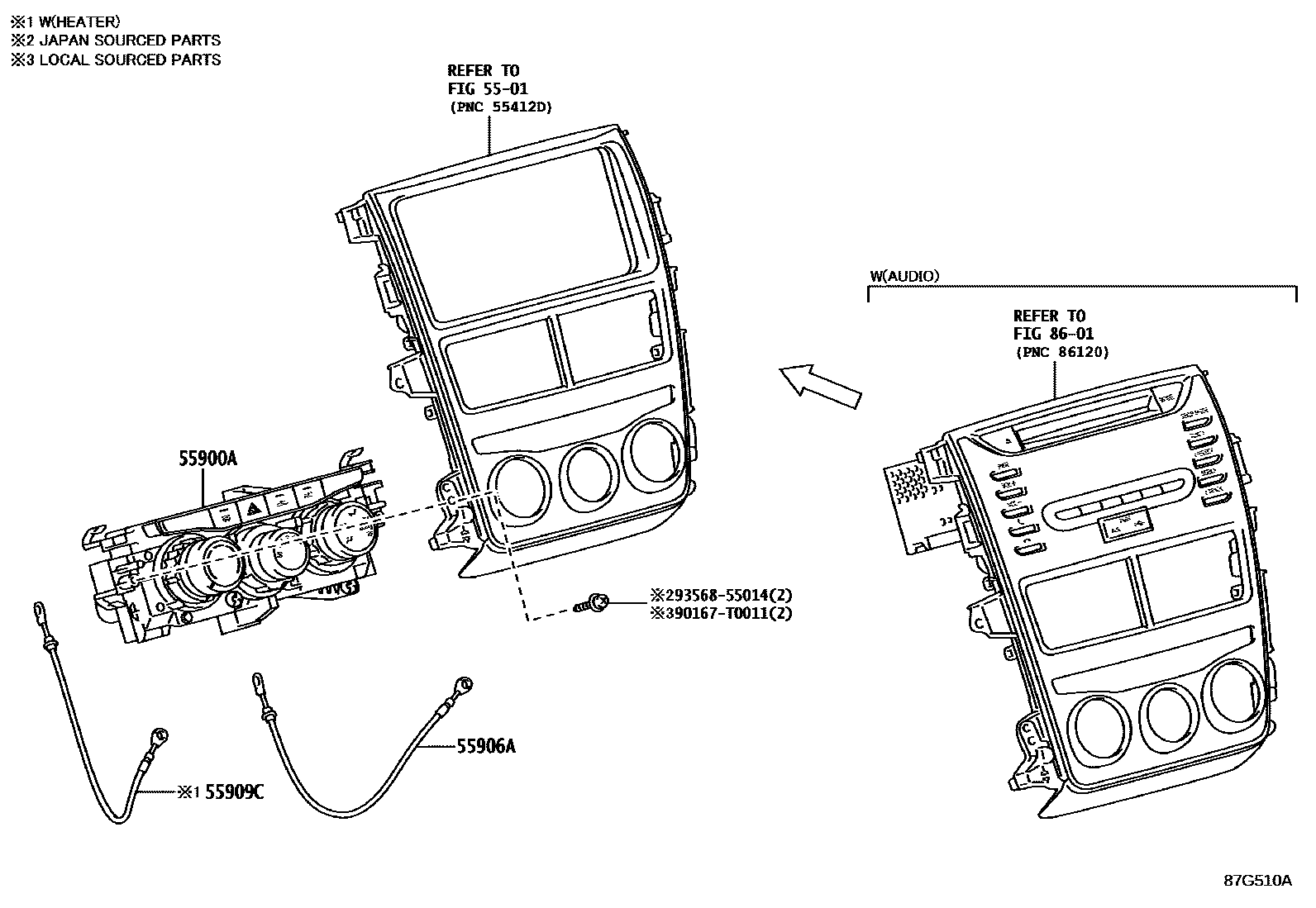

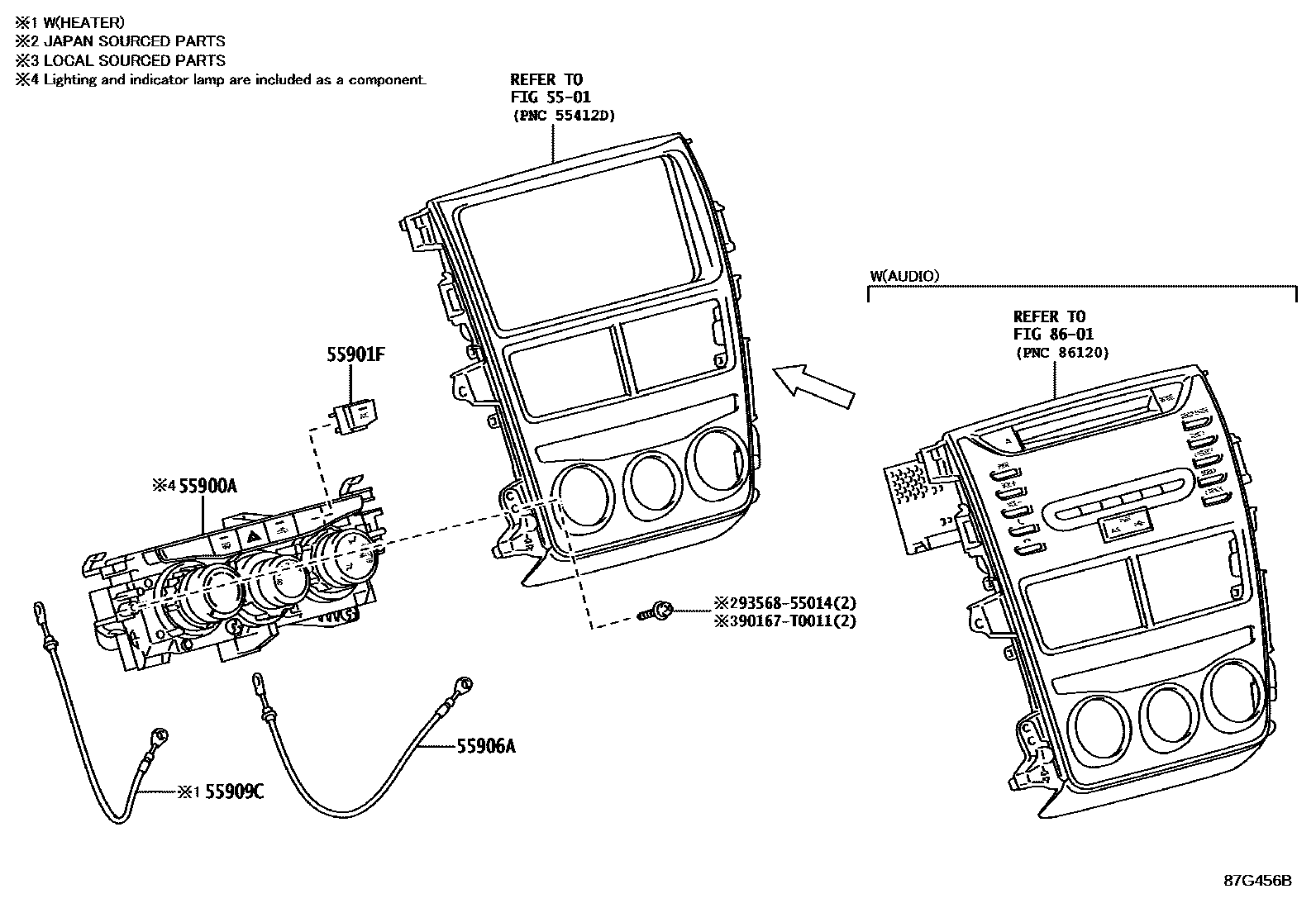

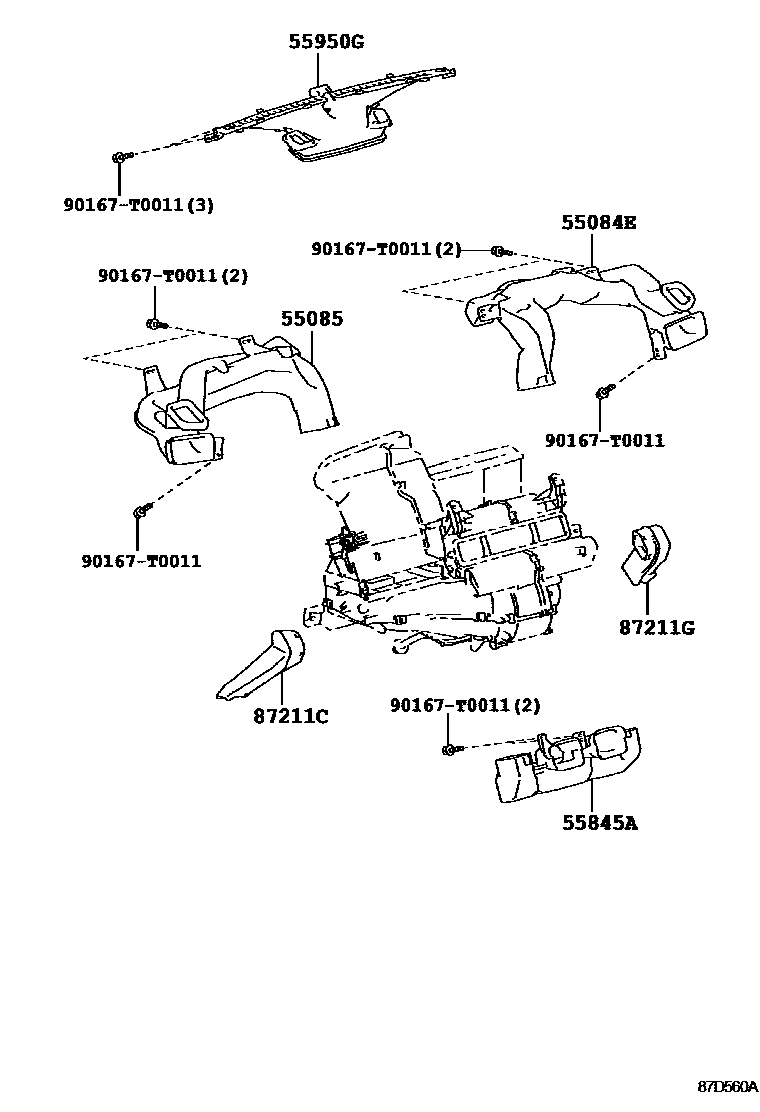

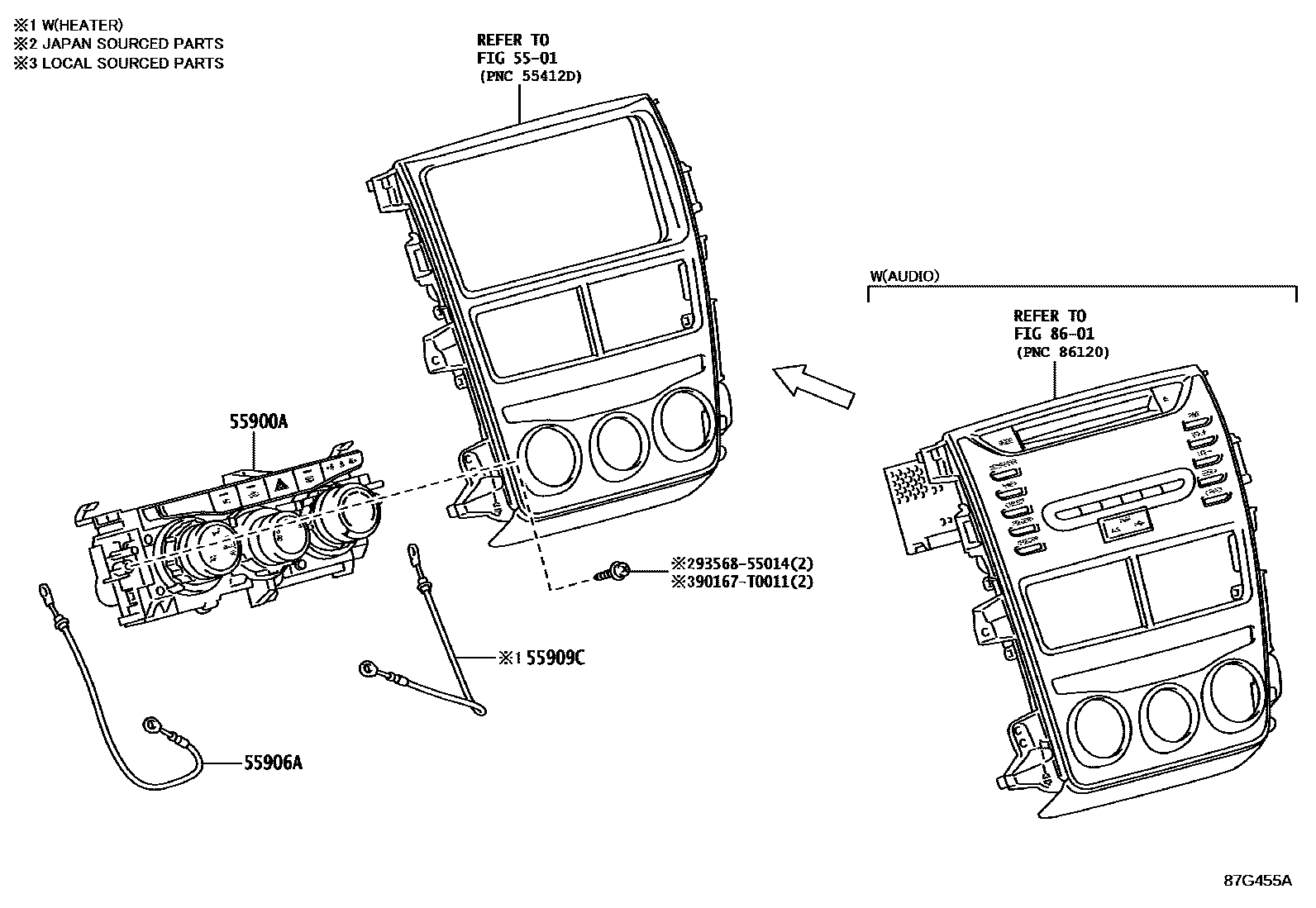

Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 15 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-0D070 · 55084-0D071 · 55084-0D120 · 55084-0D190 · 55084-0D200 · 55084-0D210 · 55084-0D230 · 55084-0D250 · 55084-0D270 · 55084-0D280 · 55085-0D050 · 55085-0D110 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55084-0D080 · 55084-0D140 · 55085-0D040 · 55085-0D041 · 55085-0D090 · 55085-0D140 · 55085-0D150 · 55085-0D160 · 55085-0D180 · 55085-0D200 · 55085-0D220 · 55085-0D230 |
| 55843A | Air duct No. 1 from heater to air register | 55843-0D170 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-0D280 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-0D130 · 55845-0D131 · 55845-0D140 · 55845-0D180 · 55845-0D200 · 55870-0D020 · 55870-0D030 · 55870-0D040 · 55870-0D050 · 55870-0D080 · 55870-0D100 · 55870-0D110 |
| 55900 | Air conditioning control assembly | 55900-0D490 · 55900-0D500 · 55900-0DD70 · 55900-0DD80 · 55900-0DD81 · 55900-0DD90 · 55900-0DF00 · 55900-0DF30 · 55900-0DF40 · 55900-0DF50 · 55900-0DF70 · 55900-0DF90 · 55900-0DJ20 |
| 55900A | Heater control and accessory assembly | 55900-0D630 · 55900-0D650 · 55900-0D660 · 55900-0D700 · 55900-0D710 · 55900-0D720 · 55900-0D740 · 55900-0D750 · 55900-0DA20 · 55900-0DA50 · 55900-0DA60 · 55900-0DA70 · 55900-0DB00 · 55900-0DB20 · 55900-0DB70 · 55900-0DC30 · 55900-0DE30 · 55900-0DF80 · 55900-0DG30 · 55900-0DG50 · 55900-0DG60 · 55900-0DG80 · 55900-0DJ00 · 55900-0DJ60 |
| 55901D | No. 1 heater control sub-assembly | 55901-0D200 |
| 55901F | BOUTON, COMMANDE DE CLIMATISATION | 55901-0D410 |
| 55902C | Air conditioning panel sub-assembly | 55902-0D250 · 55902-0D280 · 55902-0D300 |
| 55902H | ATTACHE(POUR PANNEAU CLIMATISATION) | 90467-10203 |
| 55904A | Heater control housing sub-assembly | 55904-0D040 · 55904-0D050 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0D120 · 55906-0D130 · 55906-0D180 · 55906-0D190 · 55906-0D231 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0D140 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0D090 · 55909-0D110 · 55909-0D120 · 55909-0D170 · 55909-0D201 |
| 55921A | Heater Controller Fixing | 55902-0D680 · 55921-0D020 · 55921-0D040 · 55921-0D060 |
| 55921B | Heater Controller Fixing | 55902-0D670 · 55922-0D020 · 55922-0D040 · 55922-0D060 |
| 55950G | Defroster nozzle assembly | 55950-0D180 · 55950-0D210 · 55950-0D220 · 55950-0D270 · 55950-0D280 · 55950-0D290 · 55950-0D300 · 55950-0D320 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-0D090 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-0D090 |
| 55990B | Lower defroster nozzle assembly | 55990-0D030 · 55990-0D040 · 55990-0D060 · 55990-0D080 · 55990-0D090 · 55990-0D100 |
| 81942A | Heater No. 1 control nameplate | 81942-0D610 · 81942-0D670 · 81942-0D750 |
| 81942B | Heater No. 2 control nameplate | 81942-0D620 · 81942-0D680 · 81942-0D760 |
| 87211C | No. 4 air duct | 87211-0D300 · 87211-0D310 · 87211-0D350 · 87211-0D380 · 87211-0D420 · 87211-0D530 · 87211-0D560 · 87211-0D610 |
| 87211G | No. 5 air duct | 87211-0D290 · 87211-0D320 · 87211-0D360 · 87211-0D410 · 87211-0D540 · 87211-0D550 · 87211-0D590 · 87211-0D620 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-52130 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-0K010 · 88790-22131 · 88790-28100 |
