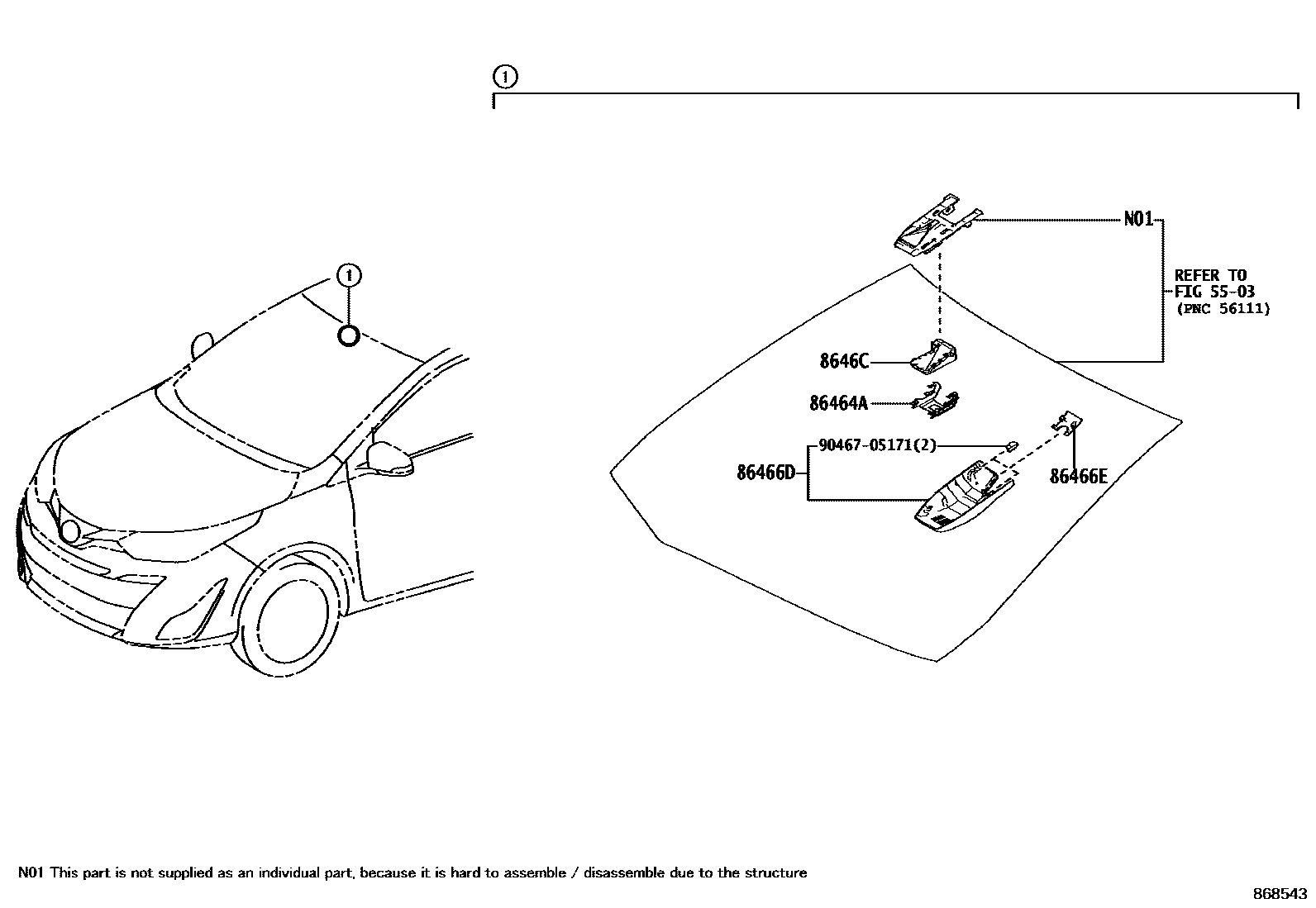

Toyota YARIS 预碰撞安全系统 — Figure 8617
Toyota YARIS EPC diagram 8617, 预碰撞安全系统, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86464A | VERROU, RECONNAISSANCE AVANT | 86464-71010 |
| 86466D | CACHE, RECONNAISSANCE AVANT, NO.1 | 86466-0D010 |
| 86466E | CACHE, RECONNAISSANCE AVANT, NO.2 | 86467-0D010 |
| 8646C | CAMERA, RECONNAISSANCE AVANT | 8646C-0D020 |
