Toyota YARIS 喇叭 — Figure 8611

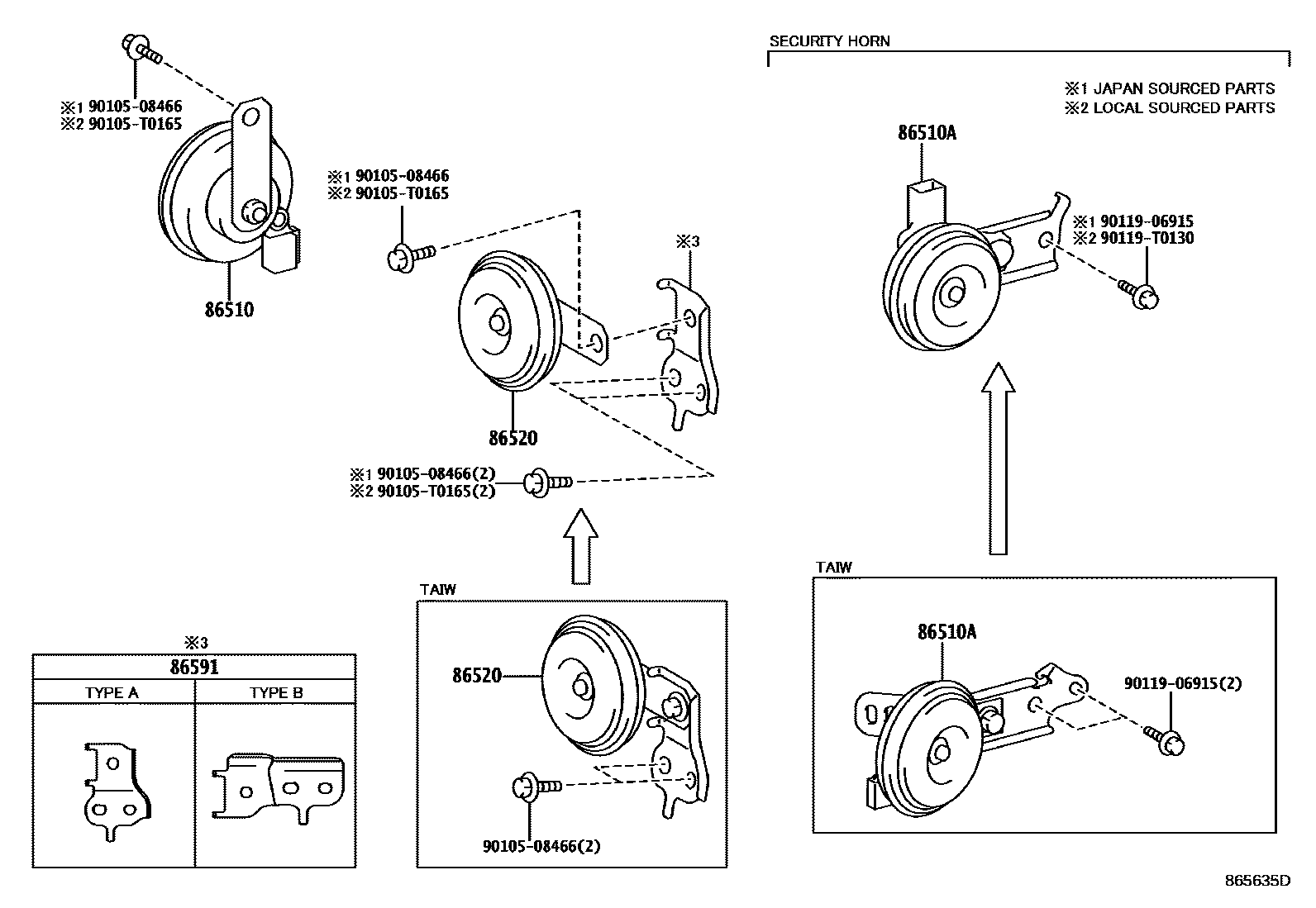

Toyota YARIS EPC diagram 8611, 喇叭, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86500-0K030 · 86510-0K010 · 86510-47040 |
| 86510A | Alarm horn assembly | 86560-0D030 · 86560-0D060 · 86560-0D061 · 86560-52090 |
| 86520 | Subwoofer assembly | 86500-0D030 · 86520-0D110 · 86520-0D160 · 86520-0D180 · 86520-0D210 · 86520-52210 |
| 86591 | speaker bracket | 86591-0D030 · 86591-0D060 · 86591-0D080 · 86591-0D150 |
