Toyota YARIS 扬声器 — Figure 8602

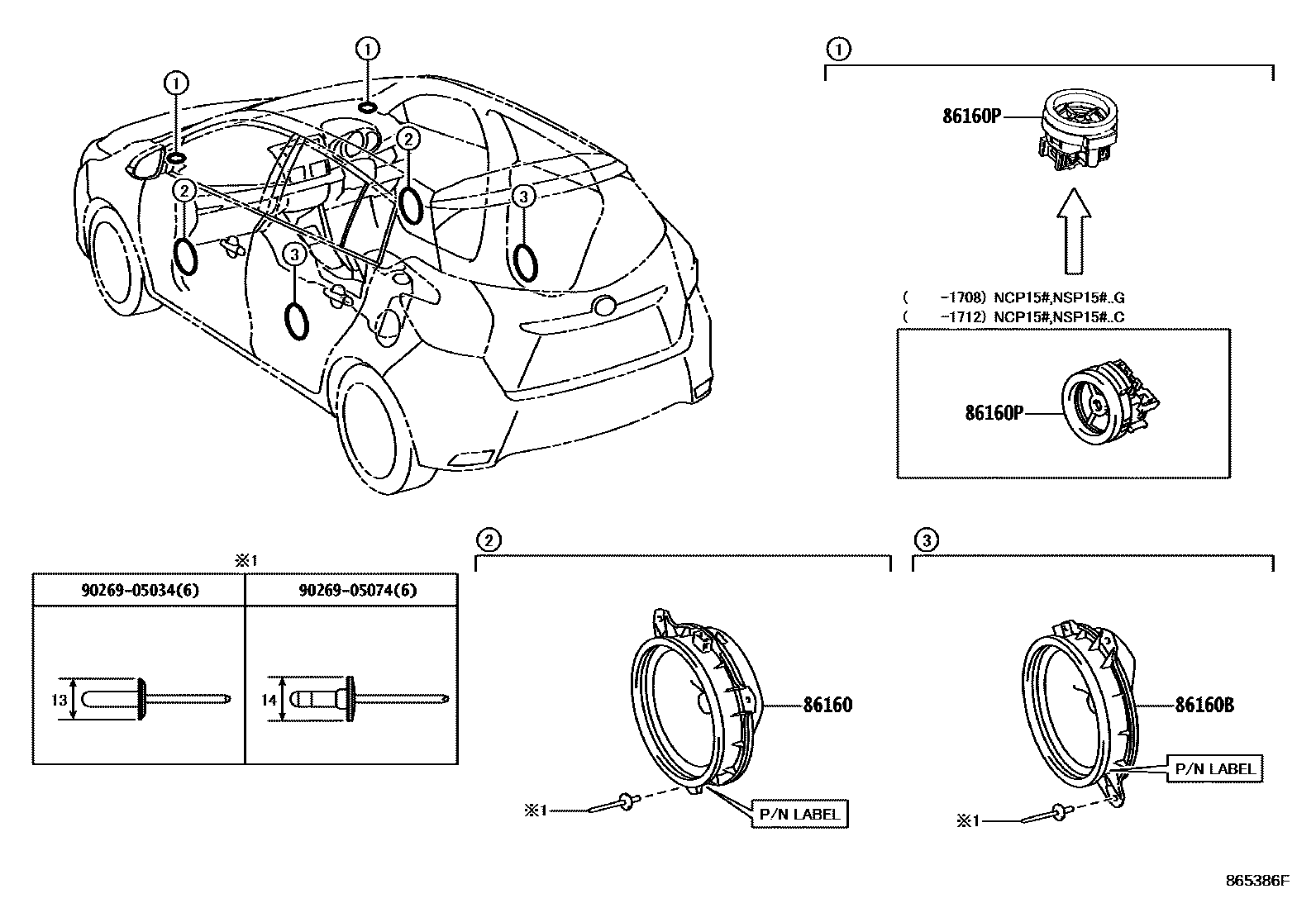

Toyota YARIS EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-02750 · 86160-02B00 · 86160-02C70 · 86160-02D30 · 86160-0D400 · 86160-0K300 · 86160-0K350 · 86160-0K510 |
| 86160B | Rear speaker assembly | 86160-02750 · 86160-02B00 · 86160-02C70 · 86160-02D30 · 86160-0D400 · 86160-0K300 · 86160-0K350 · 86160-0K510 |
| 86160P | No. 2 front speaker assembly | 86160-0D420 · 86160-0K270 · 86160-0K280 · 86160-0K290 |
