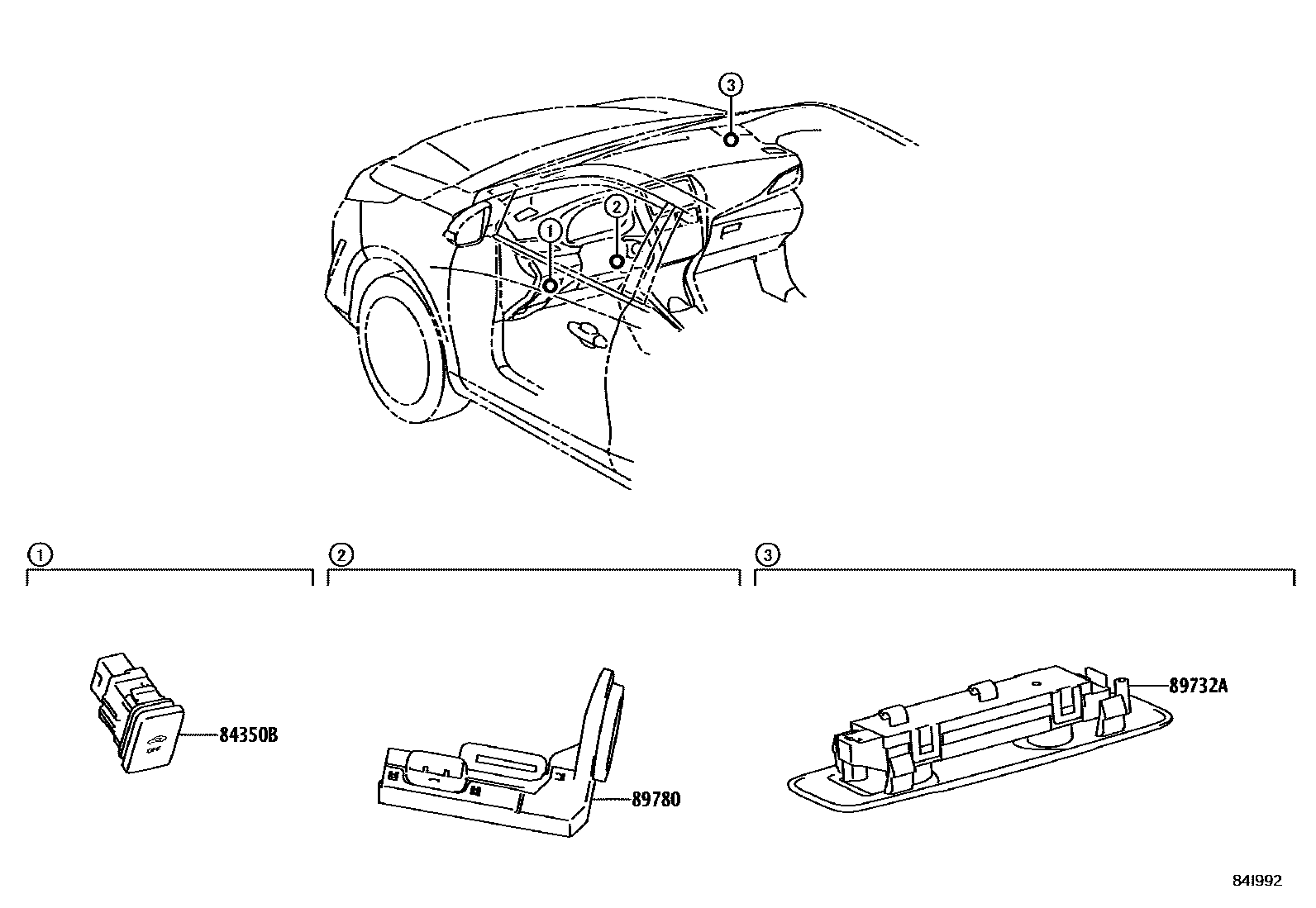

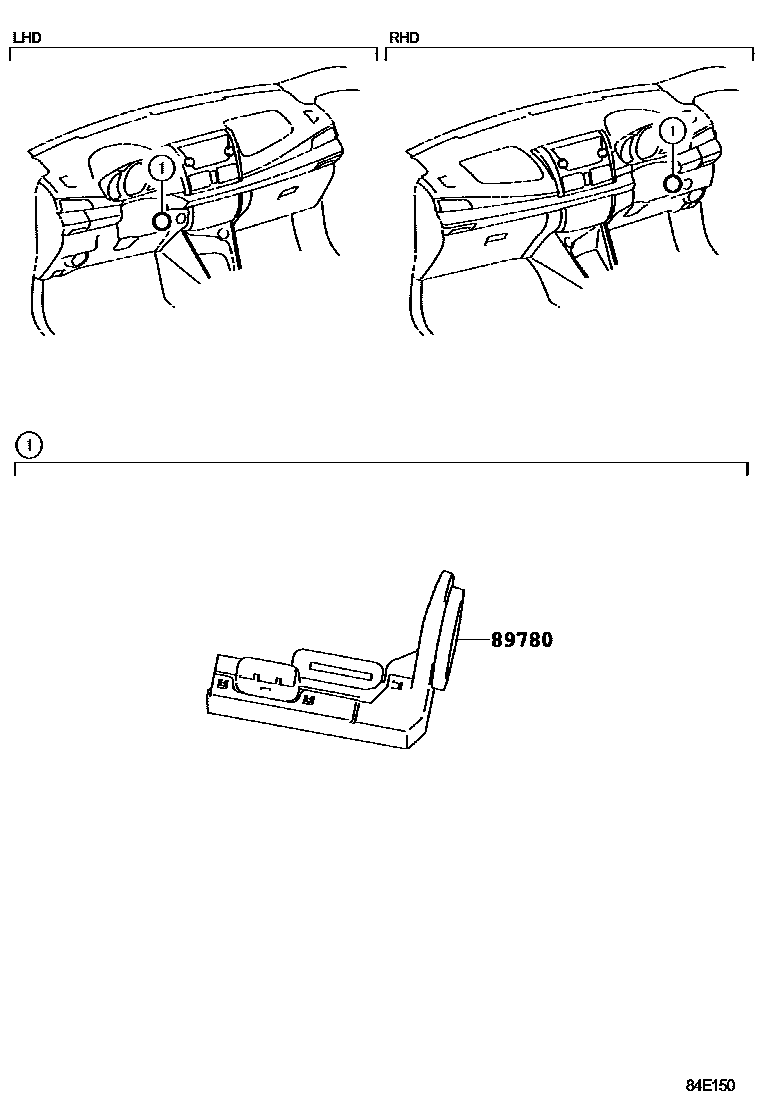

Toyota YARIS 防盗装置 — Figure 8424
Toyota YARIS EPC diagram 8424, 防盗装置, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84350B | Anti-theft warning sensor switch assembly | 84350-0D010 |
| 89780 | Transceiver key ECU assembly | 89780-0D090 · 89780-0D091 · 89780-0D120 · 89780-0D121 · 89780-0D122 · 89780-0D210 · 89780-0D211 |
| 89784 | Shutdown code system ECU | 89784-52040 |
| 89788 | transceiver key holder | 89788-0D010 |
