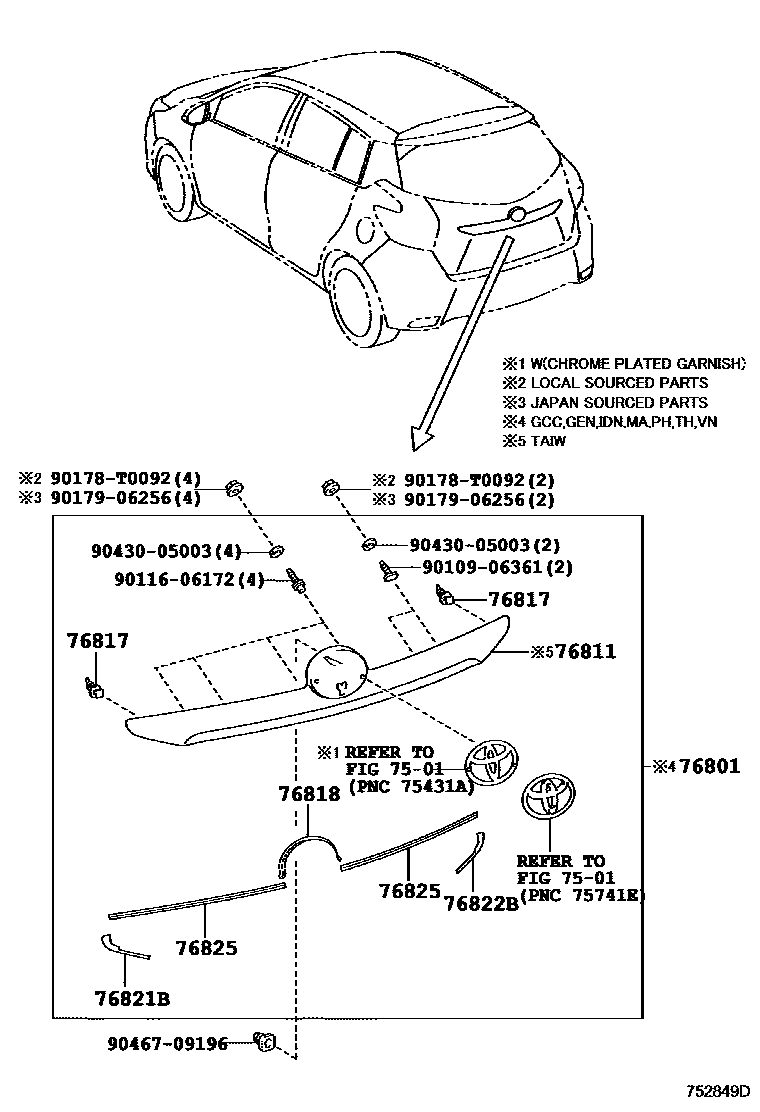

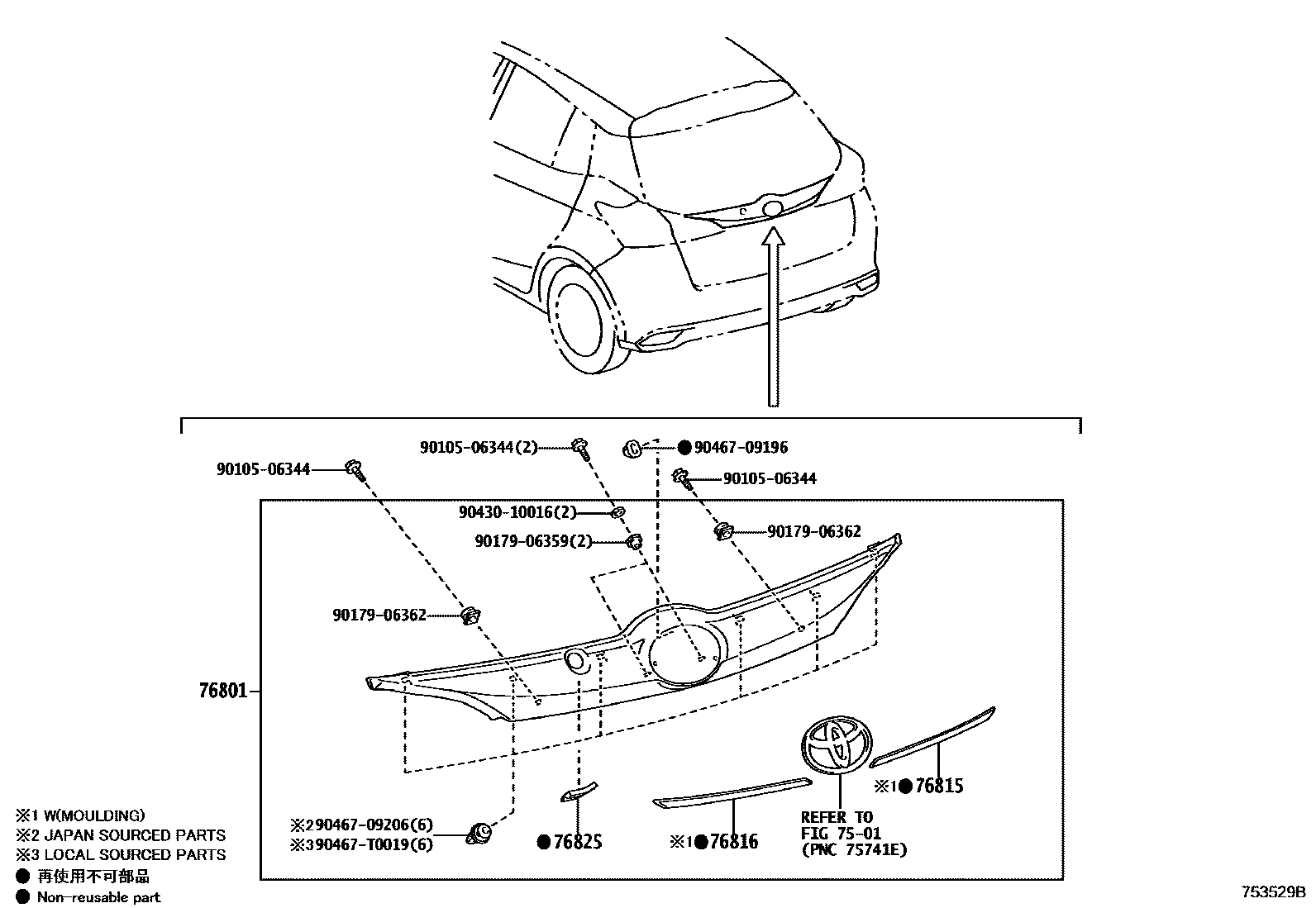

Toyota YARIS 后防护条 — Figure 7504
Toyota YARIS EPC diagram 7504, 后防护条, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-0D390 · 76801-0D410 · 76801-0D420 · 76801-0D520 · 76801-0D530 · 76801-0DA40 · 76801-0DA41 · 76801-0DA60 · 76801-0DA70 · 76801-0DA80 · 76801-0DB40 · 76801-0DB41 · 76801-0DB50 · 76801-0DB60 · 76801-0DB70 |
| 76811 | Rear door exterior decorative strip | 76811-0D400 · 76811-0D430 |
| 76815 | Lower right decorative strip outside the back door | 76815-0D010 · 76815-0D020 · 76815-0D040 |
| 76816 | Lower left decorative strip outside the back door | 76816-0D010 · 76816-0D020 · 76816-0D040 |
| 76817 | Rear door exterior decorative strip clip | 76817-07010 |
| 76818 | Rear door outer trim strip lining | 76818-0D010 · 76818-0D020 · 76818-0D070 |
| 76821B | Rear door right side decorative strip protective cover | 76821-0D170 · 76821-0D180 · 76821-0D230 |
| 76822B | Rear door left side decorative strip protective cover | 76822-0D060 · 76822-0D070 · 76822-0D110 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-0D080 · 76825-0D090 · 76825-0D120 · 76825-0D130 · 76825-0D260 · 76825-0D270 · 76825-0D280 |
